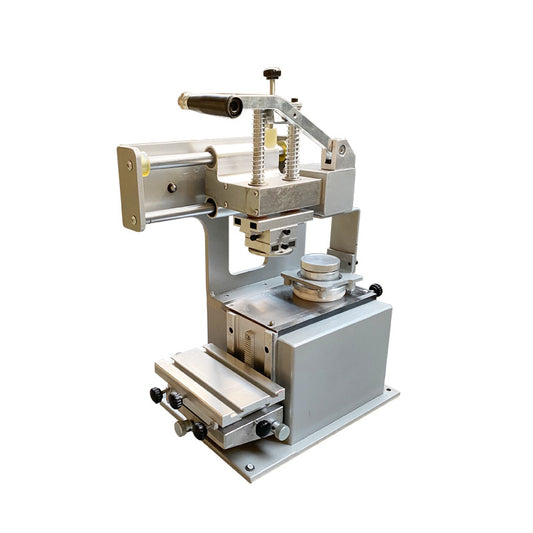

Pad Printing Machine (Closed Ink Cup Pad Printer)

About Pad Printing Machine (Closed Ink Cup Pad Printer)

A pad printing machine (tampography) transfers ink from an etched cliche onto a silicone pad and then onto the product, decorating flat, curved, cylindrical and irregular 3D surfaces that screen or digital printing cannot reach. Closed ink cup systems meter ink with a ceramic-ring cup for clean, low-solvent operation, and machines range from single-color bench units to multi-color servo lines for up to 8 colors. They mark plastics, metals, glass, ceramics, medical devices, electronics and automotive components.

How to Choose

  • Number of colors - single-color for simple marks, multi-head (4 to 8 color) servo lines for logos and halftone graphics.
  • Ink cup system - closed ink cup (cleaner, less solvent) versus open tray; confirm cup diameter fits your image size.
  • Part geometry - ensure fixtures and silicone pad shape (cone or round) suit flat, cylindrical or contoured surfaces.
  • Substrate and ink - match solvent, UV or pad ink to plastic, metal, glass, ceramic or silicone.
  • Automation level - manual bench, semi-auto with fixtures, or inline robotic integration for volume.

FAQ

Q: What surfaces can a pad printing machine print on?
A: Pad printing decorates flat, cylindrical, convex, concave and irregular 3D parts made of plastic, metal, glass, ceramic, silicone and rubber.

Q: What is the difference between open tray and closed ink cup pad printers?
A: Closed ink cup printers seal ink from air with a ceramic ring, reducing solvent evaporation and ink waste (around 50 percent savings), while open trays are simpler but less clean.

Q: How many colors can a pad printer apply?
A: Single-color machines print one color per cycle; multi-station rotary or linear pad printers can register 4 to 8 colors on the same part.

Q: Do pad printers need an air compressor?
A: Most pneumatic pad printers require a compressed air supply (commonly 5 to 6 bar); some electric or servo models reduce or eliminate this need.
