CECLE Machine

YYD-125 Desktop Pad Printing Machine for Promotional Gifts

$2,499.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model YYD-125-100T

Voltage 110V 220V

Shipping Method By sea to door(About 40-55 days) By express(About 7-12 days)

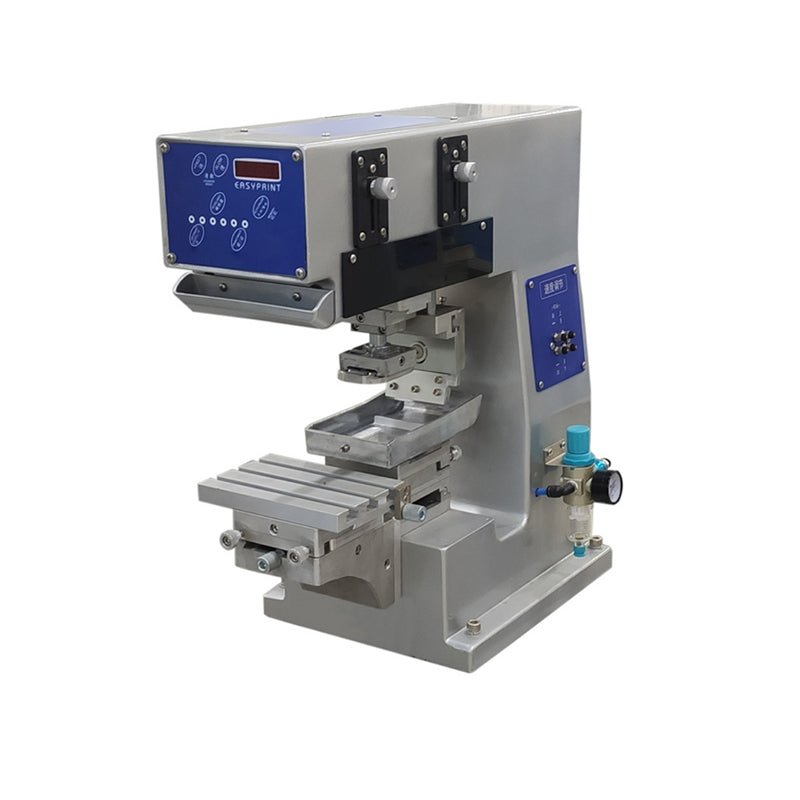

Quick Answer: The CECLE YYD-125-100T is a compact desktop single-head, single-color open inkwell pad printing machine engineered for logo, text, and graphic printing on small components.

CECLE YYD-125 vs. Traditional / Generic Alternative

Where the CECLE YYD-125 stands out against manual or generic desktop pad printing machines — measured on the dimensions buyers care about most.

Chassis Rigidity & Vibration Resistance

CECLE YYD-125One-Piece Cast-Aluminum Body : The machine frame is cast from high-grade aluminum, delivering exceptional anti-vibration stability, ultra-low running noise, and zero chassis deformation during prolonged.

Lightweight Sheet Metal (<30 kg)Prone to chassis flex, frame warping over time, and seal leakage.

Adaptability & Changeover

CECLE YYD-125Open Inkwell Ink Supply : Uses an independent open inkwell plus doctor blade for ink supply — an extremely simple structure that is easy to disassemble and clean, with quick color changes. It adapts to a wide.

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Pressure Consistency

CECLE YYD-125Stable 5–6 bar Air Pressure: Pneumatic or servo-controlled force stays consistent across batches.

Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.

Output Speed & Throughput

CECLE YYD-125Rated 800 pcs/hr Max Printing Speed: Built for steady commercial output with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Technical Specifications

Items	Specifications
Model	YYD-125-100T
Voltage	110V/220V
Print Color	Single Color
Max Printing Area	70×70 mm / 2.76×2.76"
Max Steel Plate Size	100×100 mm / 3.94×3.94"
Max Printing Speed	800 pcs/hr
Air Pressure	5–6 bar
Ink Supply	Open Inkwell

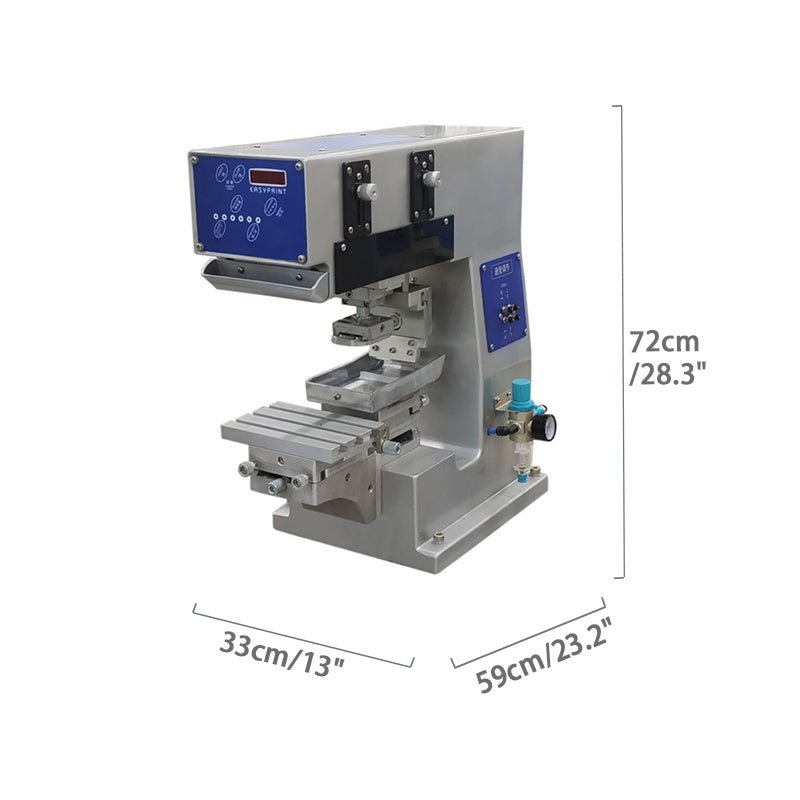

Packaging Dimension	590×330×720 mm / 23.2×13.0×28.3"
Weight	45 KG / 99.2 lbs

Pre-installation requirements: Voltage: 110V/220V; Air Pressure: 5–6 bar; Packaging Dimension: 590×330×720 mm / 23.2×13.0×28.3"; Net Weight: 45 KG / 99.2 lbs. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Desktop Pad Printing Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Air Supply Connection : Connect 5–6 bar compressed air, check for leaks, then power on
Steel Plate &amp
Rubber Head Installation : Load the etched steel plate into the open inkwell base, mount the pad printing rubber head, and pour a proper amount of mixed ink into the open inkwell

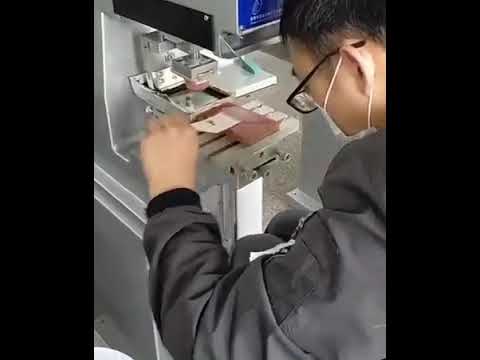

Trial Printing &amp
Adjustment : Place a sample substrate, press the foot pedal or the control-panel start button to test print, and fine-tune the print-head position according to pattern sharpness
Mass Production : After adjustment, start formal printing
the digital counter automatically accumulates the print count for easy production management

Engineering FAQ

Can this machine use 110V voltage in the United States?
A: Yes. We provide both 110V (North American standard) and 220V (European/Asian standard) versions, factory-preset to the customer's destination voltage, and equipped with power plugs that comply with local standards.

Is an air compressor required? What is the air pressure requirement?
A: Yes, the machine needs to be connected to an air compressor — you can prepare your own or purchase one from us. The required air pressure is 5–6 bar .

What power supply does the YYD-125 require?
A: The YYD-125 runs on 110V/220V Voltage. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the YYD-125?
A: Beyond the rated 110V/220V Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the YYD-125 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the YYD-125 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
