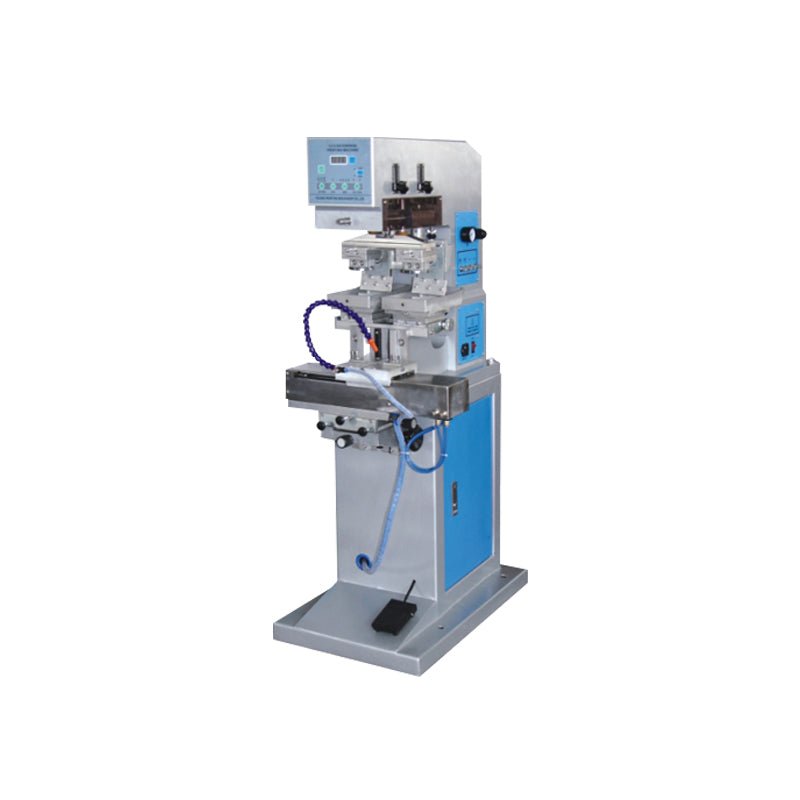

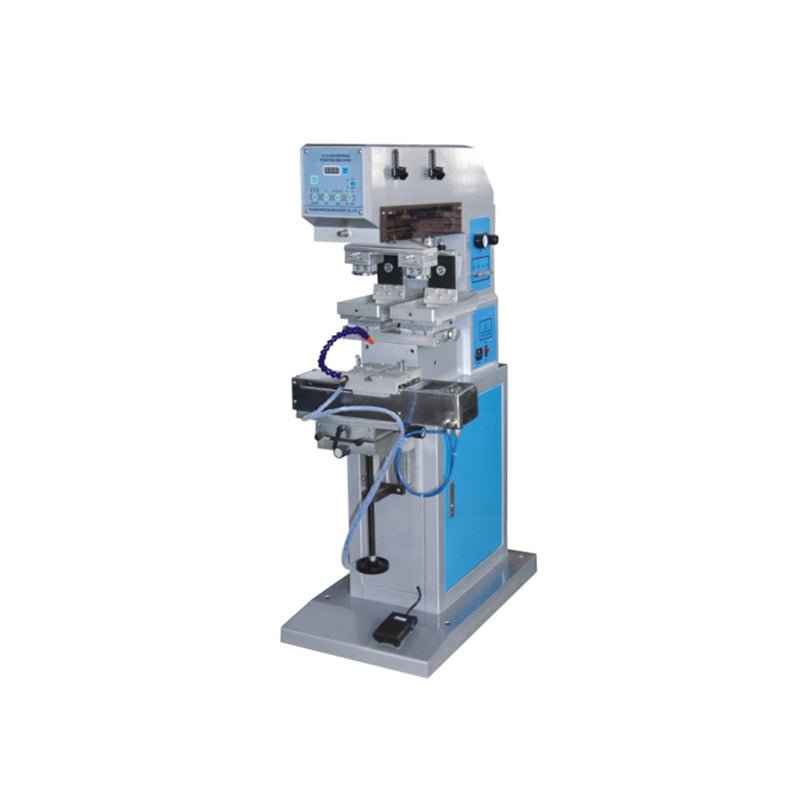

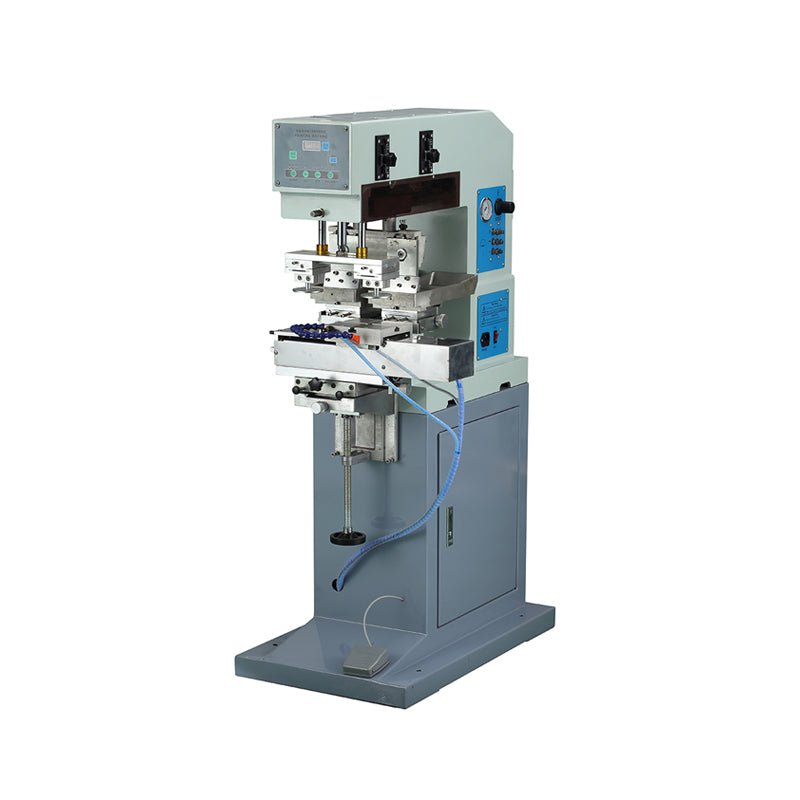

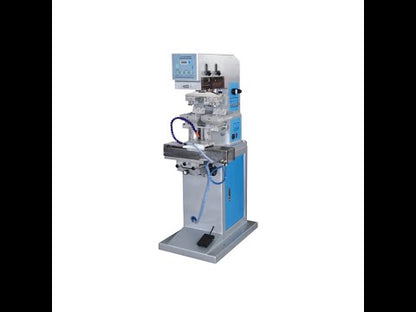

YYC Series 2-Color Pad Printing Machine for Consumer Products (Manual)

Name: YYC Series
Brand: CECLE
Price: 1999.0 USD
Availability: InStock

$1,999.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model YYC-125-100 YYC-200-150 YYC-225-200

Shipping method By sea to port(About 20-35 days) By sea to door(About 35-55 days)

Quick Answer: The CECLE YYC Series comprises auto 2-color shuttle floor-standing open-inkwell pad printing machines in three models — YYC-125-100, YYC-200-150, and YYC-225-200 — differentiated by steel-plate size.

CECLE YYC Series vs. Traditional / Generic Alternative

Where the CECLE YYC Series stands out against manual or generic 2-color pad printing machines — measured on the dimensions buyers care about most.

Chassis Rigidity & Vibration Resistance

CECLE YYC SeriesPrecise Registration, No Secondary Tolerance : After the workpiece is fixed on the fixture without shifting, the worktable automatically sends it under the first-color and second-color heads to complete.

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Pressure Consistency

CECLE YYC SeriesThe CECLE 2-Color Pad Printing Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE YYC SeriesIt is tuned for continuous commercial throughput with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Operational Mechanism & Drive

CECLE YYC SeriesIts drive removes operator-dependent variation, so output stays consistent.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Items	YYC-125-100	YYC-200-150	YYC-225-200
Voltage	110V/220V	110V/220V	110V/220V
Power	50W	50W	50W
Steel Plate Size	100×100 mm	150×100 mm	200×100 mm
Max Printing Area	70×70 mm	120×70 mm	150×70 mm
Max Printing Speed	1500 pcs/hr	1200 pcs/hr	1100 pcs/hour
Air Pressure	4–6 bar	4–6 bar	4–6 bar
Ink Supply	Open Inkwell	Open Inkwell	Open Inkwell
Machine Dimension	790×420×1350 mm	870×430×1350 mm	900×450×1450 mm
Machine Weight	108 KG	118 KG	128 kg

Compatible Applications & Materials

industrial products — primary target products for this 2-Color Pad Printing Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Air Supply Connection : Connect 4–6 bar compressed air, check for leaks, then power on
Steel Plate &amp
Rubber Head Installation : Load the two etched steel plates into their respective open inkwell bases, and mount the two corresponding pad printing rubber heads above
Fill Two-Color Ink : Pour the prepared first-color and second-color ink into the left and right open inkwells respectively, and install the doctoring mechanisms
Clamp Workpiece &amp
Reference Alignment : Fix the sample on the shuttle-table fixture, and manually align the first-color (reference color) head with the worktable position first
Trial Printing &amp

Engineering FAQ

Can this machine use 110V voltage in the United States?
A: Yes. We provide both 110V (North American standard) and 220V (European/Asian standard) versions, factory-preset to the customer's destination voltage, and equipped with power plugs that comply with local standards.

Is an air compressor required?
A: Yes, the machine needs to be connected to an air compressor — you can prepare your own or purchase one from us. The required air pressure is 4–6 bar .

What is the difference between the YYC shuttle 2-color machine and the YYD2 double-head single-color machine? How should I choose?
A: Their production purposes are completely different: the YYD2 Series (double-head single-color) presses once to print 2 products (single color) simultaneously, ideal for small-part high-volume fast runs where per-piece throughput is doubled; the YYC Series (shuttle 2-color) clamps one product per cycle, but the workpiece automatically shuttles between two print heads to complete two-color overprinting in sequence, designed specifically for high-precision two-color patterns.

What routine maintenance keeps the YYC Series stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the YYC Series handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
