YYS-100 Rotary Pad Printing Machine for Cylindrical Parts (Automatic)

$2,499.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model YYS-100-100

Shipping Method By sea to port(About 20-35 days) By sea to door(About 35-55 days)

Quick Answer: The CECLE YYS-100-100 is an automatic rotary circumference floor-standing single-color open inkwell pad printing machine purpose-built for 360° full-wrap printing on small equal-diameter cylindrical.

CECLE YYS-100 vs. Traditional / Generic Alternative

Where the CECLE YYS-100 stands out against manual or generic rotary pad printing machines — measured on the dimensions buyers care about most.

Operational Mechanism & Drive

CECLE YYS-100Linear Pure Rolling — Perfect Fine Knob Scales (Pure Cylindrical Rolling) : The linear shuttle table translation drives the object to self-rotate, forming line-contact continuous pure rolling that thoroughly.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Chassis Rigidity & Vibration Resistance

CECLE YYS-100Floor-Standing Body : The machine adopts a vertical column and floor base, with low center of gravity and high rigidity, remaining stable, anti-vibration, and ultra-low noise even at 1700 cycles/hr high-speed operation

Lightweight Sheet Metal (<60 kg)Prone to chassis flex, frame warping over time, and seal leakage.

Pressure Consistency

CECLE YYS-100Stable 4–6 bar Air Pressure: Pneumatic or servo-controlled force stays consistent across batches.

Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.

Output Speed & Throughput

CECLE YYS-100Rated 1700 pcs/hr Max Printing Speed: Built for steady commercial output with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Technical Specifications

Items	Specifications
Model	YYS-100-100
Voltage	110V/220V
Print Color	Single Color
Steel Plate Size	100×100 mm / 3.94×3.94"
Max Printing Diameter	Φ20 mm / 0.79"
Max Printing Speed	1700 pcs/hr
Air Pressure	4–6 bar
Ink Supply	Open Inkwell

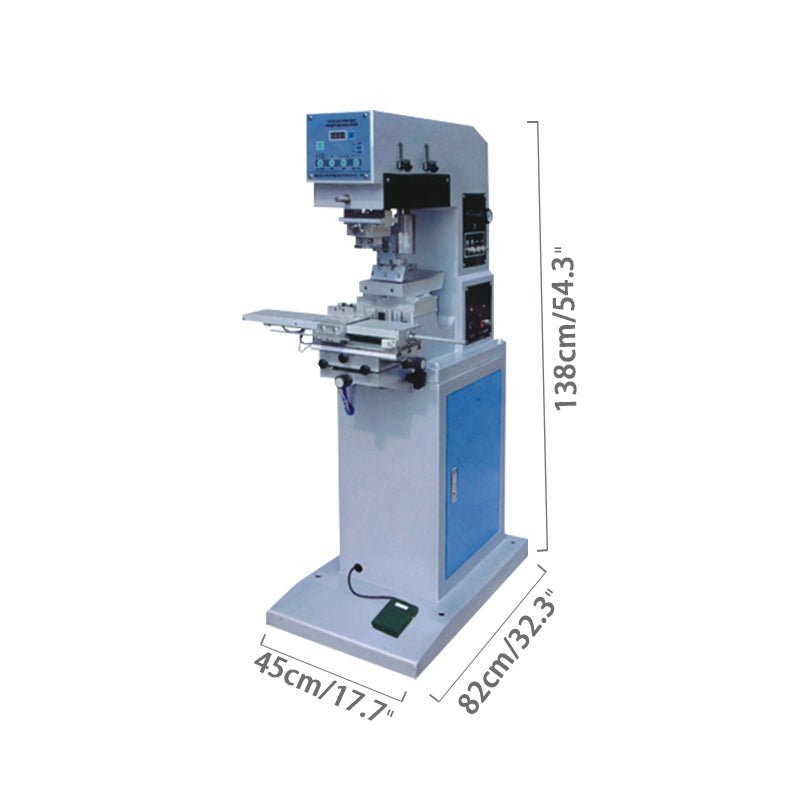

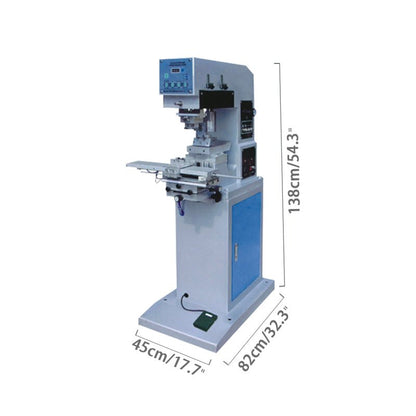

Machine Dimension	790×420×1350 mm / 31.1×16.5×53.2"
Machine Weight	95 KG / 209.4 lbs

Pre-installation requirements: Voltage: 110V/220V; Air Pressure: 4–6 bar; Machine Dimension: 790×420×1350 mm / 31.1×16.5×53.2"; Machine Weight: 95 KG / 209.4 lbs. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Rotary Pad Printing Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Air Supply Connection : Connect 4–6 bar compressed air, check for leaks, then power on
Steel Plate &amp
Rubber Head Installation : Load the etched steel plate into the open inkwell base, mount the dedicated long-bar rubber head, and pour a proper amount of mixed ink into the open inkwell
Fixture Assembly &amp
Position Calibration : Install the workpiece locating fixture on the shuttle table, place the product to be printed (the fixture is for fixing product position)
adjust the table height so the rubber head presses the product surface with appropriate force when descending
Trial Printing &amp

Engineering FAQ

What is the maximum workpiece diameter this machine can print?

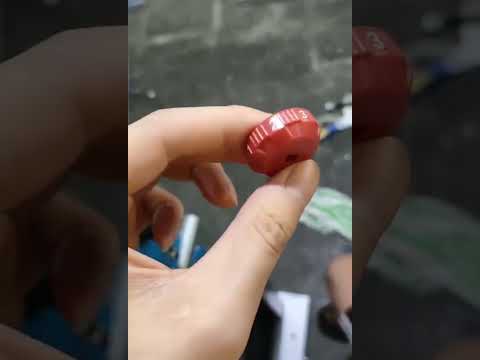

A: The maximum printable diameter is Φ20 mm. For small knobs and small round caps within 20 mm diameter, the machine's shuttle stroke and 100 mm steel plate development length match most perfectly, producing seamlessly closed full-circle scales.

Is an air compressor required? Does it support 110V voltage?
A: Yes. The machine's motions are driven by air cylinders and require an external 4–6 bar air compressor. The electrical circuit supports global customization (110V or 220V), and the machine is equipped with a power plug that complies with local certification standards at the factory.

What power supply does the YYS-100 require?
A: The YYS-100 runs on 110V/220V Voltage. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the YYS-100?
A: Beyond the rated 110V/220V Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the YYS-100 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the YYS-100 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
