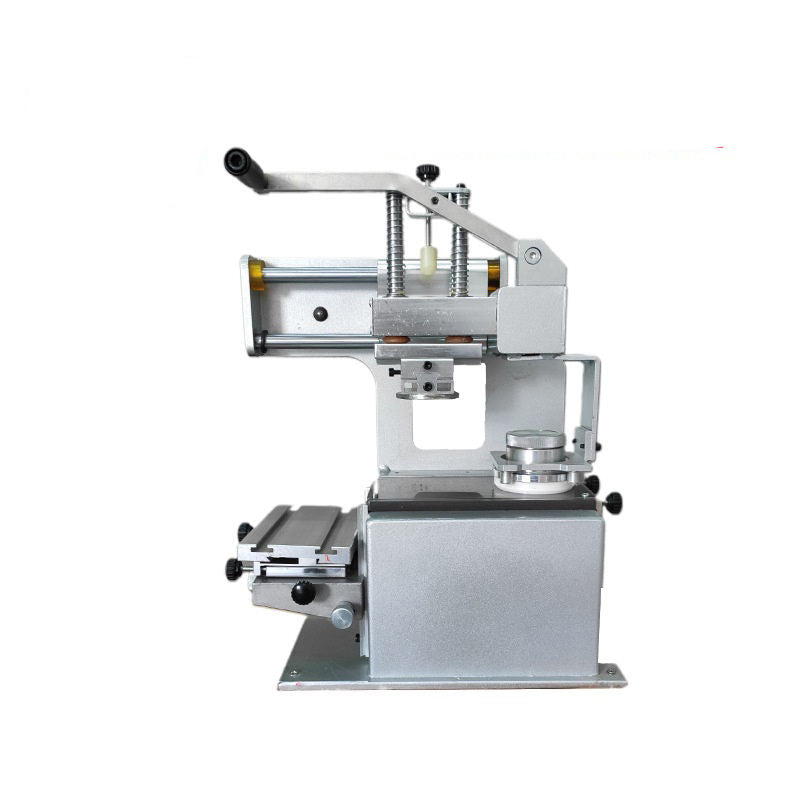

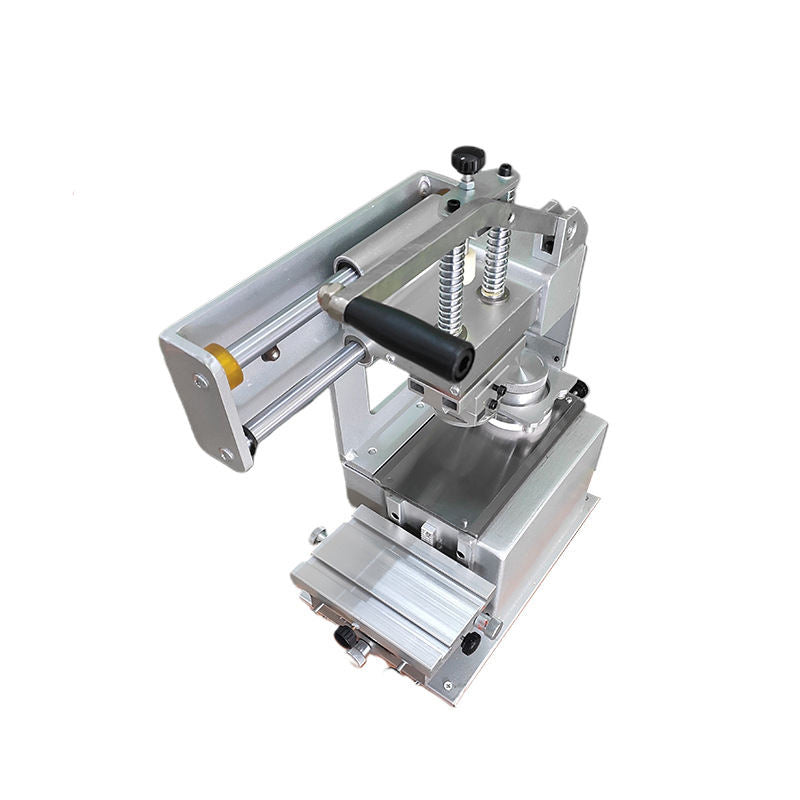

YYD-150 Closed Ink Cup Pad Printing Machine for Small Parts (Manual)

Name: YYD-150
Brand: CECLE
Price: 899.0 USD
Availability: InStock

$899.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model YYD-150-100

Shpping Method By express(About 7-12 days)

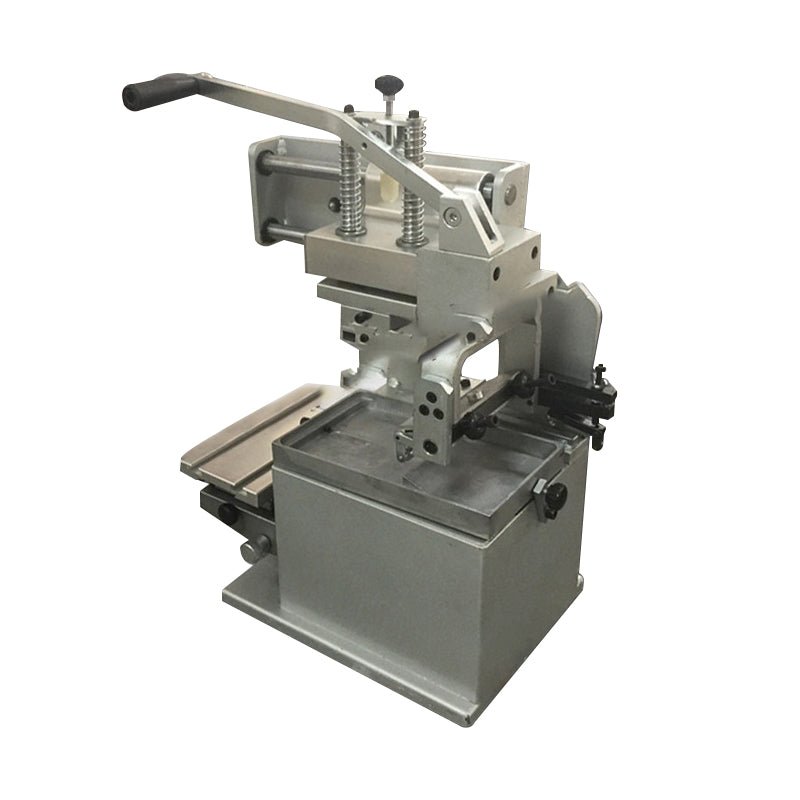

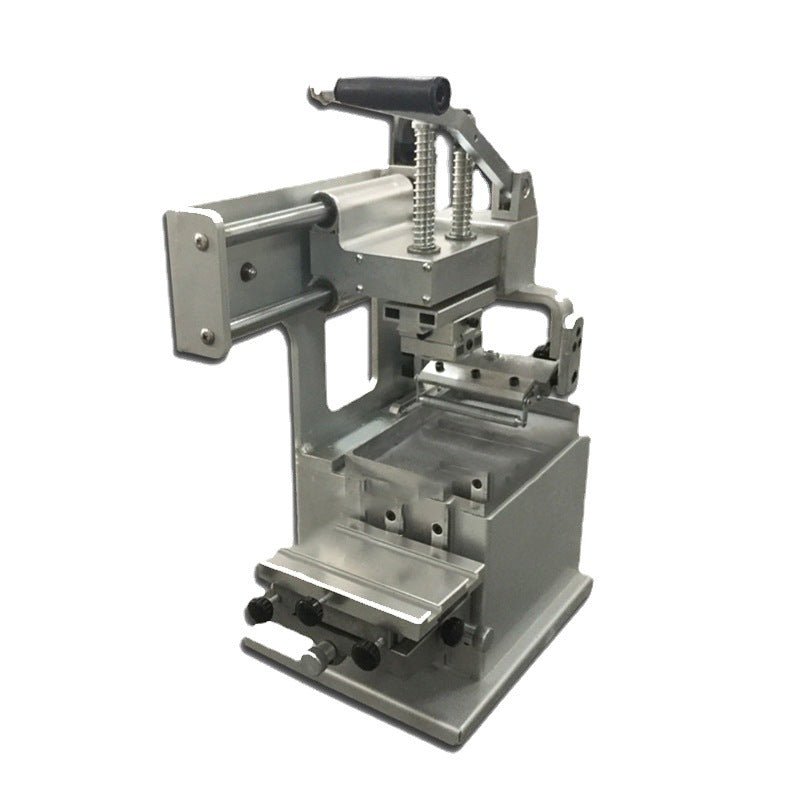

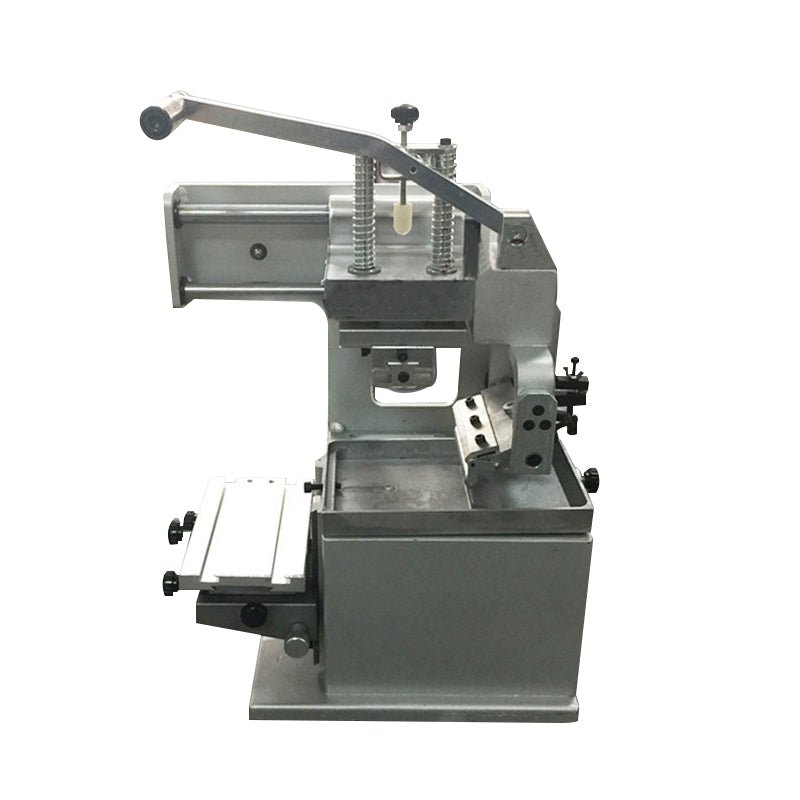

Quick Answer: The CECLE YYD-150-100 is a single-head single-color manual closed ink-cup pad printing machine engineered for small-area, single-color logo, text, and graphic printing on compact workpieces.

CECLE YYD-150 vs. Traditional / Generic Alternative

Where the CECLE YYD-150 stands out against manual or generic closed ink cup pad printing machines — measured on the dimensions buyers care about most.

Thermal Response & Heating System

CECLE YYD-150No Power or Air Needed — Place and Use : Purely mechanical manual drive requires no air compressor or power supply, working even in hard-to-wire or mobile operation scenarios. Closed Ink Cup — Ink-Saving and.

Single Fixed HeatingUses cheap quartz tubes with slow preheating, uneven heat distribution, and frequent element burnouts.

Pressure Consistency

CECLE YYD-150The CECLE Closed Ink Cup Pad Printing Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE YYD-150It is tuned for continuous commercial throughput with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Operational Mechanism & Drive

CECLE YYD-150Its drive removes operator-dependent variation, so output stays consistent.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Items	Specifications
Model	YYD-150-100
Operation Method	Manual
Print Color	Single Color
Max Printing Area	50×50 mm / 1.97×1.97"
Steel Sheet Size	100×215 mm / 3.94×8.46"
Ink Cup Diameter	70 mm / 2.76"
Rubber Head Vertical Stroke	60 mm / 2.36"
Ink Supply	Closed Ink Cup
Packaging Dimension	610×320×510 mm / 24×12.6×20.1"
Weight	20 KG / 44 LB

Pre-installation requirements: Packaging Dimension: 610×320×510 mm / 24×12.6×20.1"; Net Weight: 20 KG / 44 LB.

Compatible Applications & Materials

industrial products — primary target products for this Closed Ink Cup Pad Printing Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Steel Sheet &amp
Rubber Head Installation : Lay the etched steel sheet flat and fix it on the steel-sheet base, then mount the rubber head of the corresponding size

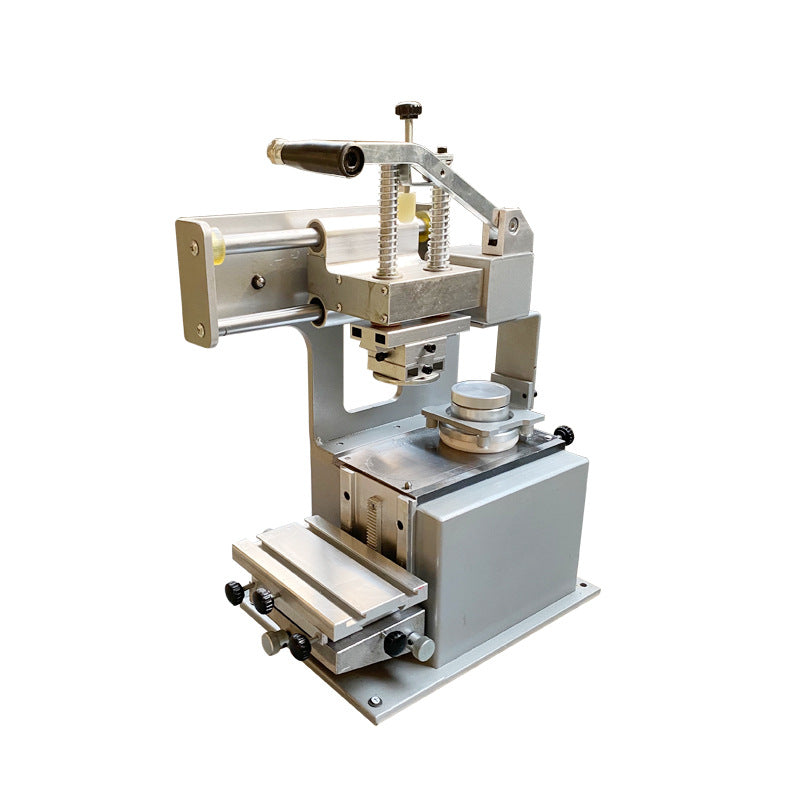

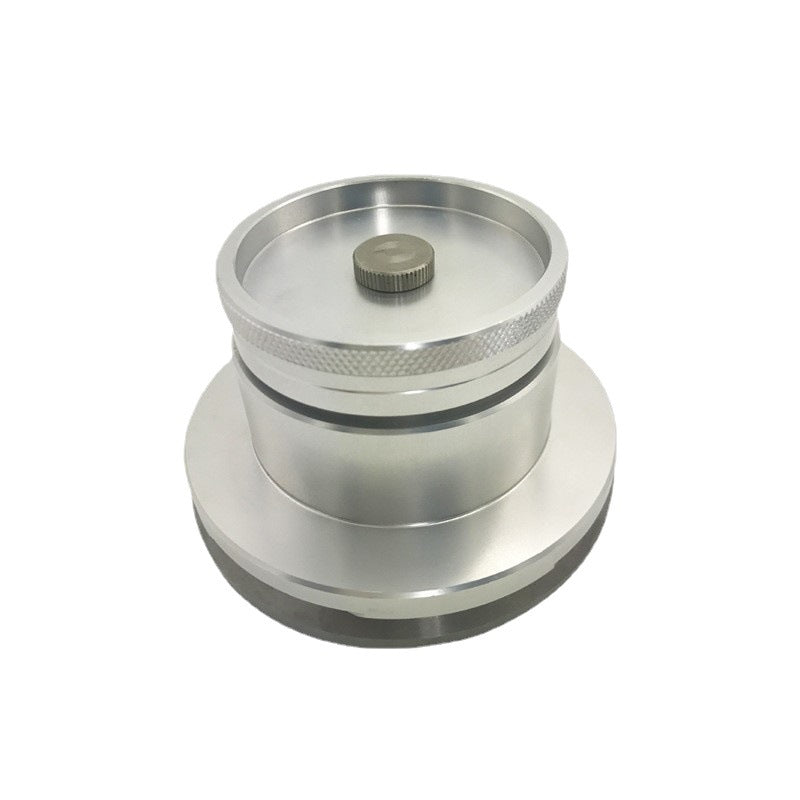

Ink Filling : Pour a proper amount of prepared ink into the sealed ink cup, install the cup, and confirm the ceramic ring fits well against the steel sheet

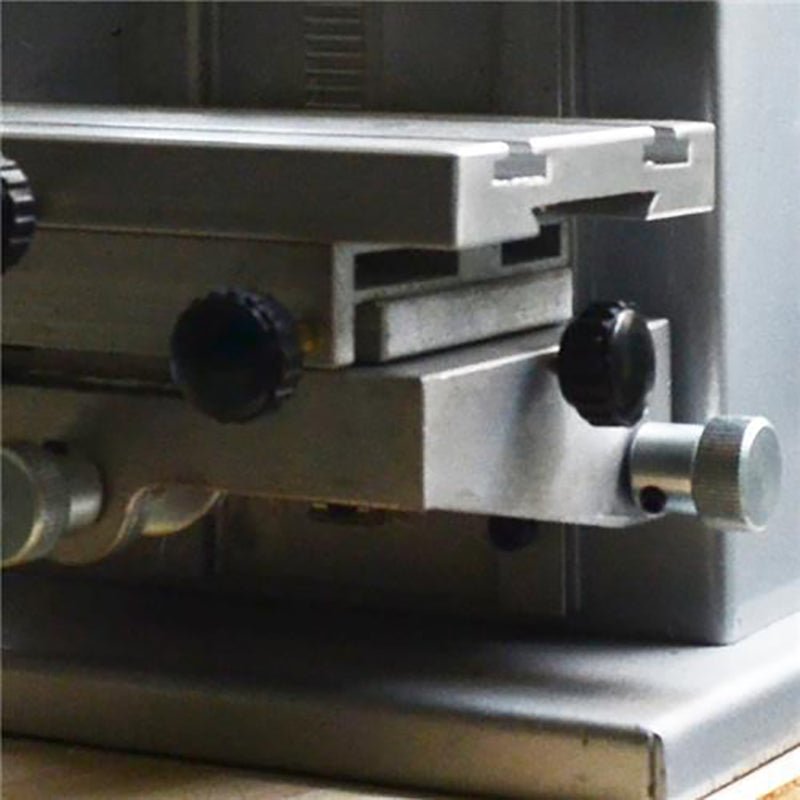

Workpiece Placement : Place the workpiece on the worktable and complete alignment
Trial Printing &amp

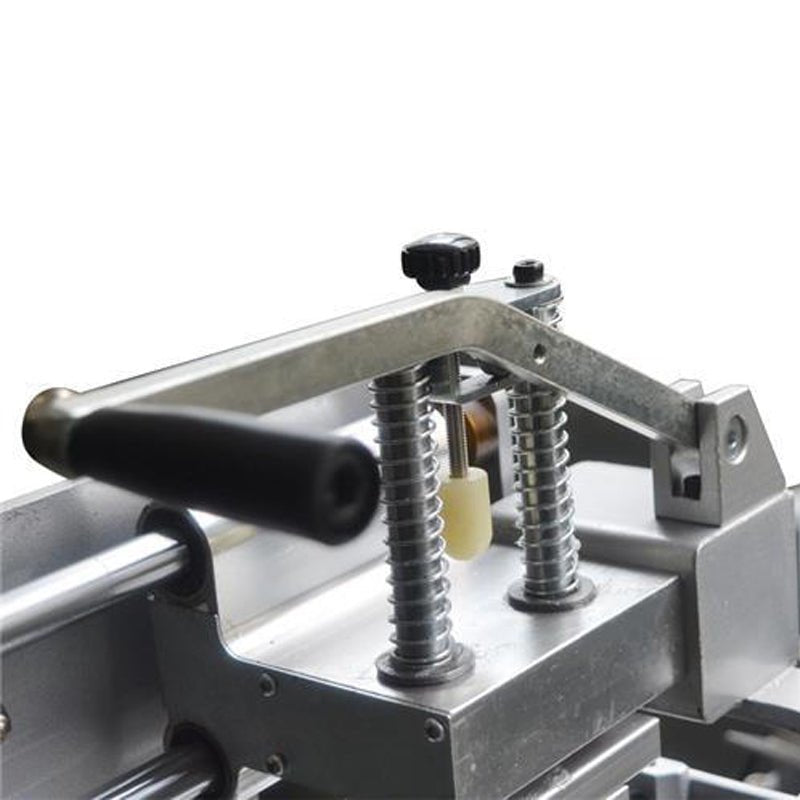

Adjustment : Press the handle to complete a test print, observe pattern sharpness, and fine-tune as needed
Mass Production : After adjustment, continuously press the handle manually for printing

Engineering FAQ

Does this machine need to be connected to power or an air compressor?
A: No. The YYD-150-100 is purely manual operation, requiring no power supply or compressed air — simply place it on a desk and use it.

What is the difference between ink cup and inkwell (oil pan) types?
A: The ink cup type uses a sealed ink cup plus a ceramic ring, making it more eco-friendly with less solvent evaporation and lower ink consumption; the inkwell type is an open structure that usually costs less but has more solvent evaporation. Small-batch customers and those with higher environmental requirements are better suited to the ink cup type.

What routine maintenance keeps the YYD-150 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the YYD-150 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
