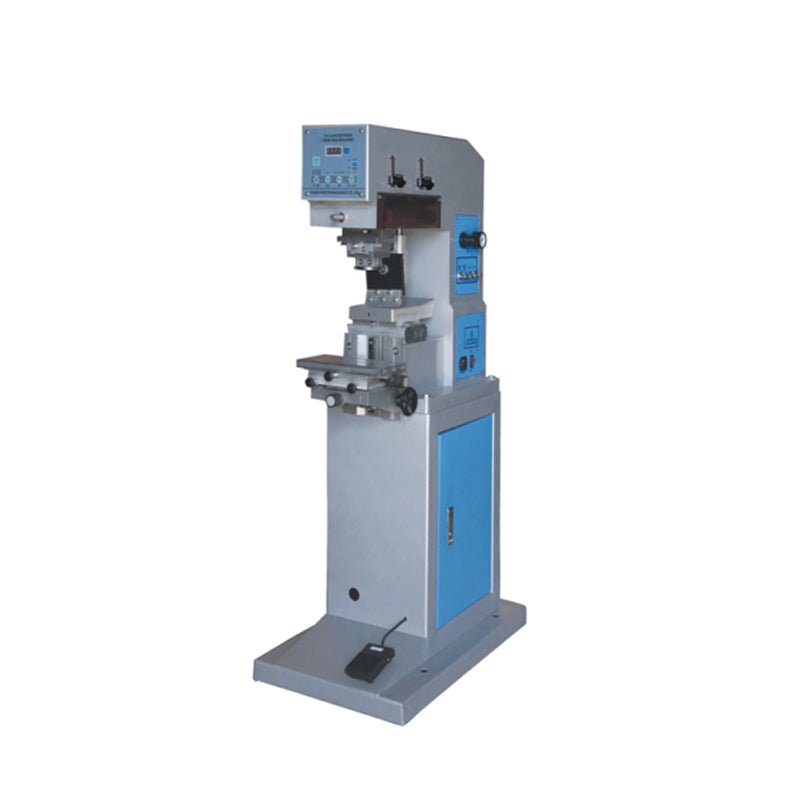

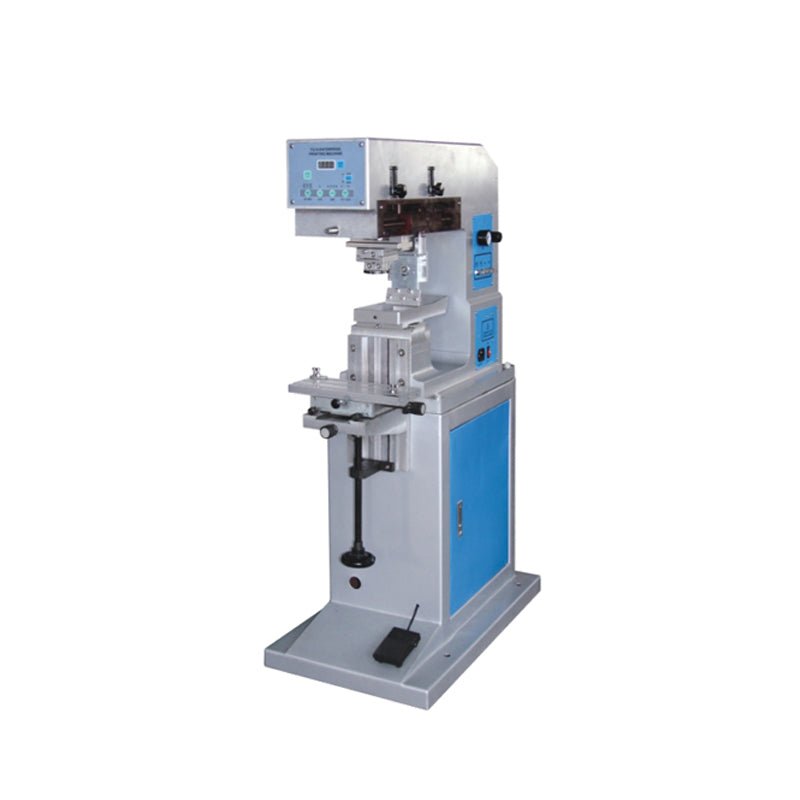

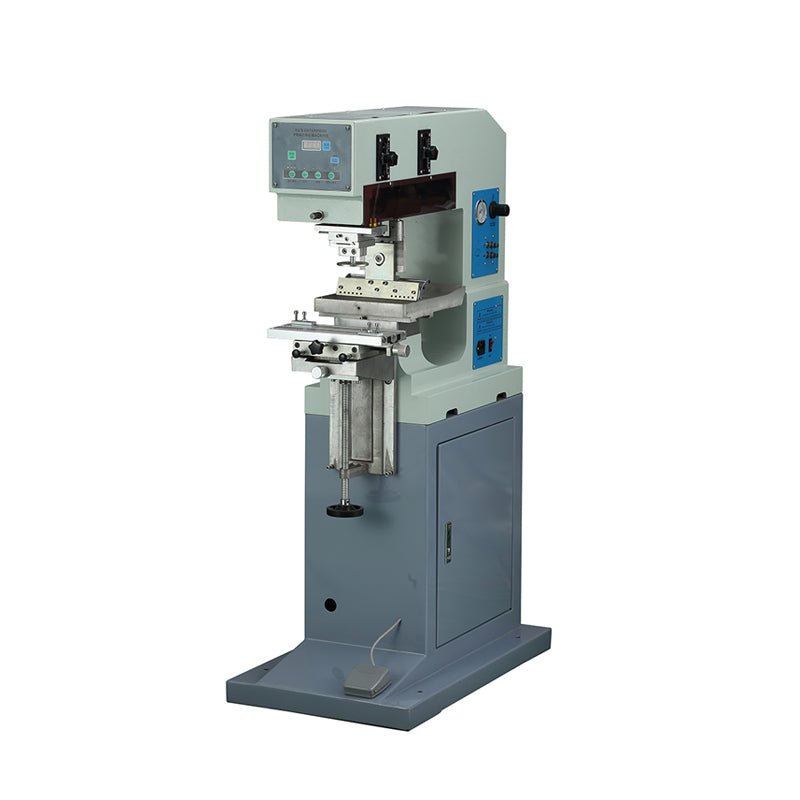

YYD Series Pad Printing Machine for Promotional Gifts (Automatic)

Name: YYD Series
Brand: CECLE
Price: 1799.0 USD
Availability: InStock

$1,799.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model YYD-125-100 YYD-200-150 YYD-225-200

Shipping method By sea to port(About 20-35 days) By sea to door(About 35-55 days)

Quick Answer: The CECLE YYD Series comprises single-head, single-color floor-standing open-inkwell pad printing machines available in three models — YYD-125-100, YYD-200-150, and YYD-225-200 — differentiated by.

CECLE YYD Series vs. Traditional / Generic Alternative

Where the CECLE YYD Series stands out against manual or generic pad printing machines — measured on the dimensions buyers care about most.

Chassis Rigidity & Vibration Resistance

CECLE YYD SeriesFloor-Standing Cast-Aluminum Body : The whole machine adopts a floor-standing vertical body structure with a low center of gravity and stable support — it does not shake or deform during prolonged high-speed.

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Adaptability & Changeover

CECLE YYD SeriesOpen Inkwell Ink Supply : Uses an independent open inkwell plus doctor blade for ink supply — an extremely simple structure that is easy to disassemble and clean, with quick color changes. It adapts to a wide.

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Pressure Consistency

CECLE YYD SeriesThe CECLE Pad Printing Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE YYD SeriesIt is tuned for continuous commercial throughput with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Technical Specifications

Items	YYD-125-100	YYD-200-150	YYD-225-200
Voltage	110V/220V	110V/220V	110V/220V
Power	50W	50W	50W
Steel Plate Size	100×100 mm	150×100 mm	200×100 mm
Max Printing Area	60×60 mm	120×70 mm	150×70 mm
Max Printing Speed	2300 pcs/hr	1500 pcs/hr	1300 pcs/hr
Air Pressure	5–6 bar	5 bar	5 bar
Ink Supply	Open Inkwell	Open Inkwell	Open Inkwell
Machine Dimension	600×480×1170 mm	870×430×1350 mm	900×650×1380 mm
Weight	110 KG	120 KG	140 KG

Compatible Applications & Materials

industrial products — primary target products for this Pad Printing Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Air Supply Connection : Connect 5 bar compressed air, check for leaks, then power on
Steel Plate &amp
Rubber Head Installation : Load the etched steel plate into the open inkwell base, mount the pad printing rubber head, and pour a proper amount of prepared ink into the open inkwell
Trial Printing &amp

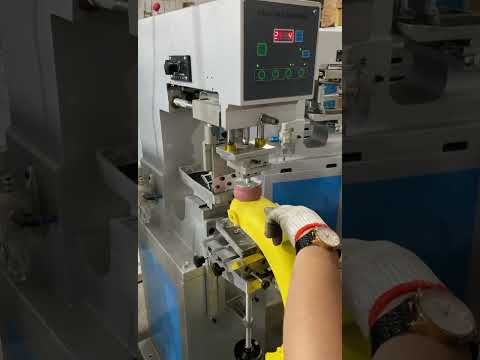

Adjustment : Place a sample substrate, press the control-panel start button to test print, and fine-tune the inkwell doctoring stroke, print-head, and worktable positions according to pattern sharpness
Mass Production : After adjustment, start formal printing
the counter automatically accumulates the print count for easy production management

Engineering FAQ

Can this machine use 110V voltage in the United States?
A: Yes. We provide both 110V (North American standard) and 220V (European/Asian standard) versions, factory-preset to the customer's destination voltage, and equipped with power plugs that comply with local standards.

Does it need to be connected to an air compressor?
A: Yes, the machine needs to be connected to an air compressor — you can prepare your own or purchase one from us.

How do I choose among YYD-125-100 / YYD-200-150 / YYD-225-200?
A: All three share identical ink supply; the difference lies in steel-plate size and print area : YYD-125-100 suits small-area sampling; YYD-200-150 suits medium areas; YYD-225-200 has the largest plate (200×200 mm) and suits large areas. Select based on product size and maximum pattern size.

What routine maintenance keeps the YYD Series stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the YYD Series handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
