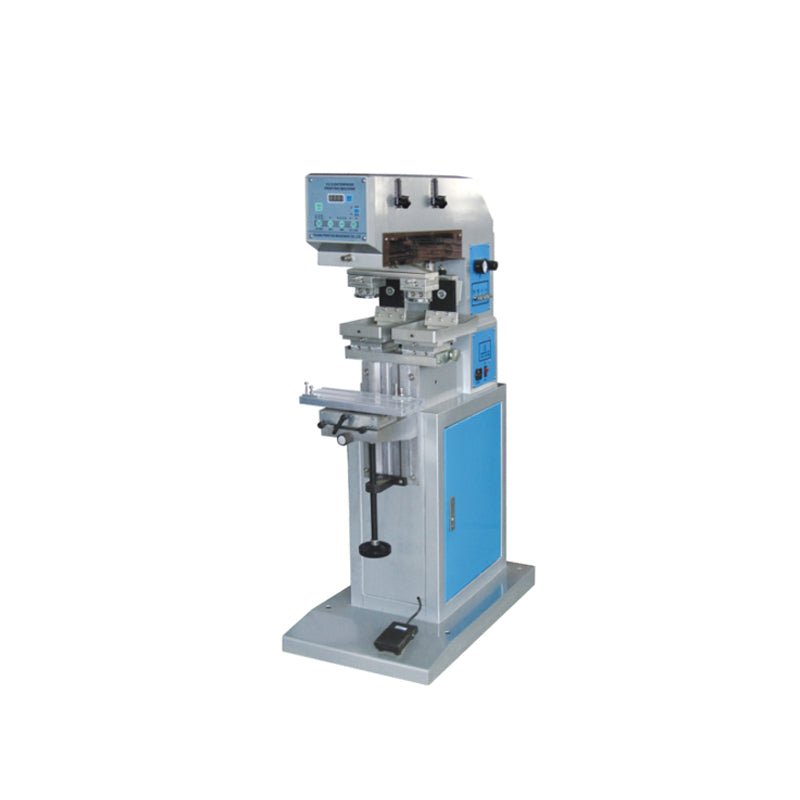

YYD2 Double-Head Pad Printing Machine for Small Parts (Manual)

$1,899.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model YYD2-125-100 YYD2-200-150

Shipping method By sea to port(About 20-35 days) By sea to door(About 35-55 days)

Quick Answer: The CECLE YYD2 Series comprises double-head, single-color floor-standing open-inkwell pad printing machines in two models — YYD2-125-100 and YYD2-200-150 — differentiated by steel-plate size and print area.

CECLE YYD2 vs. Traditional / Generic Alternative

Where the CECLE YYD2 stands out against manual or generic double-head pad printing machines — measured on the dimensions buyers care about most.

Chassis Rigidity & Vibration Resistance

CECLE YYD2Floor-Standing Cast-Aluminum Body, Stable Printing : The entire machine adopts a floor-standing vertical body structure with a low center of gravity and stable support — no shaking or deformation during.

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Output Speed & Throughput

CECLE YYD2Double-Head Productivity : Compared with single-head models, the double-head layout transfers two workpieces (or two print positions) per cycle, especially suited to small-part batch printing; it significantly.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Adaptability & Changeover

CECLE YYD2Open Inkwell Ink Supply : Uses an independent open inkwell plus doctor blade for ink supply — an extremely simple structure that is easy to disassemble and clean, with quick color changes. It adapts to a wide.

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Pressure Consistency

CECLE YYD2The CECLE Double-Head Pad Printing Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Technical Specifications

Items	YYD2-125-100	YYD2-200-150
Voltage	110V/220V	110V/220V
Power	50W	50W
Steel Plate Size	100×100 mm	150×100 mm
Max Printing Area	70×70 mm	120×70 mm
Max Printing Speed	2300 pcs/hr	1500 pcs/hr
Air Pressure	4–6 bar	4–6 bar
Ink Supply	Open Inkwell	Open Inkwell
Machine Dimension	790×420×1350 mm	870×430×1350 mm
Machine Weight	98 KG	108 KG

Compatible Applications & Materials

industrial products — primary target products for this Double-Head Pad Printing Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Air Supply Connection : Connect 4–6 bar compressed air, check the air line for leaks, then power on
Steel Plate &amp
Rubber Head Installation : Load the two etched steel plates into their respective open inkwell bases, mount the corresponding pad printing rubber heads, and pour a proper amount of mixed ink into the open inkwells
Trial Printing &amp
Adjustment : Place a sample substrate, press the control-panel start button to test print, and fine-tune the inkwell doctoring stroke, the two head positions, and the worktable forward/backward &amp
up/down positions according to pattern sharpness
Mass Production : After adjustment, proceed to formal printing

Engineering FAQ

Can this machine use 110V voltage in the United States?
A: Yes. We provide both 110V (North American standard) and 220V (European/Asian standard) versions, factory-preset to the customer's destination voltage, and equipped with power plugs that comply with local standards.

Is an air compressor required?
A: Yes, the machine needs to be connected to an air compressor — you can prepare your own or purchase one from us. The required air pressure is 4–6 bar .

What is the difference between a double-head single-color machine and a single-head single-color machine?
A: The core difference lies in throughput and station count: a single-head machine prints only one product per cycle, whereas a double-head model is equipped with two rubber heads and can transfer two products (or two positions on one workpiece) in a single press. In small-part batch printing, double-head efficiency is close to twice that of a single-head machine, greatly saving labor and man-hour costs; the ink-supply principle and cleaning/maintenance methods are essentially the same for both.

What routine maintenance keeps the YYD2 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the YYD2 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
