Hamburger Patty Machine for Food Processing (Automatic)

Name: Hamburger Patty Machine
Brand: CECLE
Price: 4350.0 USD
Availability: InStock

$4,350.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Mold MPS-30L

Diameter of Meat Patty 28-120MM

Shipping Method By sea to door about (45-50days)

Quick Answer: The CECLE Craftsmanship & Engineering Highlights.

CECLE vs. Traditional / Generic Alternative

Where the CECLE stands out against manual or generic hamburger patty machines — measured on the dimensions buyers care about most.

Pressure Consistency

CECLE Stable 6 Bar (Requires Clean External Compressed Air) Operating Air Pressure: Pneumatic or servo-controlled force stays consistent across batches.

Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.

Output Speed & Throughput

CECLE Rated 30 L (Heavy-Gauge Food-Grade Stainless Steel) Hopper Capacity: Built for steady commercial output with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Operational Mechanism & Drive

CECLE Purpose-Built Motor Power: 0.55 kW (High-Efficiency Pure Copper Gearmotor) drive delivers steady, operator-independent output.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Chassis Rigidity & Vibration Resistance

CECLE Industrial-Reinforced Frame: 120 kg (Heavy Floor-Standing Anti-Vibration Chassis) Net Weight chassis eliminates vibration and keeps seals tight.

Lightweight Sheet Metal (<70 kg)Prone to chassis flex, frame warping over time, and seal leakage.

Technical Specifications

Technical Parameter	Specification / Performance Standard
Model	MPS-30L Commercial Automatic Hamburger Patty Machine
Motor Power	0.55 kW (High-Efficiency Pure Copper Gearmotor)
Operating Air Pressure	6 Bar (Requires Clean External Compressed Air)

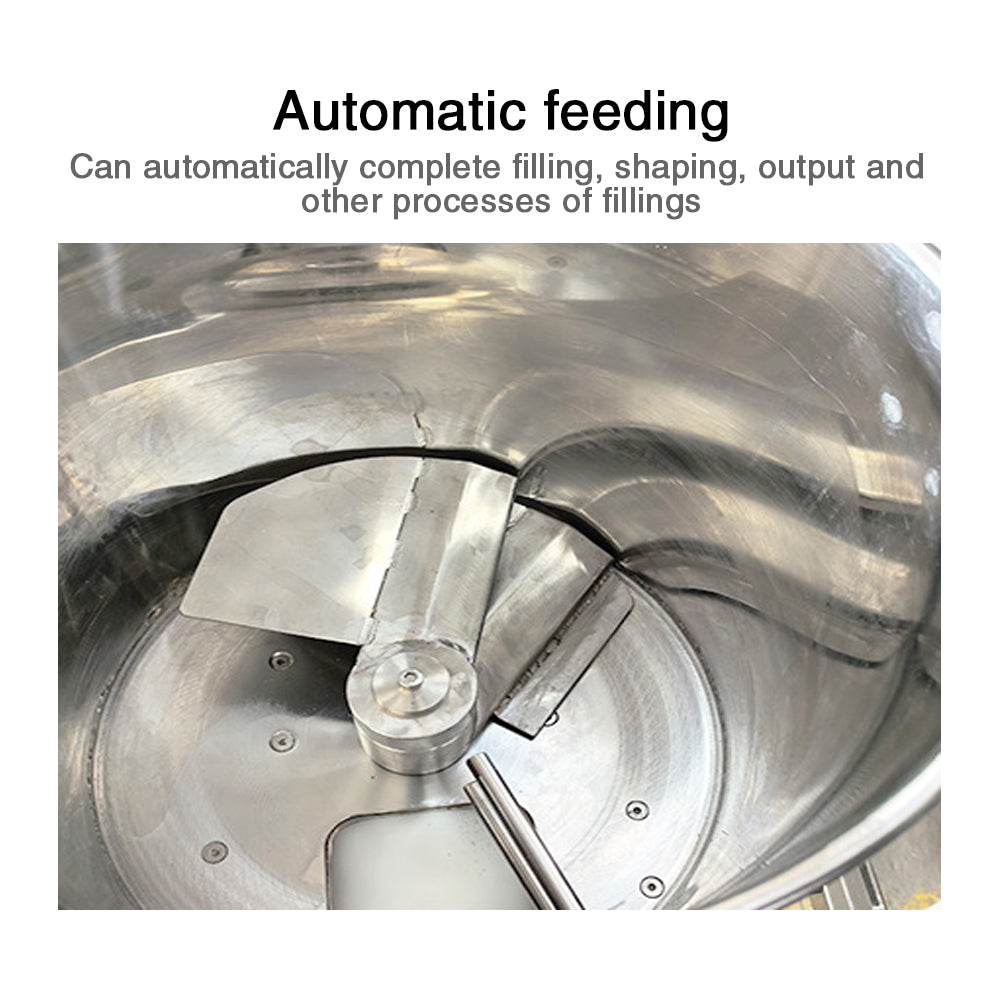

Hopper Capacity	30 L (Heavy-Gauge Food-Grade Stainless Steel)
Production Capacity	35 pieces/min (Approx. 2,100 pieces/h)
Patty Diameter Range	φ28 – 120 mm (Custom Mold Profiles Available)
Patty Thickness Range	8 – 20 mm (Stepless Precision Adjustment)

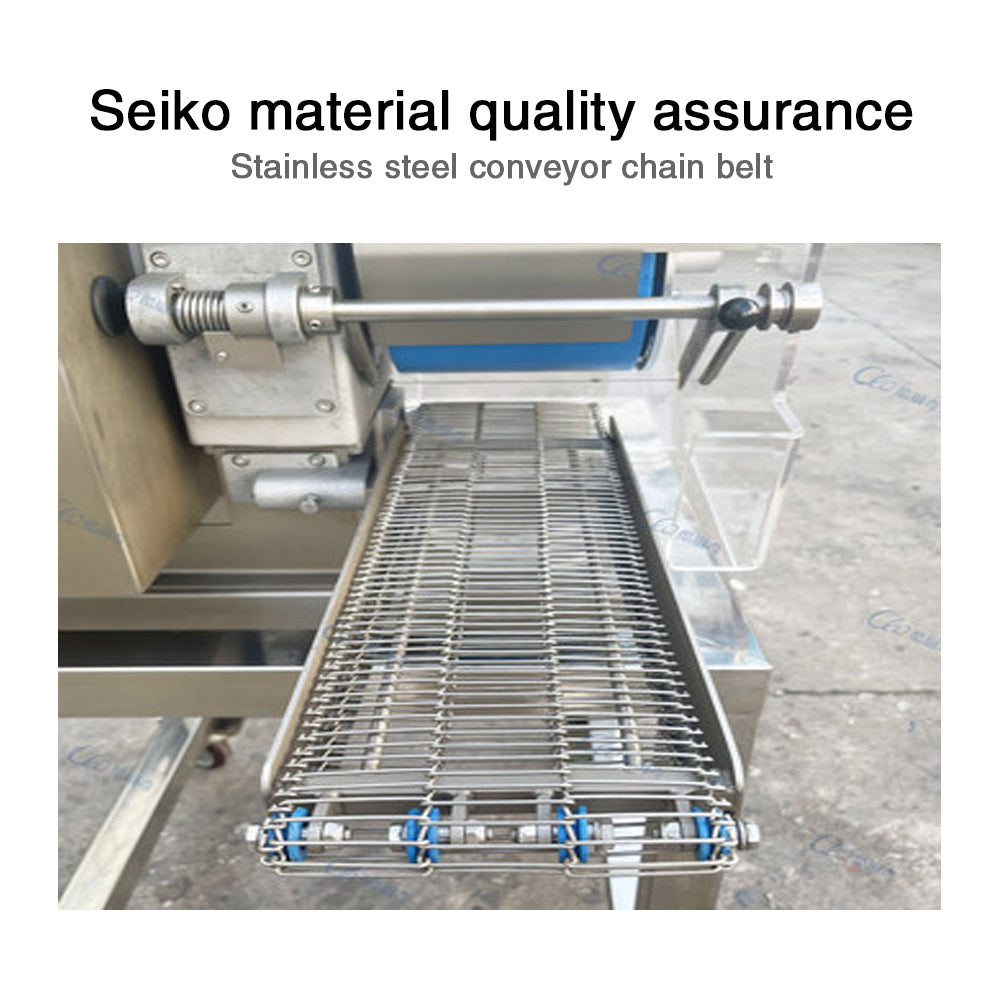

Conveyor Belt Width	130 mm (Food-Grade Stainless Steel Wire-Mesh)
Dimensions (L × W × H)	860 × 600 × 1400 mm
Net Weight	120 kg (Heavy Floor-Standing Anti-Vibration Chassis)
Construction Material	AISI 304 Food-Grade Stainless Steel / Polymer Mold / Pneumatic Assemblies
Compatible Products	Beef Burgers, Chicken Cutlets, Chicken Nuggets, Fish Cakes, Potato/Veggie Patties, etc.

Pre-installation requirements: Motor Power: 0.55 kW (High-Efficiency Pure Copper Gearmotor); Operating Air Pressure: 6 Bar (Requires Clean E × ternal Compressed Air); Dimensions (L × W × H): 860 × 600 × 1400 mm; Net Weight: 120 kg (Heavy Floor-Standing Anti-Vibration Chassis). External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Hamburger Patty Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

To maintain consistent forming quality and extend the service life of internal pneumatic cylinders and molds, adhere strictly to the following procedures:

Engineering FAQ

Can the patty size and shape be customized? Can it produce chicken nuggets or square patties?

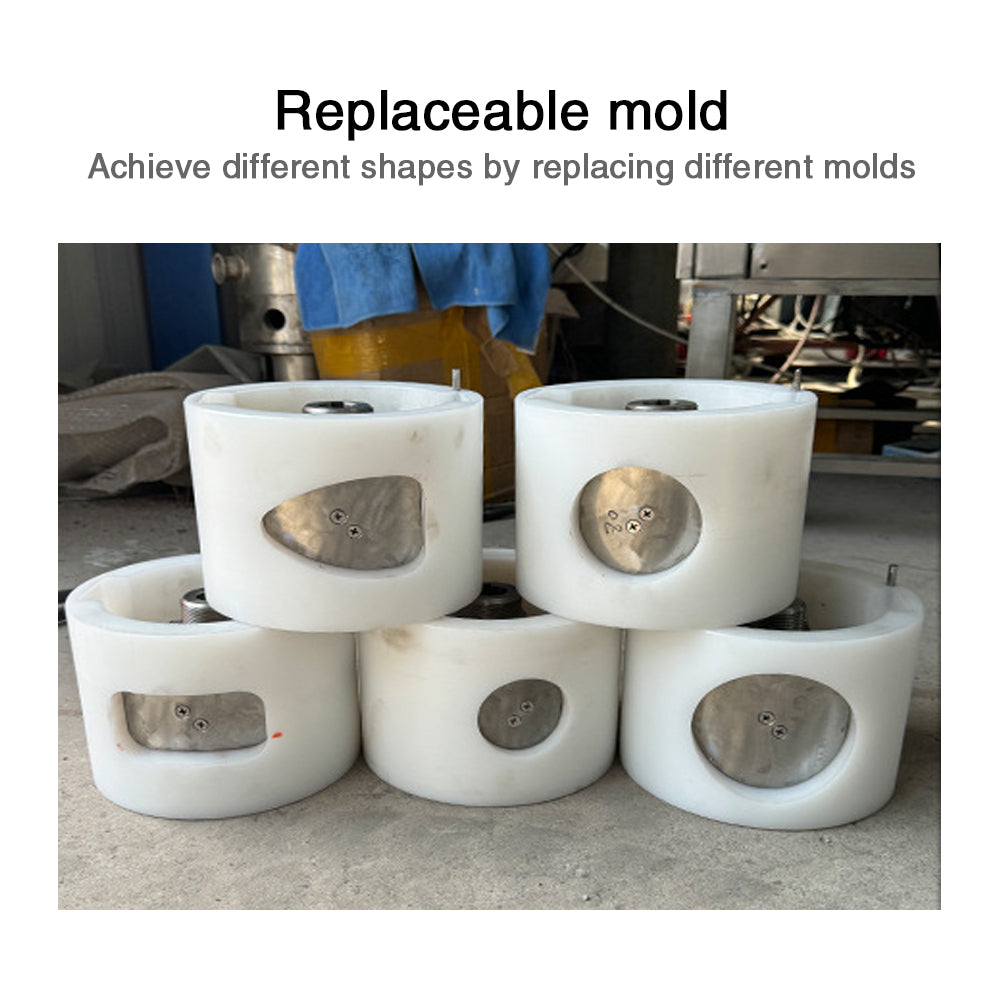

A: Yes. Patty shape and dimensions are determined entirely by the interchangeable mold. The machine accommodates custom dies ranging from 28 to 120 mm in diameter, including standard round, square, rounded rectangular, oval, triangular nuggets, and custom novelty profiles. With quick-release clamps, the entire die slide can be swapped in 5 to 10 minutes.

Do patties tend to stick to the mold cavity during high-speed compression?
A: No. The unit utilizes food-grade non-stick polymer mold materials paired with a synchronized 6 Bar pneumatic blow-off system. When the die indexes directly over the discharge station, a timed pulse of air releases the patty cleanly onto the wire-mesh belt, leaving smooth edges without tearing or distortion.

Is an external air compressor required? What are the air supply requirements?
A: Yes, the demolding stroke relies on a pneumatic system, requiring connection to a commercial air compressor capable of maintaining a steady working pressure of at least 6 Bar. It is recommended to install an air filter-regulator-lubricator (FRL unit) with water separation at the air inlet to supply clean, dry air, maximizing valve and cylinder longevity.

What power supply does the require?
A: The runs on 0.55 kW (High-Efficiency Pure Copper Gearmotor) Motor Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

Does the need an external air compressor?
A: Yes. The is pneumatically driven and requires a stable external air supply at the specified pressure. CECLE recommends a compressor sized for continuous duty to hold stable output.

What routine maintenance keeps the stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.
