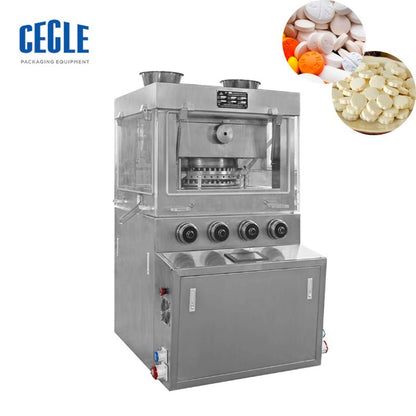

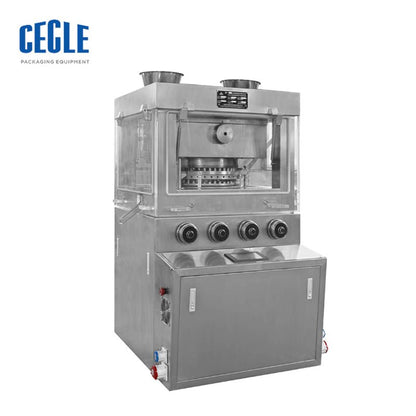

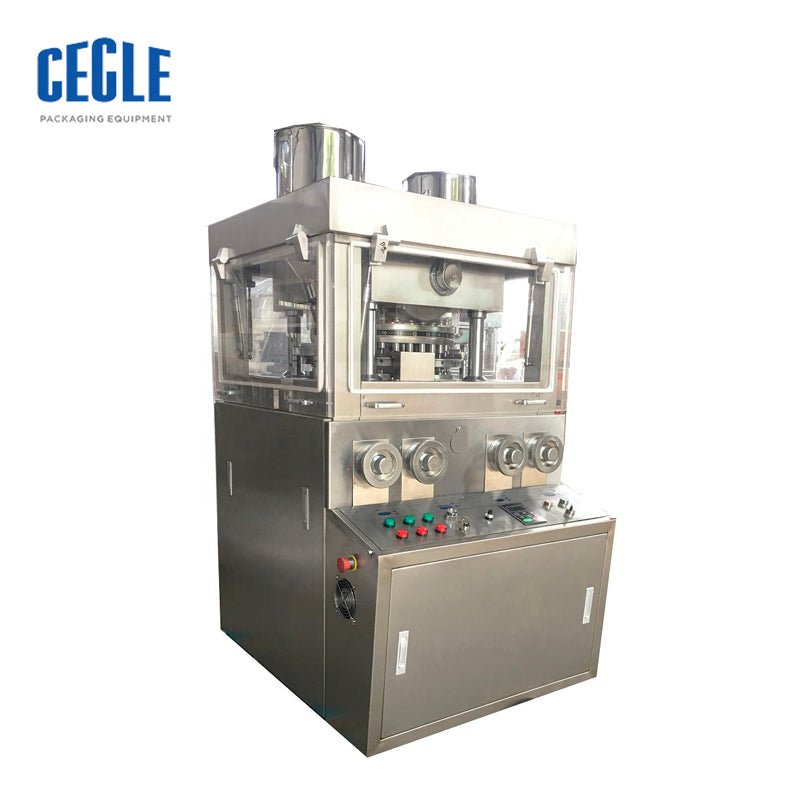

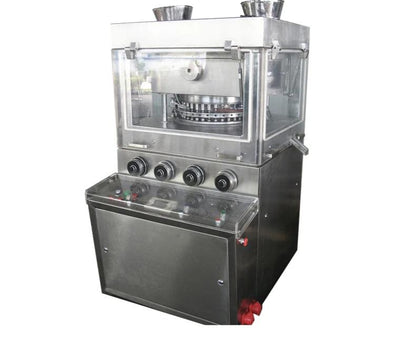

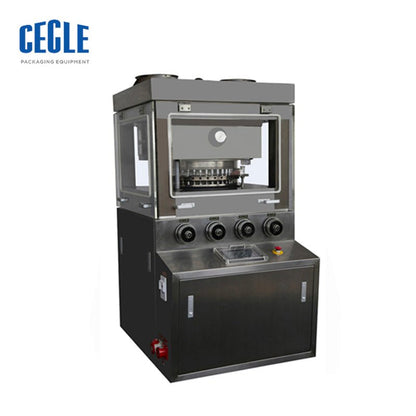

ZP27 Rotary Pharmaceutical Effervescent High-Speed Tablet Press Machine for Industrial Use

$25,200.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model ZP-27 ZP-29 ZP-31

Shipping Method by sea to port (30-60days)

Quick Answer: The CECLE ZP27 is a high-speed, dual-press continuously operating rotary tablet press with a powerful 100kN forming pressure, specifically designed to efficiently compress various granular raw materials.

CECLE ZP27 vs. Traditional / Generic Alternative

Where the CECLE ZP27 stands out against manual or generic tablet press machines — measured on the dimensions buyers care about most.

Pressure Consistency

CECLE ZP27Stable 100 kn Max. Pressure: Pneumatic or servo-controlled force stays consistent across batches.

Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.

Output Speed & Throughput

CECLE ZP27Rated 30 r/min Max Turret Speed: Built for steady commercial output with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, limiting real throughput and raising labor cost.

Operational Mechanism & Drive

CECLE ZP27Purpose-Built Motor Power: 5.5 kw drive delivers steady, operator-independent output.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Chassis Rigidity & Vibration Resistance

CECLE ZP27Industrial-Reinforced Frame: 1860 KG Weight chassis eliminates vibration and keeps seals tight.

Lightweight Sheet Metal (<930 kg)Prone to chassis flex, frame warping over time, and drifting label placement.

Technical Specifications

Specification	Value & Unit
Numbers Of Stations	27 sets
Max. Pressure	100 kn
Max. Tablet Diameter	25 mm (1.0 in)
Max. Filling Depth	15 mm (0.6 in)
Max. Tablet Thickness	6 mm (0.2 in)
Max Turret Speed	30 r/min
Production Capacity	97,200 pcs/h
Motor Power	5.5 kW
Net Weight	1860 KG (4100.6 lb)
Dimensions	1140 × 1000 × 1650 mm (44.9 × 39.4 × 65.0 in)

Pre-installation requirements: Motor Power: 5.5 kW; Net Weight: 1860 KG (4100.6 lb); Dimensions: 1140 × 1000 × 1650 mm (44.9 × 39.4 × 65.0 in).

Compatible Applications & Materials

industrial products — primary target products for this Tablet Press Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Setup: connect the required power / air supply and verify the control display.
Parameter preset: set speed / temperature / pressure per the product spec.
Material loading: place the product in the correct fixture / mold slot.
Execution: start the cycle; monitor for stable, repeatable output.
Quality check: inspect the first units; adjust if deviation appears.
Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

What does the model number (e.g., ZP27) of this machine mean? Is the number of mold installations fixed?
A: The model number of the machine (e.g., ZP27) primarily relates to the standard number of mold installations on the turntable (i.e., 27 sets of molds as standard). However, it is important to emphasize that the actual number of mold installations is not absolutely fixed — it directly depends on the size of your customized tablet (punch die) : the larger the customized mold size, the fewer installations the turntable can accommodate; conversely, the smaller the mold size, the more installations are possible.

How large of a tablet can this high-speed machine press? What is the actual production capacity?
A: The ZP27 has a powerful forming pressure of 100kN, with a maximum tablet diameter of 25mm and a maximum filling depth of 15mm. It is ideally suited for pressing effervescent tablets, large-sized Chinese and Western medicine tablets, and health product tablets. Thanks to its high-speed rotation and dual-press design (turntable maximum speed up to 30 r/min), its maximum production capacity can reach an impressive 97,200 tablets/hour, making it an ideal choice for large-scale continuous mass production.

Does the material and transmission lubrication system of this machine comply with pharmaceutical hygiene standards?
A: Fully compliant. The ZP27's exterior is made of fully enclosed stainless steel material, and all components in the tablet pressing chamber that come into contact with materials are treated with anti-corrosion and anti-rust treatment, fully complying with GMP standards. Its core transmission mechanism uses an independent oil-immersed lubrication system that is fully sealed within the oil tank at the bottom of the machine body. This design not only significantly extends the service life of high-load components such as gears but also completely eliminates the risk of lubricating oil splashing into the tablet pressing chamber and causing cross-contamination.

What does the 100 kn Max. Pressure requirement mean for the ZP27?
A: The 100 kn Max. Pressure is the working condition needed for consistent, repeatable results. Operators must supply a stable source at this level; fluctuations cause defects.

What routine maintenance keeps the ZP27 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the ZP27 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
