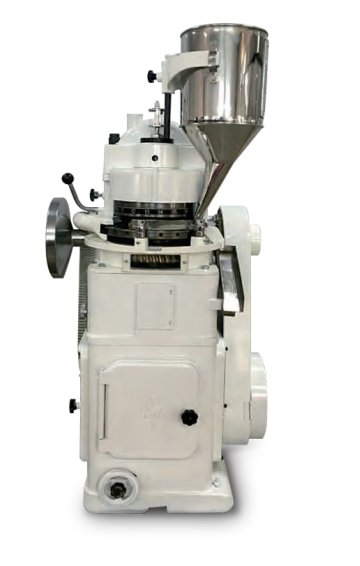

ZP15 Rotary Old Tablet Press Machine for Industrial Use (Automatic)
ZP15 Rotary Old Tablet Press Machine for Industrial Use (Automatic)
Couldn't load pickup availability
CECLE ZP15 vs. Traditional / Generic Alternative
Where the CECLE ZP15 stands out against manual or generic tablet press machines — measured on the dimensions buyers care about most.
Technical Specifications
| Specification | Value & Unit |
|---|---|
| Standard Number Of Molds | 15 sets |
| Max. Pressure | 100 kn |
| Max. Tablet Diameter | 40 mm (1.6 in) |
| Max. Filling Depth | 25 mm (1.0 in) |
| Max. Tablet Thickness | 12 mm (0.5 in) |
| Estimated Capacity | 27,000 pcs/h |
| Power Supply | 5.5 kW |
| Net Weight | 1500 KG (3306.9 lb) |
| Dimensions | 950 × 900 × 1550 mm (37.4 × 35.4 × 61.0 in) |
| Delivery Time | Ready for delivery within 30 - 60 days |
Pre-installation requirements: Power Supply: 5.5 kW; Net Weight: 1500 KG (3306.9 lb); Dimensions: 950 × 900 × 1550 mm (37.4 × 35.4 × 61.0 in).
Compatible Applications & Materials
- industrial products — primary target products for this Tablet Press Machine line
- Standard industrial materials compatible with the machine's rated spec range
- B2B production lines and contract manufacturing workshops
Standard Operating Procedure (SOP)
- Setup: connect the required power / air supply and verify the control display.
- Parameter preset: set speed / temperature / pressure per the product spec.
- Material loading: place the product in the correct fixture / mold slot.
- Execution: start the cycle; monitor for stable, repeatable output.
- Quality check: inspect the first units; adjust if deviation appears.
- Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.
Engineering FAQ
How large of a tablet can this machine press? What special materials is it suitable for?
A: The ZP15B has an ultra-large forming pressure of 100kN, a maximum tablet diameter of 40mm, and a maximum filling depth of 25mm. Therefore, it is perfectly suited for pressing chicken bouillon cubes, veterinary tablets, effervescent tablets, and other large customized tablets. Additionally, for raw materials with poor fluidity, the machine is equipped with a gravity feeding system, which effectively ensures smooth discharging and precise filling weight.
How are the lubrication system and overload protection designed?
A: The transmission mechanism of this equipment adopts an oil-immersed lubrication system and is completely sealed under the machine body. This design not only extends the service life of gears and mechanical components but also completely eliminates cross-contamination caused by lubricating oil coming into contact with powder materials. Furthermore, the machine comes standard with a pressure overload protection device; once the forming pressure exceeds the safety threshold, the machine will automatically stop to avoid damaging the molds and internal mechanical structures.
This machine is classified as pharmaceutical equipment. Do I need special qualifications for import customs clearance? What if I don't have them?
A: Yes, the ZP series rotary tablet press is typically classified as professional pharmaceutical or chemical equipment in international trade. Under normal circumstances, the destination country's customs will require the consignee to possess the corresponding import qualifications. If your company or you as an individual currently do not have the relevant qualifications, please contact us (Wenzhou T&D / CECLE) directly . We can match you with corresponding special logistics channels, such as double clearance with tax included (e.g., DDP), to assist you in smoothly resolving customs clearance issues and ensuring the safe delivery of the goods.
What does the 100 kn Max. Pressure requirement mean for the ZP15?
A: The 100 kn Max. Pressure is the working condition needed for consistent, repeatable results. Operators must supply a stable source at this level; fluctuations cause defects.
What routine maintenance keeps the ZP15 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.
Which product sizes and formats can the ZP15 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
Full Documentation & Drawings
Complete technical manual, parameters and engineering drawings: CECLE Docs — ZP15
Related CECLE Machines
Request a Quote
Send your product specifications, target output and format details to CECLE for a tailored configuration, lead time and factory-direct quotation.
