CECLE Machine

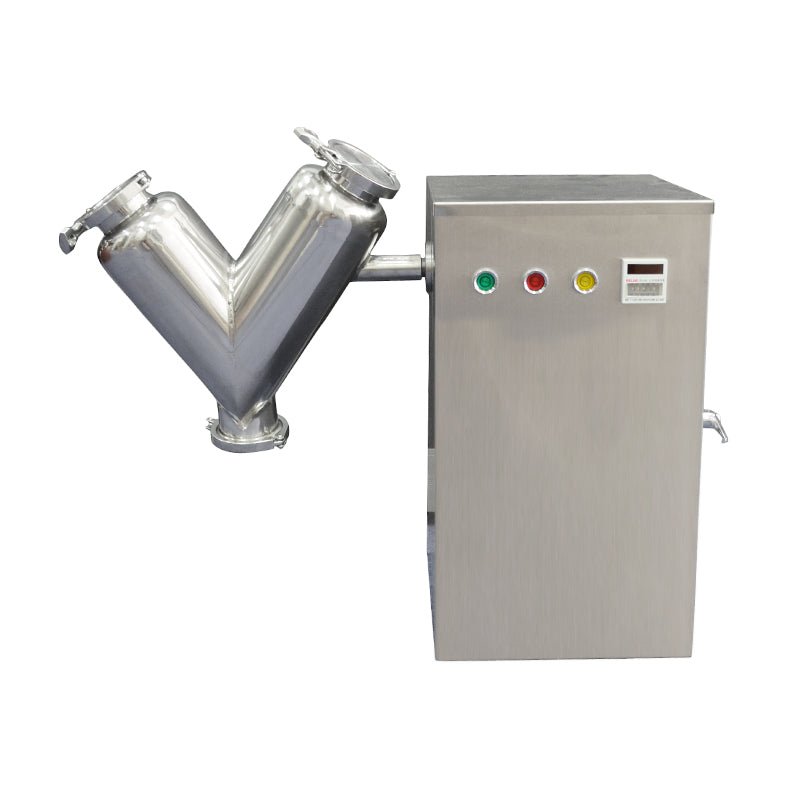

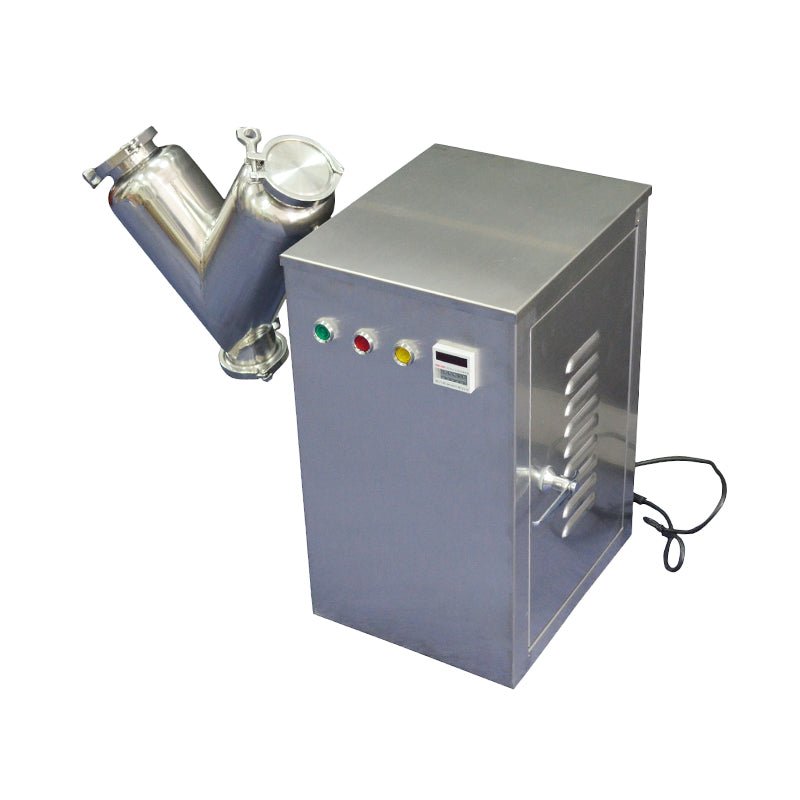

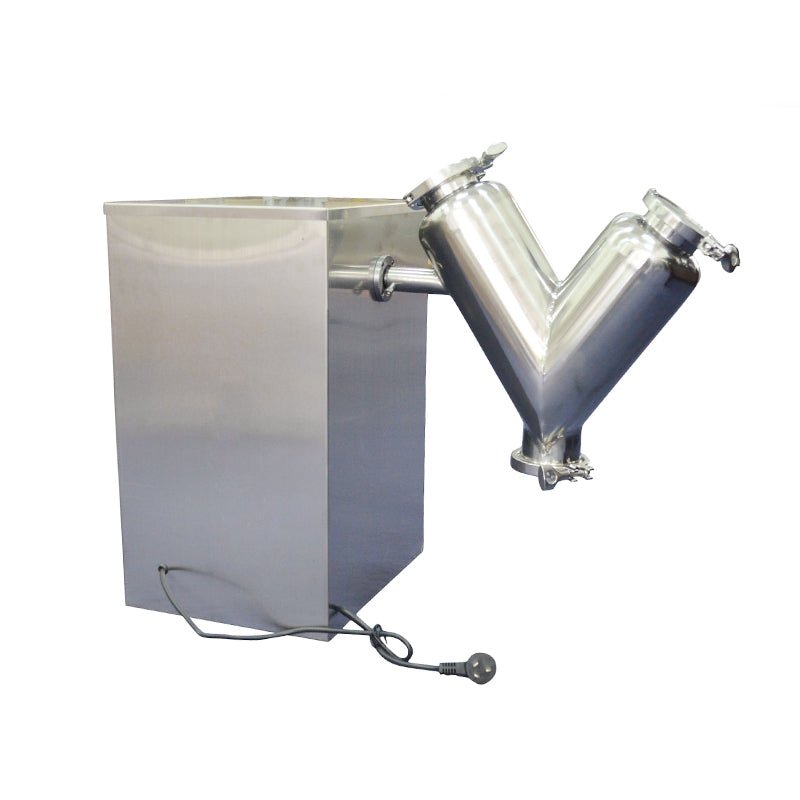

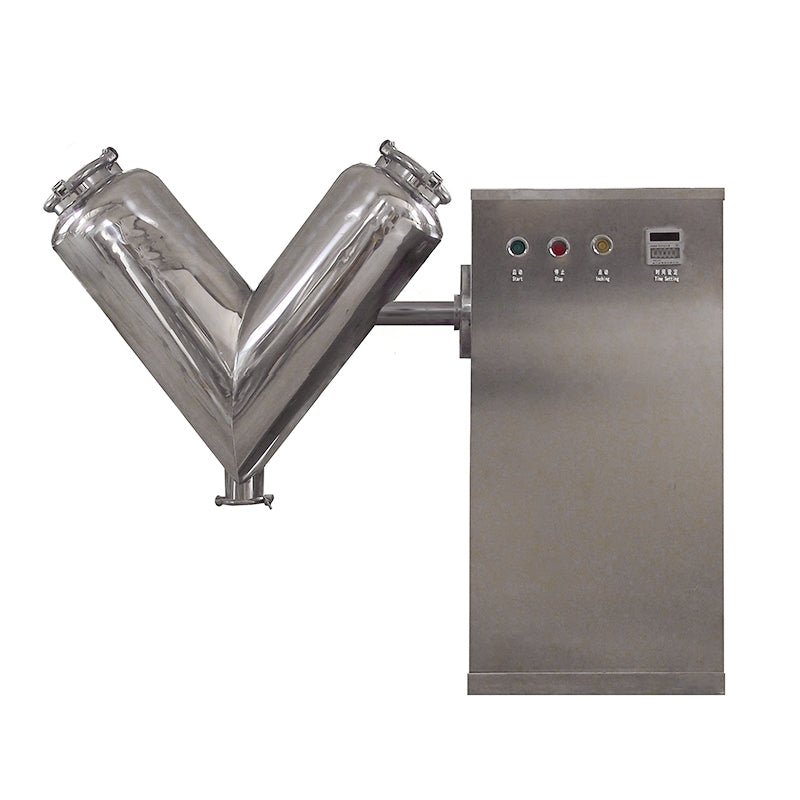

VM Series Single Arm Blender Mixer for Pharmaceutical Powder

Name: VM Series
Brand: CECLE
Price: 699.0 USD
Availability: InStock

$699.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model VM-2 by sea to door (15-22days) VM-5 by sea to door (15-22days) VM-8 by sea to door (15-22days) VM-14 by sea to port (25-35days) VM-20 by sea to port (25-35days)

Quick Answer: The CECLE VM series V-type single-arm mixer is a precision mixing device designed specifically for the efficient and uniform mixing of dry powders and granular materials.

CECLE VM Series vs. Traditional / Generic Alternative

Where the CECLE VM Series stands out against manual or generic blender mixer — measured on the dimensions buyers care about most.

Precision & Consistency

CECLE VM SeriesExcellent Mixing Uniformity : The asymmetrical V-type barrel design forces materials to undergo multidimensional shearing and diffusion mixing within the cylinder, ensuring no mixing dead angles and extremely.

Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.

Pressure Consistency

CECLE VM SeriesThe CECLE Blender Mixer holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE VM SeriesIt is tuned for continuous commercial throughput with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Operational Mechanism & Drive

CECLE VM SeriesIts drive removes operator-dependent variation, so output stays consistent.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Model	Barrel Vol (L)	Working Vol (L)	Max Wt (kg)	Speed (r/min)	Power (kw)	Weight (kg)	Dimensions (mm)
VM-2	2	1	1	24	0.25	45	450×350×550
VM-5	5	2.5	2.5	24	0.37	55	550×400×650
VM-8	8	4	4	24	0.37	65	600×450×700
VM-14	14	7	7	20	0.55	80	650×500×800
VM-20	20	10	10	20	0.55	95	750×550×900

Compatible Applications & Materials

industrial products — primary target products for this Blender Mixer line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Setup: connect the required power / air supply and verify the control display.
Parameter preset: set speed / temperature / pressure per the product spec.
Material loading: place the product in the correct fixture / mold slot.
Execution: start the cycle; monitor for stable, repeatable output.
Quality check: inspect the first units; adjust if deviation appears.
Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

What is the difference in mixing principles between the V-type single-arm mixer and the three-dimensional mixer?
A: The V-type mixer primarily relies on the rotation of the asymmetrical barrel, causing materials to tumble, alternate, and converge under their own gravity. This is a gentle gravity diffusion mixing, particularly suitable for dry powders with good fluidity. In contrast, the three-dimensional mixer uses a complex spatial trajectory of rotation and revolution to eliminate the influence of gravity and centrifugal forces, making it suitable for materials with extremely large specific gravity differences that are very difficult to mix.

What is the material of the inner wall of this mixer? Does it meet pharmaceutical-grade standards?
A: The barrel portion of the machine that comes into contact with materials is standardly manufactured with high-quality 304 stainless steel (and can be upgraded to 316L stainless steel according to requirements). The inner walls are all mirror-polished, leaving no sanitary dead angles, ensuring clean discharge without residue, and fully complying with GMP hygiene standards.

What are the packaging and transportation standards for international export orders?
A: All export equipment for foreign trade is uniformly packaged in fumigation-free plywood cases exclusively for export to prevent moisture and shock. Standard spare parts and special tools required for machine operation will be included in the packaging to ensure the safety of long-distance transnational transportation.

What is the warranty and after-sales policy for the equipment?
A: We provide a standard one-year warranty for the entire machine based on the ex-works price. During the warranty period, if non-artificial equipment damage occurs within the scope of normal operation as per the manual, we will provide free maintenance guidance or replace the damaged parts free of charge. After the warranty expires, we will continue to provide you with lifetime remote technical support and reasonably priced spare parts.
