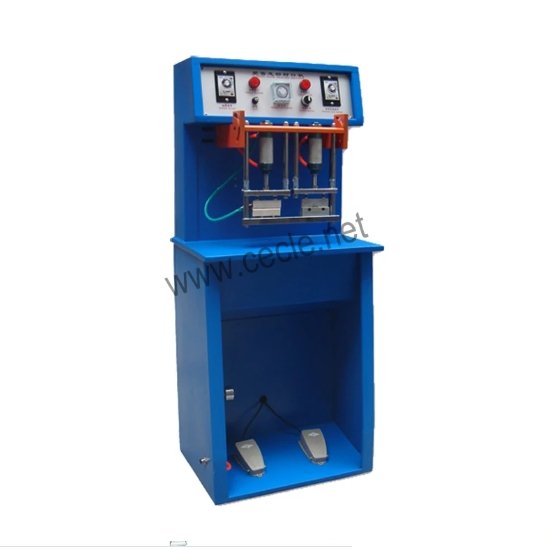

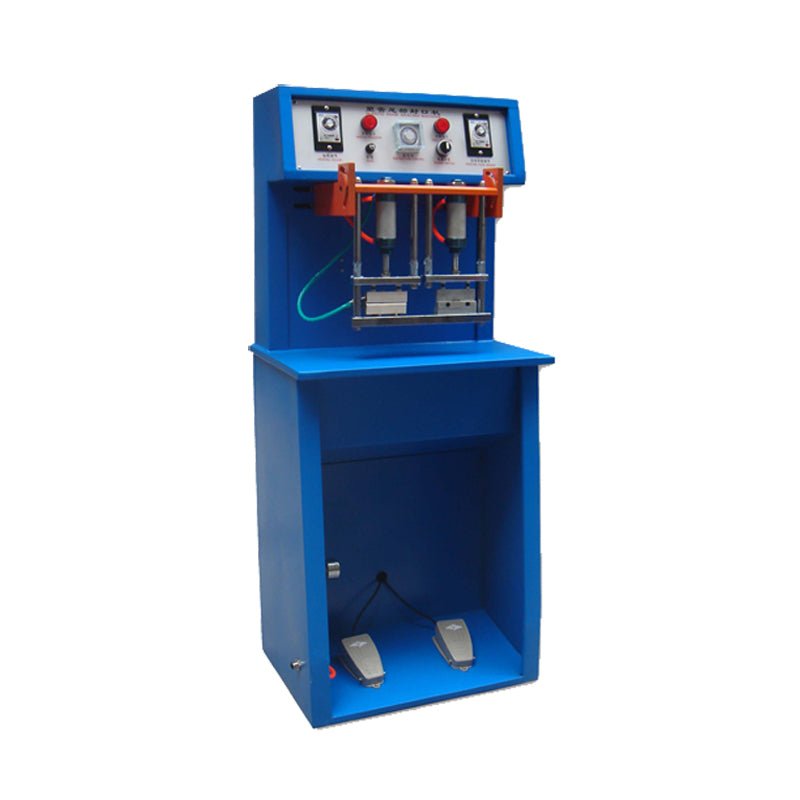

TS-80 Tube Sealing Machine for Tubes (Pneumatic Drive)

$1,499.00 USD

~~$1,000.00 USD~~ $1,499.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Voltage 220V/380V

Sealing size 80*7mm 100*7mm

Shipping method by express(7-10 days) by sea to door(25-40 days)

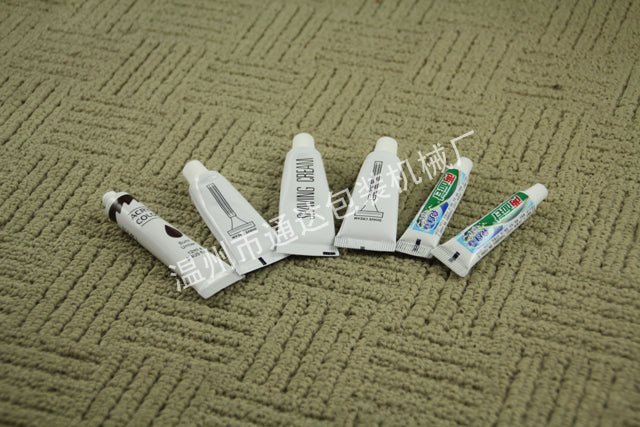

Quick Answer: The CECLE TS-80 is a semi-automatic pneumatic tube sealing machine specifically engineered for aluminum tube cold-folding and tail-crimping in the cosmetic, pharmaceutical, food, and chemical industries.

CECLE TS-80 vs. Traditional / Generic Alternative

Aspect	CECLE TS-80 (This Machine)	Traditional / Generic Alternative
Sealing / Transfer Quality	Efficient Dual-Station Division: Features independent left and right workstations. The left station handles tail crimping/folding, while the right station handles date embossing, ensuring a clear and streamlined process	Uncontrolled Contact Conditions: Edges wrinkle, seals weaken or transfer is incomplete because pressure/heat are not synchronized.
Operational Mechanism & Drive	Pneumatic Foot Pedal Control: Triggered simply by pressing the pneumatic foot switch. It requires less effort than purely manual models and offers greater operational flexibility than fully automatic ones	Manual Lever Operation: Output depends on operator strength and drifts between shifts.

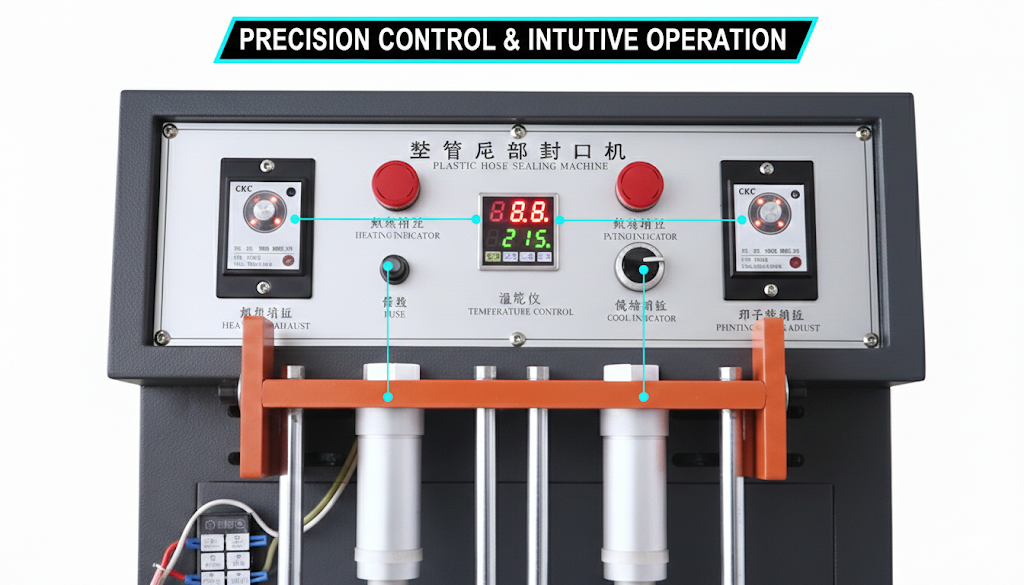

Precision & Consistency	Digital Intelligent Monitoring: Equipped with high-precision digital display instruments to monitor working parameters in real-time, ensuring consistent sealing quality	Analog / Blind Operation: No real-time parameter feedback; operators guess settings, so quality drifts batch to batch.
Chassis Rigidity & Vibration Resistance	Industrial-Grade Durability: Robust structure and simple maintenance make it the preferred equipment for small-to-medium-sized factories and laboratories	Lightweight Sheet Metal (<30 kg): Prone to chassis flex, frame warping over time, and seal leakage.

Technical Specifications

Specification	Value & Unit
Parameter Item	Detailed Value
Machine Model	TS-80
Working Voltage	220V / 380V (50~60Hz)
Rated Power	3.5 kW
Sealing Size	80/100 × 7 mm (3.1 × 0.3 in)
Sealing Speed	10-20 pcs/min
Working Air Pressure	0.4 ~ 0.6 MPa
Gross Weight	40 kg (88.2 lb)
Machine Dimensions	51 cm × 38 cm × 119 cm
Packaging Dimensions	25 cm × 56 cm × 44 cm

Pre-installation requirements: Working Voltage: 220V / 380V (50~60Hz); Rated Power: 3.5 kW; Working Air Pressure: 0.4 ~ 0.6 MPa; Gross Weight: 40 kg (88.2 lb); Machine Dimensions: 51 cm × 38 cm × 119 cm; Packaging Dimensions: 25 cm × 56 cm × 44 cm. External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this packaging line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Preparation: Connect the power and air source
Adjust the working parameters on the digital display according to the material and thickness of the aluminum tube

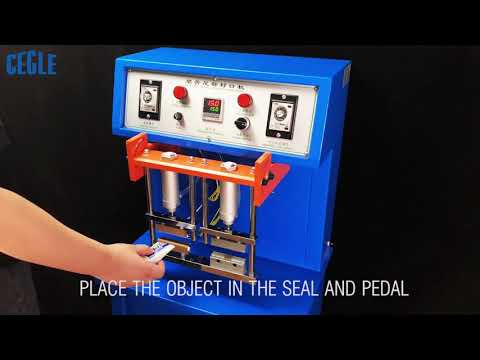

Material Placement: The operator places the filled aluminum tube into the corresponding mold slot

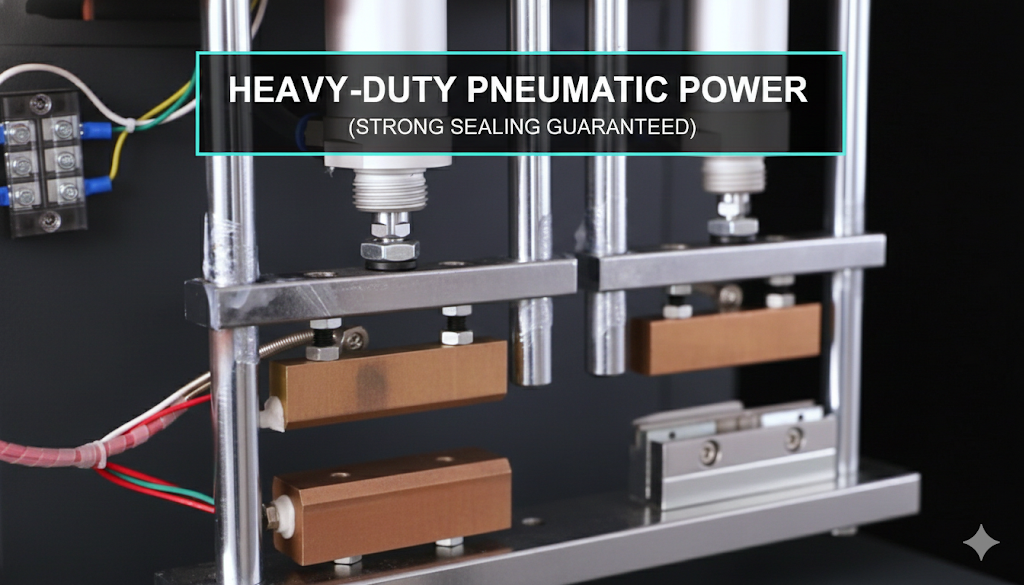

Processing Trigger: Step 1: Press the foot switch to trigger the left cylinder, completing the tail crimping and folding action (multi-layer folding) of the aluminum tube
Step 2: Move the folded tube to the right side and trigger the switch again

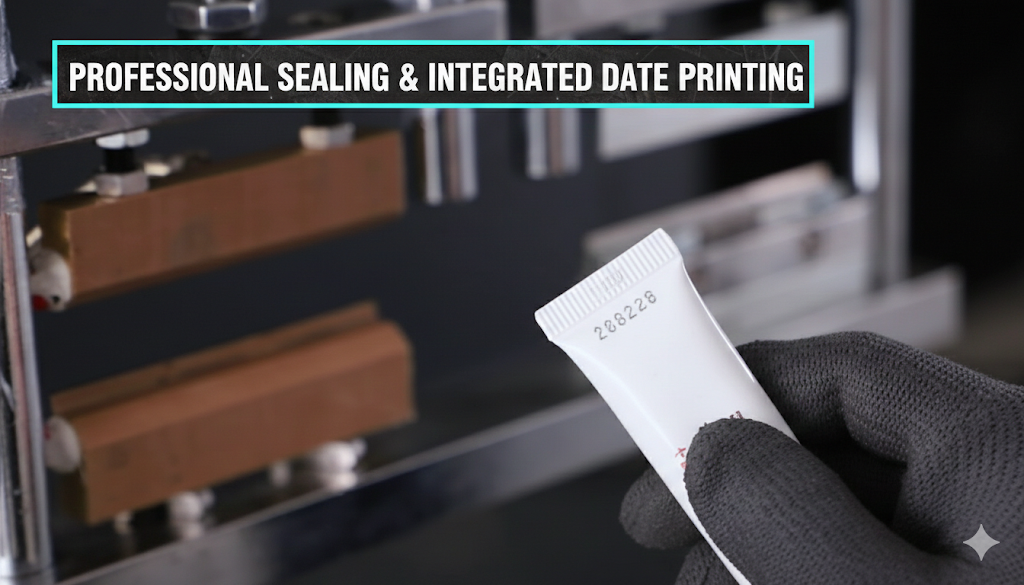

The right station will complete the date code embossing
Finished Product Collection: Remove the finished product, check the flatness of the seal and the clarity of the embossed characters, and proceed to the next cycle.

Engineering FAQ

What power supply does the TS-80 require?
A: The TS-80 runs on 220V / 380V (50~60Hz) Working Voltage. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the TS-80?
A: Beyond the rated 220V / 380V (50~60Hz) Working Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the TS-80 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the TS-80 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
