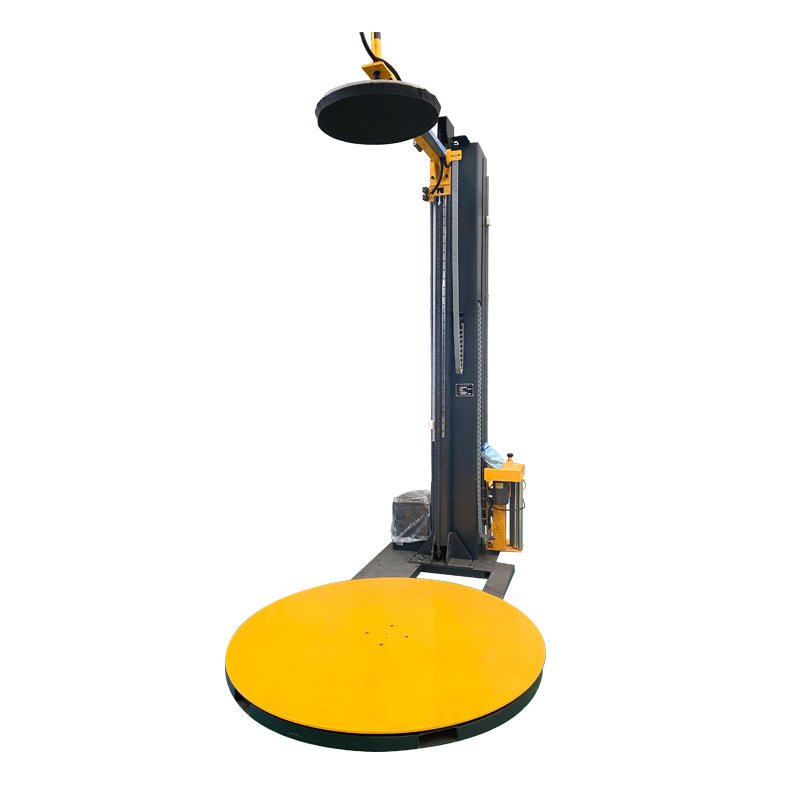

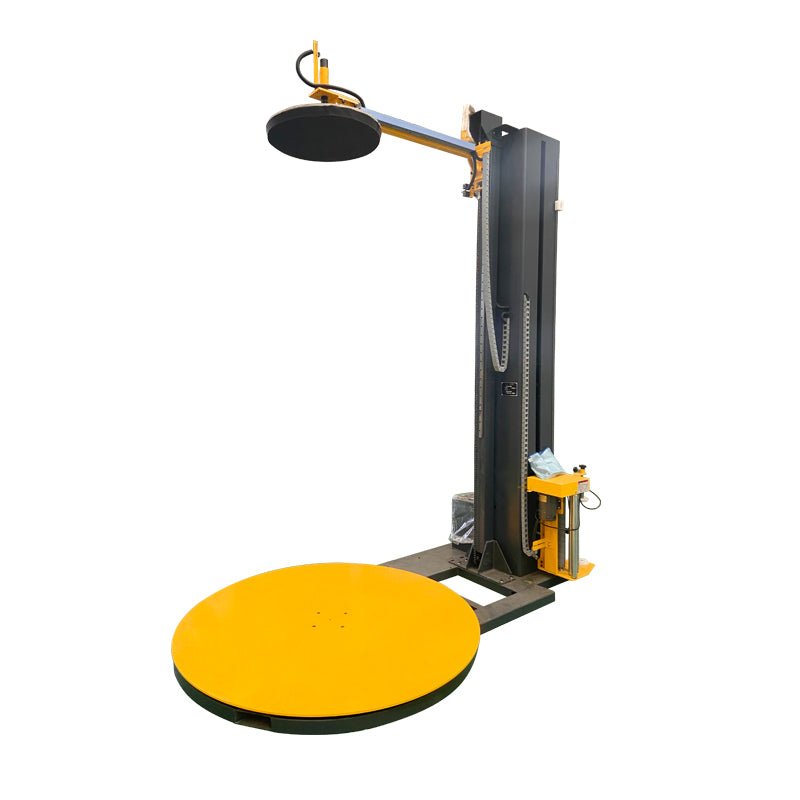

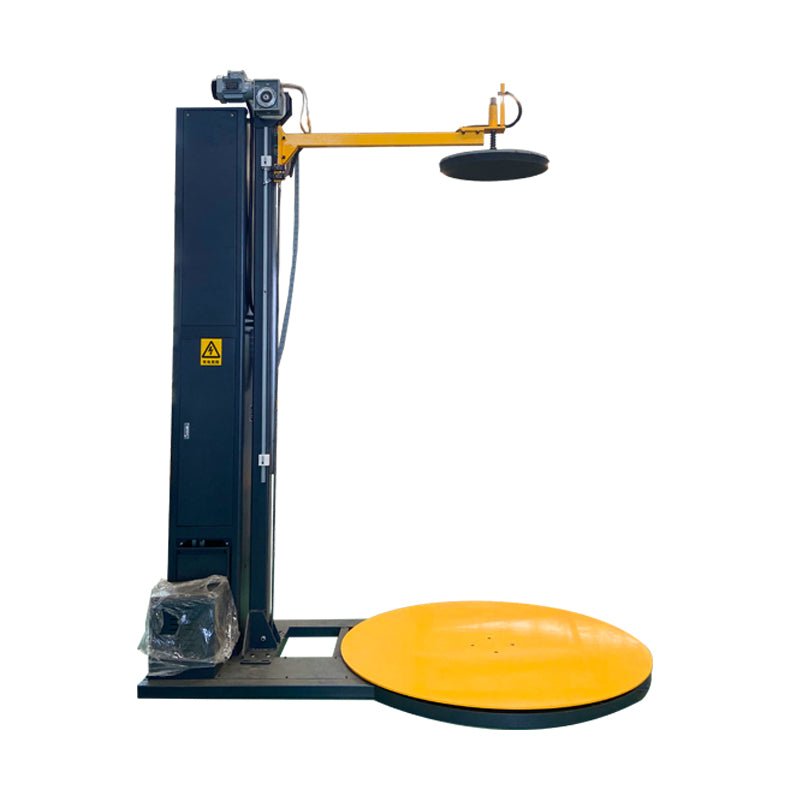

TP1650F-DS Electric Top Platen Pallet Stretch Wrapping Machine

100% Electric Plug-and-Play Protection for Lightweight & Unstable Pallet Loads Under 100KG (No Air Compressor Required)

The TP1650F-DS Electric Top Platen Pallet Stretch Wrapping Machine is an advanced, fully automated packaging solution engineered specifically for ultra-lightweight, or unstable palletized goods. Ideal for facilities producing empty bottles, aluminum cans, foam coolers, and plastic containers, this machine prevents lightweight cargo from shifting or tipping during high-speed rotation.

Unlike pneumatic wrappers, the TP1650F-DS utilizes an **independent, motorized electric column** to drive the top platen vertically. This means the machine is **100% electric and plug-and-play**—requiring no external air compressors, air lines, or pneumatic maintenance. Featuring a side film carriage and a dual-column structure, it offers unparalleled operational stability and exceptional film material savings through a 250% powered pre-stretch system.

🌟 Core Advantages & Technologies

• Independent Motorized Top Platen: Driven by an electric motor, the top platen lowers and raises smoothly with controllable stroke and consistent downward pressure to firmly lock unstable cargo in place.
• Dual-Column Heavy-Duty Structure: Features the main mast for vertical film carriage movement and an independent 2600mm mast dedicated to the electric top plate, preventing structural sway and ensuring smooth turntable rotation.
• Intelligent Auto-Height Photoelectric Sensing: Equipped with a photoelectric sensor that automatically detects the actual height of each pallet. The top plate adjusts its stroke dynamically, making it ideal for wrapping mixed-height pallet runs automatically.
• 250% Powered Pre-Stretch Film Carriage: Mechanically pre-stretches the film up to 250% before it wraps the goods, securing the cargo tightly while cutting your stretch film consumable costs by 30% to 50%.

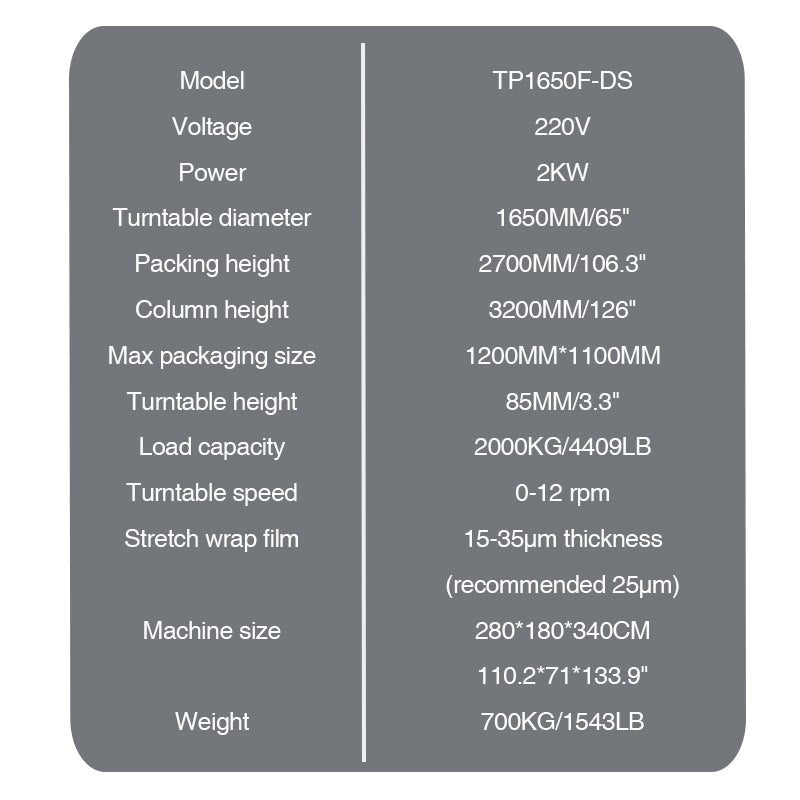

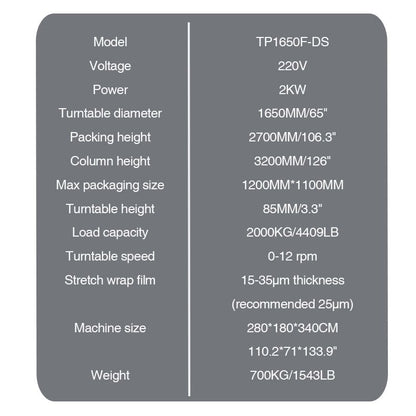

📐 Technical Specifications

🔄 Standard Operational Workflow

1. Loading: Forklift positions the lightweight, unstable pallet in the center of the turntable.
2. Platen Descends: Start the cycle; the independent electric column drives the top platen down to press the cargo top securely.
3. Wrapping: Tie the starting tail of the film. The film carriage automatically senses the height and vertical wraps according to the programmed cycle.
4. Automatic Reset: Once wrapping completes, the electric top platen automatically raises, and the turntable returns to its start position.
5. Unloading: Cut the film manually and forklift away the perfectly wrapped and stabilized pallet.

❓ Frequently Asked Questions (FAQ)

Q: Will the electric top plate crush lightweight cardboard cartons?
A: No. The top platen's stroke limit and downward pressure can be easily adjusted and fine-tuned through the PLC touch screen, ensuring a firm, secure hold without damaging your outer packaging.

Q: If my pallet heights are inconsistent, can the top platen adjust automatically?
A: Yes, absolutely. The machine is equipped with a photoelectric height-sensing switch. It automatically detects the actual height of each incoming pallet, driving the electric platen to descend to the exact required height for intelligent start-and-stop operation.

Q: What about warranty and after-sales services?
A: We provide a 1-year warranty service. During the warranty period, if damage occurs under normal use according to the manual, we provide free replacement parts (the buyer is responsible for the international shipping costs from China to their local area).

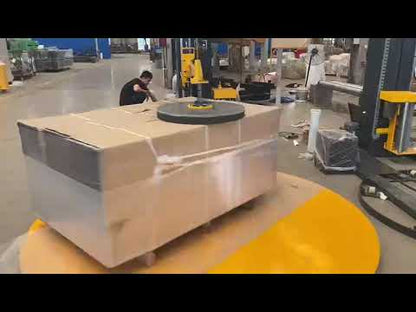

🎥 Demonstration Video

📚 Technical Resources & Support

For complete setup instructions, dual-column alignment details, PLC parameter configurations, and routine maintenance, please visit our official knowledge base:
👉 TP1650F-DS Electric Top Platen Pallet Stretch Wrapping Machine Technical Documentation (doc.cecle.net)
