Pneumatic Top Platen Pallet Stretch Wrapper TP1650F-CS | For Light & Unstable Loads
Pneumatic Top Platen Pallet Stretch Wrapper TP1650F-CS | For Light & Unstable Loads
Couldn't load pickup availability
At a Glance (TL;DR)
- Designed for Light & Unstable Loads: Specially built for lightweight pallets under 100KG (empty bottles, foam, light cartons) to prevent tilting or scattering during wrapping.
- Pneumatic Top Platen Device: Uses an adjustable pneumatic top platen (0.4–0.7 MPa) to hold unstable goods firmly in place without crushing them.
- 250% Powered Pre-Stretch: Significantly cuts film consumption and operating costs with a high-efficiency powered pre-stretch carriage.

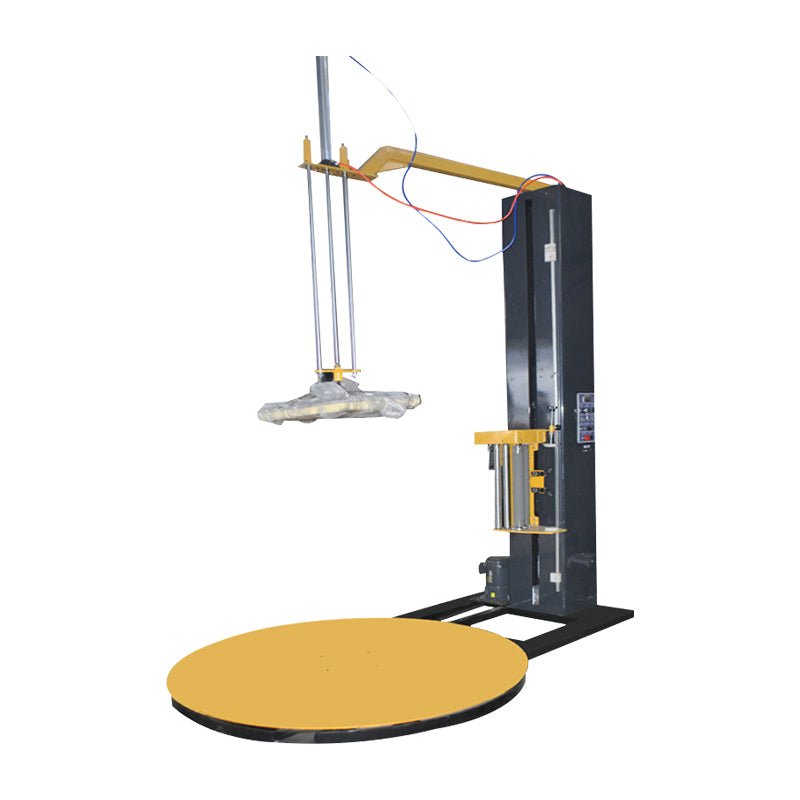

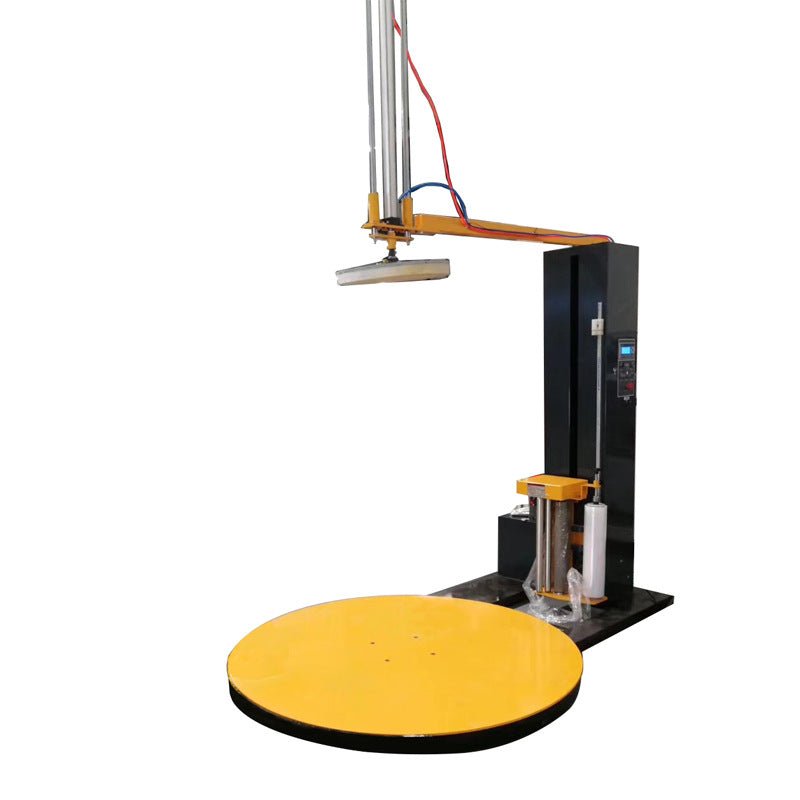

Pneumatic Top Platen Pallet Stretch Wrapping Machine
The TP1650F-CS Pneumatic Top Platen Pallet Stretch Wrapping Machine is the ultimate packaging solution for lightweight, unstable, or top-heavy pallet loads weighing under 100KG. Standard stretch wrappers often pull light cartons off center or cause empty bottles to scatter due to centrifugal force. The TP1650F-CS solves this pain point by utilizing a downward-pressing pneumatic cylinder top platen that locks cargo securely onto the turntable throughout the entire rotation cycle.
Key Benefits & Core Features
- Pneumatic Top Platen Stabilization: Secures fragile or light goods during rotation. The pneumatic pressure is fully adjustable (0.4–0.7 MPa) to protect delicate boxes from crushing.
- 250% Powered Pre-Stretch Film Carriage: Film carriage powered pre-stretch system stretches film up to 2.5 times its original length, drastically reducing packaging consumable expenses.
- Programmable Smart PLC Control: User-friendly touchscreen panel allows easy configuration of wrapping layers, wrap cycles, and variable turntable speed (0–12 RPM).
📖 Looking for exact setup requirements or custom height specifications?
Explore the full Official TP1650F-CS Technical Manual & Documentation for detailed air compressor connection guides, operating steps, and custom order parameters.

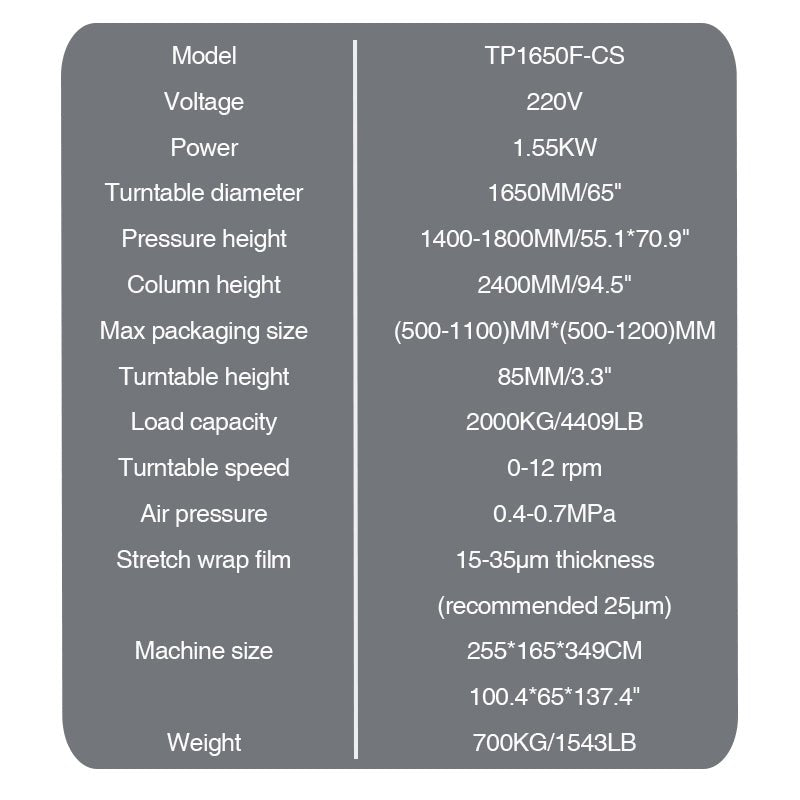

Technical Specifications
| Model | TP1650F-CS |
| Top Platen System | Pneumatic Cylinder |
| Turntable Diameter | 1650 mm / 65" |
| Pressure Height | Based on the max and min height of customer's cargo |
| Column Height | 2400mm / 94.5" |
| Turntable Height | 85mm / 3.3" |
| Max Pallet Size | 1200 × 1100 mm / 47.2" × 43.3" |
| Load Capacity | 2000 kg / 4409 lbs (Ideal for <100kg unstable loads) |
| Turntable Speed | 0 - 12 RPM (Adjustable) |
| Air Pressure | 0.4 - 0.7 MPa (External Air Compressor Required) |
| Power & Voltage | 1.55 KW | 220V / 50Hz |
| Weight | 800 kg / 1764 lbs |

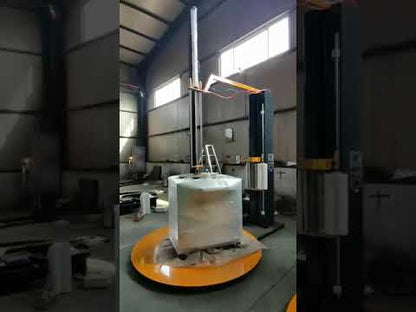

Operation Demonstration
Frequently Asked Questions
Will the pneumatic pressure crush my cartons?
No. The intake pressure is adjustable between 0.4-0.7Mpa, and you can adjust the downward pressing force of the cylinder according to the fragility of the goods to ensure they are stable and not damaged.
What about warranty and after-sales services?
We provide a 1-year warranty service. During the warranty period, if damage occurs under normal use according to the manual, we provide free replacement parts (the buyer is responsible for the international shipping costs from China to their local area).
