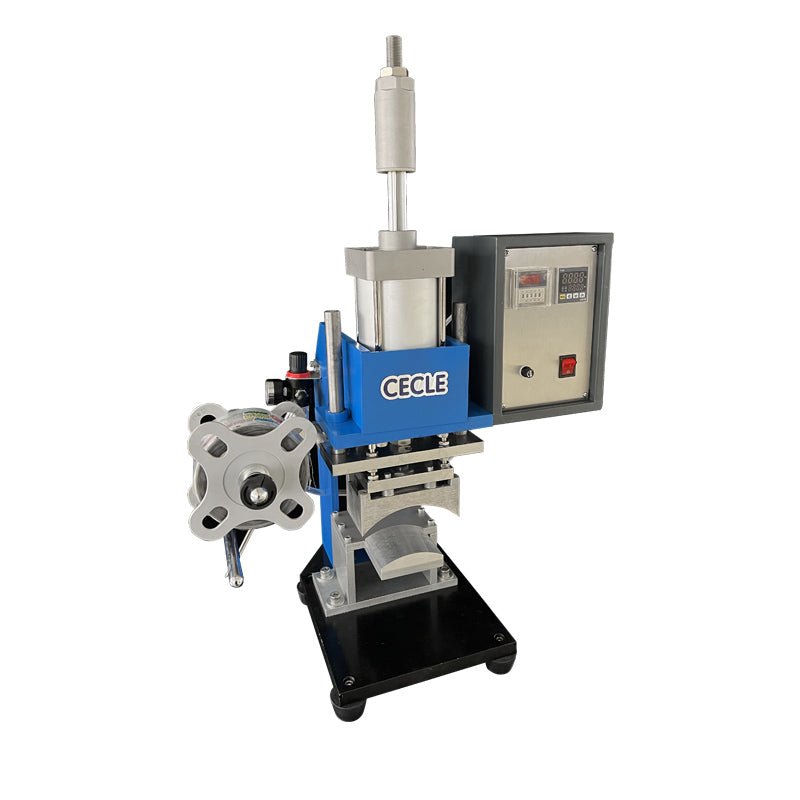

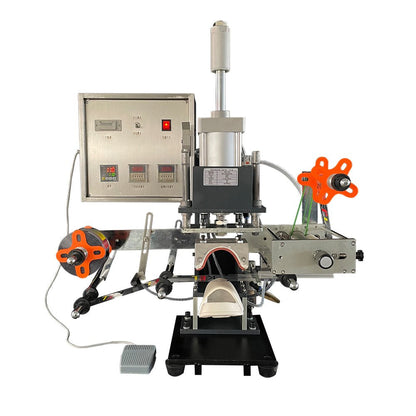

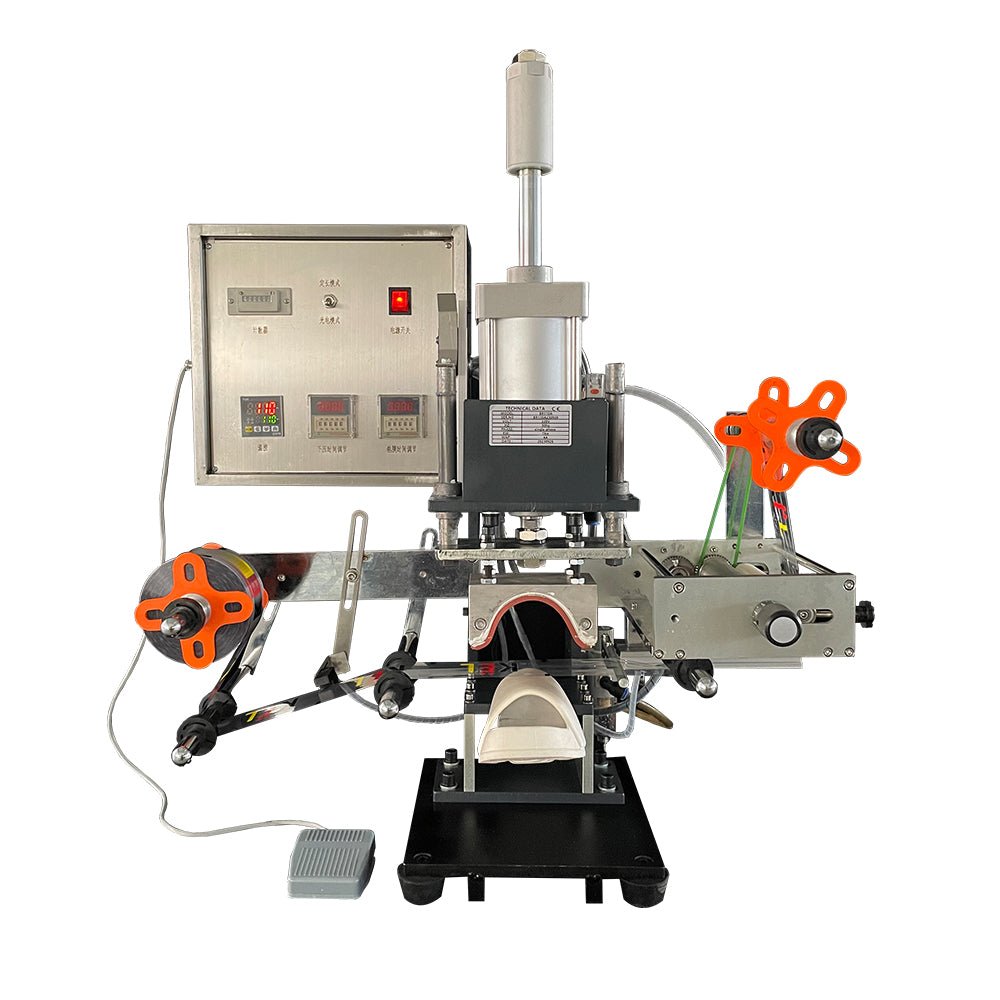

THS-210 Surface Heat Transfer Machine for Slippers & Flip Flops (Pneumatic Drive)

$1,499.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Voltage 220V/110V THS-210 electric with automatic round film

Shipping method by express(7-10 days)

Quick Answer: The CECLE THS-210 is a semi-automatic heat transfer machine specifically designed for printing vibrant, high-definition patterns onto slipper surfaces, flip-flops, and PVC/EVA fabrics.

CECLE THS-210 vs. Traditional / Generic Alternative

Where the CECLE THS-210 stands out against manual or generic heat transfer machines — measured on the dimensions buyers care about most.

Output Speed & Throughput

CECLE THS-210Dual Film Feeding Modes : Supports both automatic film feeding and manual film pulling . The automatic mode is ideal for highly efficient mass production, significantly reducing labor intensity; the manual.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Precision & Consistency

CECLE THS-210High-Precision Feeding System : Equipped with a high precision foil feeding control system to ensure consistent feeding length each time and accurate pattern positioning, significantly reducing film wastage

Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.

Pressure Consistency

CECLE THS-210Powerful Hybrid Drive : Combines electric control with a pneumatic drive, delivering uniform and stable stamping pressure to ensure vibrant colors and sharp edges for the transferred patterns

Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.

Operational Mechanism & Drive

CECLE THS-210User-Friendly Design : Features a semi-automatic logic design where manual loading and unloading are paired with automated stamping and film feeding. Regular operators can master the machine with just 5.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Specification	Value & Unit
Printing Speed	15 times/min
Voltage	220V 50~60Hz
Air Pressure	0.4T
Control Mode	Electric drive
Machine Weight (G.W./N.W.)	120kg (264.6 lb)
Packaging Dimension	520 × 420 × 600mm (20.5 × 16.5 × 23.6 in)

Pre-installation requirements: Voltage: 220V 50~60Hz; Air Pressure: 0.4T; Machine Weight (G.W./N.W.): 120kg (264.6 lb); Packaging Dimension: 520 × 420 × 600mm (20.5 × 16.5 × 23.6 in). External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Heat Transfer Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Startup Preparation : Connect the power and air supplies, and set the temperature of the heating plate (depending on the film material, typically between 150-180°C)
Mode Selection : Select the Automatic Feeding mode on the control panel and set the desired feeding length

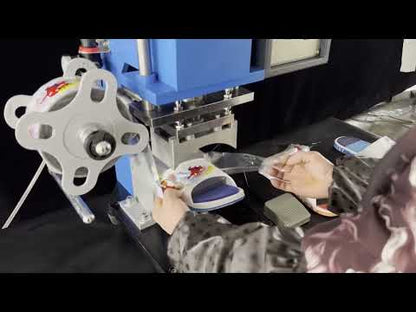

Manual Loading : The operator precisely places the slipper surface onto the positioning mold of the workbench
Automatic Film Feeding &amp
Alignment : Under Automatic Mode : Upon completion of the previous press, the machine automatically drives the motor to advance the film to the next pattern position
Pressing &amp
Transfer : Step on the foot switch

Engineering FAQ

Why is the 15 times/min Printing Speed rating important for the THS-210?
A: The 15 times/min Printing Speed balances throughput and stability for continuous B2B runs — too low limits output, too high compromises seal/transfer quality. This rating is the engineered sweet spot for the target product range.

What peripheral equipment should be prepared for the THS-210?
A: Beyond the rated 220V 50~60Hz Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the THS-210 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the THS-210 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
