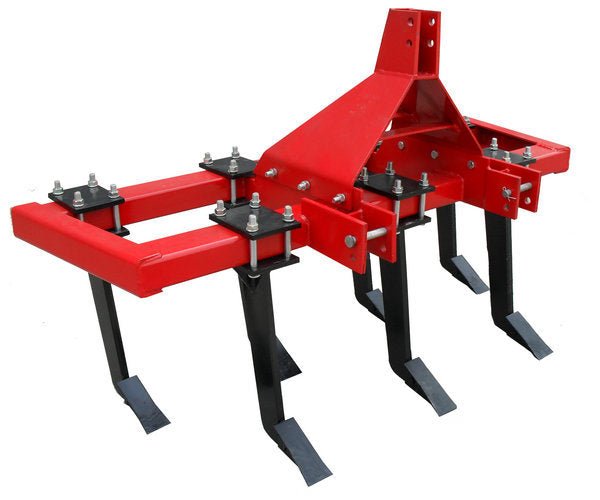

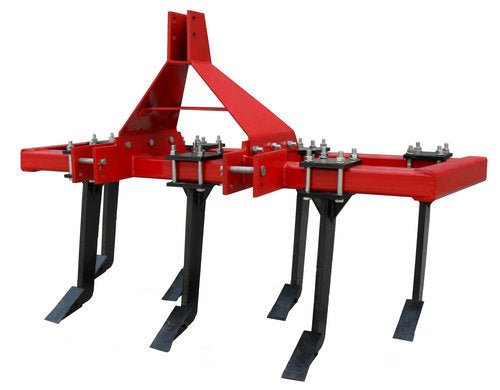

Three Point Mounted Subsoiler Machine for Industrial Use

$999.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Shipping Method By sea to port (20-30 days) By sea to door with tax (25-40days)

Quick Answer: The CECLE Three-Point Mounted Subsoiler (3S-1.4) is a deep-tillage implement that breaks the soil hardpan to improve structure, drainage, and root growth.

CECLE vs. Traditional / Generic Alternative

Where the CECLE stands out against manual or generic machine — measured on the dimensions buyers care about most.

Chassis Rigidity & Vibration Resistance

CECLE Heavy-Duty Construction : The frame is made of high-strength steel, designed to withstand heavy loads in tough soil conditions. Replaceable Tips/Shares : The wear parts (the tips) are replaceable, which lowers.

Lightweight Sheet Metal (<140 kg)Prone to chassis flex, frame warping over time, and seal leakage.

Pressure Consistency

CECLE The CECLE Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE It is tuned for continuous commercial throughput with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Operational Mechanism & Drive

CECLE Purpose-Built Matched power: 40hp drive delivers steady, operator-independent output.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

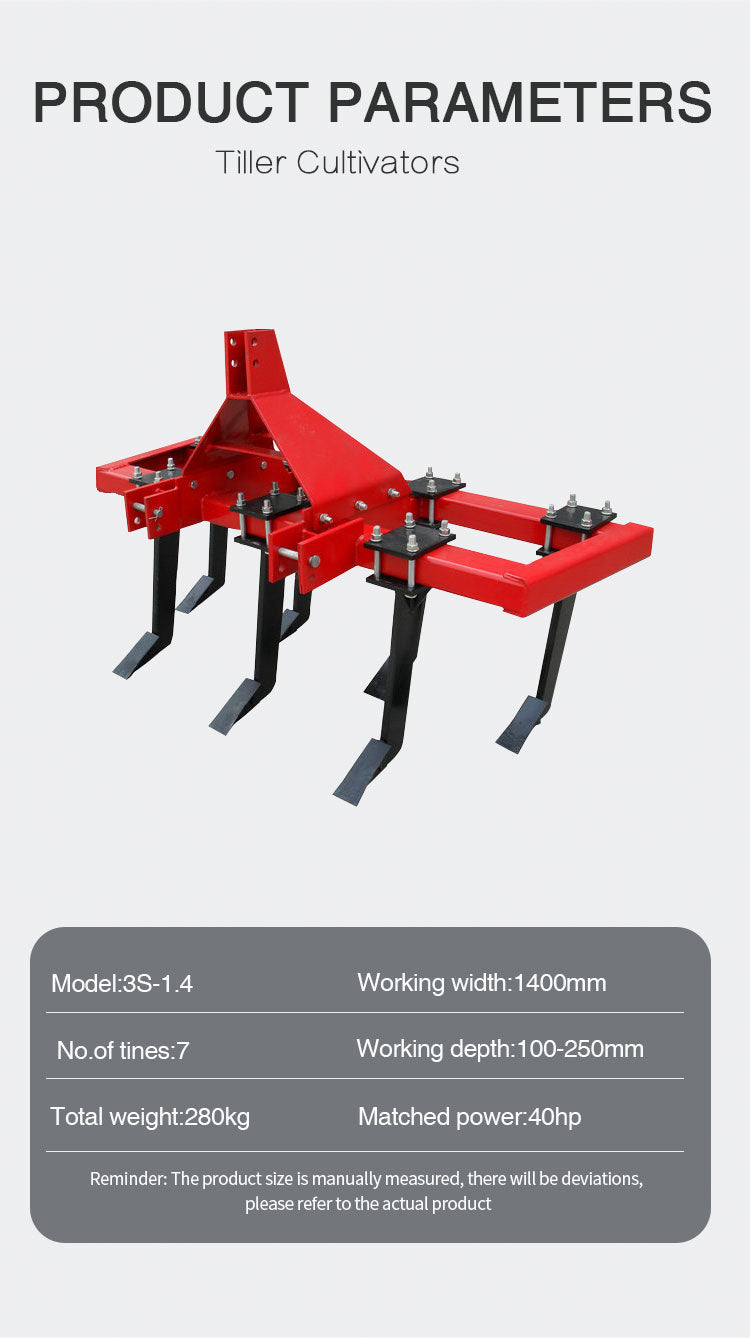

Technical Specifications

Parameter	Specification / Value
Model	3S-1.4
Working width	1400mm
No.of tines	7
Working depth	100-250mm
Total weight	280kg
Matched power	40hp

Pre-installation requirements: Total Weight: 280kg (617.3 lb); Matched Power: 40hp.

Compatible Applications & Materials

industrial products — primary target products for this Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Inspection &amp
Preparation : Check whether the bolts at all connection points of the subsoiler are tightened, ensure connecting pins and cotter pins are complete, and check the shovel tips for wear or looseness
Machine Mounting : Align the tractor's three-point hitch arms with the subsoiler's mounting points, connect the left and right lower links and the central top link sequentially, and secure them with safety pins
Depth Adjustment : Adjust the tractor's hydraulic lift system and depth-limiting devices according to agronomic requirements to set the appropriate subsoiling depth
Subsoiling Operation : Drive the tractor steadily into the target plot, slowly lower the subsoiler to the set depth, and move forward smoothly to perform subsoiling
Avoid sharp turns or reversing while engaged
Post-Operation Maintenance : Raise the subsoiler and move it out of the field

Engineering FAQ

What are the tractor horsepower requirements for this subsoiler?
A: This model matches a required power of 40 horsepower. Please ensure your tractor is equipped with a standard three-point hitch system and corresponding traction capability.

What is the typical depth for subsoiling operations?
A: The working depth of this unit is 100-250mm, which can effectively penetrate and break typical agricultural hardpan layers.

Do I need to replace the entire machine when the tips wear out?
A: No. The wear parts (the tips) of the machine feature a replaceable design. Daily maintenance only requires swapping out the tips, greatly reducing long-term operating costs.

What power supply does the require?
A: The runs on 40hp Matched power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What routine maintenance keeps the stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
