CECLE Machine

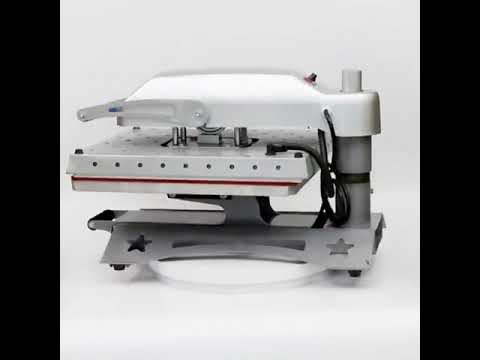

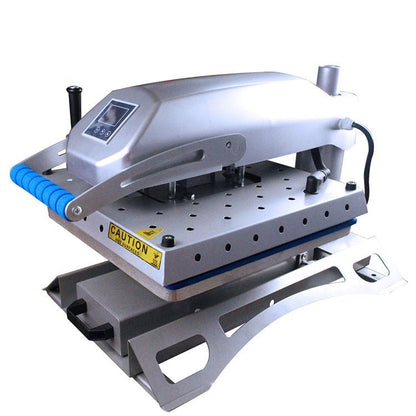

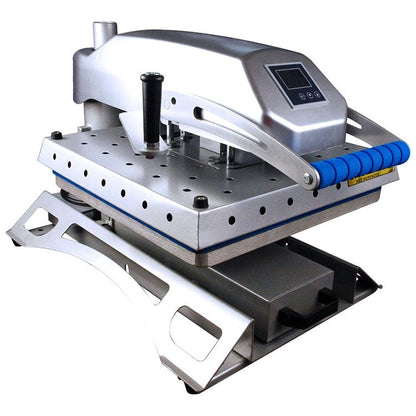

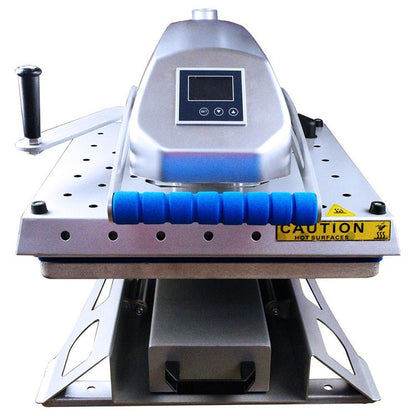

HP-4050 Swing-Away Slide-Out Heat Press Machine for T-Shirts & Garments

Name: HP-4050
Brand: CECLE
Price: 1199.0 USD
Availability: InStock

$1,199.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model HP-4050

Shipping method By Express(About 7-12 days)

Quick Answer: The CECLE HP-4050 is a slide-out swing-away T-shirt heat press machine—a medium-format, high-output, high-safety flatbed heat transfer device engineered for batch customization of large flat substrates.

CECLE HP-4050 vs. Traditional / Generic Alternative

Where the CECLE HP-4050 stands out against manual or generic heat press machines — measured on the dimensions buyers care about most.

Thermal Response & Heating System

CECLE HP-4050Slide-Out + Swing-Away Safety Design : Compared with traditional single swing-away models, the HP-4050 adds "slide-out load/unload" on top of "rotate-to-avoid-heat"—operators never need to reach deep inside.

Single Fixed HeatingUses cheap quartz tubes with slow preheating, uneven heat distribution, and frequent element burnouts.

Sealing / Transfer Quality

CECLE HP-4050M-Type Cast-Aluminum Heat Platen : The heating tubes are integrally cast with the aluminum plate using a casting process, arranged in a dense M-shape. Heating is more even, effectively avoiding the color-cast.

Uncontrolled Contact ConditionsEdges wrinkle, seals weaken or transfer is incomplete because pressure/heat are not synchronized.

Pressure Consistency

CECLE HP-4050The CECLE Heat Press Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE HP-4050It is tuned for continuous commercial throughput with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, limiting real throughput and raising labor cost.

Technical Specifications

Items	Specifications
Model	HP-4050
Heat Platen Size	40×50CM/15.7"×19.7"
Power	2500W
Voltage	110V/220V
Packaging Dimension	78×52×48CM/30.7"×20.5"×18.9"
Gross Weight	55KG/121LB

Pre-installation requirements: Power: 2500W; Voltage: 110V/220V; Packaging Dimension: 78×52×48CM/30.7"×20.5"×18.9"; Gross Weight: 55KG/121LB.

Compatible Applications & Materials

industrial products — primary target products for this Heat Press Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Preheat : Connect the power, set the target temperature and countdown time on the intelligent digital control panel, and wait for the heating platen to reach the target temperature
Slide-Out &amp

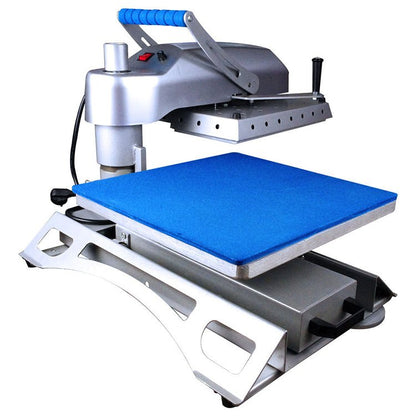

Load : Slide the base plate outward along the rails to outside the machine, lay the T-shirt/hoodie/substrate flat, and align the transfer paper with the pattern facing down
Return to Machine : Push the loaded base plate back inside the machine along the rails to the locating hole
Swing Back + Pressurize : Rotate the heating platen 360° back into position above the base plate
press down the anti-slip foam handle, and the machine automatically starts the countdown
Retrieve : When the buzzer sounds, pull up the handle

Engineering FAQ

Can this machine be used with 110V voltage in the United States?
A: Absolutely. We can provide you with customized 110V (North American standard) and 220V (European/Asian standard) models, equipped with power plugs that comply with your national standards.

Is the silicone pad on the worktable heat-resistant? Will it deform at high temperatures?
A: The worktable is laid with a high-temperature-resistant elastic foam silicone pad that withstands 400℃ for long-term operation without deformation or shrinkage.

What power supply does the HP-4050 require?
A: The HP-4050 runs on 2500W Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the HP-4050?
A: Beyond the rated 110V/220V Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the HP-4050 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the HP-4050 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
