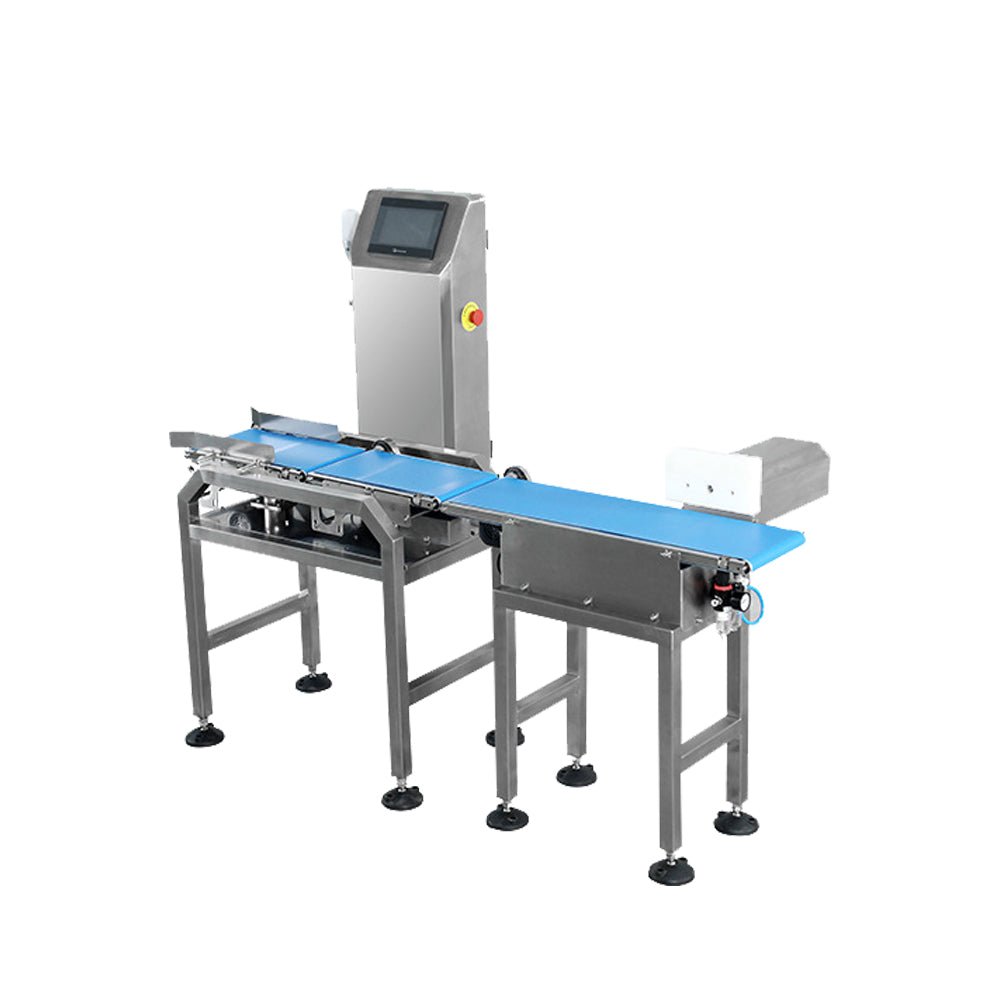

TD-1C1 Dynamic Check Weigher Conveyor | Online Weight Inspection & Sorting Scale

Core Abstract: The TD-1C1 Dynamic Check Weigher Conveyor is an essential online quality control equipment designed to ensure final package weight accuracy. Widely applied in the pharmaceutical, food, electronics, and health supplement industries, it acts as the last gatekeeper to detect missing components like pills, manuals, or desiccants. With a high-speed dynamic weighing capability of 10-60 bags per minute and a strict accuracy of 0.5~1.5g, it seamlessly integrates into existing automated packaging lines. For comprehensive technical specifications, wiring diagrams, and calibration manuals, please visit our official TD-1C1 Check Weigher Conveyor Technical Documentation.

1. Product Overview

The TD-1C1 Dynamic Check Weigher is used to test online whether finished packages meet preset qualified weights. It is widely applied across electronics, pharmaceuticals, food, beverages, and health products, specifically designed for detecting missing parts inside pouches and bottles. For a detailed breakdown of industrial use cases, check our TD-1C1 Product Overview Guide.

2. Core Advantages

1. High-Precision Dynamic Weighing: Achieves an average accuracy of 0.5~1.5g while the conveyor belt is in motion.
2. High-Speed Inspection: Reaches speeds up to 10-60 bags per minute, matching mainstream automated packaging lines.
3. Multi-Program Memory: Built-in 50 preset programs allow quick switching between weight standards for different products.
4. Wide Industry Adaptability: Handles lightweight pharmaceutical capsules, manual detection, and food packaging checks.
5. Compact Structure: Small footprint for easy, seamless integration into existing lines.

3. Technical Parameters

For complete dimension blueprints and power requirements, please consult our Technical Parameters Documentation.

• Model: TD-1C1
• Voltage: 220V/380V 50Hz
• Weighing Range: 10-1000 g
• Average Precision: 0.5~1.5 g
• Inspection Speed: 10-60 bags/min
• Preset Programs: 50 sets

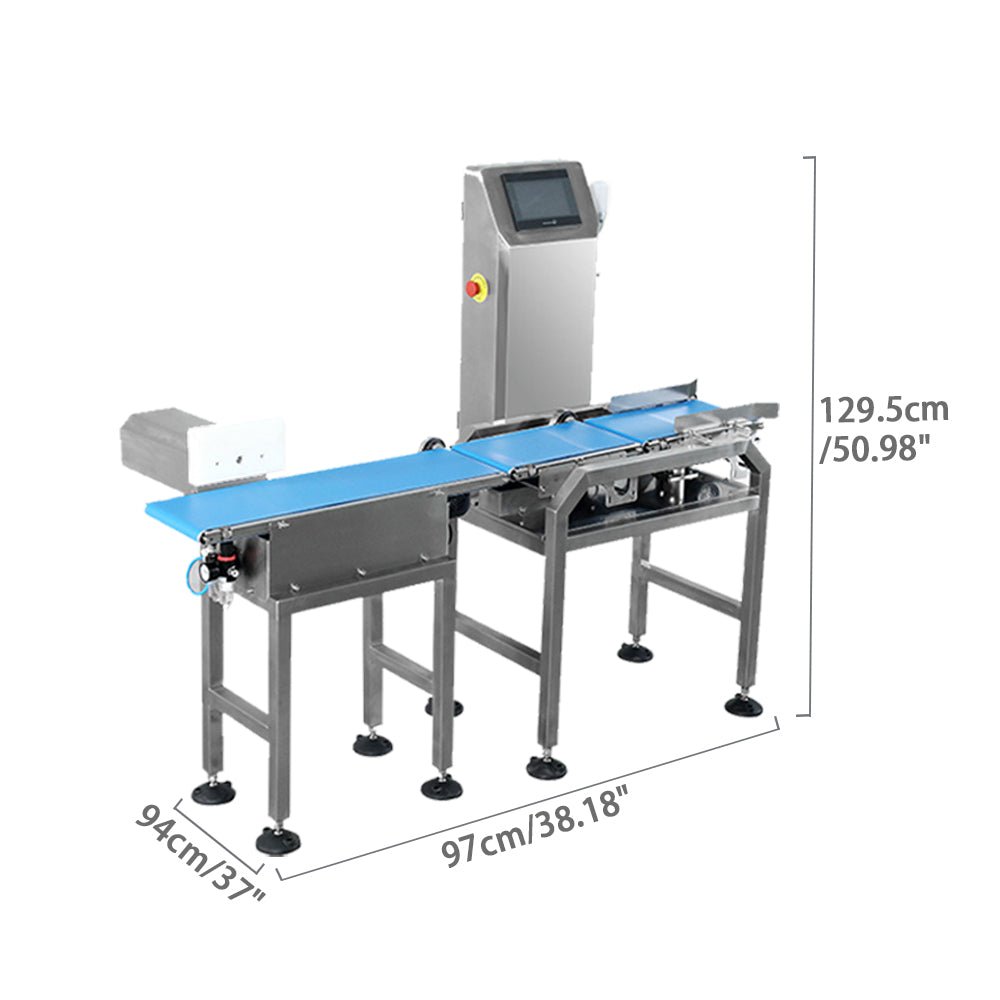

• Machine Dimensions: 97×94×129.5 cm
• Machine Weight: 250 KG

4. Operation Process

To view best practices for line integration and error calibration, visit the TD-1C1 Operation Process Guide.

• Step 1: Integrate the machine at the end of your packaging production line.
• Step 2: Recall or create a preset program, setting target weight and error limits.

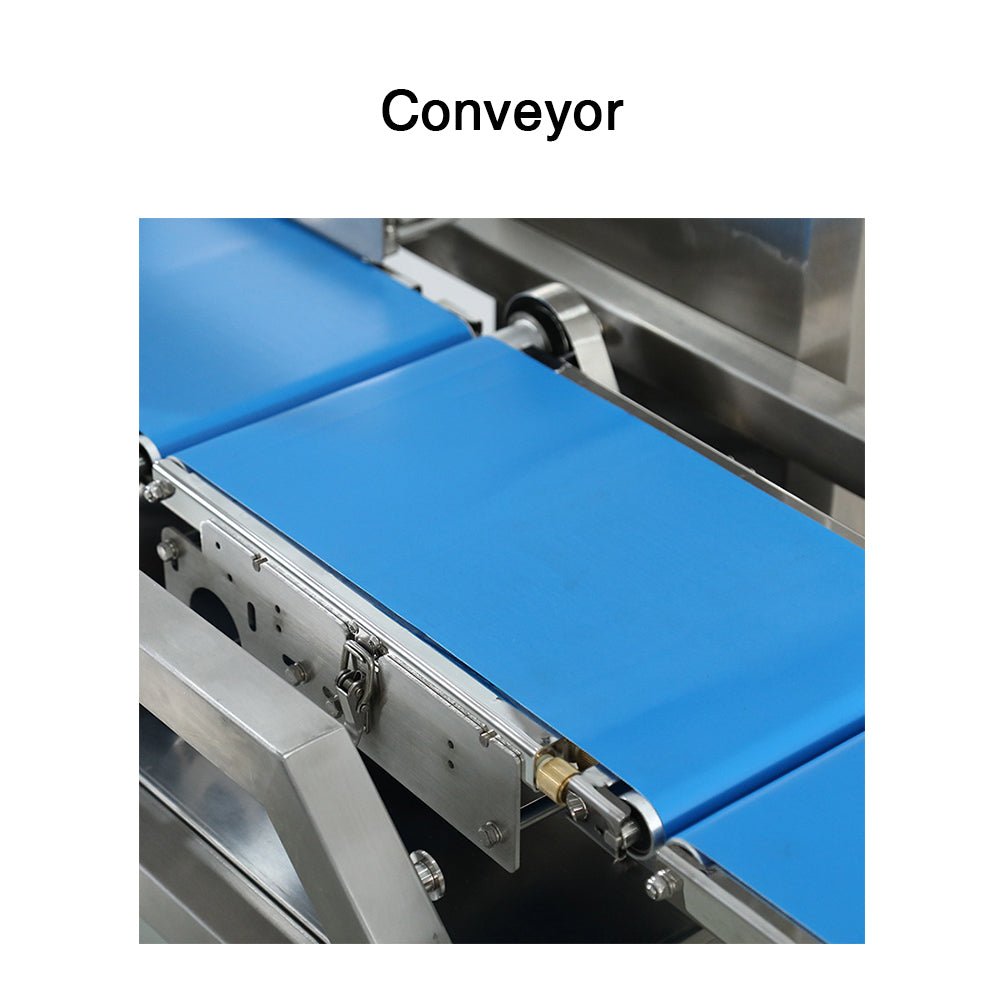

• Step 3: Turn on the machine; upstream finished packages pass over the conveyor belt.
• Step 4: The machine dynamically weighs each product in real time.
• Step 5: The system judges compliance, passing qualified items and triggering alarms or rejection devices for non-compliant packages.

5. Frequently Asked Questions (FAQ)

Explore more troubleshooting and sales support topics on our FAQ & Sales Support Page.

Q1: Can this machine kick out products with incorrect weights?

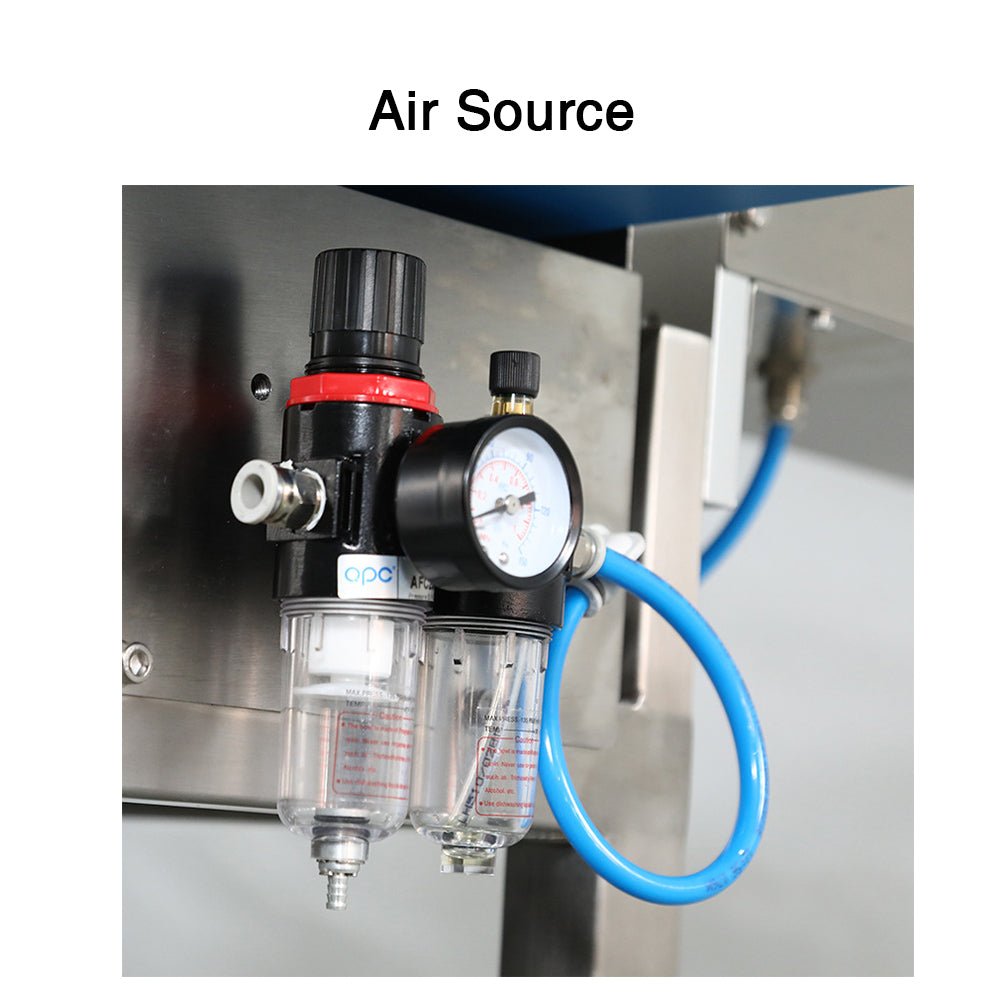

A: Yes. Based on customer needs, it can be customized with automatic rejection devices such as air blowers, push rods, or flipper arms.

Q2: Is it difficult to change product settings?

A: Very simple. The system saves up to 50 sets of product parameters; just recall the corresponding ID number on the touch screen.

Q3: How long is the warranty?

A: The whole machine has a 1-year warranty (excluding wearing parts), with lifetime maintenance.

Q4: What services do you provide?

A: Online technical support, video connection guidance, and free spare parts service during the warranty period.

6. Watch Operation Video

Watch how the sorting scale dynamic weighing check weigher conveyor works: YouTube Video Link
