SP-1100 Oversized Vacuum Skin Packaging Machine | 1100x600mm Heavy-Duty Skin Packer
SP-1100 Oversized Vacuum Skin Packaging Machine | 1100x600mm Heavy-Duty Skin Packer
Couldn't load pickup availability
Core Summary: The SP-1100 Vacuum Skin Packaging Machine is a heavy-duty industrial skin packer engineered specifically for oversized and extra-long products such as saw blades, spirit levels, and large hardware kits. Featuring a massive 1100mm x 600mm worktable, reliable lamp heating technology, an 8KW heating system, and a robust 416KG frame, it delivers high-impact, crystal-clear retail packaging. For detailed schematics, electrical diagrams, and operational guides, please visit our official SP-1100 Technical Documentation Hub.

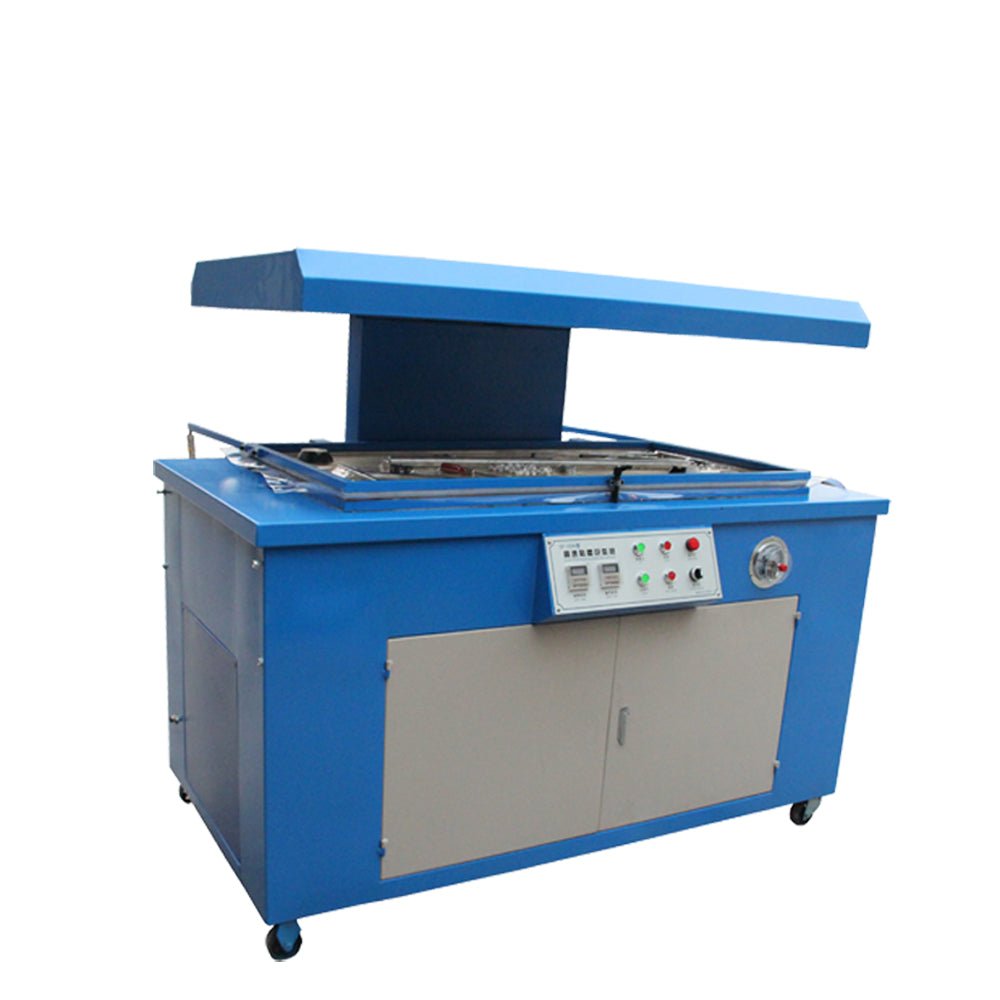

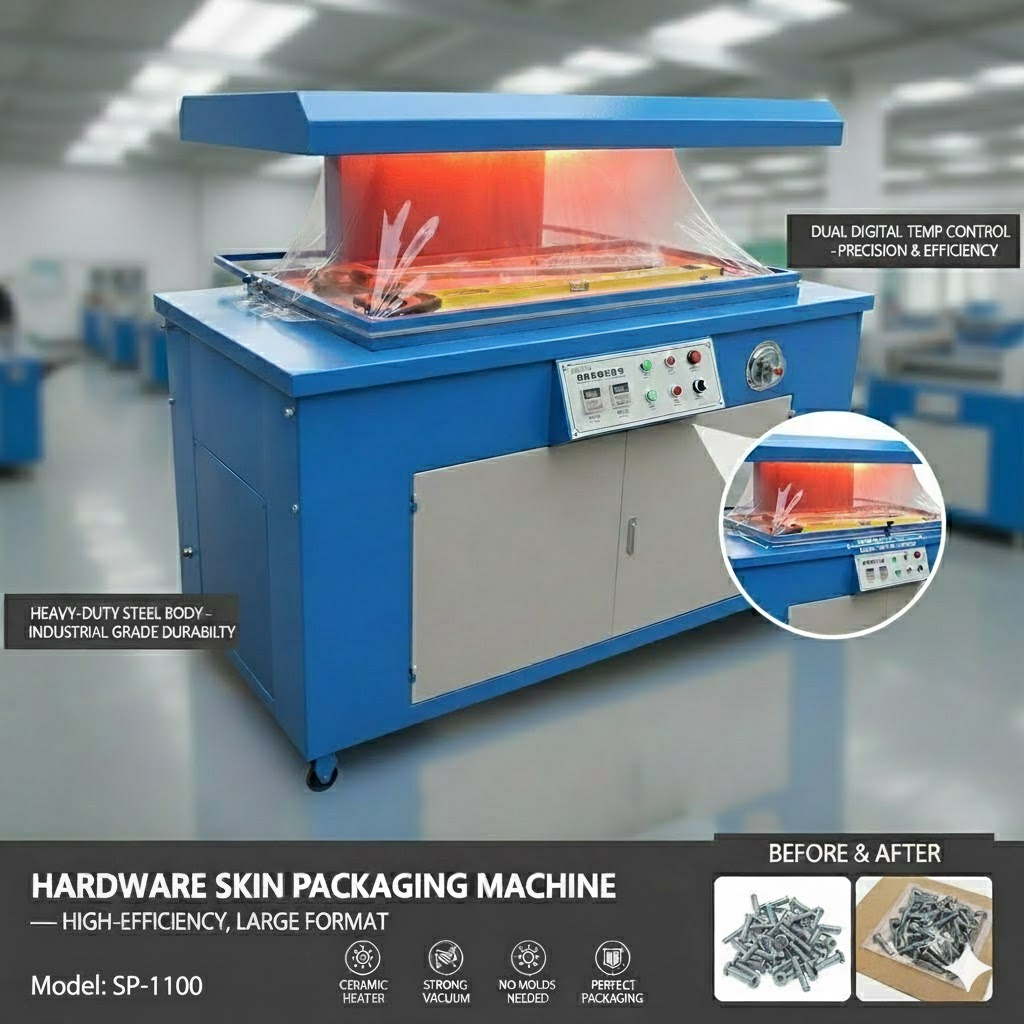

The SP-1100 Vacuum Skin Packaging Machine is the premier solution for heavy-duty industrial packaging of oversized and extra-long goods. Boasting a massive 1100mm × 600mm worktable, it easily accommodates items that standard machines cannot handle, such as saw blades, levels, and comprehensive hardware kits. Built with a solid 416KG chassis and reliable lamp heating, the SP-1100 ensures exceptional thermal stability, low maintenance, and a professional, transparent retail finish.
Looking for technical specifications, electrical parameters, or installation instructions? Visit our SP-1100 Documentation Center.
1. Product Overview
| Item | Details |
|---|---|
| Product Name | Vacuum Skin Packaging Machine |
| Model | SP-1100 (Oversized Industrial Edition) |

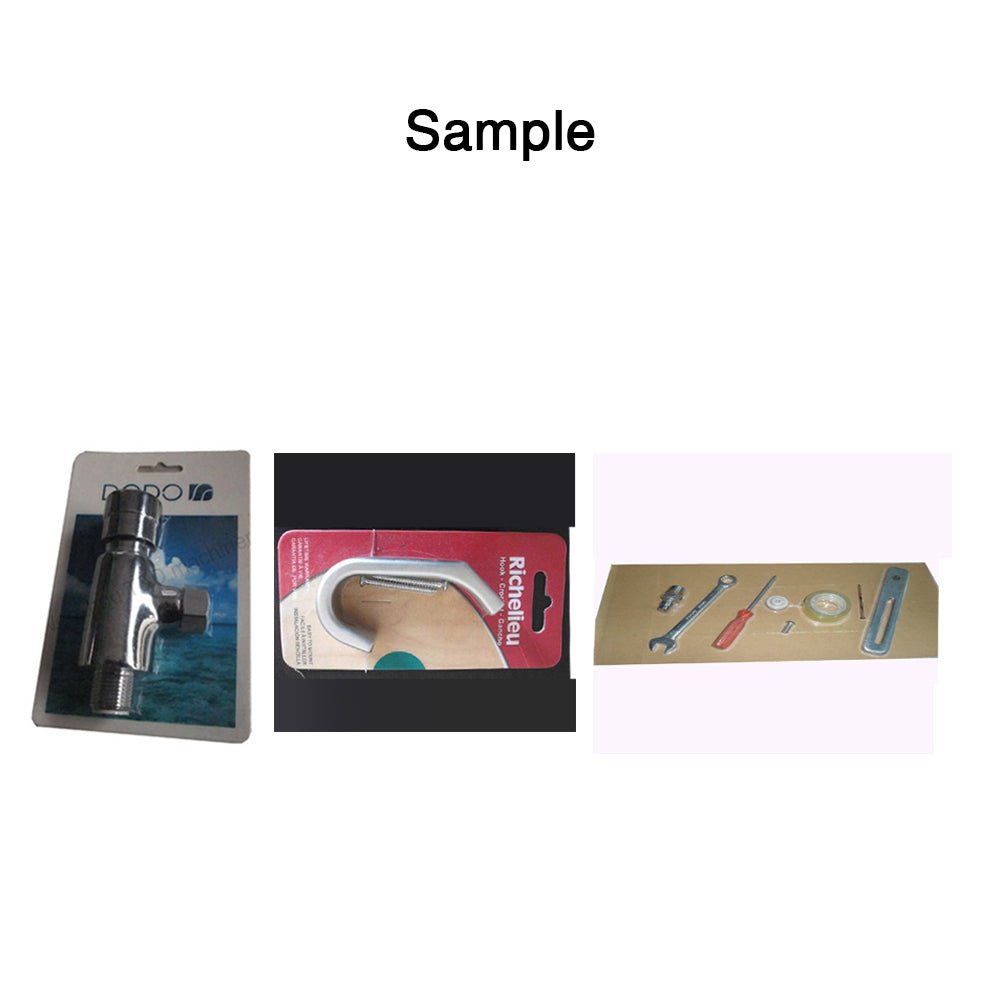

| Applications | Large hardware, long tools, auto parts, hooks, household items, toys, etc. |
| Heating Method | High-efficiency lamp heating |
| Operation | Draw-out oversized worktable |
| Target Industries | Manufacturing, Export trade, Hardware distribution, Large retail supply chains |
2. Core Advantages
- Extra-Long Packaging Area: Features a massive 1100mm × 600mm workspace, custom-built for long items (e.g., saw blades, levels) or massive high-volume batch packing.

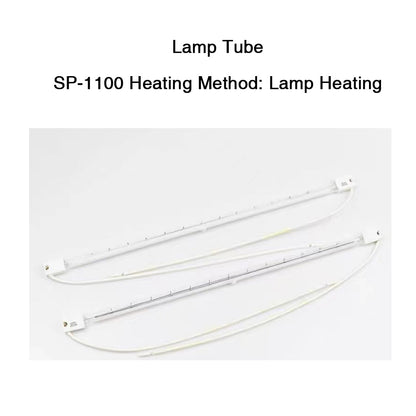

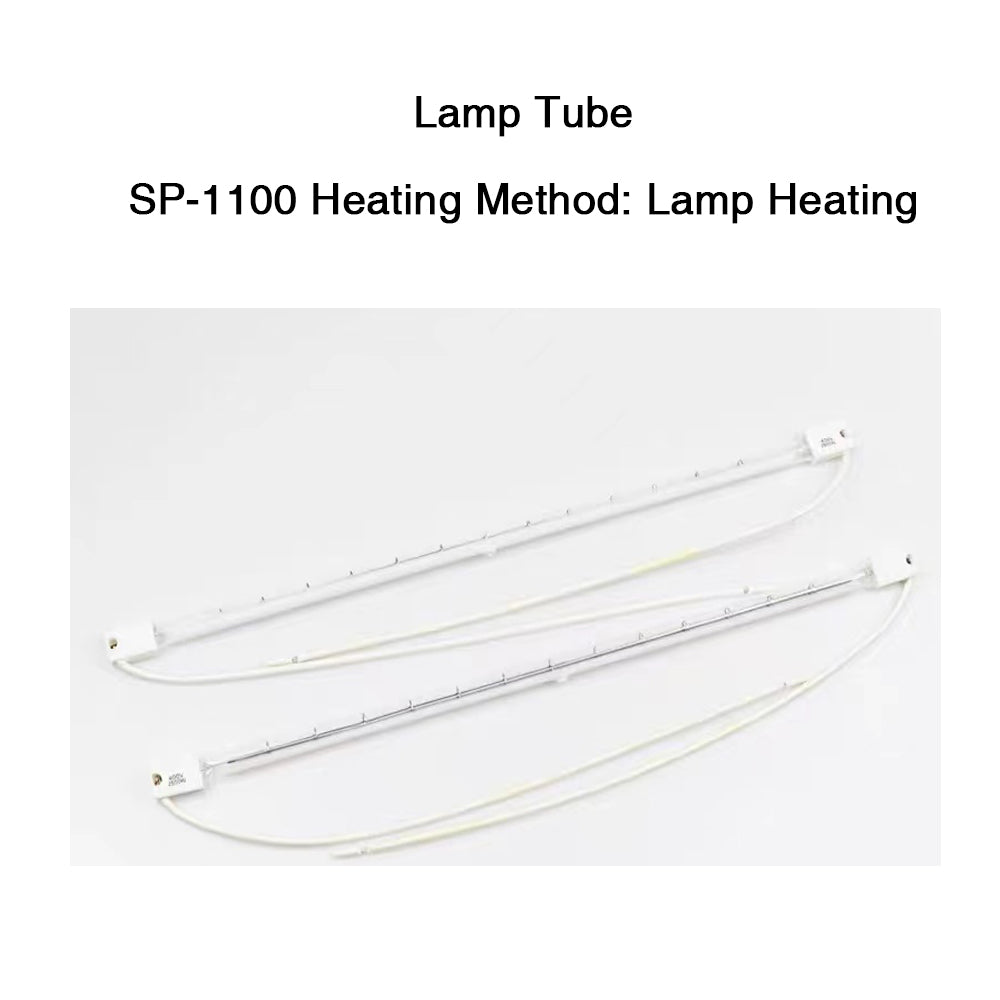

- Lamp Heating System: Delivers uniform heat distribution and long-term durability. Minimizes frequent element replacements, reducing maintenance costs and downtime.
- Heavy Industrial Build: Weighing 416KG, the reinforced structure provides exceptional rigidity and stable performance under continuous high-load operation.
- Powerful Vacuum System: Equipped with a 20m³/hour industrial vacuum pump that instantly contours the film tightly around products for a high-transparency finish.
- No Air Compressor Required: Fully self-contained electric vacuum design saves equipment costs, reduces shop floor noise, and eases installation.
3. Technical Specifications
| Parameter | Value |
|---|---|
| Model | SP-1100 |
| Voltage | 220V or 380V / 50~60Hz |

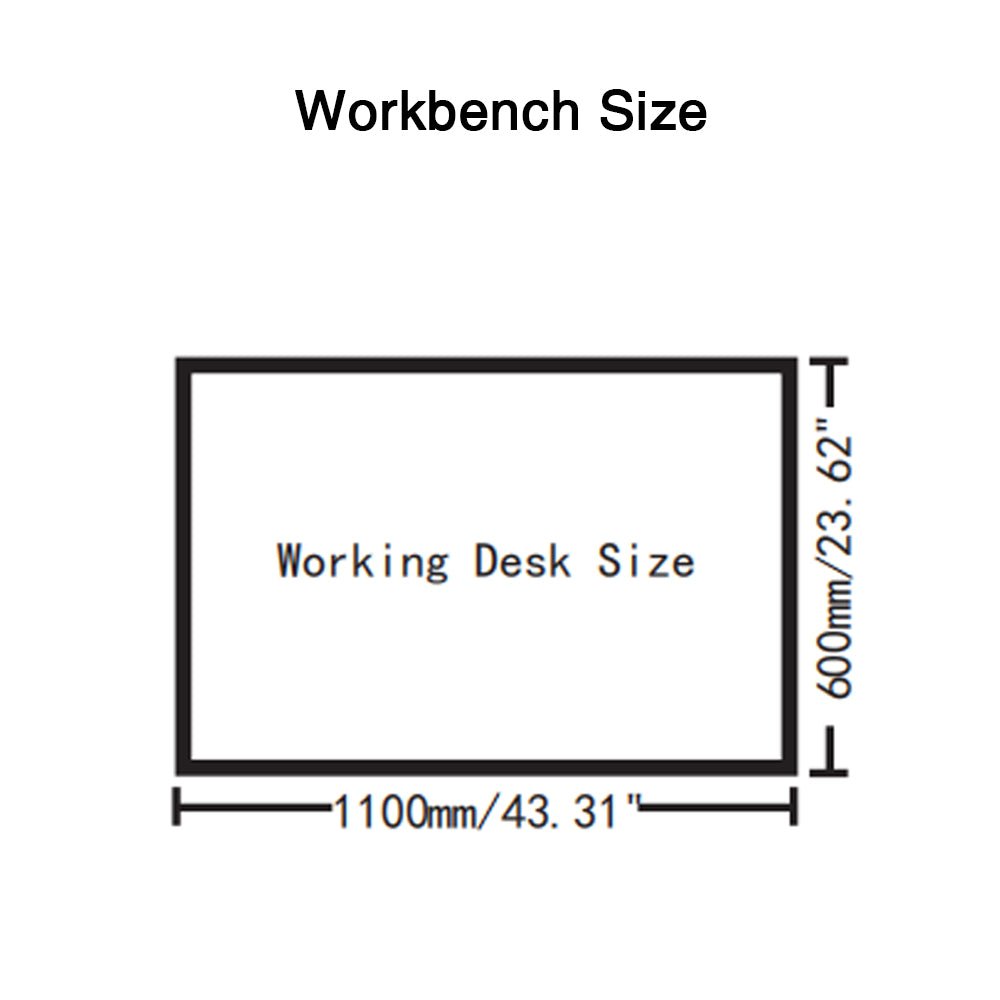

| Packaging Area | 1100mm * 600mm (43.31" * 23.62") |
| Vacuum Pump Power | 20 m³/hour |
| Packing Speed | 2~3 times/min |
| Heating Power | 8 KW |

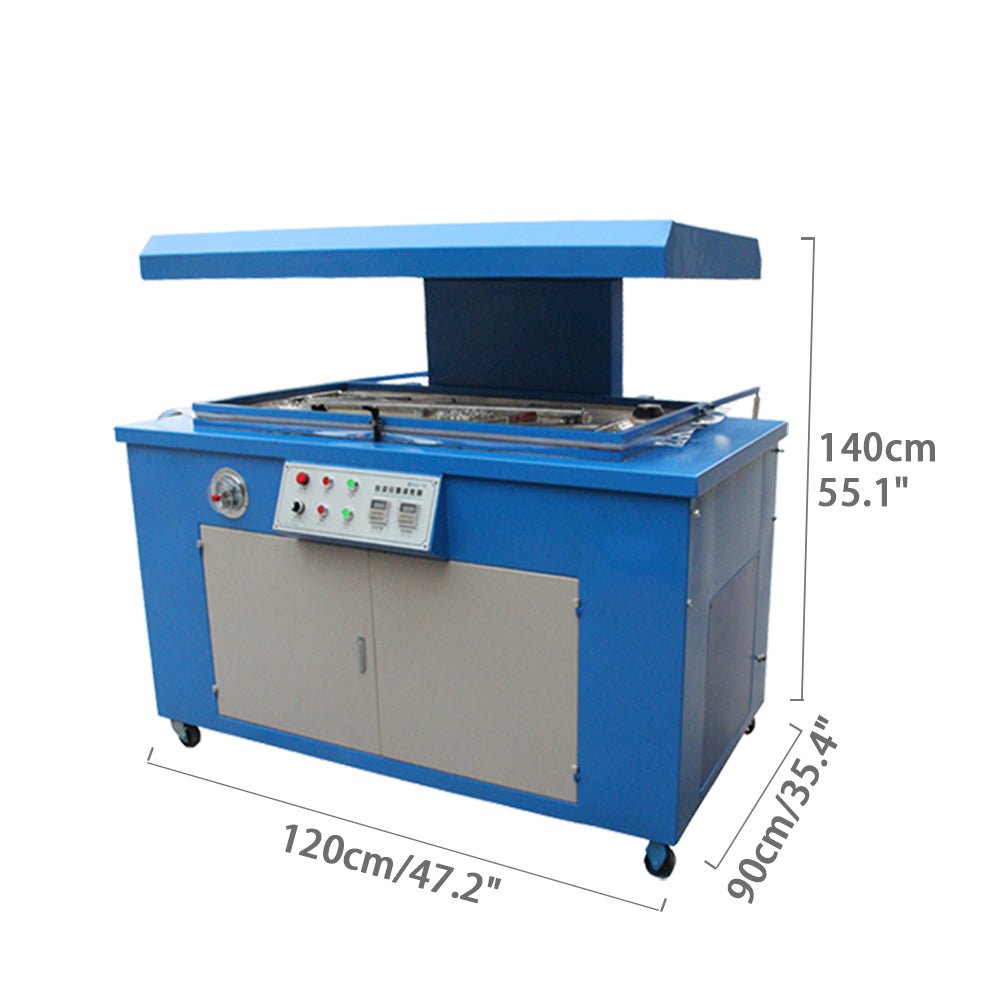

| Machine Size | 160 * 115 * 153 cm |
| Weight | 416 KG |

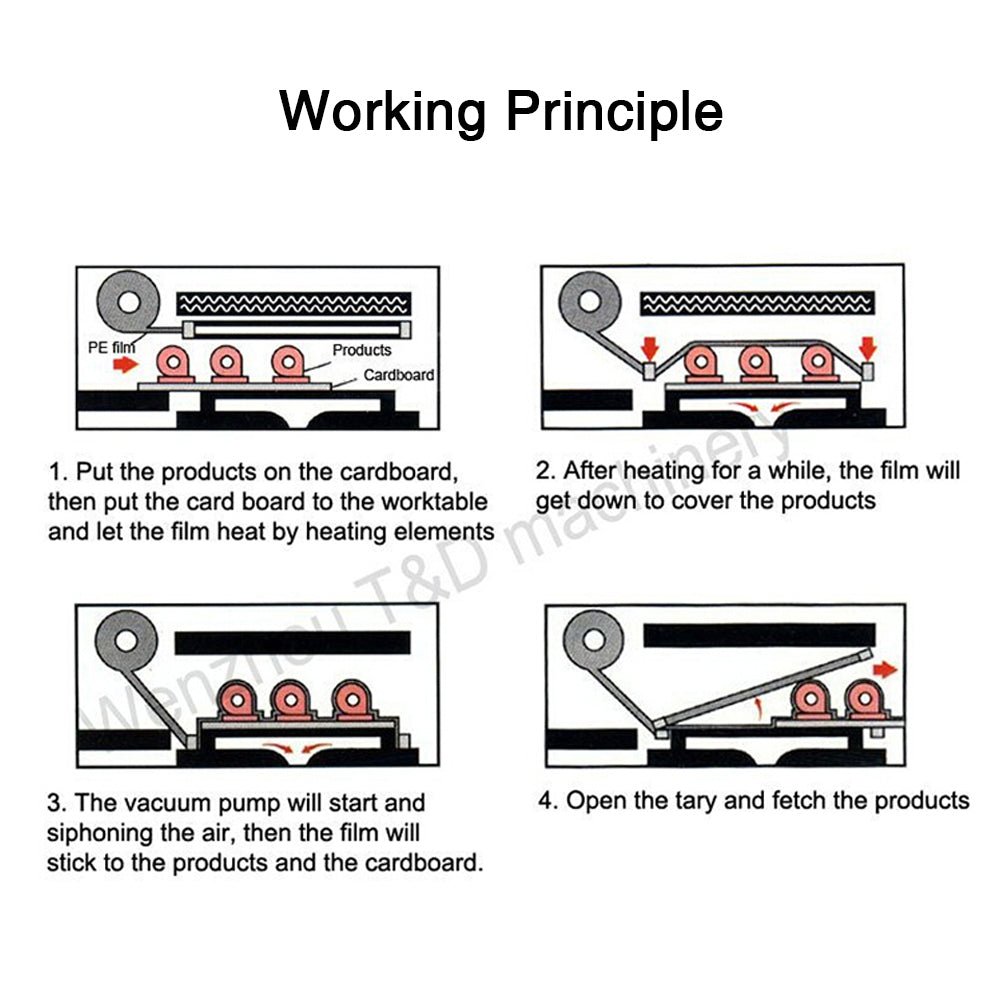

4. Operation Process
- Preparation: Neatly arrange products on the skin cardboard and place it onto the 1100mm oversized worktable.
- Film Softening: Lower the film frame; the high-efficiency lamp heating system uniformly softens the film.
- Vacuum Sealing: Engage the vacuum pump; air is rapidly exhausted, bonding the film tightly to both the board and the product.
- Collection: After cooling, open the frame and remove the finished board for trimming.
5. Sales Advice & FAQ
Sales Advice
- Target Oversized Specs: The definitive solution for clients facing "extra-long" or "oversized" packaging challenges.
- Low Maintenance Highlight: Emphasize the long-life lamp system for factory owners tired of frequently replacing traditional heating wires.
- Power Capacity Notice: Note the 8KW power draw; verify that the customer's factory electrical capacity can support the load.
Frequently Asked Questions (FAQ)
Q1: Why does this machine require 8KW of power?
A1: The massive 1100mm heating area requires high wattage to ensure lamps heat the entire surface quickly and uniformly for consistent packaging quality.
Q2: Is lamp heating slower than wire heating?
A2: While slightly slower to preheat, lamp heating delivers the essential "uniformity" required for large-area skin packing, preventing film burn-through.
Q3: Can the vacuum system handle such a long table effectively?
A3: Yes, the 20m³/hour industrial pump is engineered to provide sufficient suction across the entire 1100mm workspace within seconds.
Q4: Is a 416KG machine difficult to move around the factory?
A4: Not at all. Despite its robust weight, it is equipped with heavy-duty industrial casters for smooth mobility on flat workshop floors.

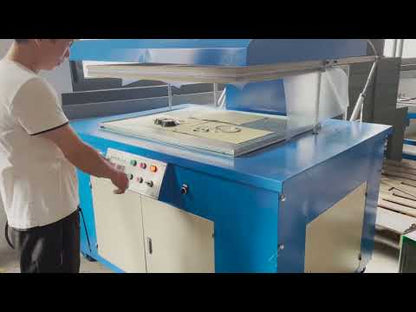

6. Media & Operation Video
