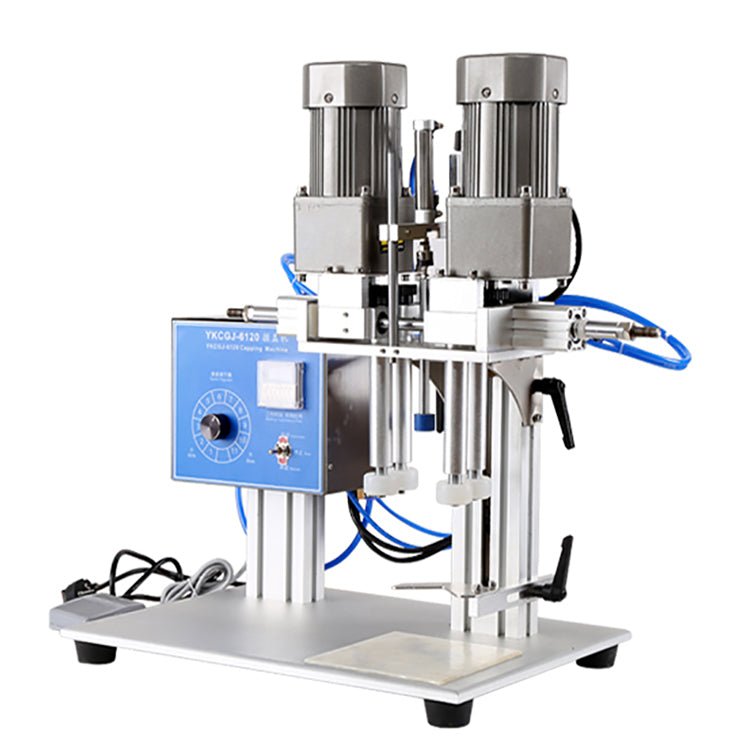

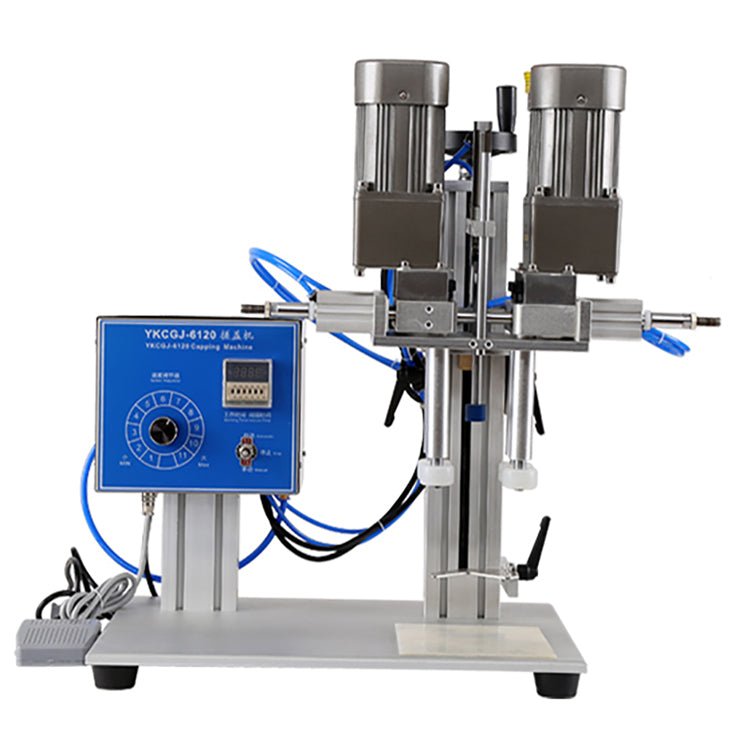

SGJ-70 Capping Machine for Caps (Pneumatic Drive)

$1,300.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model SGJ-70

Voltage 110V 220V

Quick Answer: The CECLE SGJ-70 is a semi-automatic electric and pneumatic capping machine designed for precision sealing across daily chemical, cosmetics, food, and pharmaceutical industries.

CECLE SGJ-70 vs. Traditional / Generic Alternative

Where the SGJ-70 stands out against manual or generic alternatives — measured on the dimensions buyers care about most.

Precision & Consistency

CECLE SGJ-70High-Quality Materials : The main control box and support frame are constructed from 304 stainless steel . The base plate and main body are made of oxidized aluminum alloy, ensuring corrosion resistance and.

Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.

Chassis Rigidity & Vibration Resistance

CECLE SGJ-70Powerful Performance : Powered by imported brand dual motors, offering ample torque, stable performance, and simple, intuitive control logic

Lightweight Sheet Metal (<30 kg)Prone to chassis flex, frame warping over time, and drifting label placement.

Vacuum Flow & Adhesion

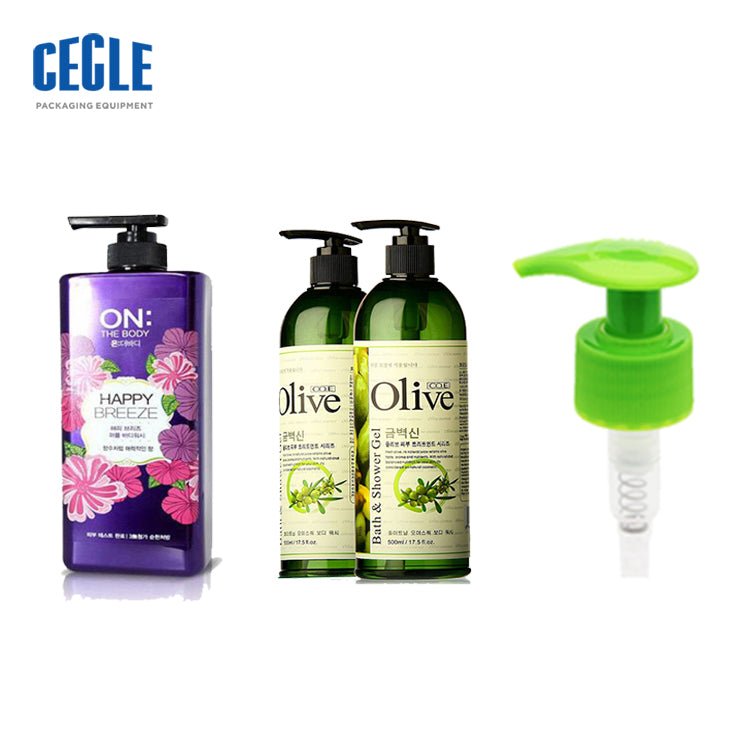

CECLE SGJ-70High Compatibility : Beyond standard round caps, it is optimized for duckbill caps, pointed nozzle caps, shaped plastic caps, pump heads , and more, offering an exceptionally wide application range

Weak Vacuum SourceInsufficient suction leaves film lifted, bubbles trapped and seals loose under load.

Sealing / Transfer Quality

CECLE SGJ-70Precise Parameter Adjustment : Controlled by digital relays; capping duration, torque level, and rotation speed can be freely adjusted based on the cap material to prevent damage while maintaining consistent tightness

Uncontrolled Contact ConditionsEdges wrinkle and labels drift because feed speed and label peel are not synchronized.

Adaptability & Changeover

CECLE SGJ-70Easy Adjustment : When switching between different bottle sizes, simply adjust the height of the capping head manually without tedious disassembly

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Technical Specifications

Specification	Value & Unit
Screw Cap Diameter	20–70 mm
Working Speed	20–30 times/min
Applicable Bottle Height	50–400 mm
Rated Voltage	AC 110V–220V 50/60Hz
Rated Power	0.9 kW
Gross Weight / Net Weight	32 kg (70.5 lb)
Packaging Dimensions	70 × 63 × 37 cm

Pre-installation requirements: Rated Voltage: AC 110V–220V 50/60Hz; Rated Power: 0.9 kW; Gross Weight / Net Weight: 32 kg (70.5 lb); Packaging Dimensions: 70 × 63 × 37 cm.

Compatible Applications & Materials

industrial products — primary target products for this Capping Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Setup: connect power at the rated voltage (AC 110V–220V 50/60Hz) and verify the control display.
Parameter preset: set speed / temperature / pressure per the product spec.
Material loading: place the product in the correct fixture / mold slot.
Execution: start the cycle; monitor for stable, repeatable output.
Quality check: inspect the first units; adjust if deviation appears.
Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

Why is the 20–30 times/min Working Speed rating important for the SGJ-70?
A: The 20–30 times/min Working Speed balances throughput and stability for continuous B2B runs — too low limits output, too high compromises seal/transfer quality. This rating is the engineered sweet spot for the target product range.

What peripheral equipment should be prepared for the SGJ-70?
A: Beyond the rated AC 110V–220V 50/60Hz Rated Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the SGJ-70 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the SGJ-70 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
