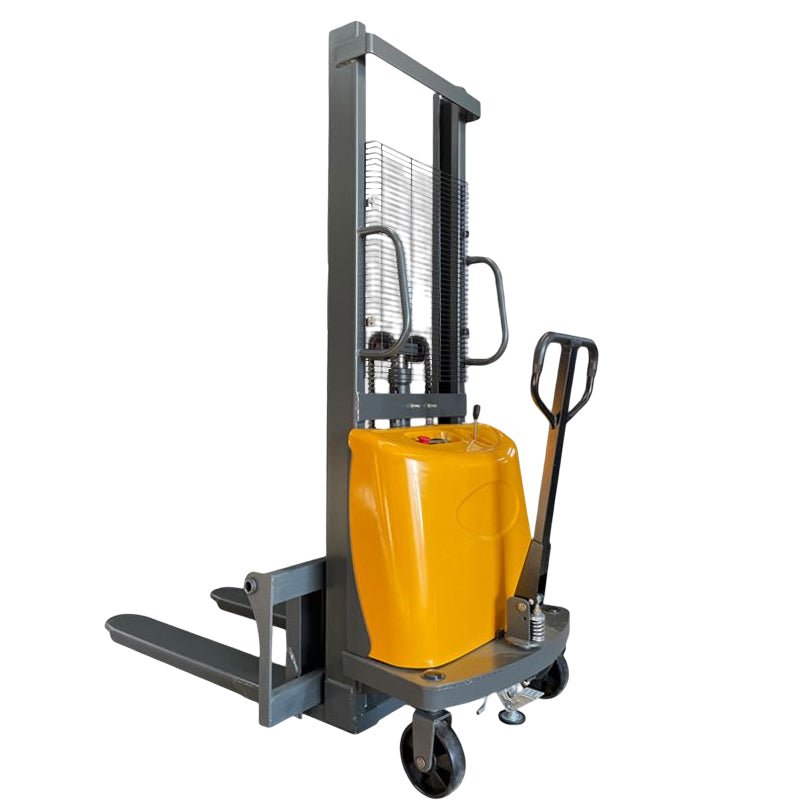

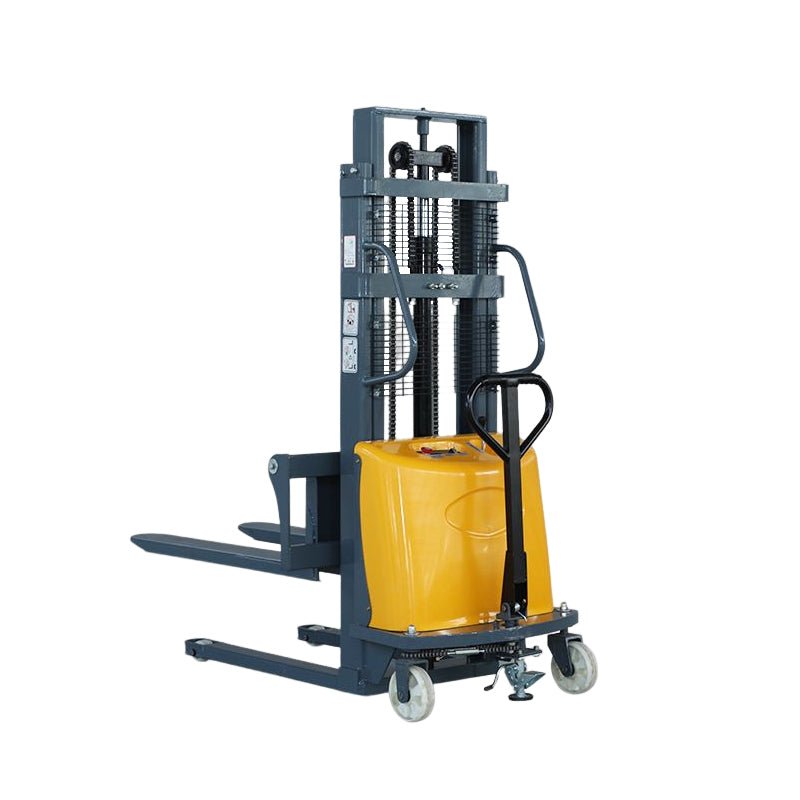

Semi Electric Stacker with Fixed Legs
Semi Electric Stacker with Fixed Legs

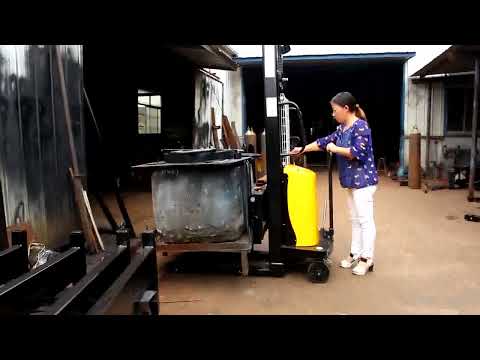

1.Function: Lifting & lowering by battery power, driving by manual pushing or pulling. So the operator only needs manual move the stacker to the right place and place the goods on the fork, it will be lifted by electric.
2.Security Assurance: This semi electric straddle tacker has foot pedal parking brake, it can protect your safety when the stacker is used on a ramp.
3.Wide Usage Scenarios: The stacker can be widely used in supermarket, factory, warehouse and any place where goods need to be moved.
Model |
Unit |
CT10/CT15/CT20 |
Rated load |
KG |
1000/1500/2000 |
Load center distance
|
MM |
500 |
Axle load (front/rear at full load) |
KG |
611/1319 |
Axle load (front/rear at no load) |
KG |
325/105 |
Front track |
MM |
720 |
Rear track width |
MM |
520 |
Lifting height |
MM |
1600/2000/2500/3000 |
Turning radius |
MM |
1425 |
Minimum channel demand |
MM |
2305 |
Overall length |
MM |
1735 |
Overall width |
MM |
800 |
Fork width |
MM |
320-1000 |

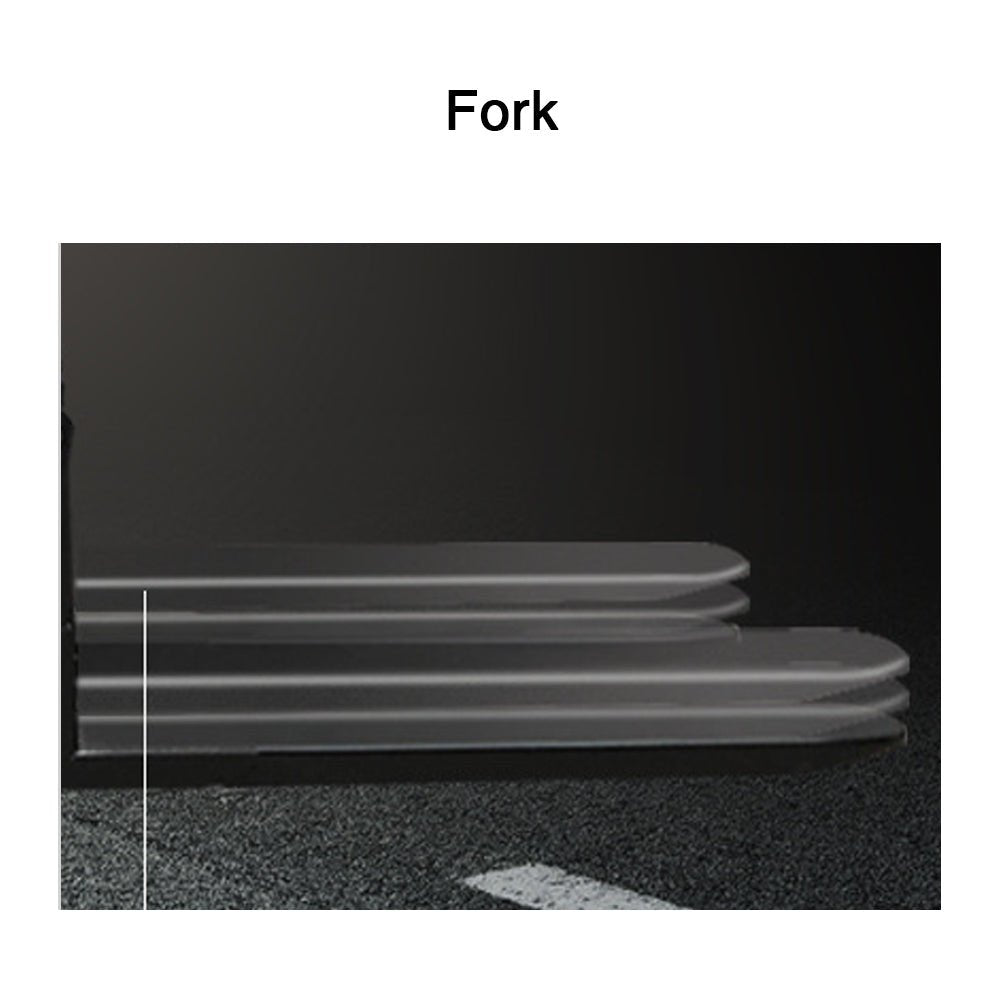

Fork size |
MM |
1100*160*50 |
Weight |
KG |
380/400/440 |
