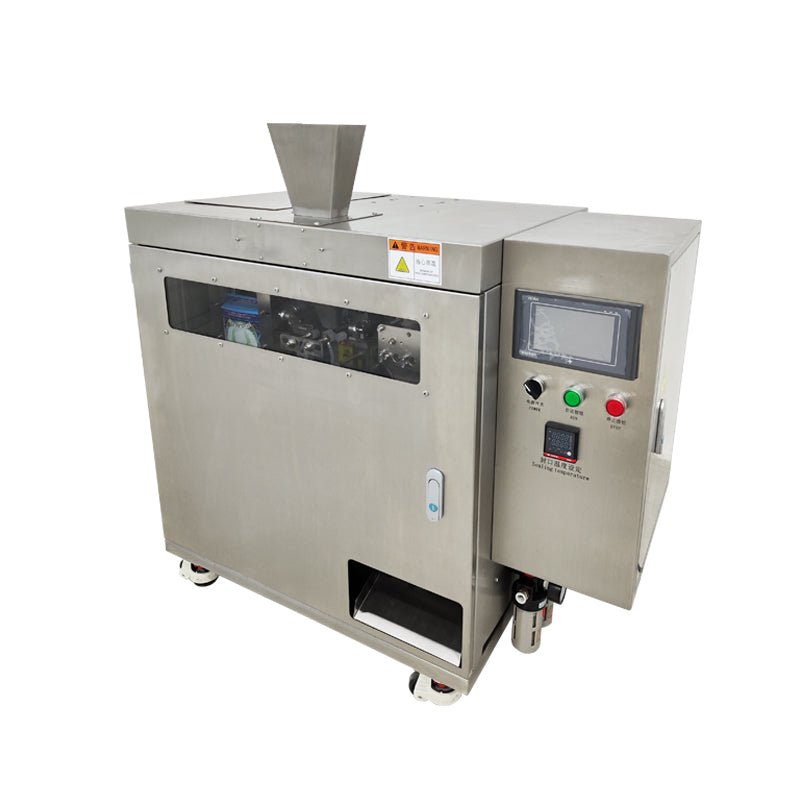

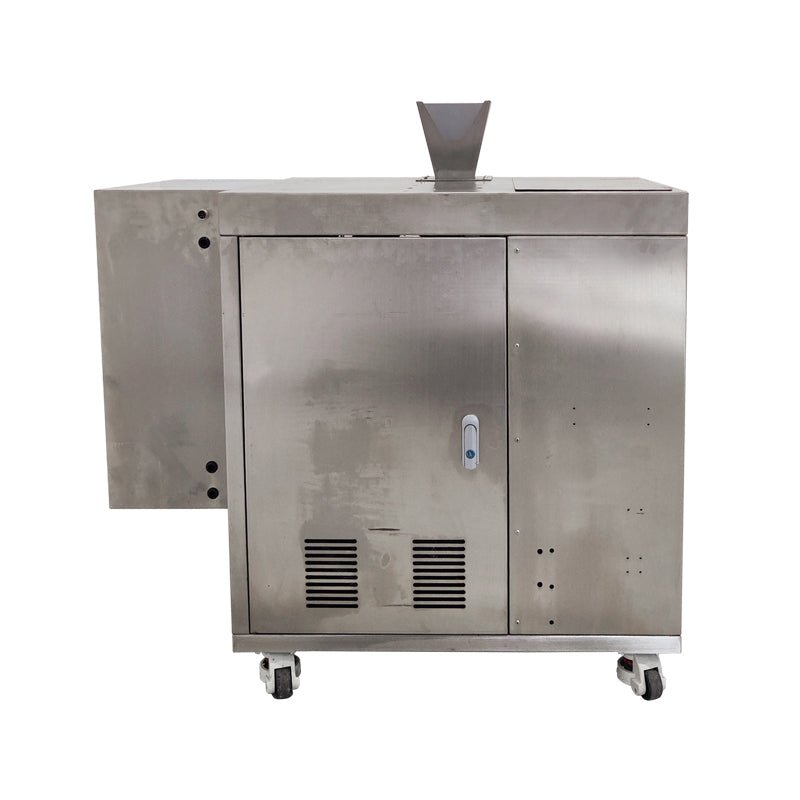

DGD-W30TD-W Manual Feeding Stand-Up Pouch Packing Machine

Hybrid Premade Bag Picker & Thermal Sealer for Irregular, Odd-Shaped & Hard-to-Pack Materials

The DGD-W30TD-W Stand-Up Pouch Packing Machine is a compact, highly versatile packaging solution designed specifically to bridge the gap between slow manual bagging and expensive, rigid fully automatic systems. Engineered to handle "impossible-to-automate" materials, this machine relies on a manual-feeding station paired with automated bag-fetching, opening, and professional thermal sealing.

Perfect for irregular, easily tangled, or non-quantifiable items (such as disposable hotel amenities, hardware kits, casual snacks, and cosmetics), the DGD-W30TD-W packs up to 30 bags per minute. With a compact footprint of less than 1 square meter, it is the ultimate space-saving production booster for micro, small, and medium-sized packaging workshops.

🌟 Core Advantages & Modular Flexibility

• Modular Compatibility with 9+ Feeders: The main machine is highly expandable and can be paired with over 9 types of automated feeding accessories—including granule measuring cups, paste piston pumps, liquid pumps, peristaltic pumps, and servo rotor pumps—allowing you to transition from manual feeding to automated packing easily.
• Large Capacity Bag Bin (450 pcs): Holds up to 450 premade bags at once (based on a standard 0.1mm thickness). This high-capacity bin significantly reduces the frequency of manual bag replenishments, letting operators focus entirely on feeding.
• Compact Workspace Footprint: Measuring just 99 × 65 cm (39" × 26"), this machine occupies under 1 square meter of floor space, making it easy to integrate into tight production lines or small home-based workshops.
• Multi-Bag Size Versatility: Easily handles a wide range of premade bags—including flat pouches, stand-up pouches, and zipper bags—with size specifications ranging from 5×7cm up to 20×30cm.

📐 Technical Specifications

📦 Operational Prerequisites & Setup Requirements

• ⚠️ Compressed Air Supply (Mandatory): Must connect the machine to an air compressor capable of delivering 0.6-0.8 Mpa.
• Pouch Compatibility: Suitable for standard premade laminated pouches. Very soft PE bags cannot be fetched properly by the suction mechanism.

🔄 Standard Operational Workflow

1. Load Bags: Place the premade bags neatly into the machine's bag bin.
2. Setup: Set parameters on the touchscreen.
3. Feeding: The machine automatically fetches and opens the bag, and the operator manually feeds the materials into the bag.
4. Sealing: The machine automatically completes the thermal sealing and outputs the finished product.

❓ Frequently Asked Questions (FAQ)

Q: Is it difficult to adjust the machine for different bag sizes?
A: It is not difficult to adjust. As long as your bag size is between 5×7cm and 20×30cm, it can be done through mechanical adjustments on the machine and touchscreen settings.

Q: Do I need an air compressor?
A: Yes. The machine needs to be connected to an air compressor for use and requires a 0.6-0.8 MPA air supply.

Q: What about warranty and after-sales services?
A: We provide a 1-year warranty service. During the warranty period, if damage occurs under normal use according to the manual, we provide free replacement parts (the buyer is responsible for the international shipping costs from China to their local area).

🎥 Demonstration Video

📚 Technical Resources & Support

For complete installation dimensions, pneumatic piping guides, PLC panel configurations, and modular feeder connection schematics, please visit our official technical hub:
👉 DGD-W30TD-W Manual Feeding Stand-Up Pouch Packing Machine Technical Documentation (doc.cecle.net)
