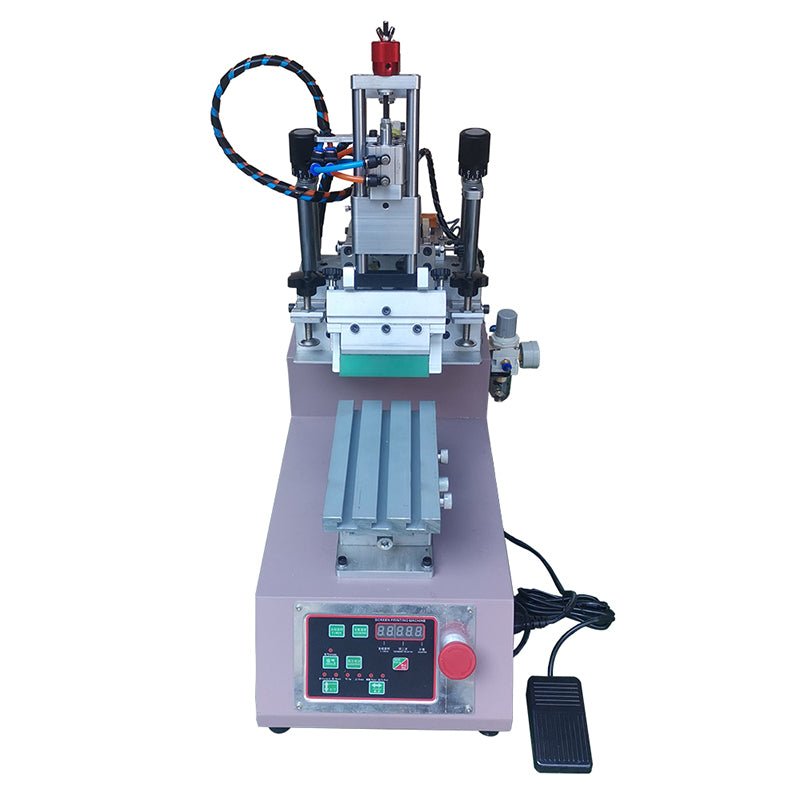

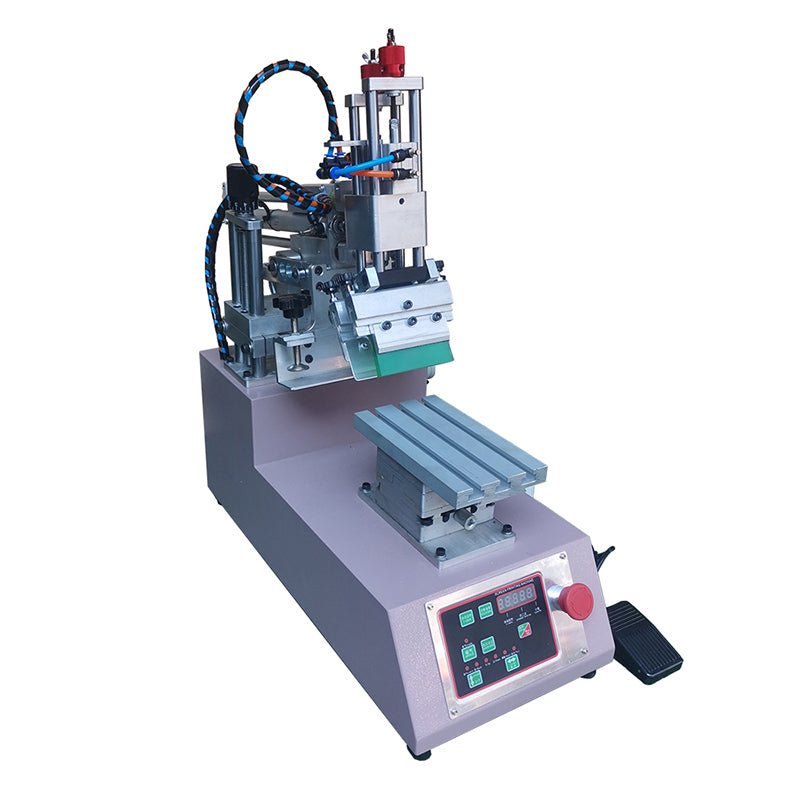

TD-1518 Oblique Arm Desktop Screen Printing Machine

Entry-Level Pneumatic Printer for Small Flat Products | 1000-1200 pcs/hr

The TD-1518 Oblique Arm Screen Printing Machine is a highly cost-effective, pneumatically driven desktop printer designed for small-area flat products. Featuring a foot-switch control that completely frees the operator's hands, it is the perfect entry-level automated solution for printing on metal sheets, wood boards, CD cards, and paper.

🌟 Core Advantages & Features

• Ultimate Cost-Effectiveness: As an entry-level pneumatic screen printing machine, it requires a low initial investment while delivering a significantly high rate of return for small batch processing.
• Hands-Free Foot Pedal Control: The foot switch functions as the start button. Stepping on it once initiates a complete printing stroke, allowing the operator to remain seated and significantly improving manual loading/unloading efficiency.
• Stable Pneumatic System: The printing head, squeegee, and ink return blade are all driven by industrial cylinders, ensuring smooth operation, uniform scraping pressure, and speeds up to 1000-1200 pcs/hr.
• All-Around Adjustment: The workbench supports micro-adjustment, and both the balance and angle of the knife holder are adjustable.
• Intuitive Operation: Equipped with a multi-button control panel where each function is independently controlled, making debugging and training extremely simple for beginners.

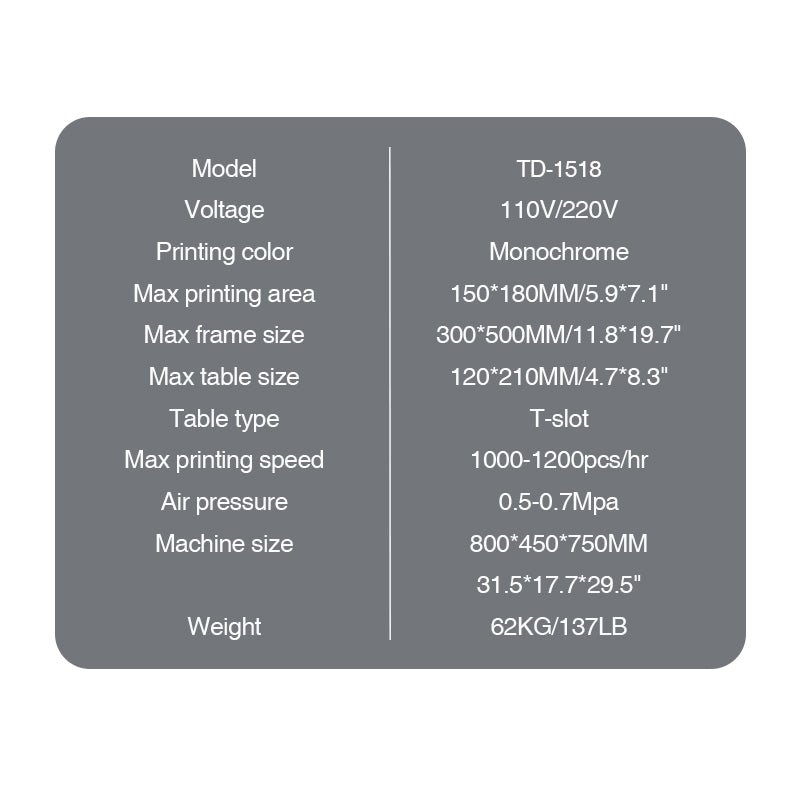

📐 Technical Specifications

(Note: Requires a sturdy workbench and operates via pneumatic drive)

🛠️ What You Need to Get Started (Prerequisites)

To operate this pneumatic machine, you will need to prepare the following:

1. Air Compressor (Mandatory): Recommended capacity of approx. 90L and a power of around 2.55KW to provide a stable air source.
2. Sturdy Workbench: The machine weighs approx 50KG (110 lbs). A strong table at an ergonomic seated height is required.
3. Consumables: Custom screens, ink (specific to your material), thinner, squeegee, screen wash, and product fixtures.

❓ Frequently Asked Questions (FAQ)

Q: Can this machine print multiple colors?
A: This machine is designed for single-color printing. If you need to print multiple colors on a product, you must make multiple screens. After printing the first color in a batch, you replace the screen and overprint the second color.

Q: Can I use the machine just by plugging it in?
A: No. Because the printing head and squeegee are driven by cylinders, simply plugging it into an electrical outlet is not enough. You must connect it to an external air compressor.

Q: What is the warranty policy?
A: We offer a 1-year warranty. During this period, if any parts are damaged under normal, manual-compliant use, we provide replacement parts for free (the buyer is only responsible for the international shipping cost).

📚 Technical Documentation & Operation Video

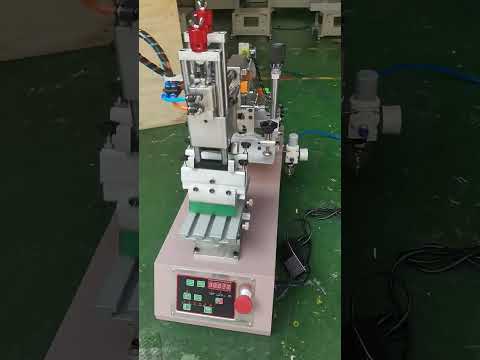

• Watch Operation Video: View on YouTube
• Comprehensive User Manual: For detailed workflow instructions, maintenance guides, and full technical documentation, please visit our official knowledge base: TD-1518 Technical Documentation.
