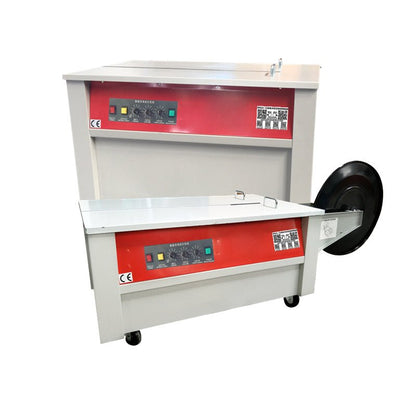

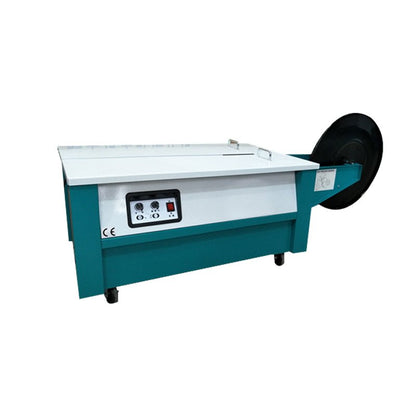

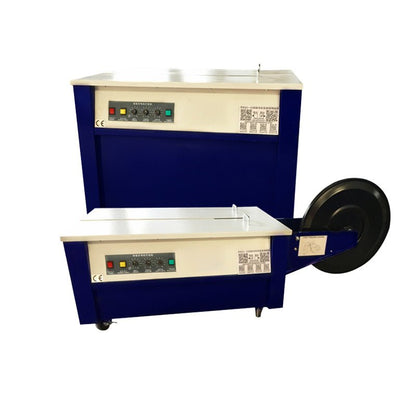

KZB-08AL/AD Semi-Automatic Strapping Machine for Warehouse Cartons (Electric Drive)

Name: KZB-08AL/AD
Brand: CECLE
Price: 1099.0 USD
Availability: InStock

$1,099.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model KZB-08AL KZB-08AD

Shipping method By sea to port(About 25-35 days) By sea to door(About 35-55 days)

Quick Answer: The CECLE KZB-08AL/AD KZB-08AL and KZB-08AD are dual-motor semi-automatic tabletop strapping machines specifically designed for e-commerce fulfillment, warehousing, and general packaging stations.

CECLE KZB-08AL/AD vs. Traditional / Generic Alternative

Where the CECLE KZB-08AL/AD stands out against manual or generic semi-automatic strapping machines — measured on the dimensions buyers care about most.

Operational Mechanism & Drive

CECLE KZB-08AL/ADDual Motors + Metal Rollers for Ultimate Durability: Dual copper-coil motors share operating loads.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Chassis Rigidity & Vibration Resistance

CECLE KZB-08AL/ADZero-Adjustment Strap Changeovers: Accommodates strap widths from 9 to 14 mm without stopping or adjusting settings.

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Build Material & Cleanability

CECLE KZB-08AL/ADTabletop Material: 1.5 mm Spray-Molded Iron Plate

Painted Mild-Steel ShellPaint chips at welded seams and rusts where water collects, and rolled edges trap grease that a normal wash-down cannot reach.

Strap Compatibility & Range

CECLE KZB-08AL/ADApplicable Strap: PP Strap

Fixed Single-Strap ArchAccepts one strap width only, so every changeover needs a second machine or a field retrofit, and off-width strap jams in the guide track.

Technical Specifications

Items	Specifications (KZB-08AL)	Specifications (KZB-08AD)
Model	KZB-08AL (High-Table)	KZB-08AD (Low-Table)
Voltage	110V / 220V	110V / 220V
Tabletop Material	1.5 mm Spray-Molded Iron Plate	1.5 mm Spray-Molded Iron Plate
Applicable Strap	PP Strap	PP Strap
Strap Width	9 – 14 mm	9 – 14 mm
Strap Thickness	0.6 – 0.9 mm	0.6 – 0.9 mm
Machine Dimension	900 × 570 × 730 mm	1320 × 570 × 450 mm
Weight	60 KG	58 KG

Compatible Applications & Materials

industrial products — primary target products for this Semi-Automatic Strapping Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Power On: Plug into a 110V/220V outlet and turn on the power switch to enter standby mode
Warm-Up: Allow the sealing head to preheat for approx
10–30 seconds (extend appropriately in winter)
Insufficient preheating leads to weak seals
Parameter Check: The machine is adjustment-free for 9–14 mm strap widths
If switching to a different thickness or strap grade, fine-tune the tension and temperature knobs based on sealing results (lower tension for light cartons to prevent crushing
higher tension for heavy bundles to prevent loosening)

Engineering FAQ

What is the difference between this machine and a handheld electric strapping tool?
A: This unit is a semi-automatic tabletop device : packages are placed on the table, and operators manually insert the strap into the slot, while the machine handles tensioning, heat sealing, and cutting automatically. Handheld tools require operators to carry and maneuver the tool around the package. For fixed stations with high daily volumes, tabletop machines offer higher speed and less fatigue.

Do I need to adjust the machine when switching different PP strap widths?
A: No. Strap widths from 9 to 14 mm and thicknesses from 0.6 to 0.9 mm are supported without adjustment , allowing mixed use of different strap specifications without stopping production.

What is the maximum load capacity of the tabletop?
A: This model features a 1.5 mm spray-molded iron tabletop panel supporting approx. 30 KG. For heavier loads, we recommend models equipped with 2.5 mm iron plates or 2.0 mm stainless steel tops.

What routine maintenance keeps the KZB-08AL/AD stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the KZB-08AL/AD handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
