Transform Your Packaging Efficiency with Continuous Rotary Blister Sealing.
The Vertical Rotary Blister Sealing Machine Series provides industrial-grade, pneumatic packaging solutions engineered for high-volume mass production. Whether you are sealing standard hardware, delicate medical consumables with Dupont Tyvek, or irregular special-shaped electronic parts, our robust multi-station rotary systems (2-station and 3-station options) ensure seamless loading, heating, and unloading with zero downtime. Delivering up to 10-15 cycles per minute, this series guarantees tight, smooth, and leak-proof edges for every product.
1. Choose Your Model: Specifications & Technical Documentation
To help you select the perfect machine for your production line, compare our models below. For detailed installation guides, wiring diagrams, and maintenance manuals, please visit our dedicated technical documentation platform.
| Model | Heating Type & Best For | Effective Sealing Area | Stations | Tech Docs & Manuals |
|---|---|---|---|---|
| UBS-5030 | Top Platen Heating: Irregular, special-shaped edges, thin-walled PET. | 300 × 500 mm | 3-Station | View UBS-5030 Tech Docs ➔ |

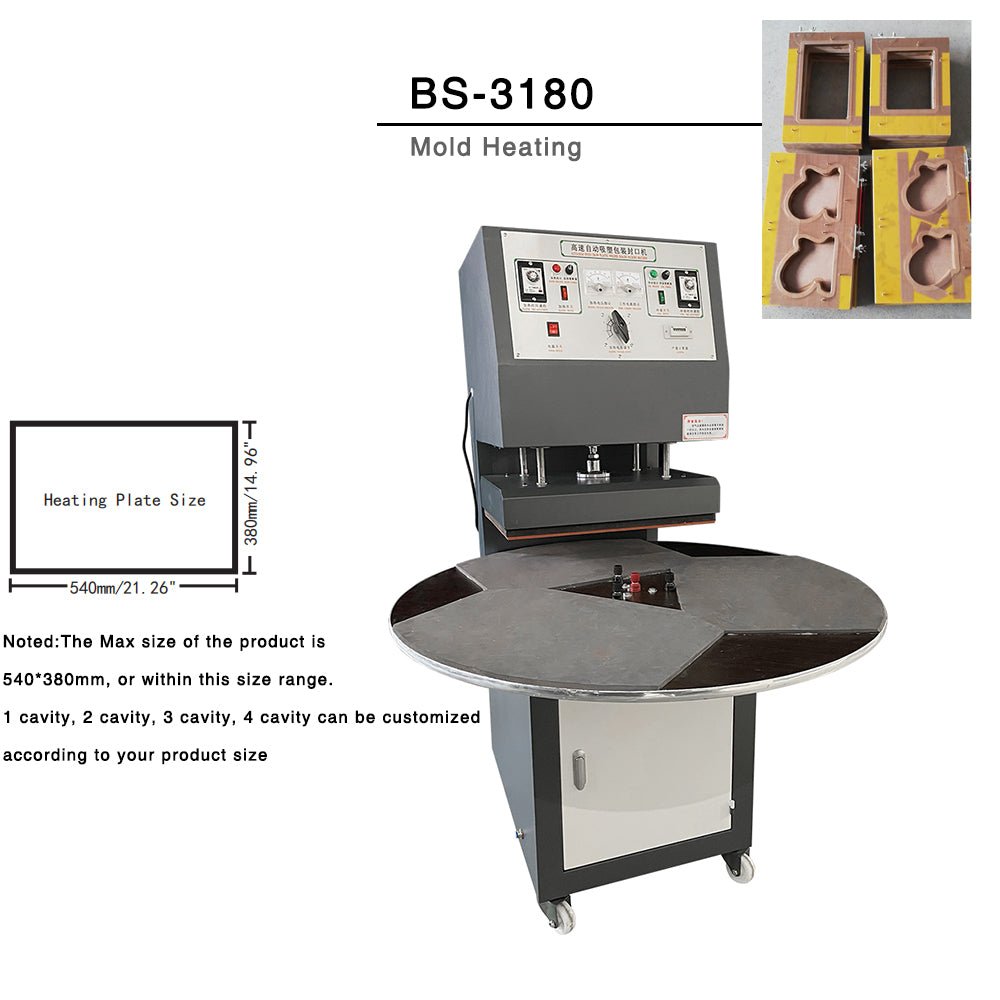

| BS-3180 | Bottom Mold Heating: Standard equal-width edges, thick PVC/PET. | 540 × 380 mm | 3-Station | View BS-3180 Tech Docs ➔ |
| BS-5030 | Bottom Mold Heating: High-efficiency mass production, medical Tyvek. | 500 × 300 mm | 3-Station | View BS-5030 Tech Docs ➔ |
| BS-5070 | Bottom Mold Heating: Oversized products (large toys, auto parts). | 700 × 500 mm | 2-Station | View BS-5070 Tech Docs ➔ |
2. Core Advantages of Our Rotary Sealing Systems
- Uninterrupted Continuous Production: Multi-station rotary tables (with 2 or 3 mold sets) allow operators to load, seal, and unload simultaneously, eliminating machine downtime.
- Heavy-Duty Pneumatic Pressing: Operating at 0.24T to 0.35T pressure (requires 0.4–0.8 Mpa external air compressor), ensuring flawless, leak-proof seals even on hard-to-seal materials like thick blisters or medical-grade Tyvek.
- Customizable Multi-Cavity Molds: Maximize your throughput. We offer custom 1, 2, 3, or 4-cavity molds tailored to your exact product dimensions, allowing multiple small products to be sealed in a single stroke.
- Global Wide Voltage Adaptation: Built-in support for 110V/220V (50~60Hz), making it plug-and-play ready for manufacturing plants in North America, Europe, and Southeast Asia.
- Stable Vertical Frame: Heavy, industrial-grade body construction minimizes vibration during long-hour continuous assembly line operation.

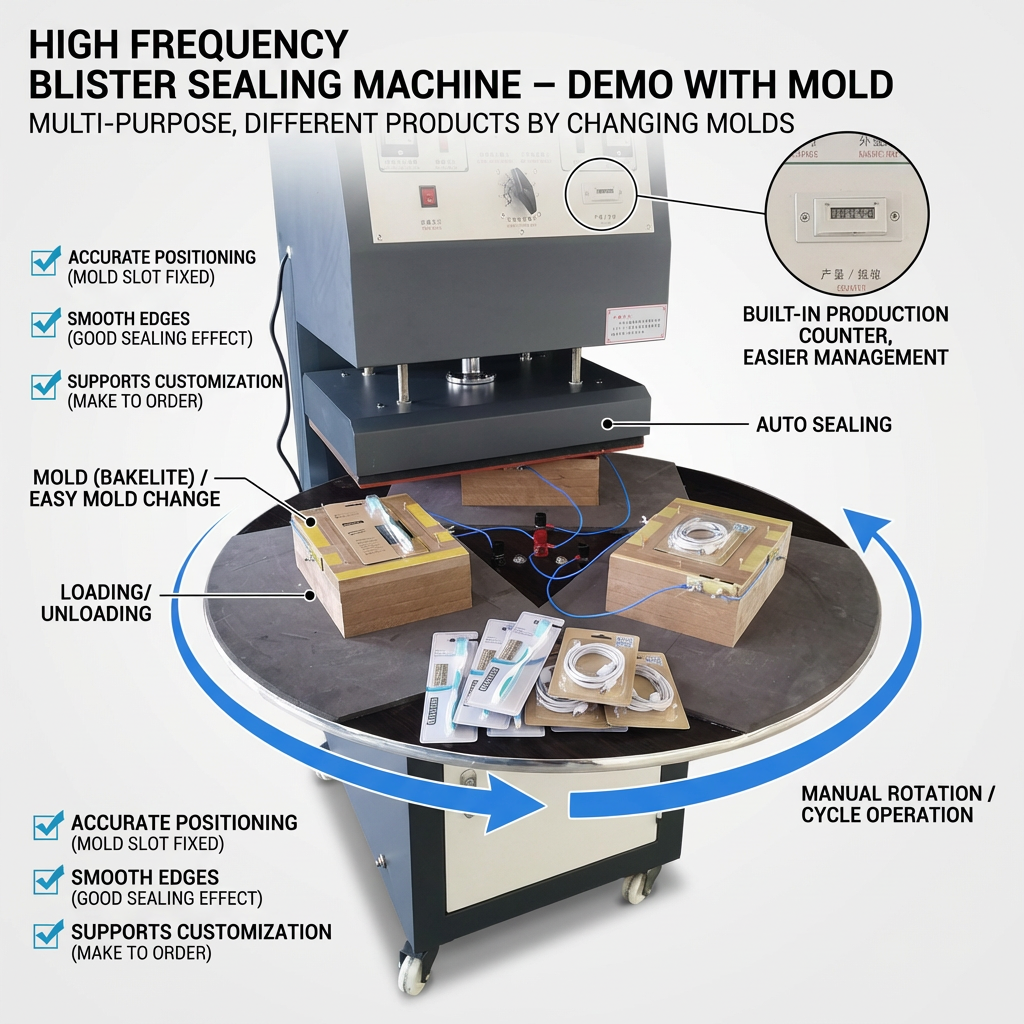

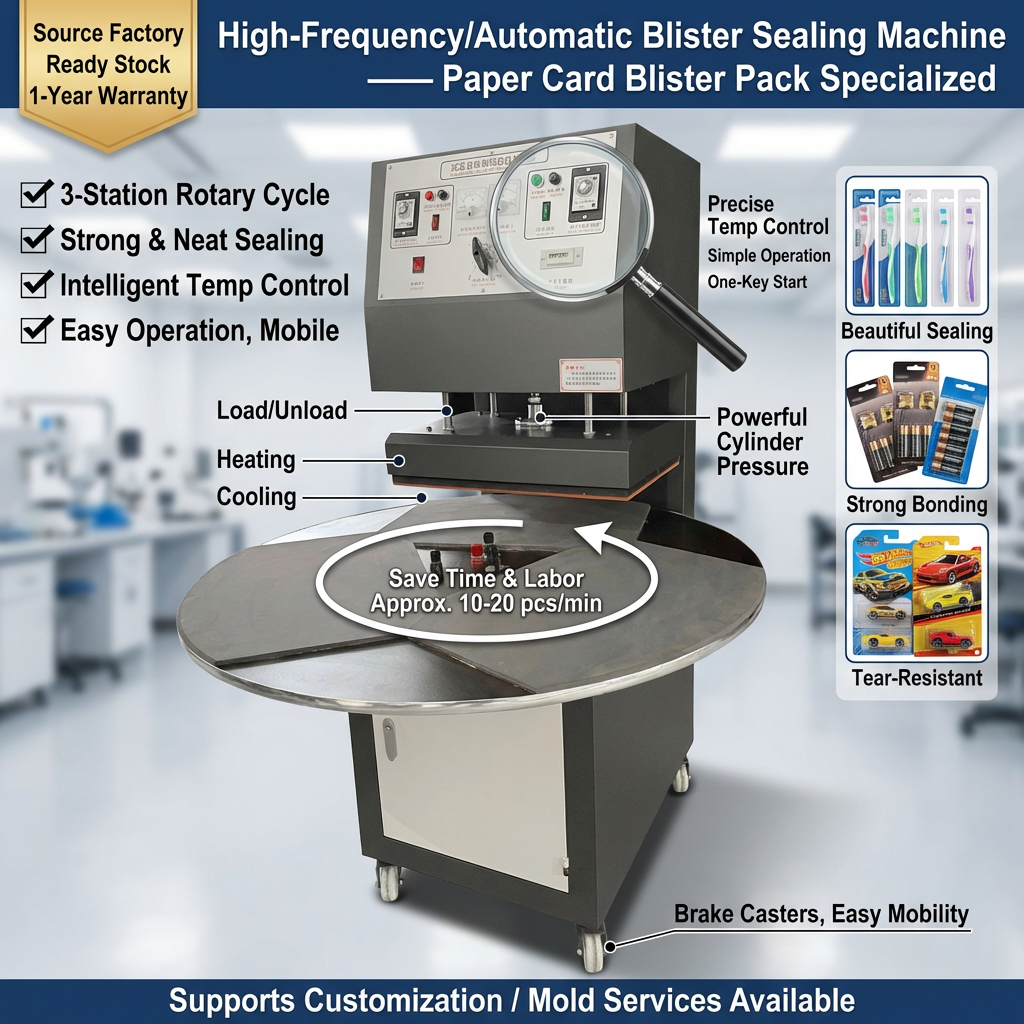

3. Simple & Efficient Operation Process
- Loading: Operator manually loads the product into the blister at the idle station, places it in the mold groove, and covers it with a paper card or Tyvek sheet.
- Preheating (For 3-Station Models): Rotate the turntable to move the mold to the heating station for constant temperature preheating.
- Sealing: Rotate to the sealing zone. The pneumatic cylinder presses down automatically to complete the high-temperature thermal seal.
- Unloading: Rotate back to the unloading station to remove the finished product while simultaneously loading the next batch.

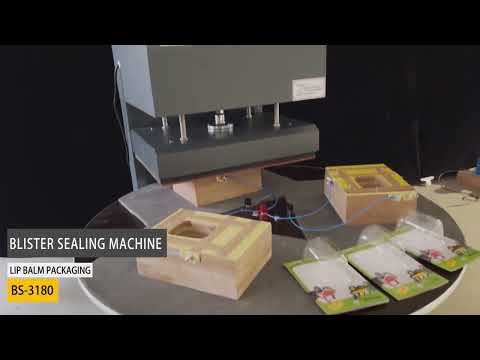

4. See It In Action (Operation & Installation)
5. Frequently Asked Questions (FAQs)
Q1: Are the molds included with the machine as standard?
A1: The machines require multiple sets of molds to achieve continuous cycle production (e.g., 3 sets for 3-station models). Molds are customized according to your specific product size and are charged separately from the host machine.
Q2: Is an air compressor necessary to operate these machines?
A2: Yes. All models in this series utilize a pneumatic pressing structure for firm seals. An external air compressor supplying 0.4~0.8MPa is a required supporting equipment.

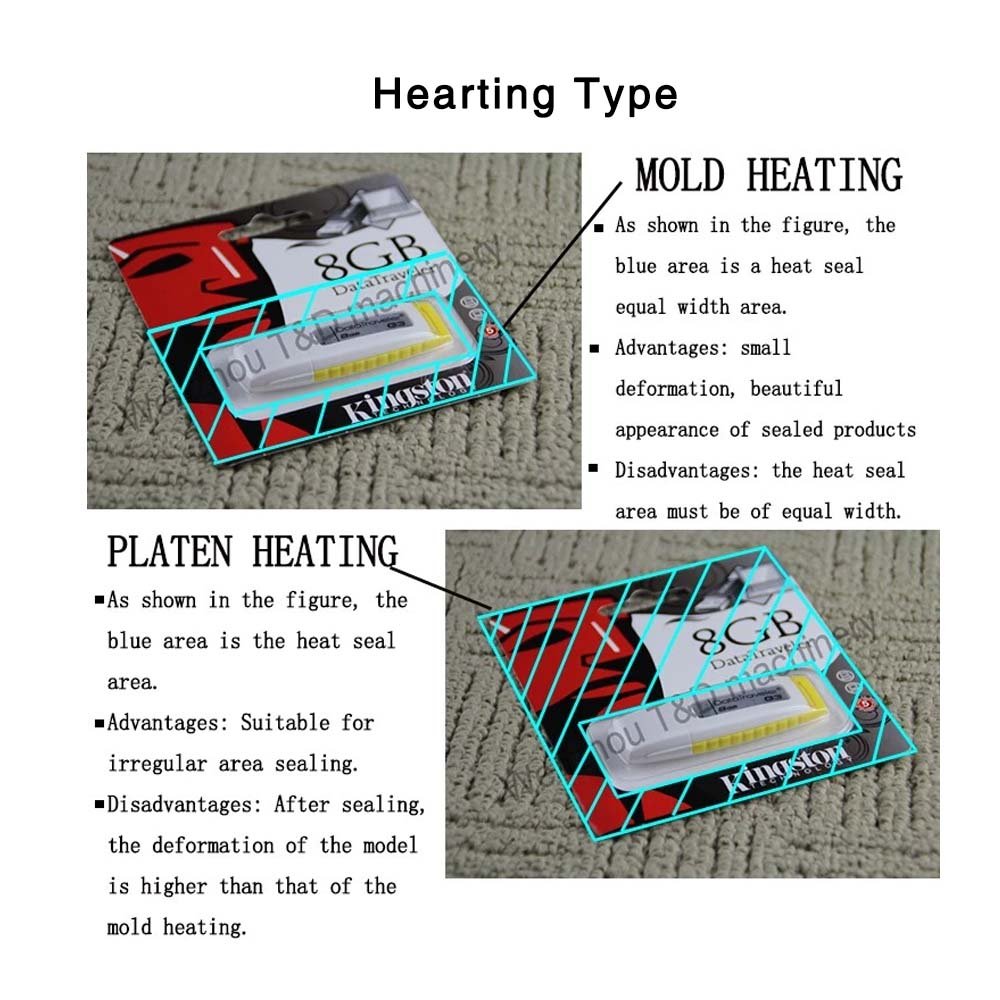

Q3: How do I choose between Top Platen Heating (UBS series) and Bottom Mold Heating (BS series)?
A3: Choose the UBS-5030 (Top Heating) for irregular, special-shaped edges that lack equal-width borders. Choose the BS-series (Bottom Heating) for standard equal-width edges, as it provides minimal deformation and exceptionally smooth finished edges.
Q4: What is the average production efficiency?
A4: Depending on the operator's speed, the machine standardizes at about 10 sealing cycles per minute. By utilizing multi-cavity molds, you can yield 15-20+ finished products per minute.
Need deeper technical specifications, troubleshooting guides, or wiring diagrams? Access our complete technical library at doc.cecle.net.
