Powder Spiral Inclined Screw Conveyor Auger Feeder Elevator Hopper

SC Series Industrial Screw Conveyor / Auger Elevator (304 Stainless Steel)

Click here for full technical specifications and documentation

Product Overview

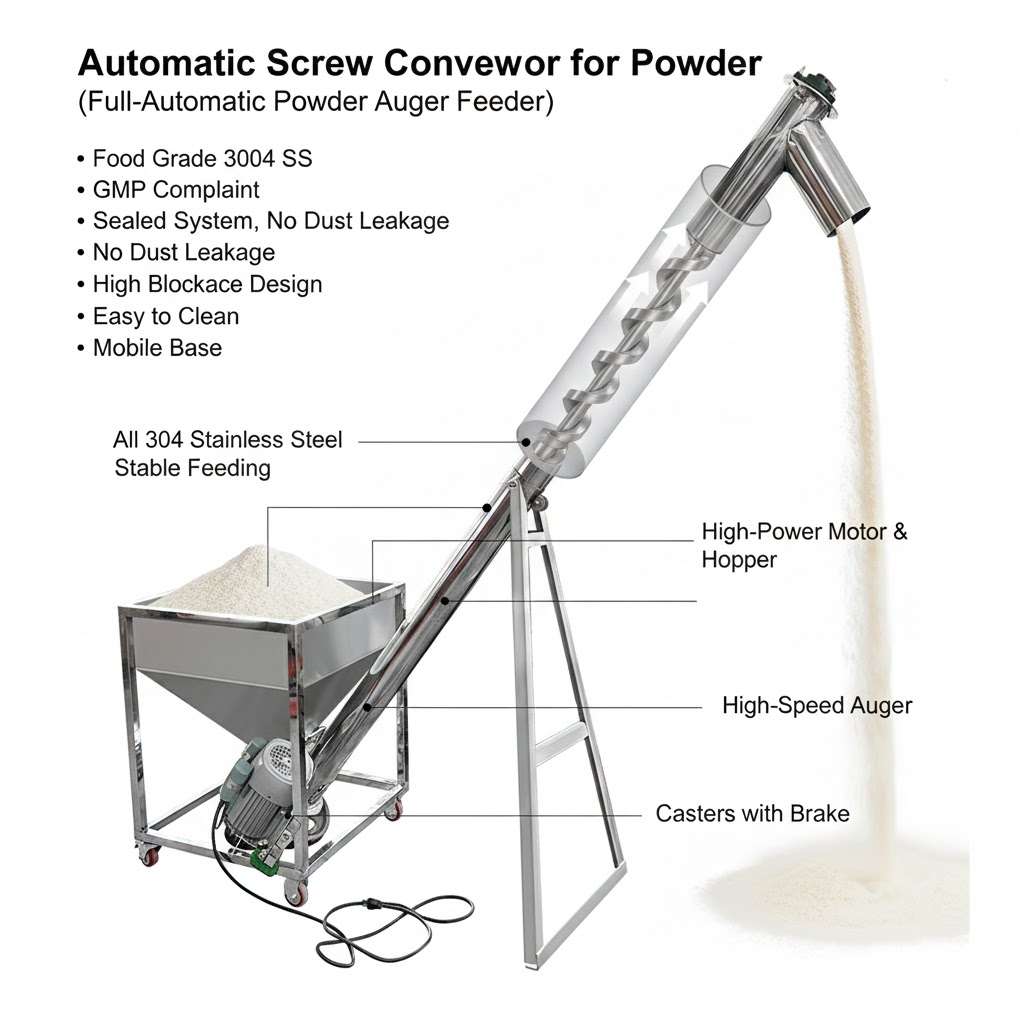

The SC Series Screw Conveyor (Auger Elevator) is a high-performance industrial material handling solution engineered for precision and automation. It is the ideal partner for packaging machines, filling machines, and storage systems, specifically designed to handle fine powders (such as flour, pharmaceuticals, and chemicals) and small granules (such as plastic pellets, coffee beans, and seasonings).

Core Advantages

• Food-Grade 304 Stainless Steel (SUS304): All material-contact parts are crafted from high-quality 304 stainless steel. This ensures superior rust and corrosion resistance, remaining fully compliant with international food and pharmaceutical hygiene standards.

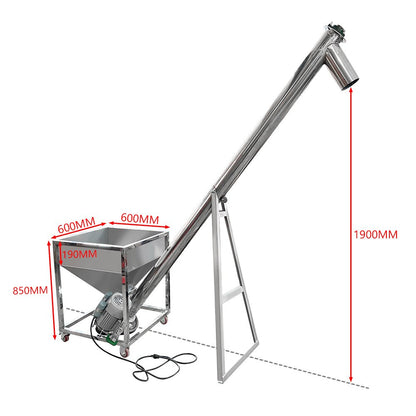

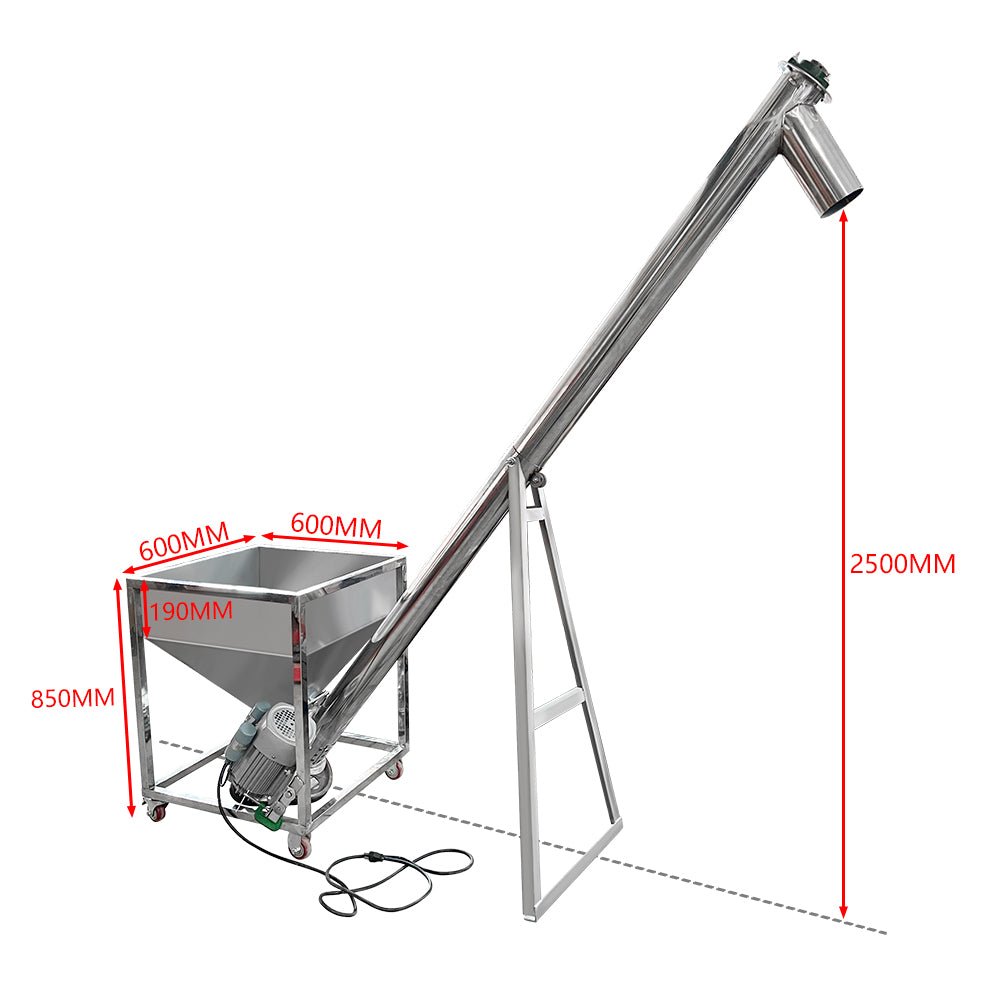

• Customizable Height: We provide tailored solutions to fit your factory layout. Beyond standard specifications (1.9m, 2.15m, 2.5m), the lifting height can be fully customized to meet your exact production line requirements.
• Intelligent Automatic Speed Adjustment: The system features built-in frequency conversion, automatically adjusting conveying frequency based on the load of downstream equipment to ensure perfectly synchronized automated feeding.
• Superior Mobility & Stability: Designed with heavy-duty industrial casters and integrated foot brakes, the machine can be easily moved by a single person and locked securely into a rock-solid position during operation.
• Anti-Bridging Agitator (Optional): For materials prone to clogging or bridging, our optional forced agitation device ensures continuous, smooth feeding.

Operation Process

1. Deployment: Use the heavy-duty casters to push the unit into position and lock the wheel brakes.
2. Powering: Connect to a 110V/220V power supply and verify the screw rotation direction using the speed control knob.
3. Loading: Pour materials into the 304 stainless steel hopper. Activate the optional agitator if necessary.
4. Feeding: The unit steadily elevates materials to the discharge outlet.
5. Cleaning: The bottom-mounted cleaning port allows for rapid emptying and internal maintenance without complex disassembly.

Technical Specifications

(For electrical schematics and detailed dimensions, visit our Technical Documentation Center)

Business Terms & Support

• Warranty: 1-year full machine warranty; lifetime technical support for the core motor.
• Lead Time: 7-10 working days for standard models; 15 days for custom height units.
• International Shipping: Standard sea-worthy plywood crate packaging (fumigation-free) ensures maximum protection during transit.
