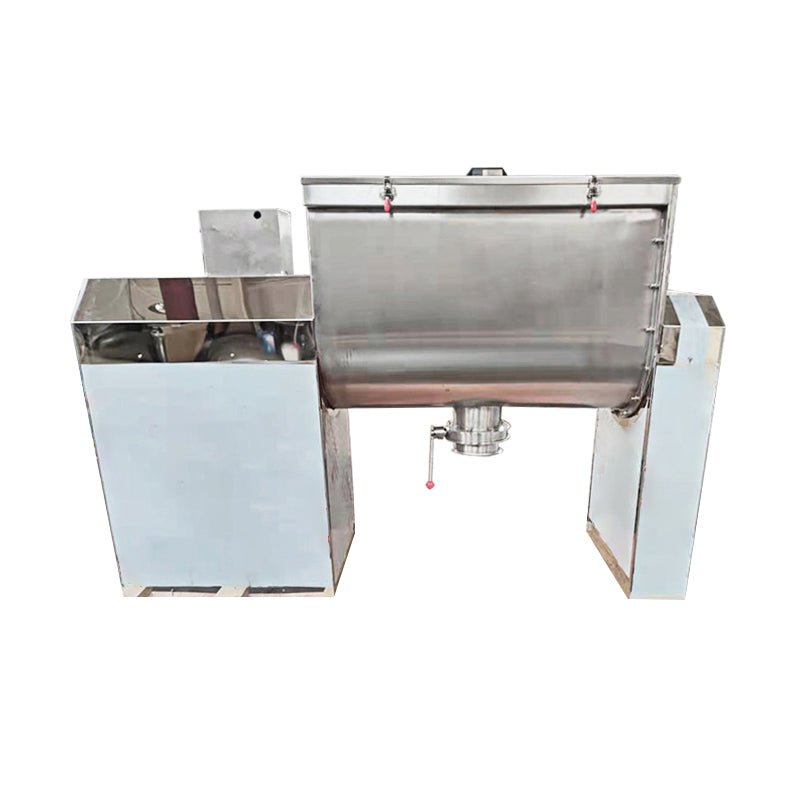

WLDH Series Ribbon Vacuum Blender Mixer for Pharmaceutical Powder

WLDH Series Ribbon Vacuum Blender Mixer for Pharmaceutical Powder

$8,600.00 USD
$8,600.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model
Shipping method
Quick Answer: The CECLE WLDH Series Horizontal Ribbon Mixer is a high-efficiency single-dimensional motion mixing equipment specifically designed for powders, granules, and low-viscosity liquids.

CECLE WLDH Series vs. Traditional / Generic Alternative

Where the CECLE WLDH Series stands out against manual or generic blender mixer — measured on the dimensions buyers care about most.

Sealing / Transfer Quality
CECLE WLDH SeriesExtremely High Mixing Uniformity : Capable of uniformly mixing materials with vastly different proportions (up to 1:10,000). Even when significant density differences exist between materials, extremely high.
Uncontrolled Contact ConditionsEdges wrinkle, seals weaken or transfer is incomplete because pressure/heat are not synchronized.
Output Speed & Throughput
CECLE WLDH SeriesFast and Efficient Mixing Process : Efficiency is improved by 6-10 times compared to traditional mixers. A single batch of materials typically reaches complete mixing within 1-10 minutes. Ultra-Low Material.
Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.
Pressure Consistency
CECLE WLDH SeriesThe CECLE Blender Mixer holds working pressure steady across batches, cutting weak-output rejects.
Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.
Operational Mechanism & Drive
CECLE WLDH SeriesIts drive removes operator-dependent variation, so output stays consistent.
Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Model One-Time Mixing Capacity (kg) Motor Power (kw) Machine Weight (kg)
WLDH-100 30 - 50 1.5 - 4 300
WLDH-300 100 - 150 2.2 / 3 / 4 500
WLDH-500 200 - 350 4 - 11 900
WLDH-1000 400 - 800 7.5 - 15 1400 - 1500
WLDH-1500 600 - 900 11 - 18.5 1900
WLDH-2000 800 - 1200 15 - 22 2500
WLDH-3000 1200 - 1800 18.5 - 30 3100
WLDH-4000 1600 - 2400 22 - 37 3600
WLDH-6000 2400 - 3600 37 - 55 5300
WLDH-8000 3200 - 4800 37 - 55 6800
WLDH-10000 4000 - 6000 37 - 55 7800

Compatible Applications & Materials

  • industrial products — primary target products for this Blender Mixer line
  • Standard industrial materials compatible with the machine's rated spec range
  • B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

  1. Setup: connect the required power / air supply and verify the control display.
  2. Parameter preset: set speed / temperature / pressure per the product spec.
  3. Material loading: place the product in the correct fixture / mold slot.
  4. Execution: start the cycle; monitor for stable, repeatable output.
  5. Quality check: inspect the first units; adjust if deviation appears.
  6. Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

What is the mixing efficiency of the horizontal ribbon mixer?
A: The mixing efficiency is extremely high. Under normal circumstances, a single batch of materials can reach a completely uniform state within 1-10 minutes, which is 6-10 times more efficient than other types of mixers.

Is the mixing effect good for materials with large density differences?
A: The effect is excellent. The equipment can uniformly mix materials at a ratio of 1:10,000, showing particular advantages when mixing materials with significant density differences, without destroying the original state of the materials.

Will the material residue of a horizontal equipment be very high?
A: No. Although many people believe that horizontal equipment has high residue, due to our extremely high-precision machining control of the gap between the outer spiral ribbon and the U-shaped trough wall, the continuous operation of the ribbon during discharge pushes the material toward the discharge valve, essentially achieving complete discharge. Actual testing shows that the residue for 1000kg of material is only about 5kg.

What material options are available for the machine?
A: We offer multiple material options to meet the standards of different industries. The material-contacting parts can be made of 304 stainless steel or 316L medical-grade stainless steel, and the frame can be made of carbon steel. Additionally, components such as cylinders can be fully customized to 304 stainless steel, with support for corrosion-resistant linings and wear-resistant coatings.

What is the equipment warranty and after-sales service?
A: The standard warranty period for the entire machine is one year. During the warranty period, if any damage occurs during normal use according to the instruction manual, we will provide free repairs or free replacement of parts (the customer only needs to bear the shipping cost from China). Beyond the warranty period, we still provide lifetime maintenance service.

Full Documentation & Drawings

Complete technical manual, parameters and engineering drawings: CECLE Docs — WLDH Series

Related CECLE Machines

Request a Quote

Send your product specifications, target output and format details to CECLE for a tailored configuration, lead time and factory-direct quotation.
