CECLE Machine

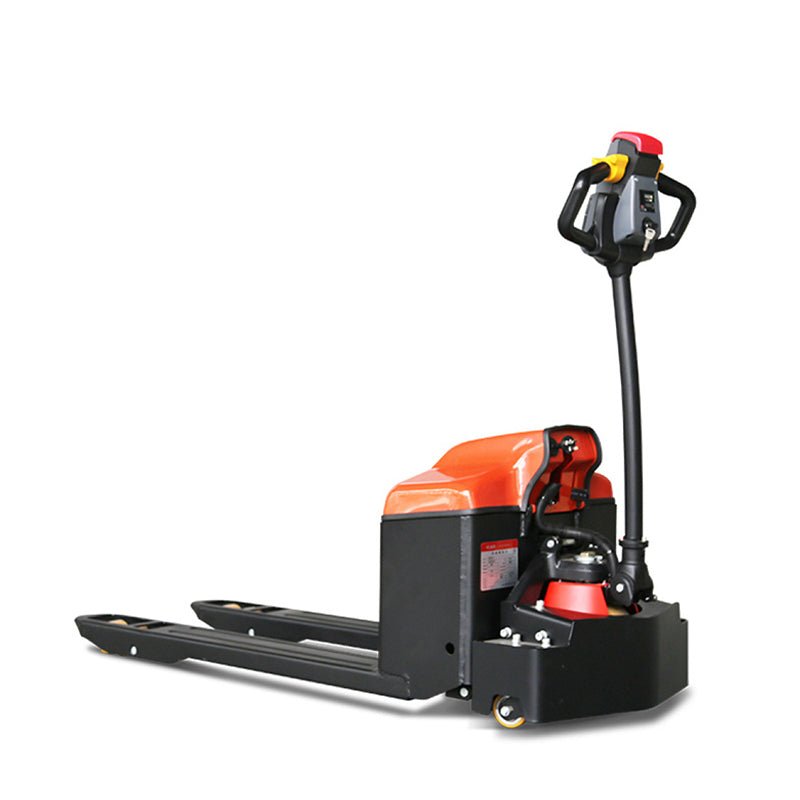

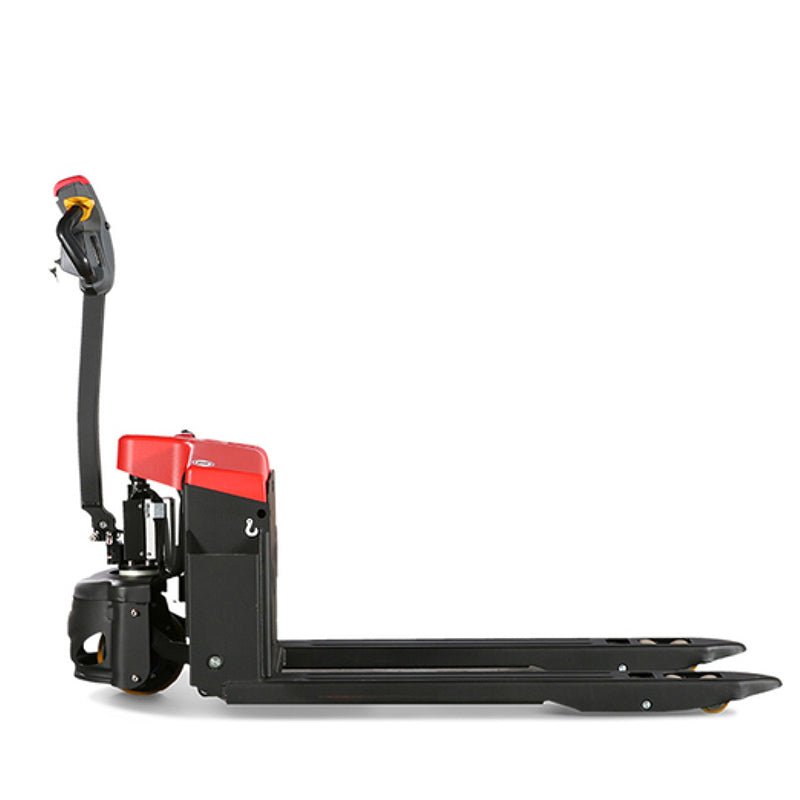

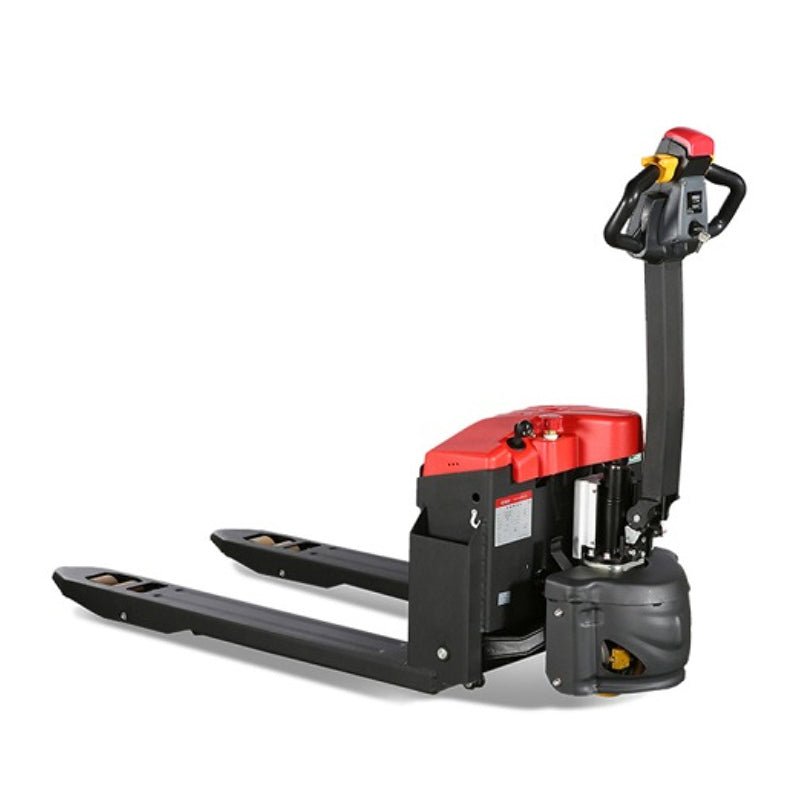

Portable All Electric Pallet Truck

$2,600.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model EPT15TQ EPT15TLI

Outside width of fork 560mm 685mm

Shipping method by sea to door with tax(25-40days)

Download Product PDF

Core Abstract

The Electric Pallet Jack (Models: EPT15TQ / EPT15TLI) is a highly efficient solution for modern logistics and warehousing. Featuring a fully electric drive system, it automates both travel and lifting, eliminating the physical strain associated with traditional manual handling. With an ergonomic design and powerful motor output, it smoothly and quickly manages loads up to 1500kg. For technical schematics, wiring diagrams, and detailed maintenance guides, explore our official Electric Pallet Jack Technical Documentation.

I. Product Overview

Category: Warehouse Material Handling Equipment / Electric Industrial Forklift
Application Scenarios: Widely used in logistics centers, automated warehouses, supermarket distribution, food processing plants, manufacturing workshops, and loading/unloading operations for transport vehicles.
Core Functions: Electric-assisted travel drive, electric-hydraulic lifting and lowering, electric braking control, and emergency collision protection.

II. Key Advantages

Increased Efficiency: Motorized drive for both traveling and lifting enables operators to move heavy loads faster, significantly increasing throughput per unit of time.
Reduced Physical Strain & Better Ergonomics: Eliminates physical effort required for manual pulling and hydraulic lifting, reducing the risk of lower back and muscle injuries.

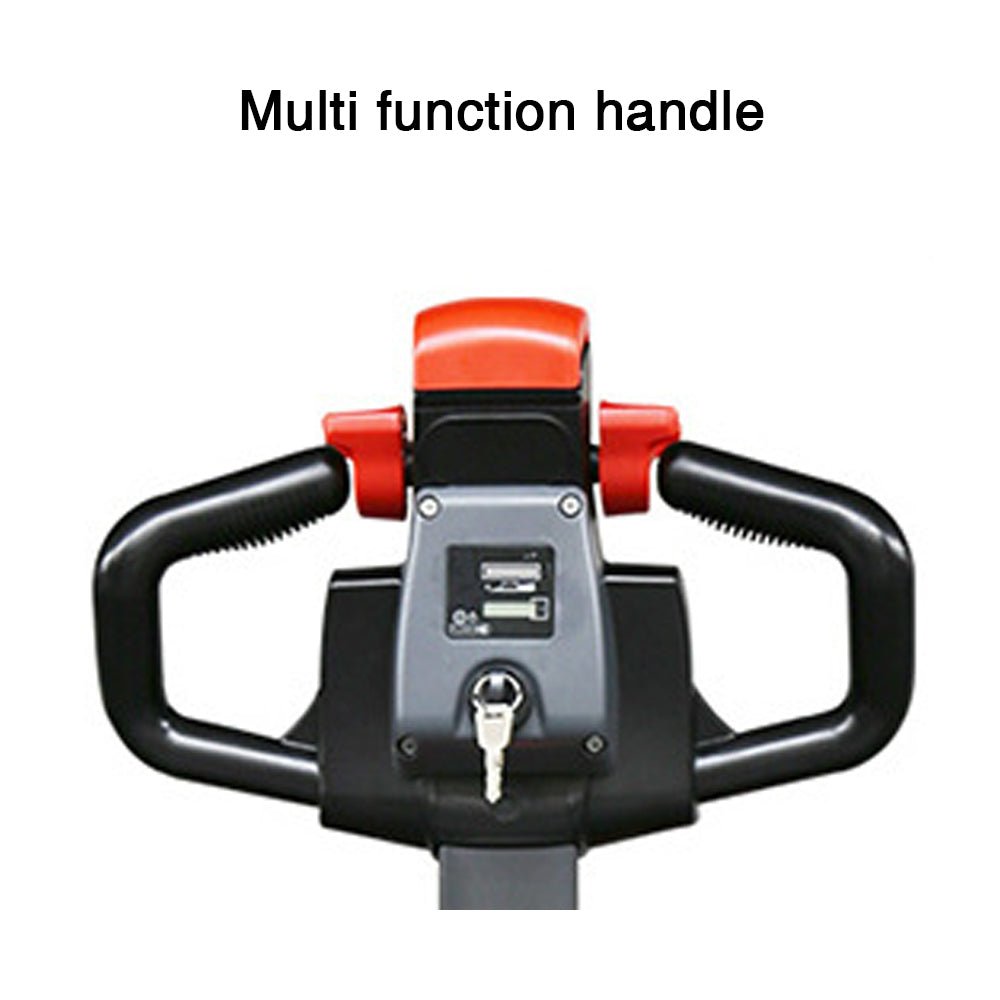

Ease of Use: Integrated control buttons on the handle allow novice operators to master the equipment quickly. More usability insights are available in our technical documentation hub.
Maneuverability: Compact structure and small turning radius make it perfect for narrow aisles, warehouse racks, or tight truck containers.
Higher Load Capacity: Electric drive system ensures smooth starting and steady operation even when handling heavy loads like 1.5 tons.
Enhanced Safety: Equipped with an emergency brake button, anti-collision protection (belly switch), and an electromagnetic braking system.
Better Gradeability: Powerful drive motors enable the pallet jack to climb inclines difficult for manual models.

III. Operating Procedure

Preparation: Check battery levels, insert the key, press the start button on the handle, and ensure the brake is released.
Positioning: Control the handle to move forward and smoothly slide the forks into the pallet base, ensuring center alignment.
Electric Lifting: Press the lift button on the handle until the load is cleared from the ground and maintained at a safe height.
Transporting: Operate the drive handle or throttle to control the pallet jack and move at a safe speed to the target area.
Unloading: Lightly press the lower button to ensure the pallet touches the ground steadily, then reverse to exit the forks.

IV. Technical Parameters

Parameter	EPT15TQ	EPT15TLI
Rated Load	1500kg
Battery Capacity	2*12V/65AH	24V/40AH
Fork Lowering Height	80mm
Fork Lifting Height	120mm
Load Center Distance	600mm
Turning Radius	1485mm
Weight	180kg	163kg

V. Sales Advice & FAQ

Sales Advice

Model Selection: For longer run-times, we recommend the EPT15TQ (larger battery capacity). For extremely limited space and portability, the EPT15TLI is ideal.
Customization: Supports fork width and length customization to meet specific pallet requirements.

Q: What makes electric pallet jacks better than manual ones?

A: Fully motorized for both travel and lifting, drastically reducing operator fatigue and increasing efficiency several times over compared to manual models.

Q: How is this product maintained?

A: Focuses on proper battery charging/discharging protocols, checking hydraulic oil levels, and inspecting drive wheel wear.

Q: Can it be used on ramps or inclines?

A: Yes, models have good gradeability, though operation within designed slope limits is recommended for safety. Find more maintenance guidelines in our online portal.

VI. Media & Materials

👉 Watch on YouTube: Click here to view product demonstration

VII. Commercial Terms

Domestic Trade Terms

MOQ: 1 unit.
Warranty: 1-year warranty on the main unit; specific support for batteries and motors.
Logistics: Domestic shipping across China; remote areas negotiable.
