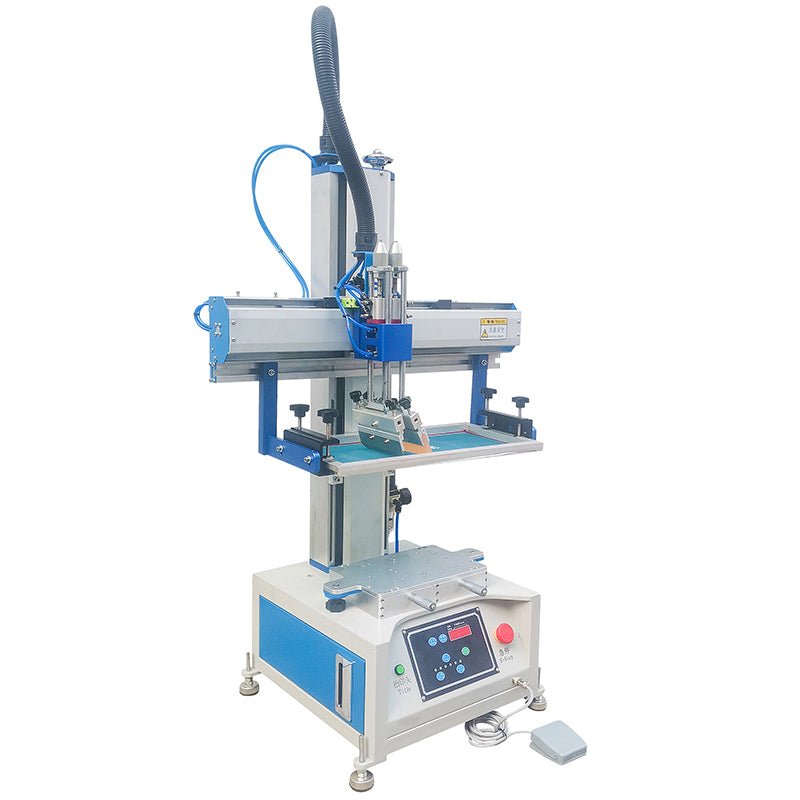

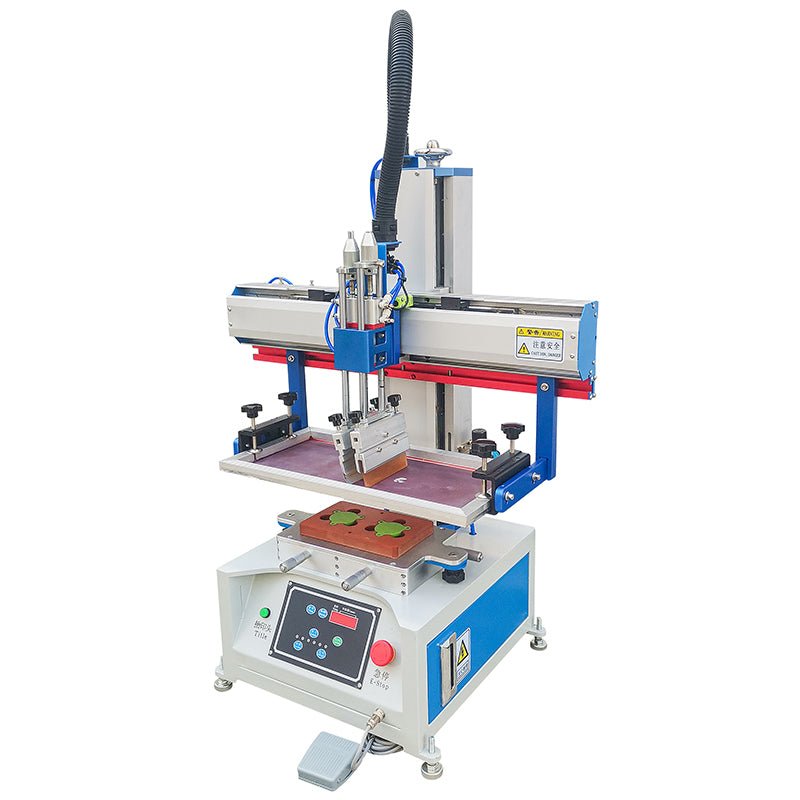

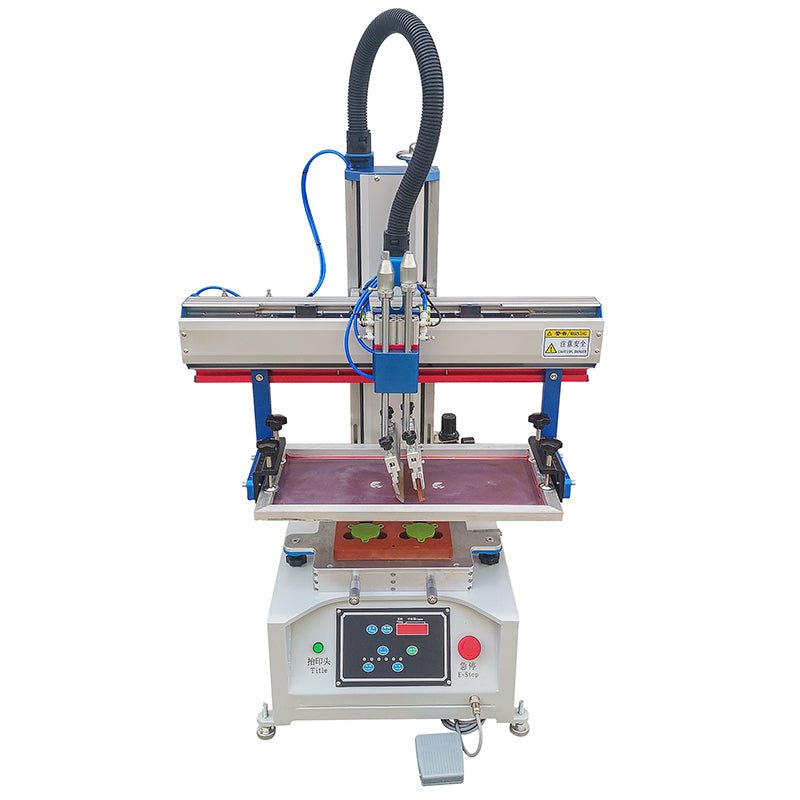

TD-1525 Pneumatic Desktop Screen Printing Machine
Ideal for Electronic Panels, Nameplates & Small Flat Products |1500 pcs/hr
The TD-1525 Flat Screen Printing Machine is a highly efficient, pneumatically driven desktop printer designed specifically for small flat objects. Featuring a 0.01mm precision worktable and a screen frame guide rail lifting, it is the perfect solution for printing small, intricate texts and patterns on acrylic nameplates, electronic component shells, and instrument panels.
🌟 Core Advantages & Features
- 0.01mm Precision Worktable: Equipped with X/Y-axis knobs for front, back, left, and right fine-tuning. This micro-registration strictly guarantees precision up to 0.01mm, making it ideal for extremely detailed prints.
- Guide Rail Lifting System: The screen frame lifting mechanism utilizes a precision guide rail, ensuring smooth, vibration-free, and highly accurate movement compared to standard models.
- Ultra-High Production Efficiency: Driven by a rapid pneumatic system, it can reach a maximum printing speed of up to 1,500 pieces per hour, greatly enhancing your daily production capacity.
- Extremely Low Air Consumption: Requires only 4 BAR of working air pressure to run smoothly, lowering the load requirement on your external air compressor.
- Excellent Compatibility: Supports a maximum printing area of 150×250mm and accommodates substrate thicknesses up to 120mm (12cm).

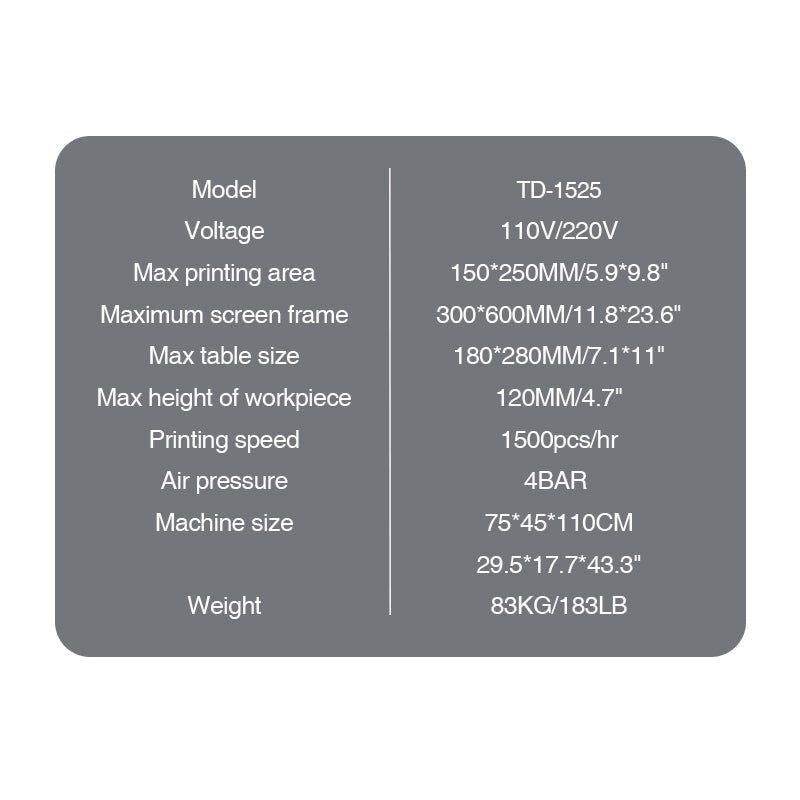

📐 Technical Specifications
(Note: Requires a sturdy workbench and operates via pneumatic drive)
| Specification | Details |
| Model | TD-1525 |
| Max Printing Area | 150 × 250 mm (5.9" × 9.8") |
| Max Table Size | 180 × 280 mm (7.1" × 11") |
| Max Screen Frame Size | 300 × 600 mm (11.8" × 23.6") |
| Max Height of Workpiece | 120 mm (4.7") |
| Printing Speed | 1500 pcs/hr |
| Air Pressure Requirement | 4 BAR |
| Voltage Options | 110V / 220V |
| Weight | 85 KG (187 LB) |

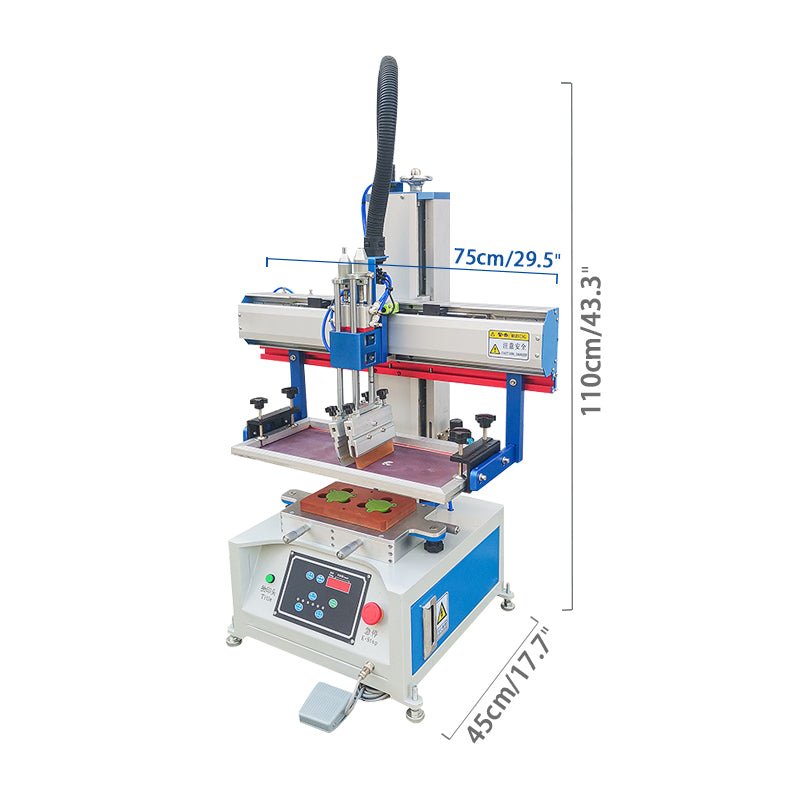

| Machine Dimensions | 75 × 45 × 110 CM (29.5" × 17.7" × 43.3") |
🛠️ What You Need to Get Started (Prerequisites)
This is an industrial pneumatic machine. To operate it, you will need to prepare the following:
- Air Compressor (Mandatory): Recommended capacity of approx. 90L and a power of around 2.55KW to provide a stable air source of at least 4 BAR.
- Sturdy Workbench: The machine weighs approx 65KG (143 lbs). A strong table at an ergonomic height is required for aligning and unloading materials.
- Consumables: Custom screens, ink (specific to your material), thinner, squeegee, screen wash, and product fixtures. (Need a complete solution? Contact us for custom screens!)
❓ Frequently Asked Questions (FAQ)
Q: Why should I choose the TD-1525 over a standard flatbed printer?
A: The TD-1525 features a 0.01mm precision micro-registration workbench and a screen frame guide rail lifting. If you are printing tiny text on electronic panels, precision instruments, or small shells, this machine is suitable.
Q: Can I use the machine just by plugging it in?
A: No. The machine relies on a pneumatic drive. In addition to a power supply (110V or 220V), you must equip it with an external air compressor (approx. 90L, 2.55KW) to function.
Q: What is the warranty policy?
A: We offer a 1-year warranty. During this period, we provide free replacement parts for damage occurring under normal, manual-compliant use (the buyer is only responsible for international shipping costs).
📚 Technical Documentation & Operation Video

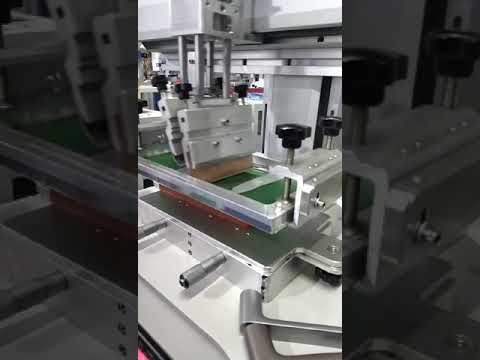

- Watch Operation Video: View on YouTube
- Comprehensive User Manual: For detailed workflow instructions, maintenance guides, and full technical documentation, please visit our official knowledge base: TD-1525 Technical Documentation.
