PHS-320 High-Speed Plastic Stamping Printing Machine for Foil Pouches (Servo)

$11,000.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model PHS-320 Plastic plates hot foil stamping machine

Shipping Methods By Sea To Closest Sea Port(20-30 Days) By Sea Shipping+Truck Delivery To Door(25-40 Days After Departure)

Shipping From China

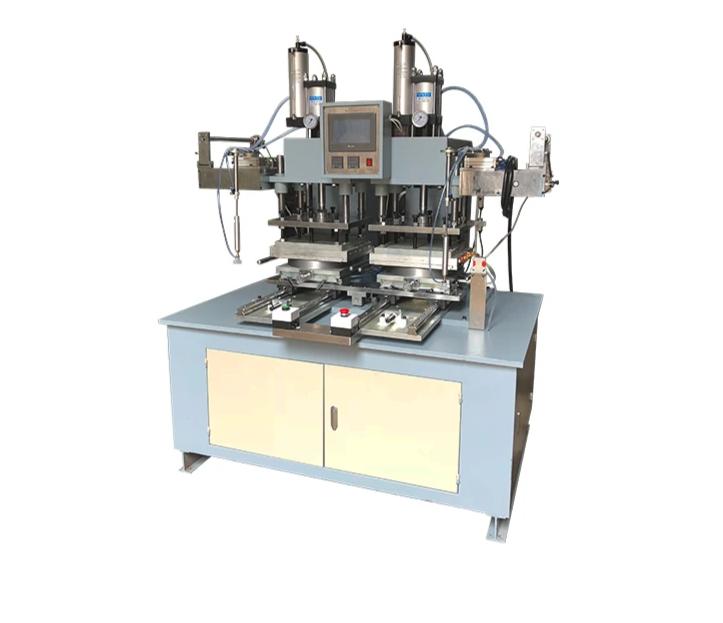

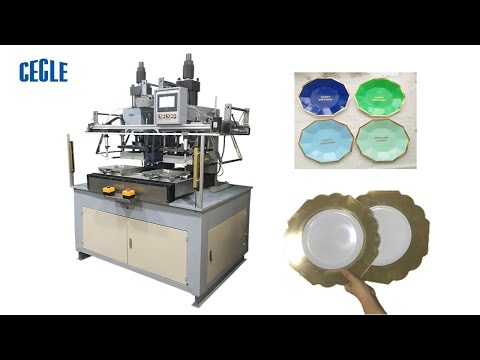

Quick Answer: The CECLE PHS-320 is an automatic plastic plate hot foil stamping machine designed specifically for plastic plates, perfectly suited for the tableware manufacturing industry.

CECLE PHS-320 vs. Traditional / Generic Alternative

Where the CECLE PHS-320 stands out against manual or generic printing machines — measured on the dimensions buyers care about most.

Output Speed & Throughput

CECLE PHS-320Servo Sliding Table & Efficient Operation : Equipped with a high-precision servo sliding table that allows workers to place plates safely and quickly, drastically reducing labor intensity

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Adaptability & Changeover

CECLE PHS-320Safety Light Curtains : Comes standard with safety light curtains to comprehensively protect operators during high-speed operations. Flexible Mold Customization & Replacement : Easily adapts to different plate.

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Pressure Consistency

CECLE PHS-320Optional Robotic Automation Upgrade : Can be customized with a robotic arm to automatically retrieve stamped plates, realizing automated loading/unloading and significantly increasing production efficiency.

Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.

Operational Mechanism & Drive

CECLE PHS-320Purpose-Built Voltage: 6kw drive delivers steady, operator-independent output.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Parameter Name	Specification
Model	PHS-320
Heating plate size	320mm × 320mm × 2
Pressure	3T
Speed	10–20 times/min
Voltage	6kw
Power	380v 50–60hz
Applicable material	Hot stamping foil
Hot stamping products	Plate
Air pressure	0.4~0.6mpa
Control mode	Gas-liquid Pressurization
G.W./N.W.	800kg
Packaging dimension	70011002000mm

Pre-installation requirements: Voltage: 6 kW; Power: 380v 50–60hz; Air Pressure: 0.4~0.6mpa; Packaging Dimension: 700 × 1100 × 2000mm (27.6 × 43.3 × 78.7 in). External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Printing Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Pneumatic &amp
Electrical Connection : Connect the machine to an external air compressor (supplying 0.4~0.6mpa air pressure) and plug into a 380V industrial power supply
Consumables Installation : Install the corresponding fixed mold matching the plate size, mount the hot stamping die, and properly thread the hot stamping foil

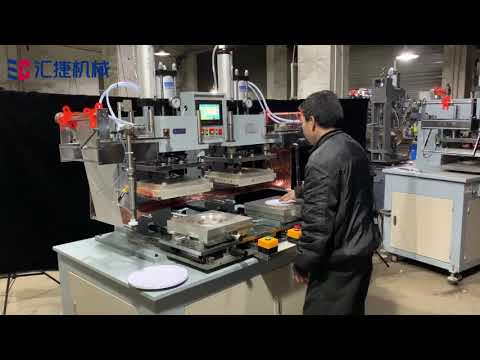

Manual Loading : Under the protection of safety light curtains, the operator manually places the plate needing hot stamping into the feeding position
Servo Sliding : Press the dual-button start or step on the foot switch, and the servo sliding table smoothly carries the plate into the interior of the machine
Automatic Stamping &amp
Unloading : The gas-liquid pressurization head applies 3T pressure to complete precision stamping

Engineering FAQ

What types of products is this machine mainly used for?

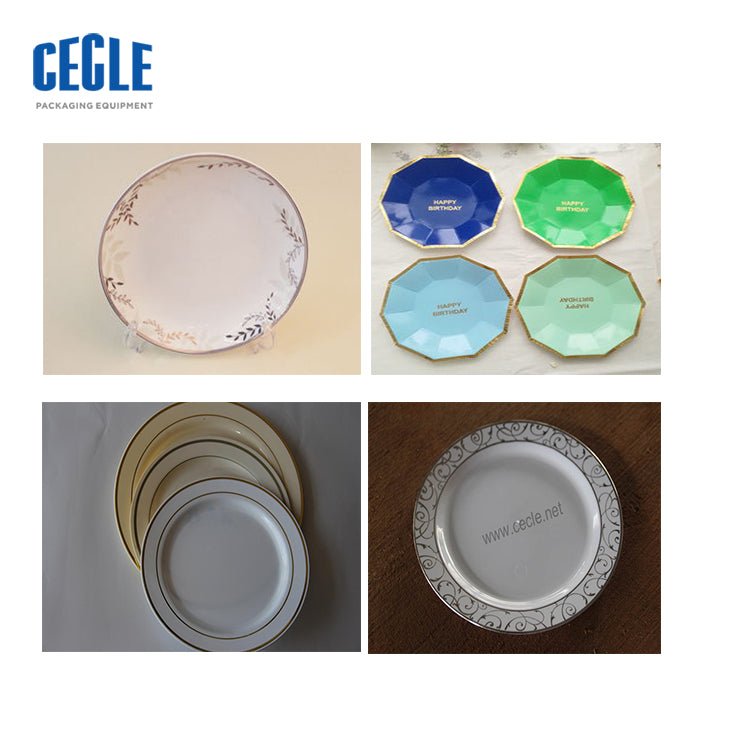

A: It is mainly used for edge hot stamping (gold rimming) or pattern stamping on plastic plates.

Do I need a different machine for different plate sizes?
A: No, you only need to change the corresponding fixed molds to perfectly adapt to different plate sizes.

What preparations are needed after receiving the machine?
A: Upon receiving the machine, you need to connect an external air compressor, plug into the 380V power supply, and install the hot stamping dies and foil before use.

What does the 3T Pressure requirement mean for the PHS-320?
A: The 3T Pressure is the working condition needed for consistent, repeatable results. Operators must supply a stable source at this level; fluctuations cause defects.

What peripheral equipment should be prepared for the PHS-320?
A: Beyond the rated 6kw Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the PHS-320 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.
