⚡ At a Glance (Product Overview)

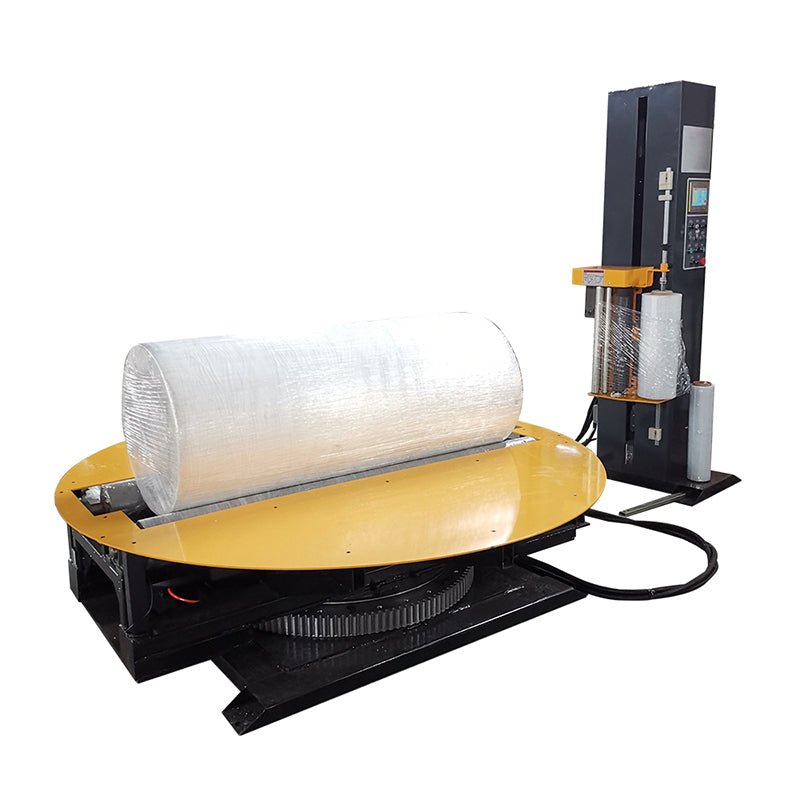

- 6-Sided Enclosed Moisture-Proof Protection: Combines roller self-rotation with turntable revolution to achieve 360° dead-angle-free wrapping on both radial sides and end faces.
- Heavy-Duty Industrial Build: Built with a 1.5-ton (1500kg) load capacity, powered by a heavy-duty 011.40.920 slewing bearing structure and a K-series helical-bevel gear motor.
- Pneumatic Auto-Ejection System: Features an airbag-type pneumatic cylinder mechanism that smoothly pushes heavy cylindrical cargo out post-wrap, eliminating dangerous manual unloading.
- 250% Film Stretch Savings: Powered pre-stretch film carriage expands 1 meter of stretch film up to 2.5 meters, significantly cutting consumable costs during continuous high-intensity operations.
Key Benefits & Core Features

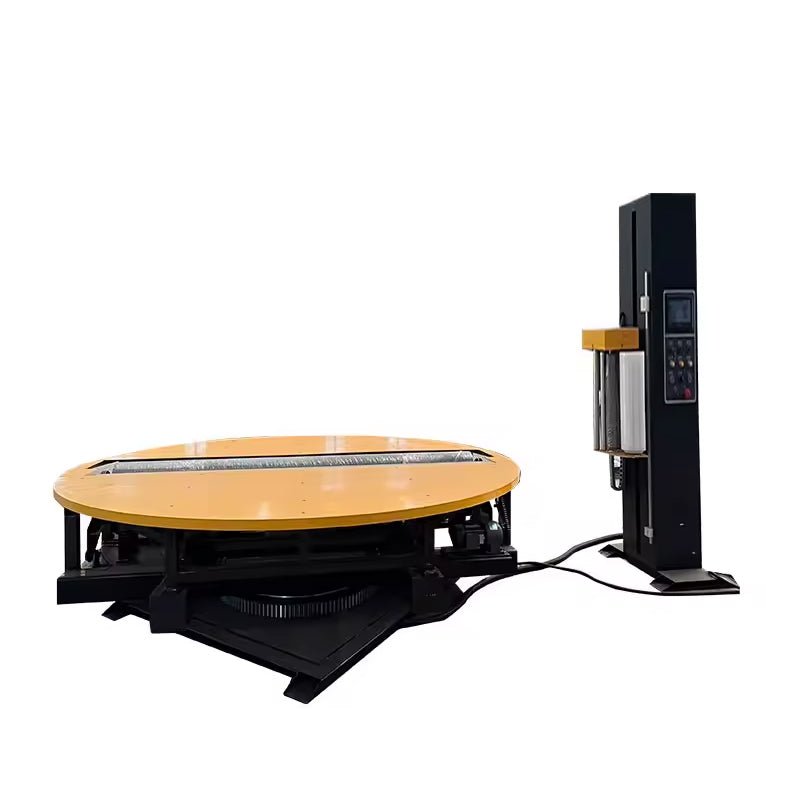

Packaging heavy paper reels, textile rolls, and metallic cylinders manually or on standard flatbed wrappers often results in uncovered end faces, moisture damage during transport, and high risks during unloading. The HYP2000F-AU Cylindrical Roll Stretch Wrapping Machine is an automated, heavy-duty solution engineered specifically for high-intensity industrial roll packaging.

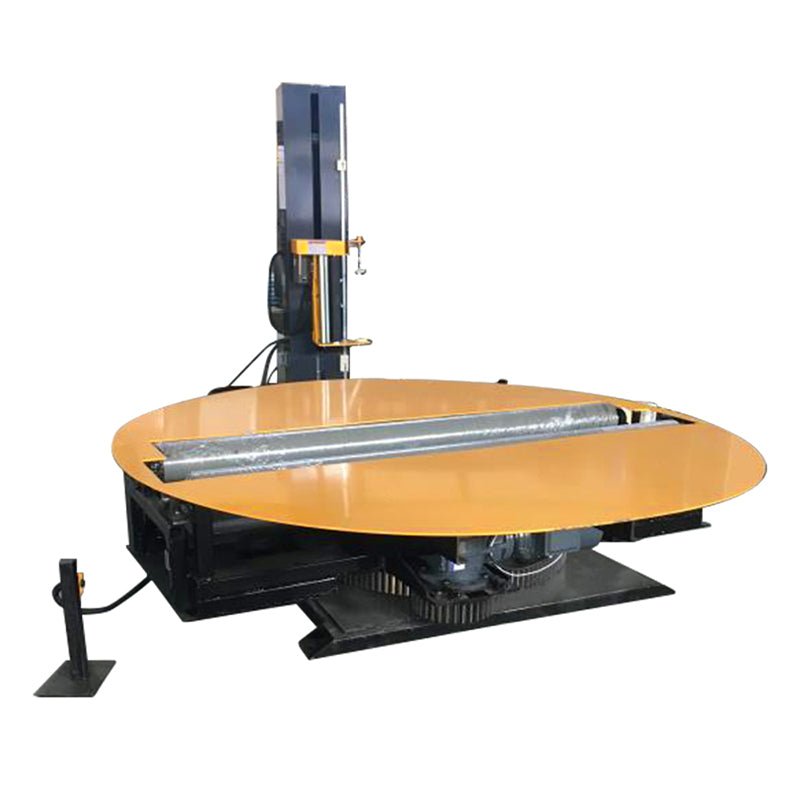

- Full 6-Sided Enclosed Wrapping: Uses active drive rollers to rotate cylindrical cargo while the main turntable rotates, wrapping both circumferential sides and end axial faces for total dustproof and moisture-proof sealing.
- Pneumatic Auto-Ejection Unloading: Integrated airbag pneumatic cylinders flip up automatically after wrapping to smoothly slide wrapped rolls onto discharge conveyors, ensuring seamless automation and operator safety.
- Robust Heavy-Duty Drive System: Utilizes an industrial-grade slewing bearing chassis and a K-series helical-bevel gear reduction motor for high transmission efficiency, impact resistance, and low maintenance.
- Fool-Proof PLC Touchscreen Operation: Operators simply input roll diameter and width parameters on the screen; the PLC system automatically calculates the optimum wrapping cycles and coverage height.
- Air Source Solenoid Protection: Equipped with an oil-water separator and premium pneumatic solenoid valves to prevent cylinder wear and ensure long-term equipment reliability.

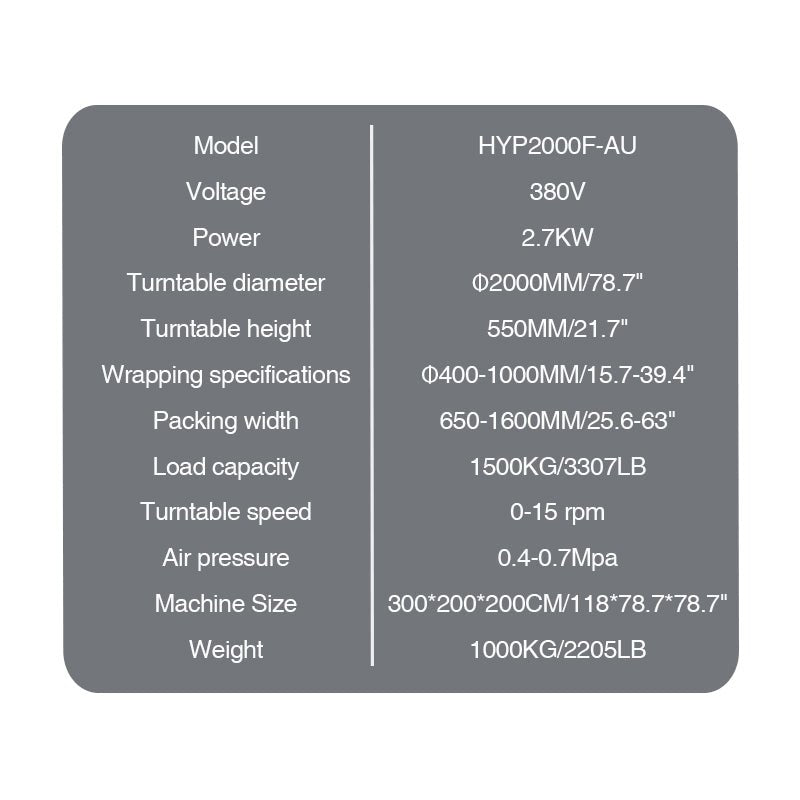

Technical Specifications
| Specification Item | Technical Parameter |
|---|---|
| Model | HYP2000F-AU |
| Packing Width Range | 600 – 1600 MM (23.6" – 63") |
| Packing Diameter Range | Φ600 – Φ1300 MM (23.6" – 51.2") |
| Turntable Diameter | Φ2000 MM (78.7") |
| Roller Width / Roller Center Distance | 1650 MM (65") / 420 MM (16.5") |
| Turntable Height | 543 MM (21.4") |
| Max Load Capacity | 1500 KG (3307 LBS) |
| Turntable & Roller Speed | Turntable: 0–14 RPM | Roller: 0–12 RPM |
| Pre-Stretch System | 250% Powered Pre-Stretch Ratio |
| Air Supply Pressure | 0.6 – 0.8 MPa (External Compressor Required) |
| Power Supply & Voltage | 2.7 KW / 380V / 50Hz (3-Phase 5-Wire) |
| Weight | 1700 KG (3748 LBS) |
📖 Looking for operational guides, pneumatic installation details, or roll size customization options?

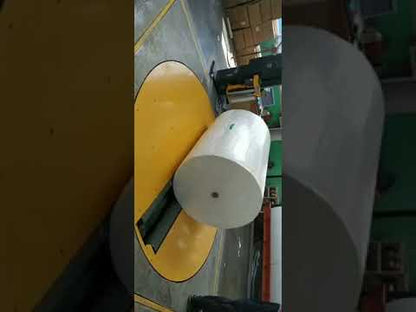

How It Works: Step-by-Step Operation

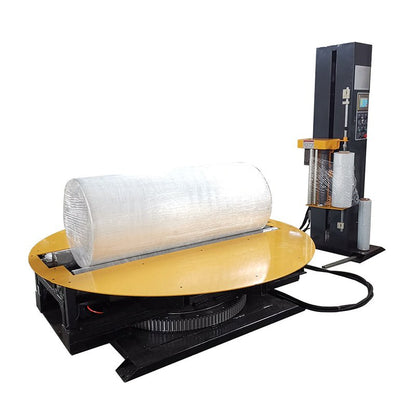

- Roll Loading: Place the cylindrical roll centered onto the drive rollers using a forklift or overhead crane, then attach the stretch film tail to one end of the cargo.
- Automated Wrapping Cycle: Input the roll diameter and width parameters on the PLC touchscreen and press start. The machine automatically calculates rotational speed, turntable revolution, and film overlaps for complete six-sided coverage.
- Film Cutting: Once the wrapping cycle finishes, the turntable automatically resets to its initial position, allowing the operator to cut the film.
- Automatic Unloading: The airbag pneumatic ejection system raises smoothly to push the wrapped cylinder out onto a waiting conveyor or unloading point, then automatically resets for the next cycle.
Frequently Asked Questions
Q: Do operators need to reset parameters every time they wrap a different-sized roll?
A: No complex setup is needed. Operators simply input the "diameter" and "width" of the current cargo on the touchscreen, and the system will automatically calculate the required number of wraps, truly achieving fool-proof one-touch operation.
Q: Will the auto-ejection damage the cargo or floor during unloading?
A: No. Our ejection mechanism utilizes an airbag-type pneumatic cylinder, ensuring a smooth and reliable push. It is recommended to pair the discharge side with a floor roller conveyor so that the goods roll out extremely smoothly and safely.
Q: What about warranty and after-sales service?
A: We provide a 1-year warranty service. During the warranty period, if damage occurs under normal use according to the manual, we provide free replacement parts (the buyer is responsible for the international shipping costs from China to their local area).
