CECLE packaging machinery

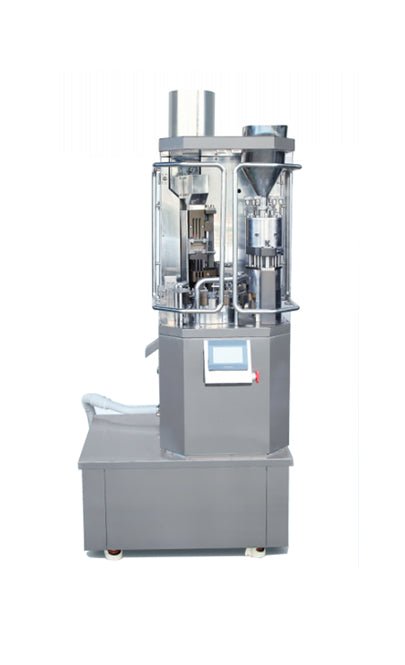

NJP-1200 full automatic capsule filling machine

NJP-1200 full automatic capsule filling machine

$18,000.00 USD
$18,000.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model
NJP Series Fully Automatic Capsule Filling Machine
Product Overview: The NJP Series Fully Automatic Capsule Filling Machine is a highly efficient automated device specifically designed for the precise filling of powder and granular materials into hard empty capsules. Ranging from 12,000 to 150,000 capsules per hour, this series provides a high-precision (±3.5%) and stable solution for pharmaceutical, health supplement, and laboratory production.

📖 Technical Documentation & Deep-Dive Specifications

Need detailed structural diagrams, CAD configurations, or troubleshooting manuals?

View Official Technical Documentation Station ➔

I. Why Choose NJP Series?

  • High-Precision Engineering: Equipped with imported Japanese linear bearings, ensuring extreme accuracy and long-term durability.
  • Advanced Lubrication: Fully bottom-mounted cam with enclosed lubrication track prevents contamination, unlike traditional top-mounted systems.
  • Superior Yield Rate: High-precision vacuum positioning maintains a capsule loading qualification rate of 99% or above.
  • Intelligent Safety: PLC touchscreen controls with real-time digital display and automated protection for material shortages or door openings.

II. Model Comparison & Selection

Model Capacity (pcs/h) Power Weight Application
NJP-200 12,000 4.00 kw 800 kg Pilot/Start-up
NJP-400 24,000 4.90 kw 800 kg Flexible/Small-scale
NJP-800 48,000 4.90 kw 800 kg Mid-sized/Main
NJP-1200 72,000 5.57 kw 900 kg High-efficiency/Modular
NJP-2500 150,000 6.45 kw 1,500 kg Ultra-high-speed

Note: Standard construction is SUS304 stainless steel; SUS316L upgrades available for GMP/FDA compliance.

III. Frequently Asked Questions (FAQ)

What factors affect actual production capacity?
Capacity is affected by powder bulk density, flowability, and capsule size (supports 00#–5#). We recommend reserving 15-20% capacity margin for future growth.
Can the machine meet GMP/FDA standards?
Standard models use SUS304 stainless steel. For corrosive materials or strict GMP/FDA compliance, we provide full SUS316L material-contact surface upgrades.
How is the equipment prepared for international shipping?
Machines are treated with anti-rust fluid, wrapped in stretch film, and enclosed in fumigation-free plywood crates for sea/land protection. Lead times are as fast as 15 days.
View full details
