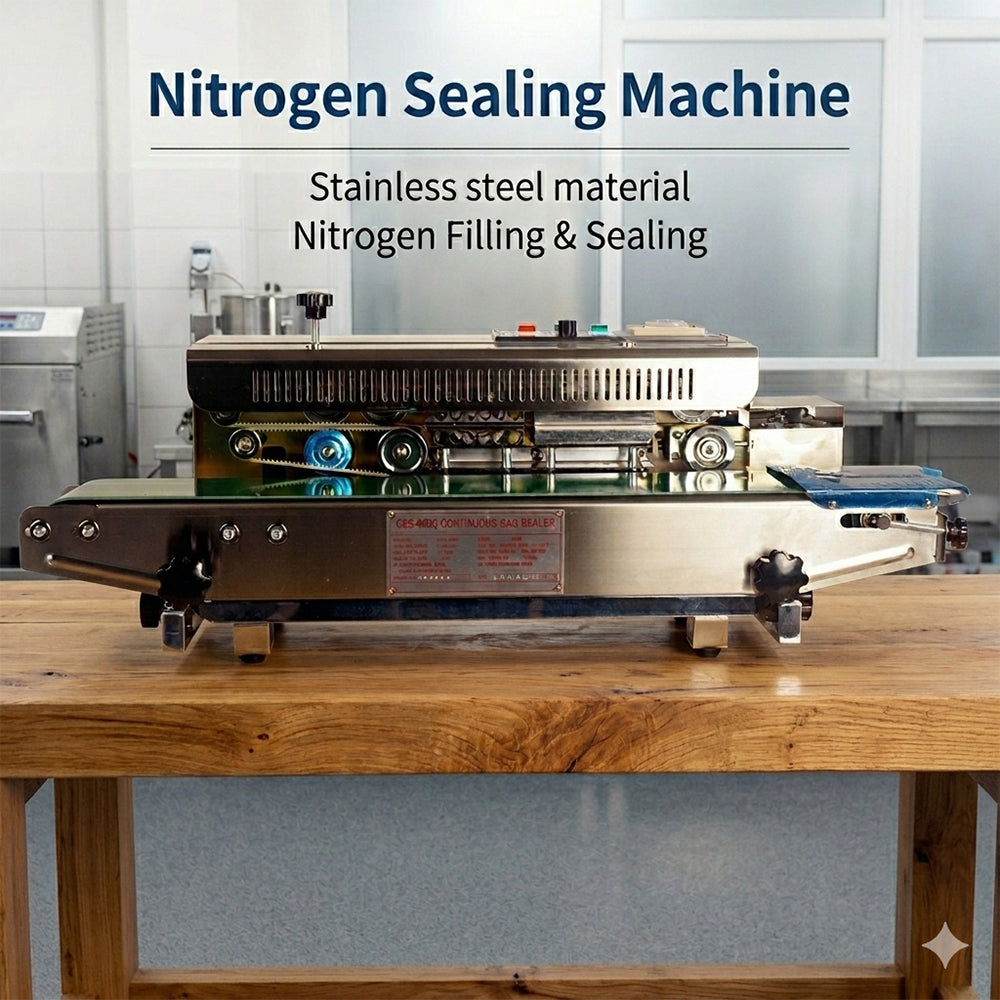

Nitrogen Flushing Band Sealer for Snacks, Nuts & Coffee (Horizontal & Vertical)

Name: Nitrogen Flushing Band Sealer
Brand: CECLE
Price: 1399.0 USD
Availability: InStock

$1,399.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model Steel printing Ink wheel printing

Shipping method By express(About 7-12 Days)

Quick Answer: The CECLE Nitrogen-Flushing Continuous Band Sealer is an integrated gas-flushing, automatic heat-sealing, and synchronous coding machine engineered for puffed-food factories, roasted-nut processors.

CECLE vs. Traditional / Generic Alternative

Where the CECLE stands out against manual or generic nitrogen flushing band sealer — measured on the dimensions buyers care about most.

Sealing / Transfer Quality

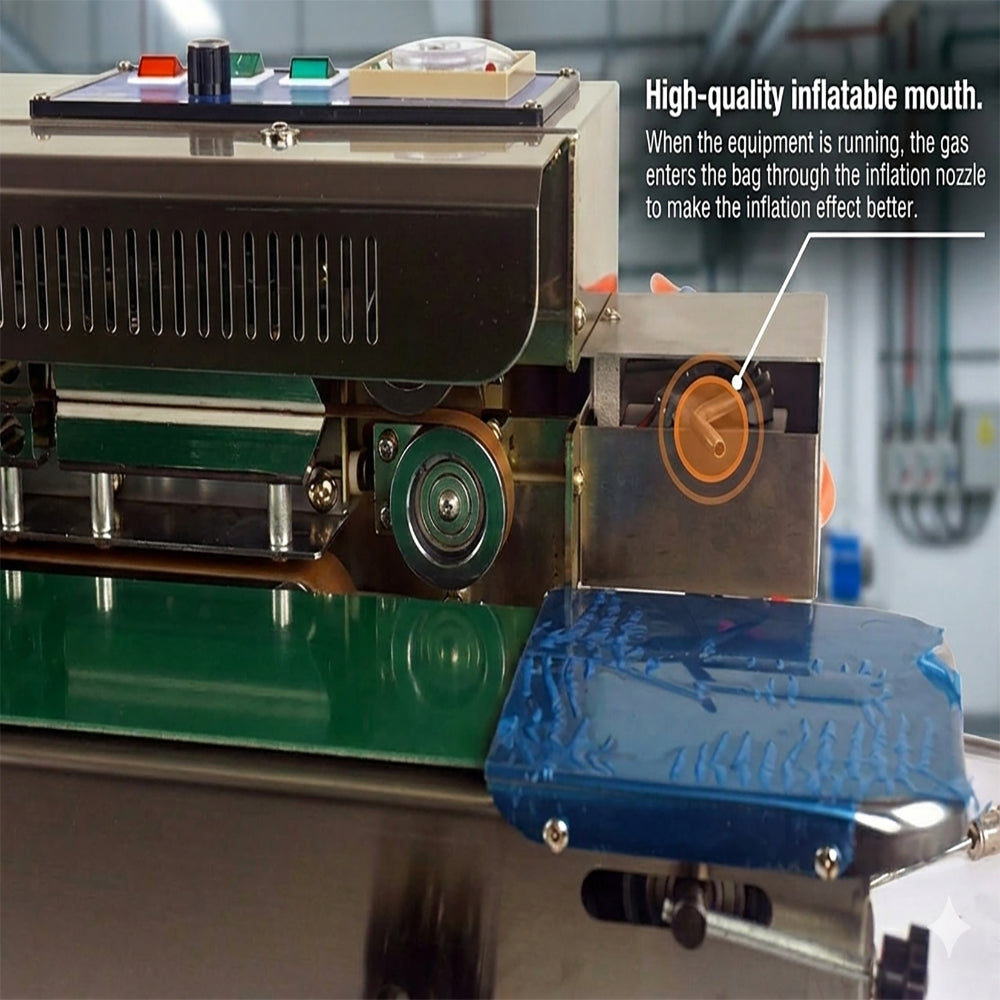

CECLE Nitrogen Flushing, Longer Shelf Life : At the moment of sealing, a premium gas nozzle injects nitrogen into the pouch to displace air and oxygen — suppressing oxidation and delaying spoilage , significantly.

Uncontrolled Contact ConditionsEdges wrinkle, seals weaken or transfer is incomplete because pressure/heat are not synchronized.

Adaptability & Changeover

CECLE Adjustable Nitrogen Flow : The standard model requires manual nitrogen-flow adjustment; an optional dedicated adjustment valve can be added for finer, valve-based control of nitrogen flow to suit different.

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Pressure Consistency

CECLE The CECLE Nitrogen Flushing Band Sealer holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Output Speed & Throughput

CECLE It is tuned for continuous commercial throughput with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.

Technical Specifications

Items	Steel Printing	Ink Wheel Printing
Voltage	110V/60Hz or 220V/50Hz	110V/60Hz or 220V/50Hz
Power	500 W	650 W
Sealing Speed	0–12 m/min	0–12 m/min
Seal Width	13 mm	13 mm
Temperature Range	0–300 °C	0–300 °C
Film Thickness	0.02–0.08 mm	0.02–0.08 mm
Conveying Load	≤ 3.5 KG / 7.7 LB	≤ 3.5 KG / 7.7 LB
Printing Type	Steel Printing (heated type-block indentation)	Ink Wheel Printing (solid-ink black text)
Packaging Dimension	910×510×380 mm / 35.8″×20.1″×15″	970×450×380 mm / 38.2″×17.7″×15″
Weight	26 KG / 57.3 LB	31 KG / 68.3 LB

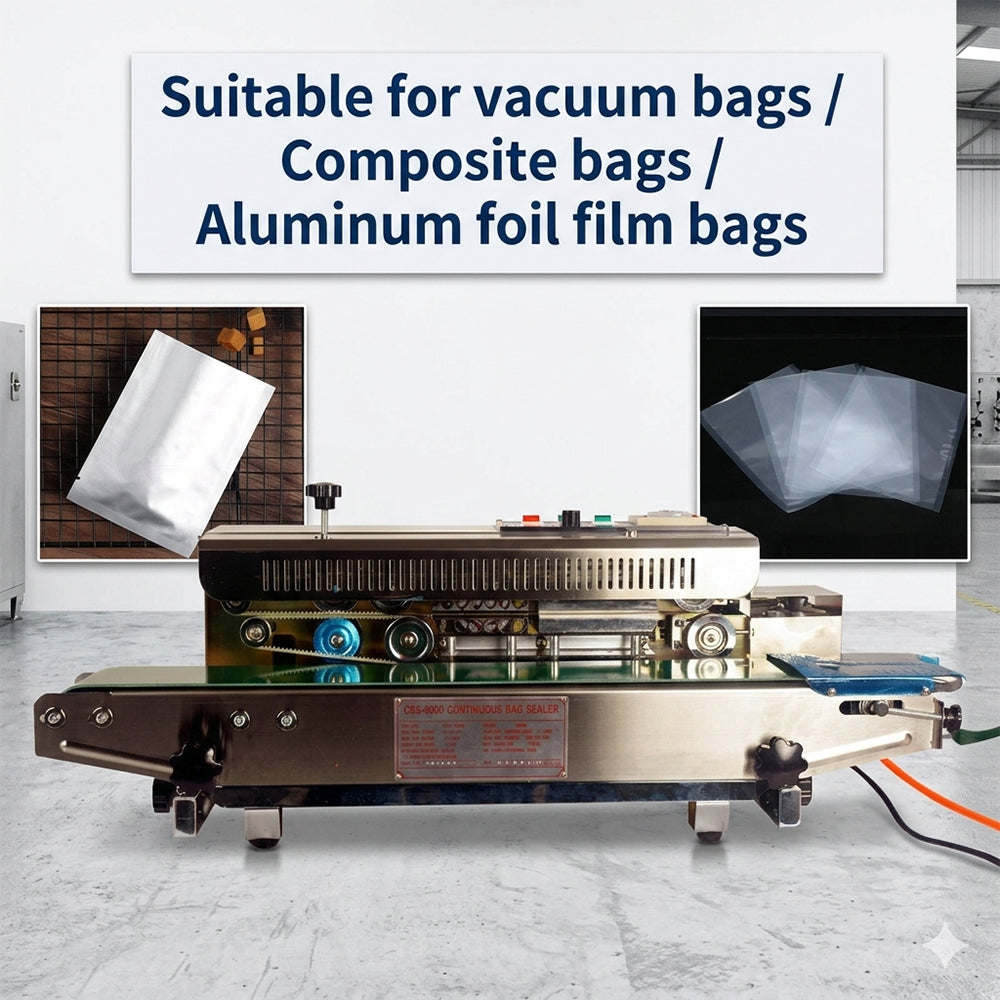

Compatible Applications & Materials

industrial products — primary target products for this Nitrogen Flushing Band Sealer line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Connect Gas Supply : Connect the external nitrogen cylinder line securely
Open the cylinder main valve and set the pressure regulator to a safe micro-pressure state
Power On : Plug in the power and switch on the panel main power switch
Set Heating : Switch on the heating switch and set the seal temperature on the temperature controller
For the ink-wheel model, also switch on the print pre-heating
Start Conveyor : Adjust the speed knob to make the conveyor run smoothly
Bag Loading &amp

Engineering FAQ

Does the machine come with a nitrogen cylinder? What else do I need to buy?
A: The machine does NOT include a nitrogen cylinder/tank, nor does it have nitrogen-generation capability . The customer must purchase their own nitrogen cylinder or tank — any model with an external outlet will work . An 8 mm OD (8 mm OD / 5 mm ID) gas tube is also required.

Can the nitrogen flow be adjusted?
A: Yes. The standard model supports manual nitrogen-flow adjustment; an optional dedicated adjustment valve (+USD 100) can be added for finer, valve-based control of the nitrogen flow to suit different pouch types and preservation requirements.

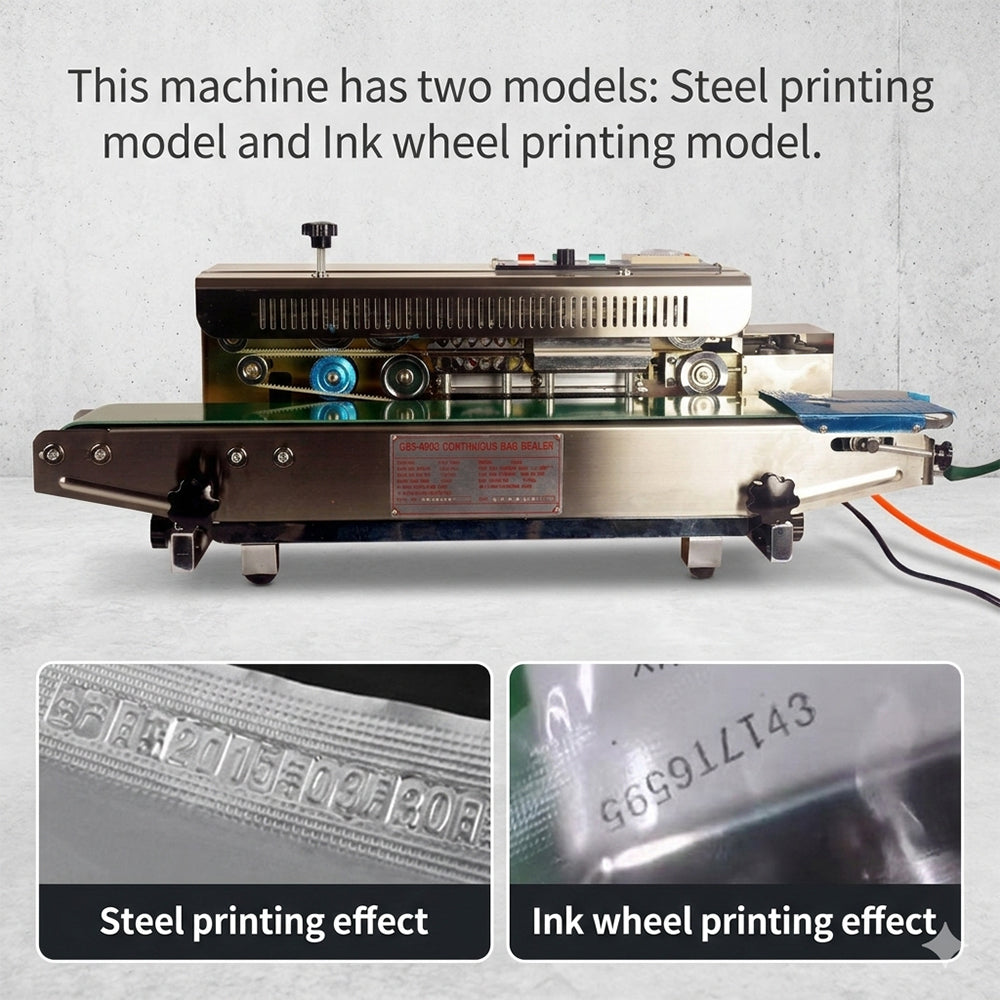

What's the difference between the steel-print and ink-wheel versions? How should I choose?
A: Steel Printing Model : Uses metal type blocks to heat-press indented impressions (no color) — zero consumable cost, exceptional value-for-money; Ink Wheel Model : Uses a solid hot-melt ink roller to print clearly visible black text with bold, eye-catching characters. The price difference between the two complete machines is approximately USD 100.

What routine maintenance keeps the stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
