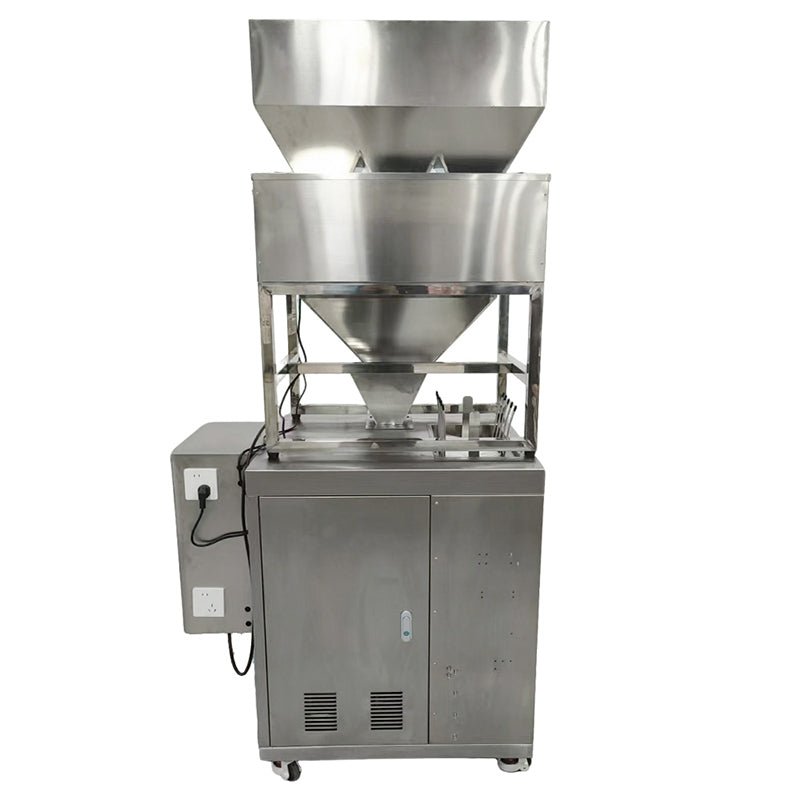

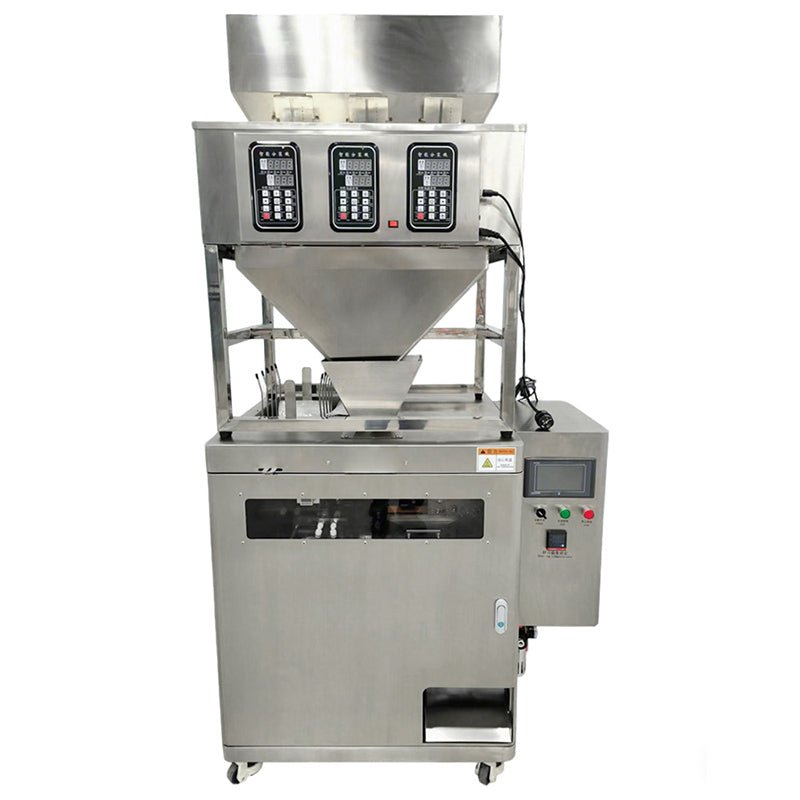

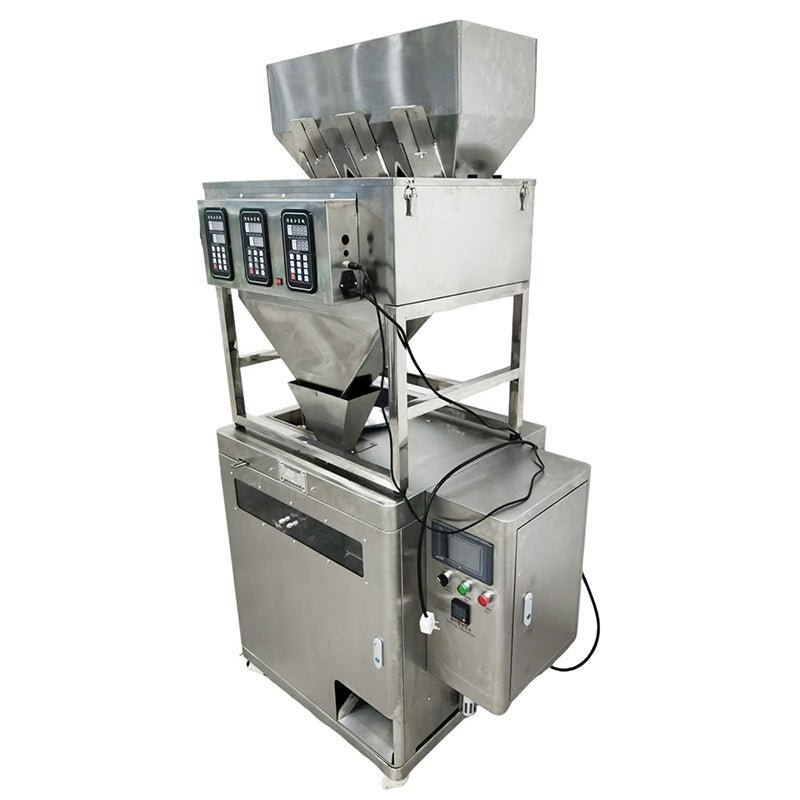

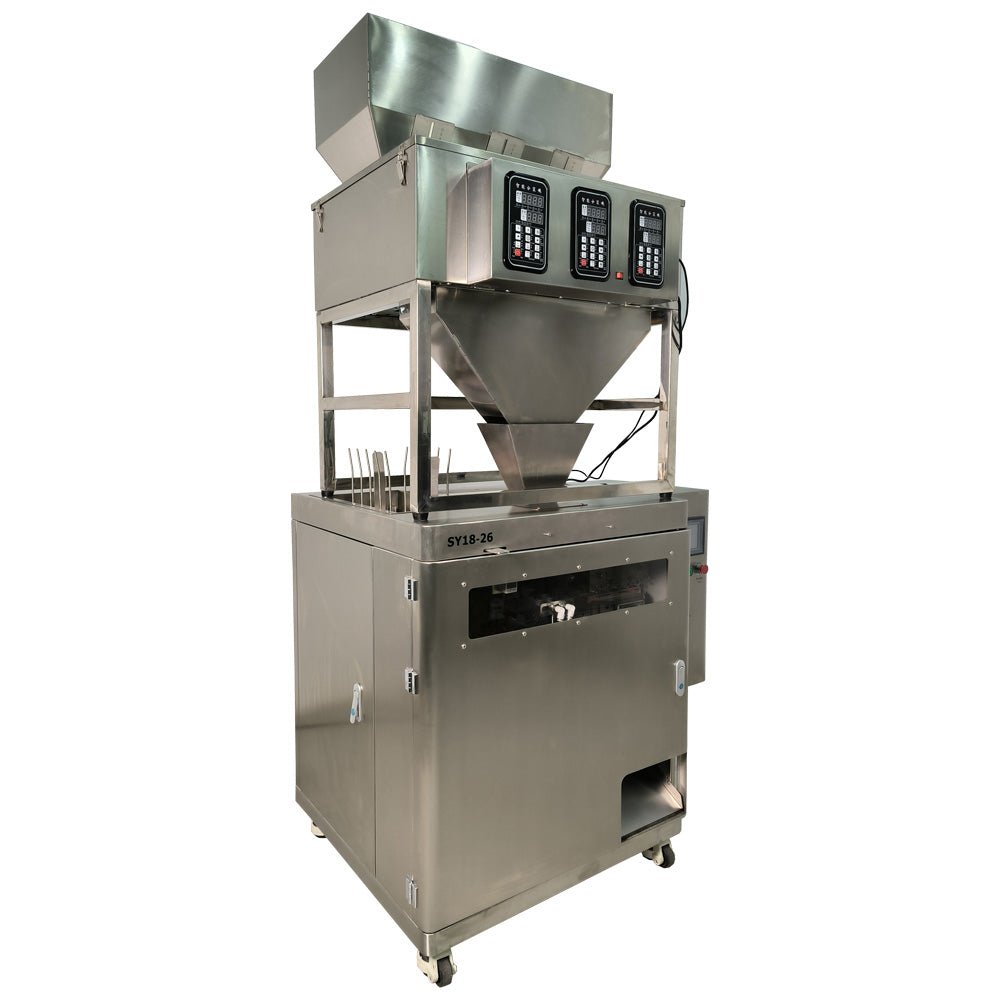

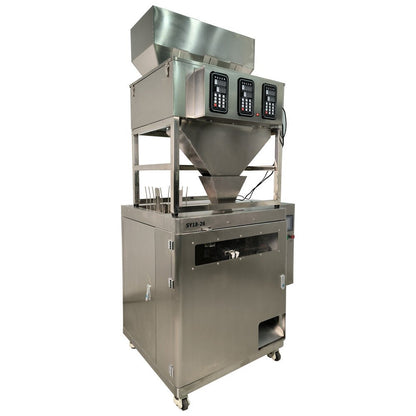

DGD-W30TD-W-K500 Three-Head Stand Up Pouch Packing Machine for Granular Products

DGD-W30TD-W-K500 Three-Head Stand Up Pouch Packing Machine for Granular Products

$10,399.00 USD
$10,399.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model
Shipping Method
Quick Answer: The CECLE DGD-W30TD-W-K500 500g Granule Stand Up Pouch Packing Machine is a highly efficient automated packaging solution engineered for uniform granular materials.

CECLE DGD-W30TD-W-K500 vs. Traditional / Generic Alternative

Where the CECLE DGD-W30TD-W-K500 stands out against manual or generic stand up pouch packing machines — measured on the dimensions buyers care about most.

Chassis Rigidity & Vibration Resistance
CECLE DGD-W30TD-W-K500±0.1g Packaging Accuracy : Utilizing a three-head electronic linear weigher , the packaging accuracy can reach ±0.1g. It is particularly suitable for valuable materials with extremely tight weight tolerances.
Lightweight Sheet Metal (<120 kg)Prone to chassis flex, frame warping over time, and seal leakage.
Pressure Consistency
CECLE DGD-W30TD-W-K500Stable 0.6-0.8MPA Working Pressure: Pneumatic or servo-controlled force stays consistent across batches.
Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.
Output Speed & Throughput
CECLE DGD-W30TD-W-K500Rated 20-30 bags/min Packing Speed: Built for steady commercial output with minimal idle time.
Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.
Operational Mechanism & Drive
CECLE DGD-W30TD-W-K500Purpose-Built Voltage: 110V / 220V drive delivers steady, operator-independent output.
Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Items Specifications
Model DGD-W30TD-W-K500
Voltage 110V / 220V
Power 0.92KW
Measuring Scope 0.1-500g
Packaging Accuracy ±0.1g
Packing Speed 20-30 bags/min
Applicable Bag Size 5×7cm to 20×30cm
Silo Capacity 30KG
Bag Bin Capacity 450 pcs (Bag thickness 0.1mm)
Working Pressure 0.6-0.8MPA
Machine Weight 236KG / 520LB
Machine Size 98×65×185CM / 38.6×26×72.8"

Pre-installation requirements: Voltage: 110V / 220V; Power: 0.92 kW; Machine Weight: 236KG / 520LB.

Compatible Applications & Materials

  • industrial products — primary target products for this Stand Up Pouch Packing Machine line
  • Standard industrial materials compatible with the machine's rated spec range
  • B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

  1. Loading : Pour the materials into the 30KG stainless steel large silo at the top
  2. Load Bags : Place the premade bags neatly into the machine's bag bin
  3. Setup : Input the target weight (e.g., 250g) on the touchscreen
  4. Auto-run : The machine automatically fetches the bag -&gt
  5. automatically opens the bag -&gt
  6. the three-head electronic linear weigher precisely drops the material -&gt
  7. automatically seals -&gt

Engineering FAQ

Why use a three-head electronic linear weigher? What are its advantages over a single-head scale?
A: The three-head electronic linear weigher is microcomputer-controlled to discharge alternately or simultaneously. Its advantages include: Faster speed : Three weighing heads working together provide more uniform and stable discharging; Supports mixed packaging : For example, you can put mung beans in scale bucket A, melon seeds in bucket B, and goji berries in bucket C, achieving precisely proportioned packaging of three different materials in a single bag .

What about warranty and after-sales services?
A: We provide a 1-year warranty service. During the warranty period, if damage occurs under normal use according to the manual, we provide free replacement parts (the buyer is responsible for the international shipping costs from China to their local area).

What power supply does the DGD-W30TD-W-K500 require?
A: The DGD-W30TD-W-K500 runs on 110V / 220V Voltage. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the DGD-W30TD-W-K500?
A: Beyond the rated 110V / 220V Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the DGD-W30TD-W-K500 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the DGD-W30TD-W-K500 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.

Full Documentation & Drawings

Complete technical manual, parameters and engineering drawings: CECLE Docs — DGD-W30TD-W-K500
