What is the maximum cup height this machine can seal? Are there limits on cup diameters?

The standard model supports cups up to 200mm (7.87") in height and is configured for 90mm or 95mm (3.54"/3.74") diameter PP cups. If your cups exceed these dimensions, we can provide custom configurations to meet your specifications.

1 5

CECLE Machine

MS-220 / MSS-220 Automatic Bubble Tea Cup Sealing Machine

$649.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model MS-220 ( Plastic material 90/95mm) MSS-220 (stainless steel 90/95mm) MSS-220 (stainless steel 120mm)

Shipping Method Ship it by express(7-10days)

Download Product PDF

Core Abstract: MS-220 / MSS-220 Cup Sealing Machine

The MS-220 / MSS-220 Cup Sealing Machine is a high-efficiency automatic cup-sensing and sealing equipment designed for fast, precise packaging of bubble tea, coffee, juice, and other beverages. Equipped with an advanced electronic eye sensing system for flawless pattern alignment, it comes in two casing materials: lightweight black plastic (MS-220) and heavy-duty stainless steel (MSS-220). Delivering 400 to 600 cups per hour, it is an essential tool for cafes, bubble tea shops, and beverage chains.

📖 Need advanced technical specifications or troubleshooting guides? Visit our official MS-220 / MSS-220 Technical Documentation & Manual.

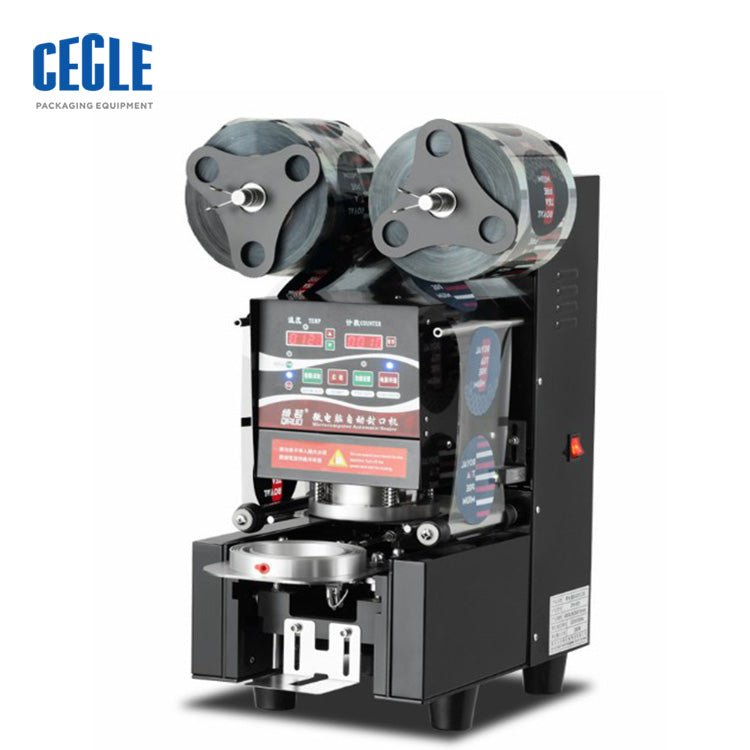

MS-220 Black Plastic Automatic Bubble Tea Cup Sealing Machine overview

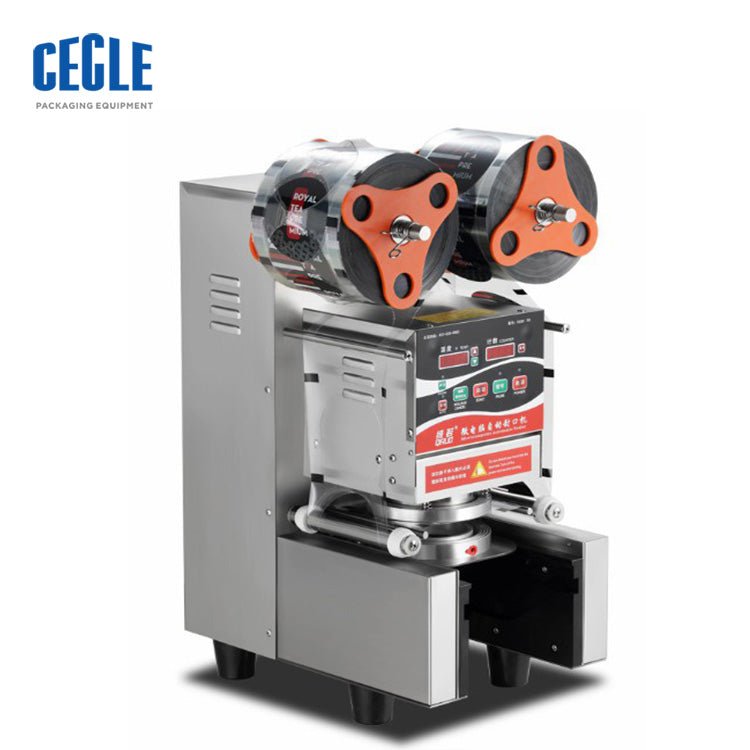

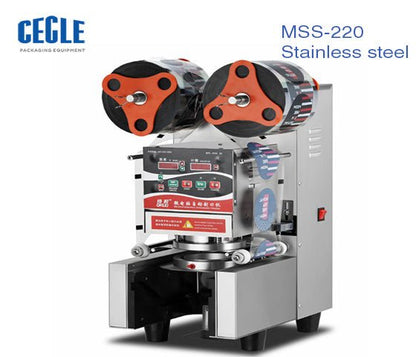

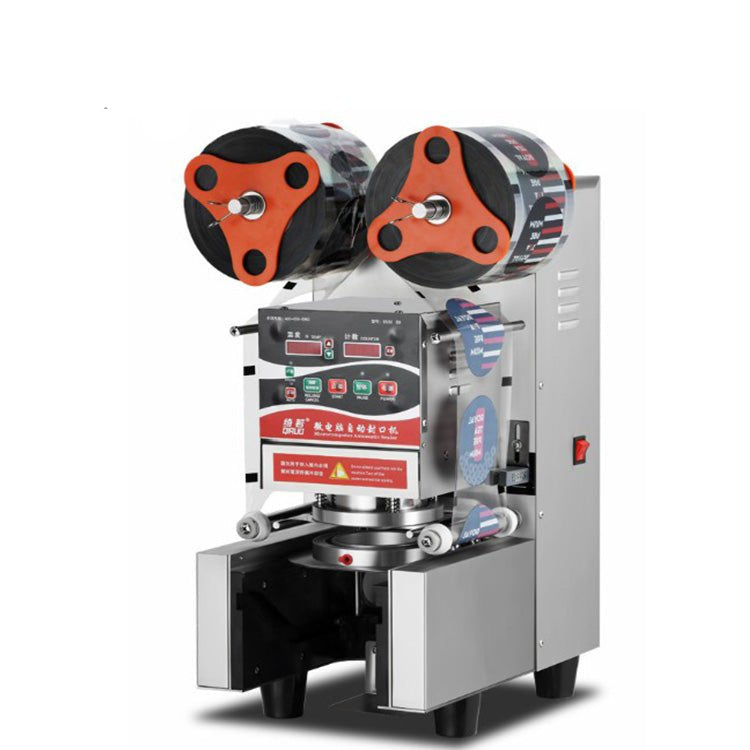

MSS-220 Stainless Steel Commercial Beverage Cup Sealing Machine

1. Product Overview & Technical Specifications

Parameter	Specification
Product Name	Bubble Tea Cup Sealing Machine / Beverage Sealing Machine
Model Options	MS-220: Black Plastic Version MSS-220: Stainless Steel Version
Suitable Cup Size	Diameter: 90mm / 95mm (3.54" / 3.74") Height: ≤200 mm (7.87")
Sealing Speed	400 - 600 cups / hour
Power & Voltage	360 W
Machine Weight	30 KG (66.13 lb)
Machine Dimensions	72cm × 45cm × 55cm (28.34" × 17.71" × 21.65")

2. Key Advantages

Electronic Eye Sensing System: Automatically tracks registration marks on the sealing film to ensure every printed pattern is perfectly centered and uniform.
Two Material Options: Choose MS-220 for a stylish, lightweight black plastic body, or MSS-220 for a robust, corrosion-resistant stainless steel body.
Customizable Sizing: Standard models fit 90/95mm PP cups; custom sizing is available for non-standard diameters or paper cups.
High Output Efficiency: Speeds of 400 to 600 cups per hour easily handle rush hours in bubble tea shops and cafes.

3. Operation Flow

Preheat: Connect power, turn on the machine, and wait for the heating plate to reach the target sealing temperature.
Load Cup: Place the filled PP cup into the cup holder tray.
Push & Seal: Push the tray inside. The electronic eye sensor reads the film pattern, and the machine automatically seals and cuts the film.
Retrieve: Pull out the tray and take out the securely sealed beverage.

4. Frequently Asked Questions (FAQs)

Q1: What is the difference between MS-220 and MSS-220?
A1: The outer casing material is the main difference. MS-220 features a stylish black plastic shell, while MSS-220 features a heavy-duty stainless steel shell for superior rust resistance. Internal components and speeds are identical.

Q2: What is the maximum cup height and diameter supported?
A2: The standard model supports cups up to 200mm in height and 90mm/95mm diameters. Custom configurations are available for special cup sizes. Explore more guidelines in our MS-220/MSS-220 documentation center.

Q3: Will the sealing pattern align incorrectly or look crooked?
A3: No. The built-in electronic eye sensor automatically tracks registration marks to ensure a perfectly centered seal every time.
