Product Overview

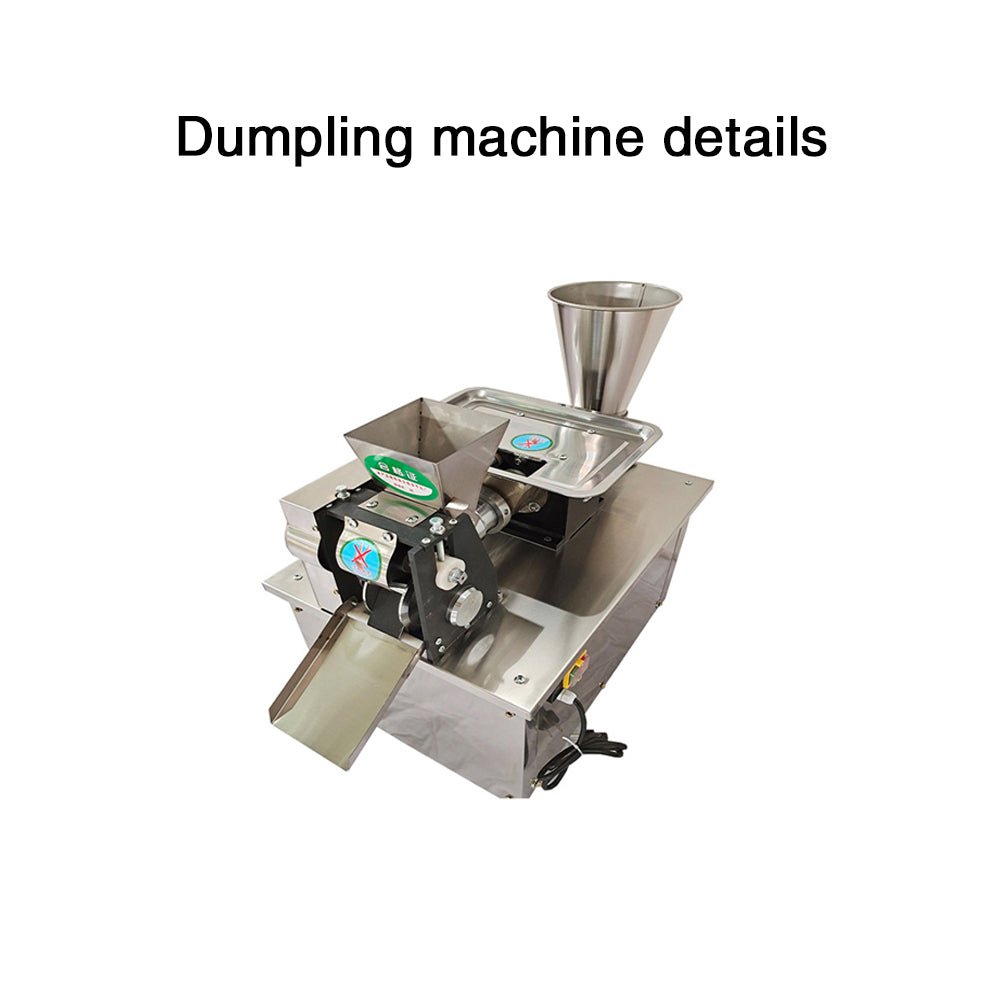

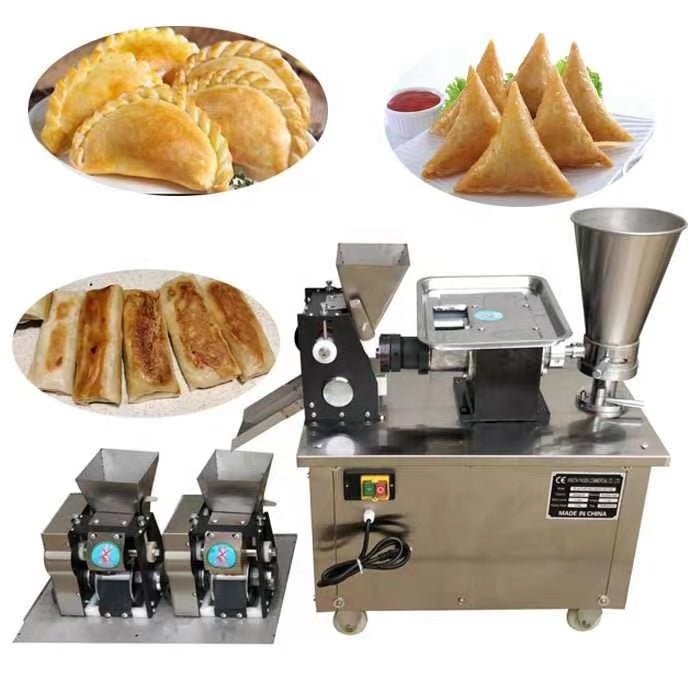

The Bottom Line: The DM Series Automatic Dumpling Machine is a high-performance, industrial-grade food processing system designed for large-scale food factories, central kitchens, and chain restaurants. Constructed from food-grade 304 stainless steel, it integrates continuous dough pressing, precise filling injection, and forming into a single seamless process. With a capacity of up to 6,000 pieces per hour (DM-120), it acts as the ultimate automation solution for businesses seeking high-volume standardization.
Core Advantages
- Revolutionary Labor Replacement: Realizes full-chain automation from dough input to automatic filling and forming. Requires only 1 operator for batch loading, completely eliminating the reliance on manual wrappers.
- High Capacity & Efficiency: Ranging from 4,800 (DM-80) to 6,000 pcs/hour (DM-120), perfectly satisfying massive cold-chain and wholesale demands.
- Imitation Hand-Wrapping Technology: Employs high-precision wrapping technology that simulates handmade wrapping. Ensures plump, half-moon shapes with strong, leak-proof seals that survive high-temperature boiling and quick-freezing.
- Sanitary & Waterproof Design: Housed entirely in Food-Grade 304 Stainless Steel. Internal electromechanical wires are organized in heavy-duty corrugated hoses for exceptional waterproof protection in high-humidity environments.
| Feature | Semi-Automatic Dumpling Machine | DM Series Automatic Machine |
|---|---|---|
| Capacity | 2,000 - 4,000 pcs/hr | Up to 6,000 pcs/hr (DM-120) |
| Labor Needed | 2-3 operators | 1 operator (batch loading) |
| Consistency | Medium (affected by manual operation) | Extremely High (precise servo-driven) |
Technical Specifications
-
Dumpling Weight Range: 10-35g.
Important Specification Note: Individual machine models possess non-interchangeable molds and fixed, non-adjustable dimensions. Fillings cannot be dual-use and sizes cannot be adjusted or altered on a single machine model. - Power Supply: 110V / 220V (Customizable for international standards)
- Filling Compatibility: Compatible with meat, vegetarian, and mixed granular fillings. (Highly unique flow properties may require a dedicated filling pump).
-
Available Models:
- DM-80: 4,800 pcs/h | 0.9kw | 66*44*77cm | 110kg
- DM-100: 5,500 pcs/h | 1.2kw | 100*55*114cm | 130kg
- DM-120: 6,000 pcs/h | 1.2kw | 100*55*114cm | 130kg
Frequently Asked Questions
Q: The dough recipe (flour + water) varies greatly among different customers. Can the machine adapt?
A: Absolutely. The dough pressing host has excellent compatibility with different rheological properties of dough. By fine-tuning the roller gap or feeding speed, it can adapt to your exclusive recipe.
Q: Can meat filling and vegetarian filling be switched at any time?
A: The filling supply system is compatible with most meat and vegetarian fillings. However, before switching fillings with different flavors, the hopper and pumping pipes need to be thoroughly cleaned. For quick replacements, we recommend purchasing spare filling supply components.
Q: Are there any special instructions regarding the weight and specifications of the dumplings?

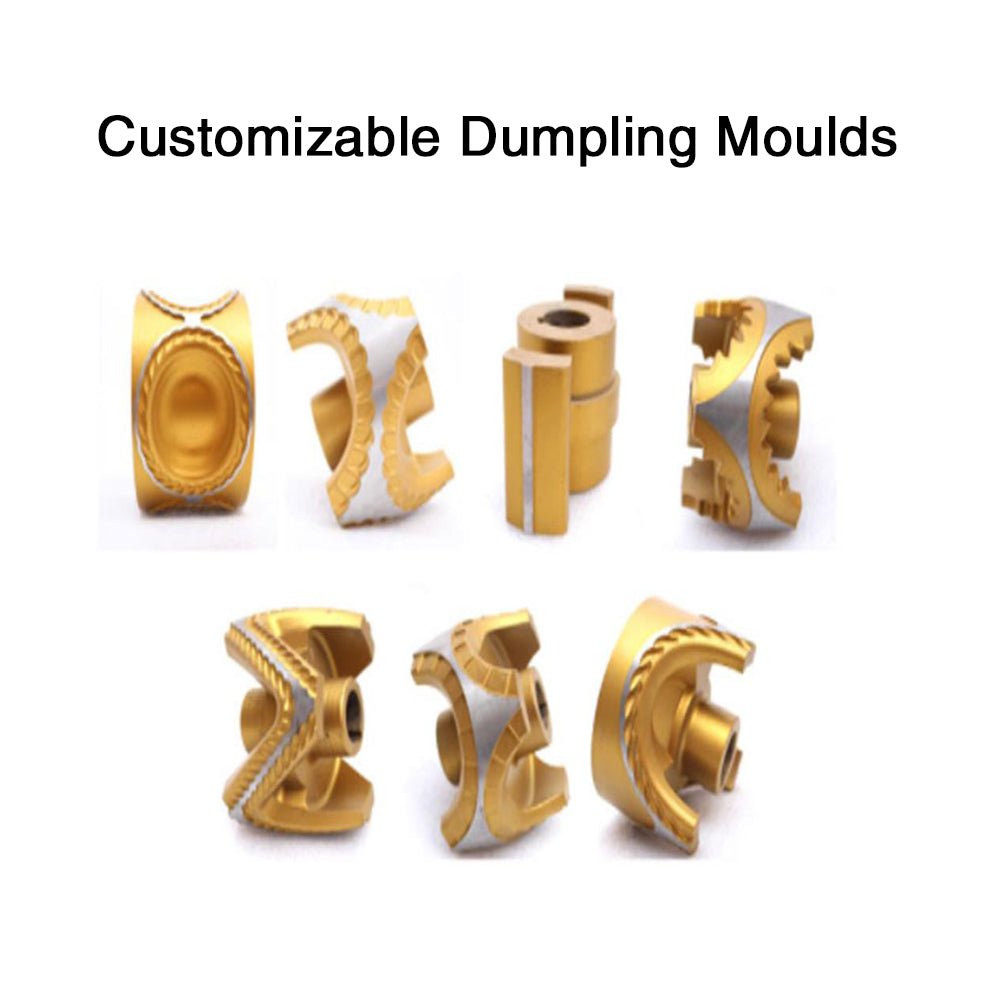

A: Yes. Individual machine models feature non-interchangeable molds with fixed, non-adjustable dimensions. This means sizes cannot be adjusted or altered on a single machine model, and fillings cannot be dual-use. If you need dimensions outside your selected mold, a completely new and customized mold setup is required.
Operation & Technical Support
Looking for detailed installation steps, dough recipes, Standard Operating Procedures (SOP), or maintenance guides? We provide a comprehensive knowledge base for our industrial clients.

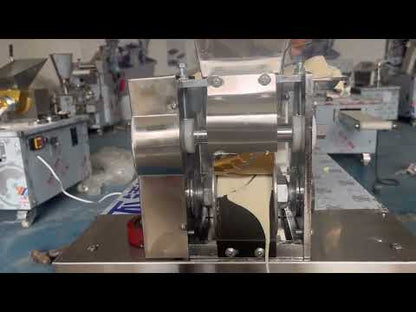

See It In Action
If you would like to visually understand the continuous dough sheeting, forming path, and efficient operation of this production line, please check out our official demonstrations:
📽️ Operation Demonstration Video: Watch the DM Series Demonstration on our Official Store
