CECLE Machine

DLE-001B Mini Laser Engraving Machine for Jewelry & Leather Wallets (Bluetooth Control)

DLE-001B Mini Laser Engraving Machine for Jewelry & Leather Wallets (Bluetooth Control)

Regular price $349.00 USD
Regular price Sale price $349.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Power(W)
Model Number
Quantity
Quick Answer: The CECLE DLE-001B Mini Desktop Portable CNC Laser Engraving Machine is a high-precision, portable desktop laser marking unit engineered for makers, retail personalization shops, and craft studios.

CECLE DLE-001B vs. Traditional / Generic Alternative

Where the CECLE DLE-001B stands out against generic mini laser engraving machines — measured on the dimensions buyers care about most.

Footprint & Counter Presence
CECLE DLE-001B15 × 15 × 14 cm and 6 kg sit on a retail counter, so personalisation happens in front of the customer instead of in a back room.
Bench-Bolted Framefixed installation, so the customer waits while the job travels to and from the workshop.
Bluetooth & Mobile Control
CECLE DLE-001BThe DLE-001B pairs over Bluetooth with Android and iOS as well as Windows, so a phone can drive the job on the spot.
PC-Only USB Linktethered to a Windows machine, which rules out counter-side and pop-up work.
Mark Quality
CECLE DLE-001BMicro-text, dense QR codes and photo grayscale render with sharp edge definition at 0.01 mm positioning accuracy.
Surface-Only Markingcontrast fades after handling, and there is no way to set a repeatable depth.
Open Elevated Base
CECLE DLE-001BThe bottomless elevated frame fits over objects taller than its own body, so bulky items are marked in place.
Enclosed Box Frameinternal height sets the limit, so anything taller cannot be marked at all.

Technical Specifications

Parameter Standard Edition (DLE-001) Smart Bluetooth Edition (DLE-001B)
Model Number DLE-001 DLE-001B
English Product Name Mini Desktop Portable CNC Laser Engraving Machine Mini Desktop Portable CNC Laser Engraving Machine
Laser Head Power 1000mW / 3000mW (Optional) 1000mW / 3000mW (Optional)
Engraving Mode Black and White, Discrete, Grayscale Black and White, Discrete, Grayscale
Operating Language Chinese, English, Japanese Chinese, English, Japanese
Bluetooth Operation Support No Yes
Supported Operating Systems Windows 7 / 8 / 10 Windows 7 / 8 / 10, Android, iOS
Maximum Depth of Line Up to 2 mm Up to 2 mm
Positioning Accuracy 0.01 mm 0.01 mm
Machine Dimensions 150 mm × 150 mm × 140 mm (15 × 15 × 14 cm) 150 mm × 150 mm × 140 mm (15 × 15 × 14 cm)
Machine Net Weight 6.0 kg 6.0 kg
Official Baseline Price From $349.00 USD (Taxes included; shipping calculated at checkout) From $349.00 USD (Taxes included; shipping calculated at checkout)

Pre-installation requirements: Laser Head Power: 1000mW / 3000mW (Optional); Machine Dimensions: 150 mm × 150 mm × 140 mm (15 × 15 × 14 cm); Machine Net Weight: 6.0 kg (13.2 lb).

Compatible Applications & Materials

High-Resolution Product Image : View Official Product Image Official Store Purchase Link : 🛒 Buy Mini Desktop Portable CNC Laser Engraving Machine on Cecle.net

Standard Operating Procedure (SOP)

  1. Machine Placement &amp
  2. Focal Alignment Position the machine securely on a workbench or directly atop an oversized workpiece

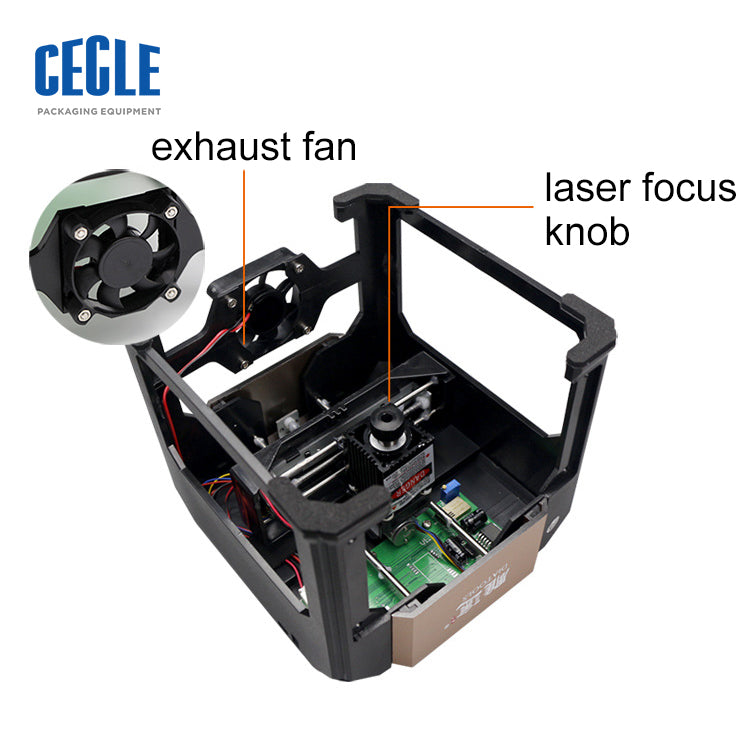

  3. adjust the focal distance ring until the laser spot contracts to its sharpest point on the target surface
  4. Interface Connection &amp
  5. Software Launch PC Operation : Connect via USB to a PC running Windows 7, 8, or 10, and launch the host software (selectable in Chinese, English, or Japanese)
  6. Mobile Operation (DLE-001B only) : Enable mobile Bluetooth and pair the device via the dedicated iOS/Android control app
  7. Artwork Import &amp

Engineering FAQ

What is the core difference between the DLE-001 and DLE-001B models?
A: The primary differences are wireless capability and operating system support. The DLE-001 is a wired model compatible with Windows 7/8/10 via USB. The DLE-001B includes an integrated Bluetooth module that enables wireless operation from Android and iOS mobile devices in addition to Windows PCs.

Can this portable laser engraver engrave metal surfaces?
A: It engraves anodized aluminum alloys, coated metallic business cards, painted metal casings, and lacquered surfaces. Because it utilizes a compact diode laser, it is not engineered for bare, untreated reflective metals such as bare stainless steel, raw brass, or titanium without laser marking thermal compounds.

Is eye protection required during operation, and how is the laser focused?
A: Yes. Operators and nearby personnel must wear protective laser safety glasses matching the beam wavelength whenever the unit is powered on. The module features an adjustable manual focus ring that tightens the beam spot to its smallest point for optimal cutting edge and line definition.

What routine maintenance keeps the DLE-001B stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the DLE-001B handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.

Full Documentation & Drawings

Complete technical manual, parameters and engineering drawings: CECLE Docs — DLE-001B
