MAP Tray Sealer, modified atmosphere packaging machine , vacuum tray sealing machine with gas flushing
Maximize product shelf life and retail appeal with our MAP Series Automatic Modified Atmosphere Packaging Machine. Engineered for fresh food processing, this system is the gold standard for maintaining freshness in meat, seafood, prepared meals, and produce.
For advanced electrical schematics, maintenance manuals, and detailed operating guides, please visit our Official Technical Documentation Portal.
I. Product Overview
The MAP-4634 is designed for small to medium-sized food processing plants and catering centers. It integrates vacuum extraction, precise gas flushing, and heat sealing to inhibit bacterial growth and preserve food texture.
II. Key Advantages
- Industrial Stability: Equipped with XINJE touch screen and PLC control for high-intensity, durable operation.
- Extended Shelf Life: Precise gas replacement technology effectively prevents oxidation, preserving color, taste, and texture.
- Compact & Hygienic: Built with stainless steel/carbon steel, fitting easily into compact production environments.

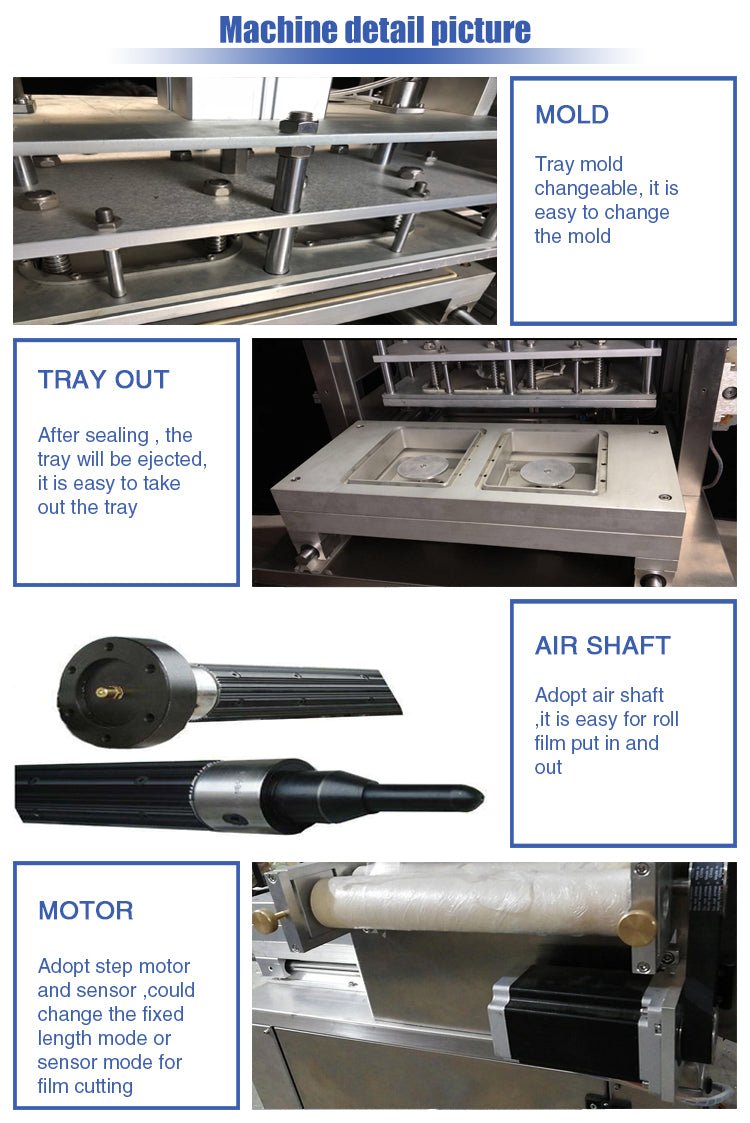

- Precision Cutting: Automatic photoelectric sensor system ensures perfectly aligned, clean film edges.
III. Technical Specifications
| Item | Details |
|---|---|
| Applicable Tray Size | 64x44 cm (Customizable) |
| Packaging Speed | 400 - 600 units/hour |
| Total Power | 1.5 kW |

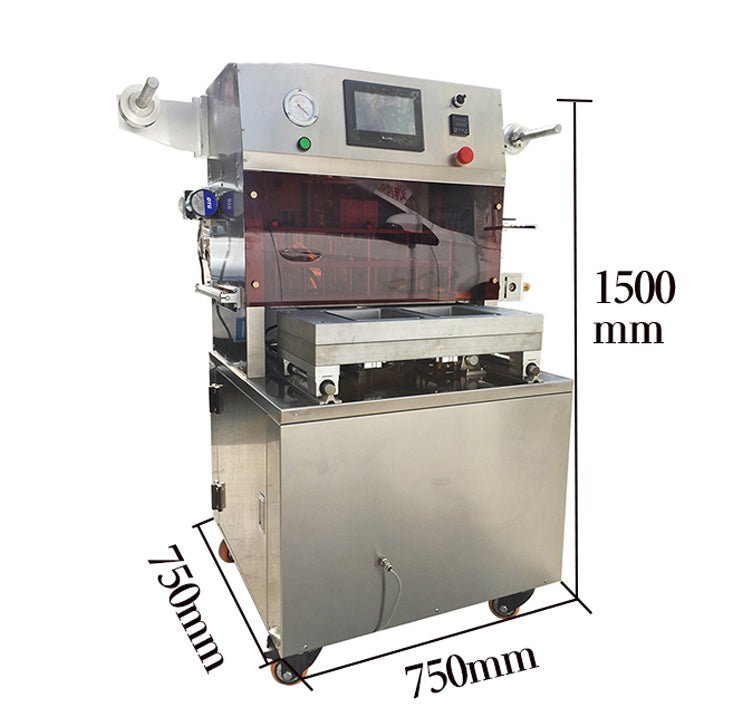

| Dimensions (LxWxH) | 750 x 750 x 1500 mm |
| Weight | 300 kg |
IV. Mold Configuration & Consumables

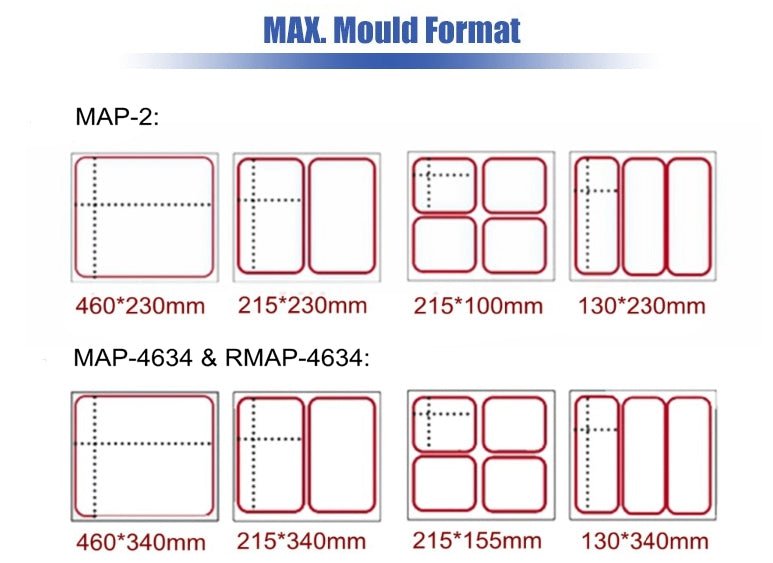

The total mold dimension is 640x440 mm, with a standard depth of 50mm (customizable).
Consumable Recommendations
- Film Specs: Supports max 440mm width; recommended 80-micron thickness.
- Material Matching: We recommend compatible PP sealing film for PP trays, and EVOH high-barrier film for PET/CPET trays to achieve superior oxygen barrier performance.
V. Workflow
- Tray Placement: Operator loads trays into the mold.
- Automatic Feeding: Machine pushes trays into the chamber.
- Vacuum & Gas Flushing: Precise removal of air and filling with preservation gas.
- Sealing & Cutting: Synchronized heat sealing and edge trimming.
- Automatic Discharge: Finished products are pushed out for manual unloading.
VI. FAQ
Q: Does it support different tray sizes?
A: Yes, our MAP series supports mold changes within the maximum dimensions, offering high flexibility for multi-product lines.
Q: What is the vacuum replacement rate?
A: Our industry-leading technology ensures residual oxygen levels drop below 1%.
Need more technical details? Check the full documentation or contact our sales team for a customized solution.
