Heavy Duty Column Screen Printing Machine with Micro-Registration - YH Series 4/6/8 Color Press
Heavy Duty Column Screen Printing Machine with Micro-Registration - YH Series 4/6/8 Color Press
Couldn't load pickup availability
At a Glance (TL;DR):
- Micro-Registration: Features micro-registration for the screen (front/back, left/right adjustments), making alignment precise and convenient during overprinting.
- Industrial Aluminum Alloy Platens: Platens are made of aluminum alloy, significantly increasing load-bearing strength and durability.
- Commercial High-Capacity Output: Heavy-duty rotary column architecture available in 4-Color/4-Station, 6-Color/6-Station, and 8-Color/8-Station setups.
- Zero Power Required: Heavy-gauge mechanical construction providing maximum stability without electricity or air compressor dependency.
Key Benefits & Core Features
Engineered for high-volume textile customization workshops and professional screen printing studios, the YH Series Heavy-Duty Column Screen Printing Machine is built for speed and continuous daily production.
- Micro-Adjustment : Fine-tune screen frame alignment in seconds, saving up to 70% of prep time during multi-color artwork setups.
- Pro-Grade Aluminum Platens: 50 × 60 cm aluminum platens deliver perfect surface flatness and long-lasting performance.
Technical Specifications
| Model | Configuration | Platen Size | Machine Diameter | Weight |
|---|---|---|---|---|

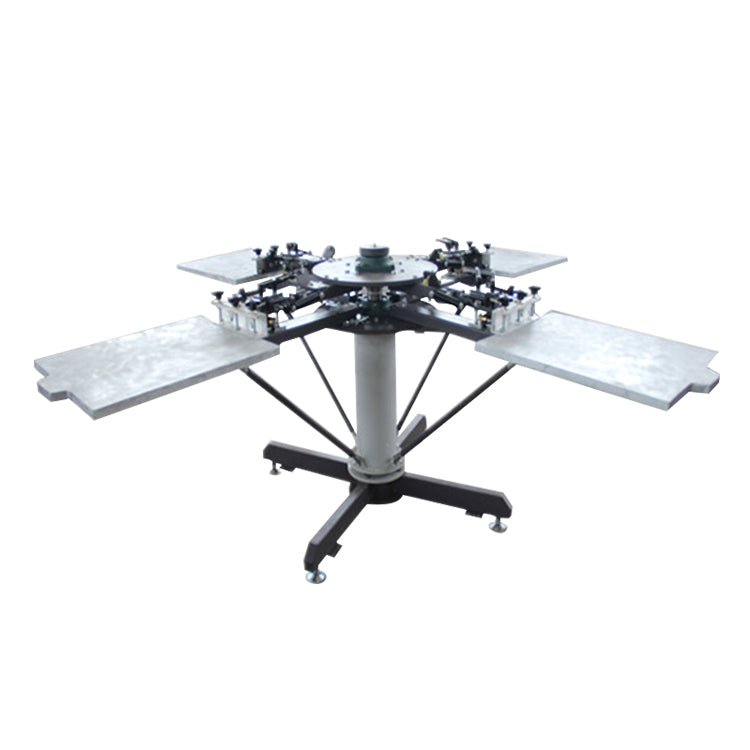

| YH-440 | 4 Color / 4 Station | 50 × 60 cm (19.7 × 23.6 in) | 2.42 m (95.3 in) | 272 kg (600 lbs) |

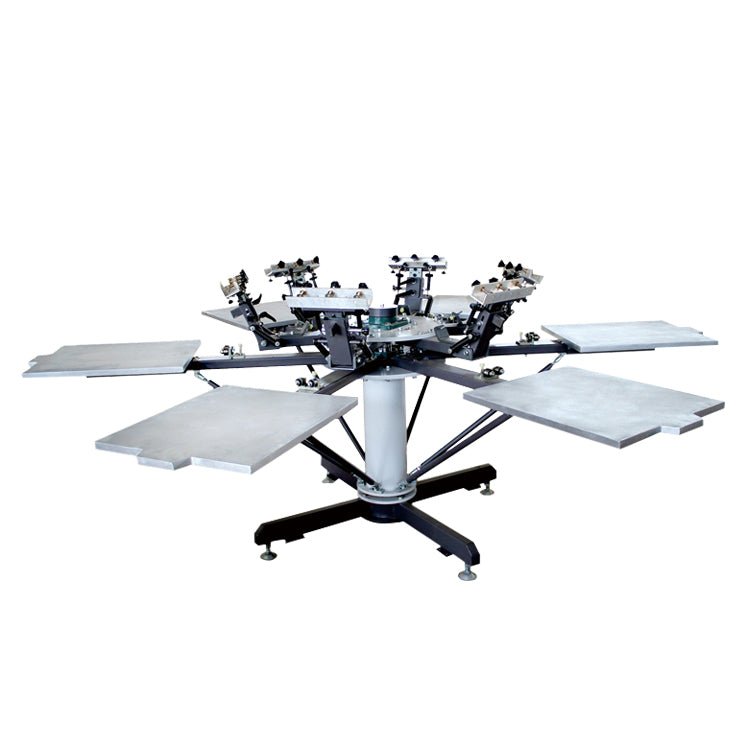

| YH-660 | 6 Color / 6 Station | 50 × 60 cm (19.7 × 23.6 in) | 2.60 m (102.4 in) | 336 kg (741 lbs) |

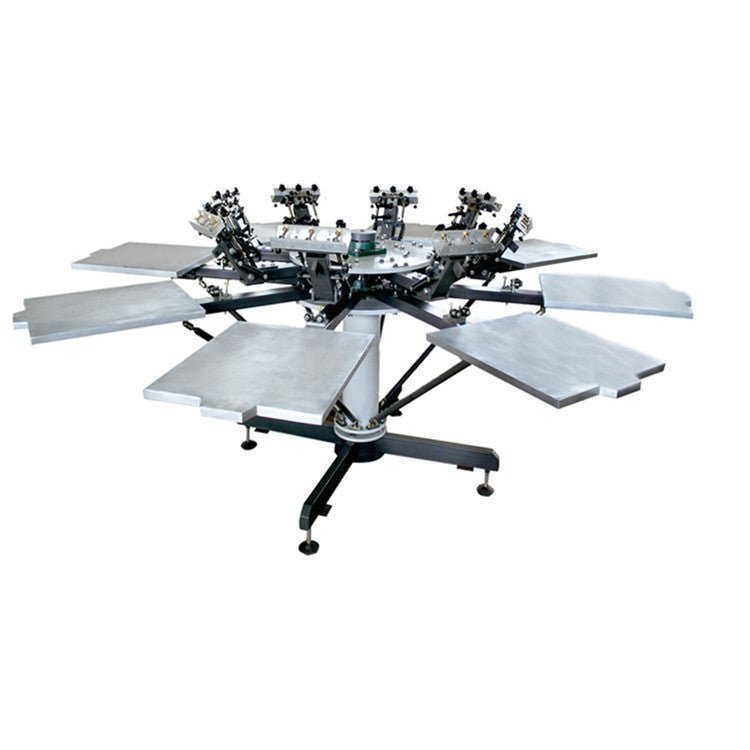

| YH-880 | 8 Color / 8 Station | 50 × 60 cm (19.7 × 23.6 in) | 3.00 m (118.1 in) | 465 kg (1025 lbs) |
User Manual & Official Documentation
📖 View Full Technical Documentation & User Manual:
For detailed micro-registration alignment steps, maintenance guidelines, and assembly instructions, please visit our official manual hub: YH Series Column Screen Printing Machine Technical Guide.
Frequently Asked Questions (FAQ)
Why should I choose the YH Series over the NS Series for apparel printing?
TThe YH Series features micro-registration function and aluminum alloy platens. If your print shop handles high-volume orders or complex multi-color designs requiring exact overprint alignment, the YH series drastically reduces setup time and enhances registration accuracy.
Does the YH Series require electric power or pneumatic lines?
No. It operates 100% mechanically, eliminating electricity usage and compressed air dependencies while maintaining commercial-grade durability.
What warranty terms apply to this machine?
All YH machines carry a 1-year warranty. Free replacement parts are provided for non-artificial failures during normal operational use (shipping cost from China paid by buyer).
