CF-4/6/8 High-Speed Cup Filling Sealing Machine for Coffee Capsules (Automatic)

Name: CF-4/6/8
Brand: CECLE
Price: 13000.0 USD
Availability: InStock

$13,000.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model CF-4 CF-6 CF-8

Shipping method By Sea To Closest Sea Port(20-30 Days)

Shipping From China

Quick Answer: The CECLE CF-4/6/8 fully Automatic Linear Cup / Coffee Capsule Filling & Sealing Machine is an advanced industrial linear packaging system engineered specifically for large-scale food processing enterprises.

CECLE CF-4/6/8 vs. Traditional / Generic Alternative

Where the CECLE CF-4/6/8 stands out against manual or generic cup filling sealing machines — measured on the dimensions buyers care about most.

Output Speed & Throughput

CECLE CF-4/6/8Ultra-High Capacity Configuration : Utilizes linear synchronized filling technology, standardly offering 4/6/8 lane options and supporting custom 10/12/14/16 lanes, significantly shortening batch production cycles

Slow Manual CyclingLoading and cycling depend on operator pace, limiting real throughput and raising labor cost.

Sealing / Transfer Quality

CECLE CF-4/6/8Highly Customized Molds : All station molds are custom-tailored to the sample cup dimensions provided by the client, ensuring perfect filling and sealing performance even at high speeds

Uncontrolled Contact ConditionsEdges wrinkle, seals weaken or transfer is incomplete because pressure/heat are not synchronized.

Pressure Consistency

CECLE CF-4/6/8The CECLE Cup Filling Sealing Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Operational Mechanism & Drive

CECLE CF-4/6/8Its drive removes operator-dependent variation, so output stays consistent.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Parameter Name	CF-4 (4-Lane)	CF-6 (6-Lane)	CF-8 (8-Lane)
Packaging Speed	40–50 cups/min	60–75 cups/min	80–100 cups/min
Filling Volume Range	5–100ml (customizable)	5–100ml (customizable)	5–100ml (customizable)
Sealing Method	Pre-cut lid or film reel (optional)	Pre-cut lid or film reel (optional)	Pre-cut lid or film reel (optional)
Container Compatibility	Molds customized to sample cups	Molds customized to sample cups	Molds customized to sample cups
Working Air Pressure	0.6–0.8 MPa	0.6–0.8 MPa	0.6–0.8 MPa
Rated Power	4–6 kW	6–8 kW	8–10 kW
Overall Dimensions	Customized by lane count & config	Customized by lane count & config	Customized by lane count & config

Compatible Applications & Materials

industrial products — primary target products for this Cup Filling Sealing Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

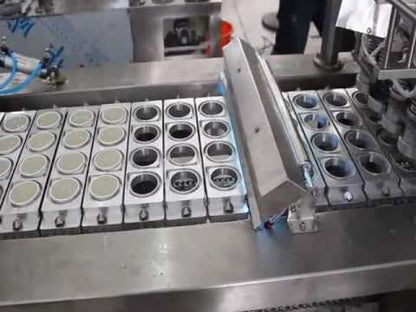

Automatic Cup Dropping : Cups are stacked and loaded into the machine, which automatically places them into custom mold stations
(Optional) Sterilization &amp
Nitrogen Flushing : UV disinfection inside the station, with nitrogen injected before and after filling to displace air
Synchronized Precise Filling : Multi-head filling pumps simultaneously inject materials, achieving high-speed and high-precision operation
Film/Lid Placement &amp
Coding : Automatic film application (pre-cut/reel) or capping
if film reels are used, online coding is completed simultaneously

Engineering FAQ

Why is a linear machine more suitable for me than a rotary machine?
A: Linear equipment offers greater advantages in capacity expansion. If you have large-batch volumes, single-variety runs, and a pursuit of ultimate capacity, linear is the best choice.

How do you ensure accuracy in multi-lane filling?
A: Our equipment adopts a high-precision servo control system and multi-channel synchronous drive to ensure completely uniform filling volume across every lane with minimal deviation.

What routine maintenance keeps the CF-4/6/8 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the CF-4/6/8 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
