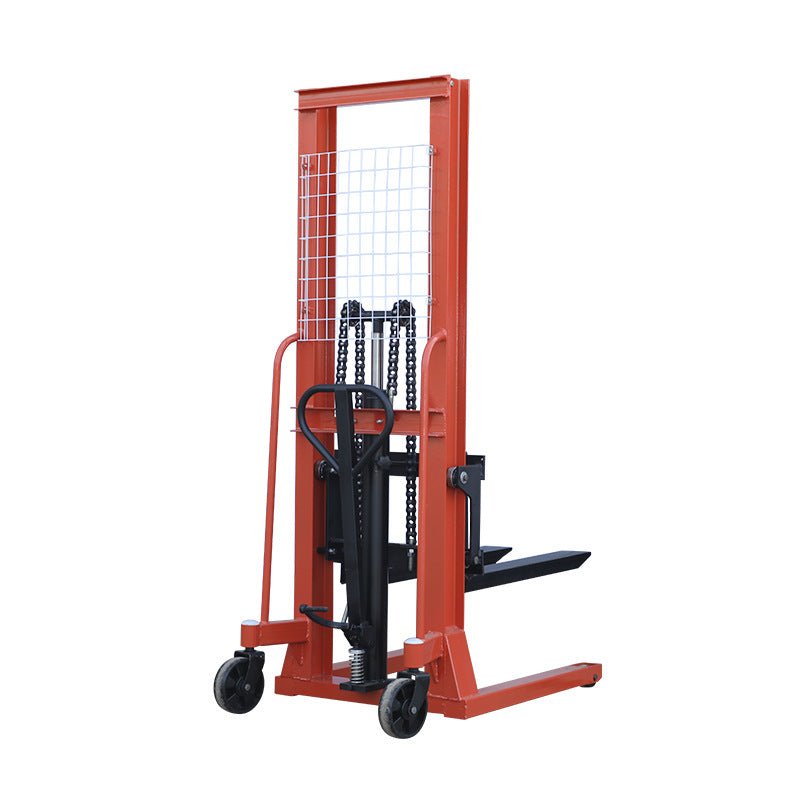

Manual Hydraulic Stacker: Comprehensive Overview
The Manual Hydraulic Stacker is an affordable, structurally simple, efficient, and eco-friendly warehousing logistics material handling equipment designed specifically for short-distance material transport, slot stacking, and loading/unloading operations within warehouses. Requiring no electricity or fuel, it relies entirely on manual hydraulic operation, resulting in extremely low procurement and usage costs. Featuring a compact body design, flexible turning radius, and diverse load capacity options (1T, 1.5T, 2T, 3T), it exhibits exceptional adaptability and safety in narrow aisles, between racking systems, and in environment-sensitive locations. For deep technical specifications, installation blueprints, and troubleshooting guides, please reference our official Manual Hydraulic Stacker Technical Documentation.
I. Product Overview & Cross-Reference
- Product Category: Warehousing Logistics Equipment / Manual Hydraulic Stacker
- Core Functions: Combines a manual hydraulic pump station with a high-strength steel mast, achieving safe lifting, short-distance transport, and stacking of goods inside warehouses through hand-pumped or foot-pedal hydraulic lifting.
- Engineering Documentation: Access structural drawings and parameter configurations directly on the Stacker Technical Knowledge Base.
II. Core Advantages
- Economical and Cost-Effective: Very low initial procurement cost compared to electric stackers; zero operating costs with no electricity or fuel requirements.
- Simple Structure & Maintenance: Free of complex electrical circuits and motors; minimal failure rates and easily serviceable hydraulic seals.
- Narrow Aisle Maneuverability: Small turning radius optimized for tight rack configurations and confined warehouse floors.
- Enhanced Safety: Controlled descent speed via manual pressure-relief valves and integrated safety protective mesh.
- Eco-Friendly & Silent: Zero emissions and silent operation suitable for pharmaceutical and food storage environments.

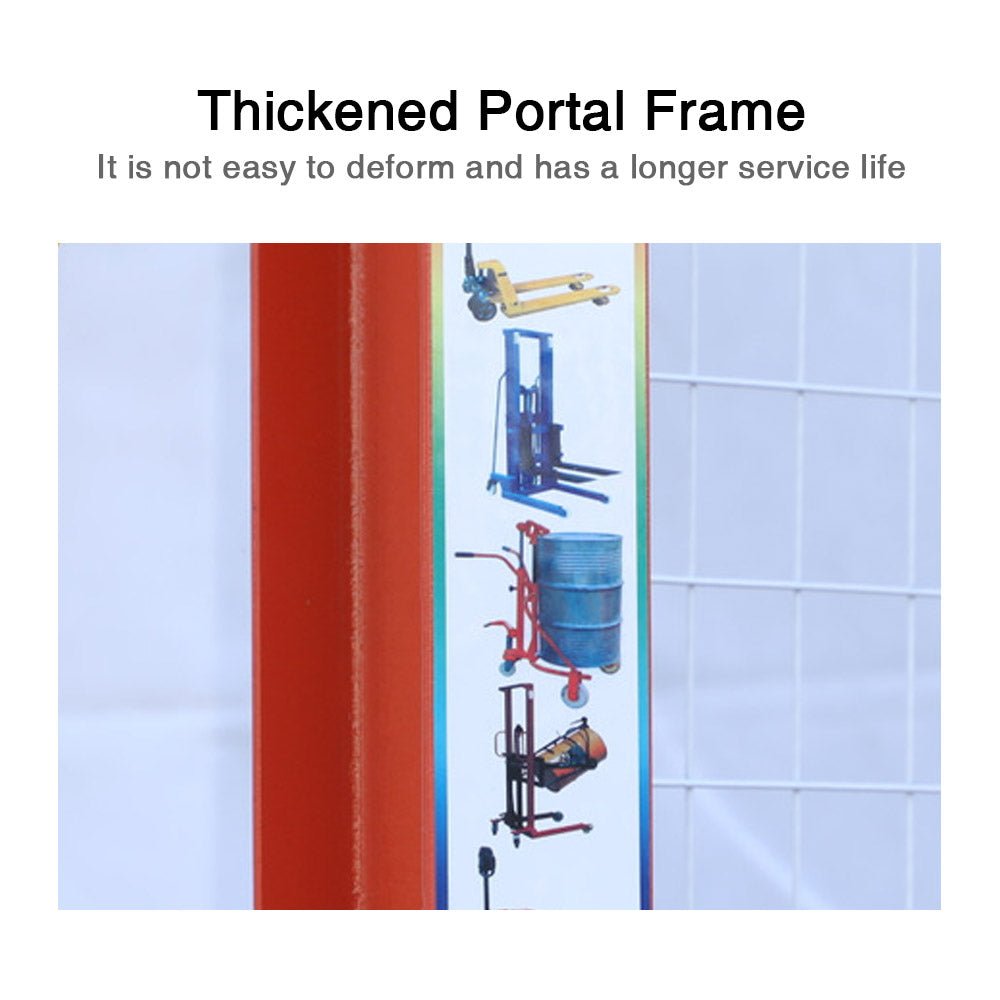

- Versatile Load Options: Robust specifications ranging from 1T to 3T capacity utilizing high-strength C-channel and flange beam masts.
III. Standard Operation Procedure
Review step-by-step operating guidelines below or consult the detailed guides on our documentation portal:

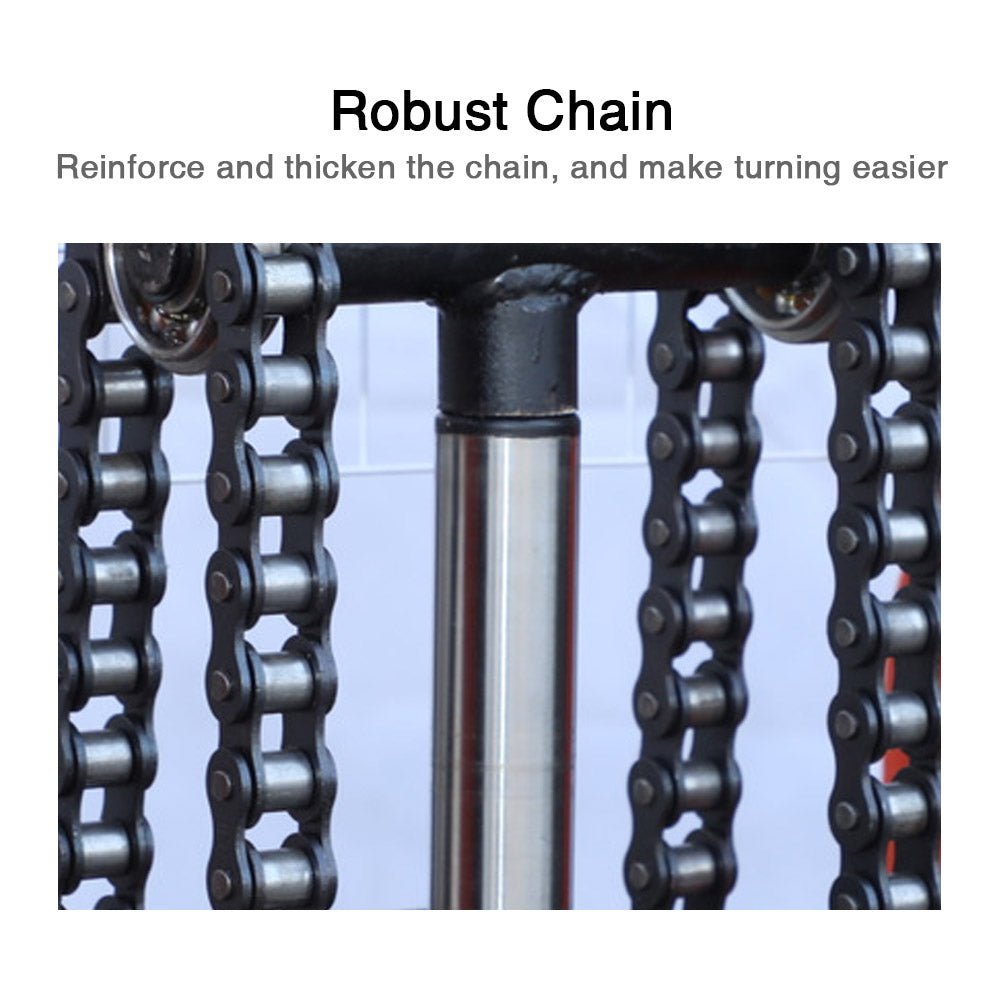

- Inspection: Check hydraulic fluid levels, chains, and wheels for obstruction prior to operation.

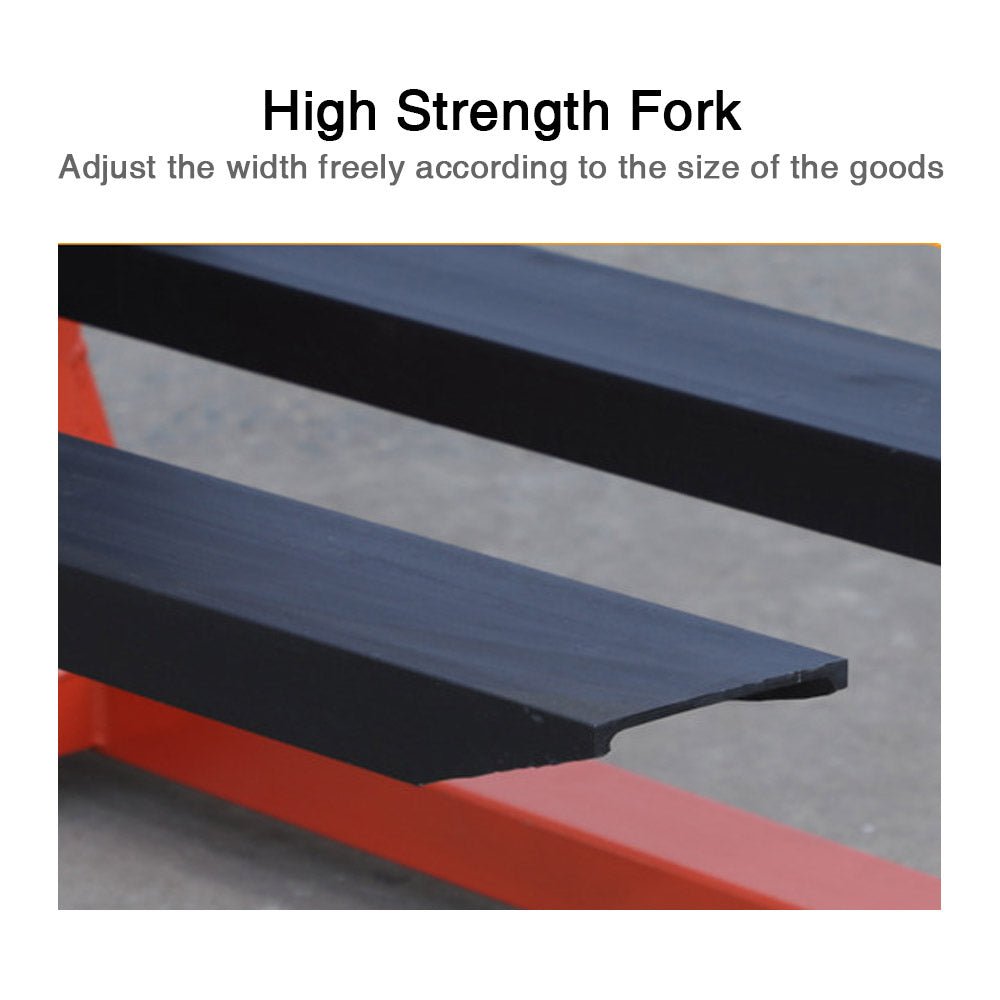

- Lifting: Insert forks completely under the pallet and pump via handle or foot pedal to desired elevation.

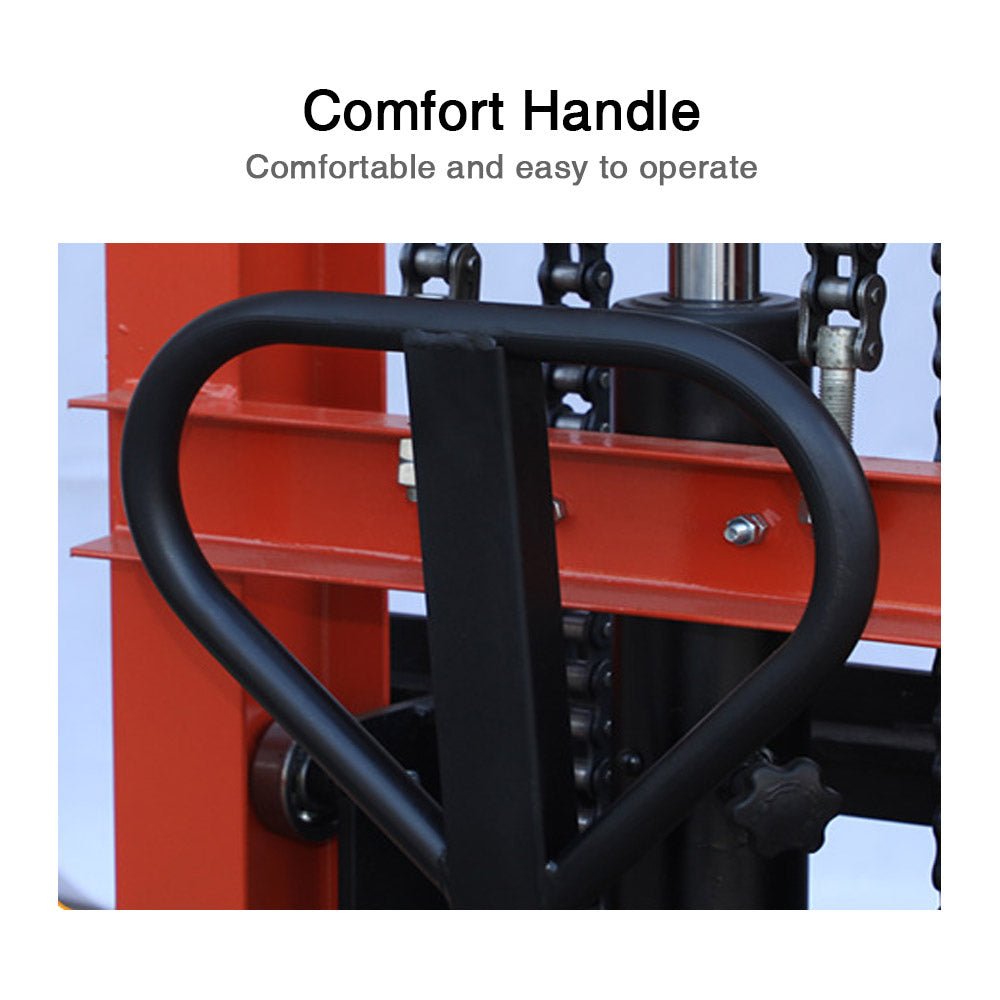

- Transport: Guide the equipment smoothly using the pushing handle through designated clean corridors.
- Stacking: Align precisely with slot racks and gently turn the manual pressure-relief valve for controlled descent.
IV. Technical Parameters
| Parameter Item | CTY-1T (1 Ton) | CTY-1.5T (1.5 Ton) | CTY-2T (2 Ton) | CTY-3T (3 Ton) |
|---|---|---|---|---|
| Mast Structure | 10# Steel Trough | 12# Steel Trough | 12# Flange Beam | 14# Flange Beam |
| Rated Load Capacity | 2200 lbs (1000 kg) | 3300 lbs (1500 kg) | 4400 lbs (2000 kg) | 6600 lbs (3000 kg) |
| Lift Height | 63" (1600 mm) standard (Custom heights available) | |||
| Minimum Turning Radius | 63" (1600 mm) | 63" (1600 mm) | 63" (1600 mm) | 67" (1700 mm) |
*For custom engineering blueprints, visit our technical documentation hub.
V. Frequently Asked Questions
Q: Does the manual hydraulic stacker require charging or engine oil refilling?
A: No charging is required because it runs entirely on pure human-powered hydraulics. Routine maintenance only requires regular checks of the hydraulic oil level.
Q: Can the lowering speed be controlled?
A: Yes, via a manual pressure-relief valve managed directly through the operating handle.
Q: Where can I find complete technical parameters and exploded parts diagrams?
A: You can explore the complete parts breakdowns and maintenance logs directly on our Technical Documentation Site.
VI. Commercial Terms & Support
- Shipping: Ocean freight to door (DDP - Delivered Duty Paid) including tariffs and customs clearances.
- Customization: Non-standard lift heights and fork dimensions readily accommodated upon request.
- Documentation Hub: Read the Full Manual Stackers Wiki & Engineering Specs
