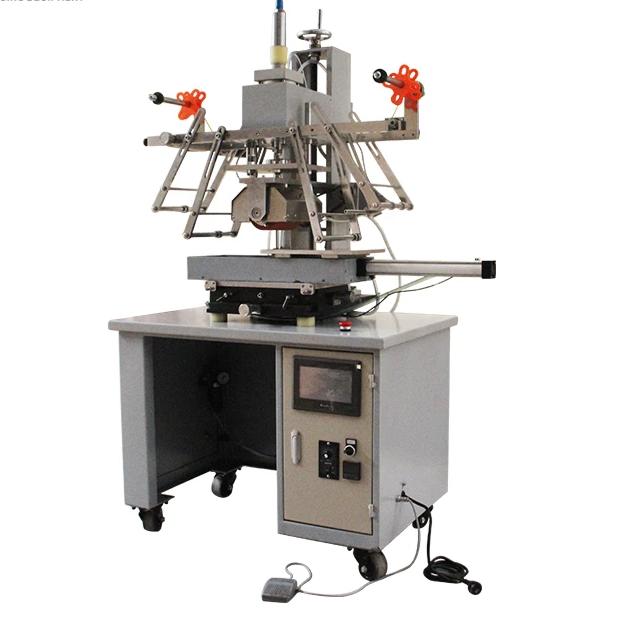

HT-S-150 Heat Transfer Machine for Tubes (Pneumatic Drive)

Name: HT-S-150
Brand: CECLE
Price: 4700.0 USD
Availability: InStock

$4,700.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Voltage 220V/110V

Shipping method By sea to door (25-40 days)

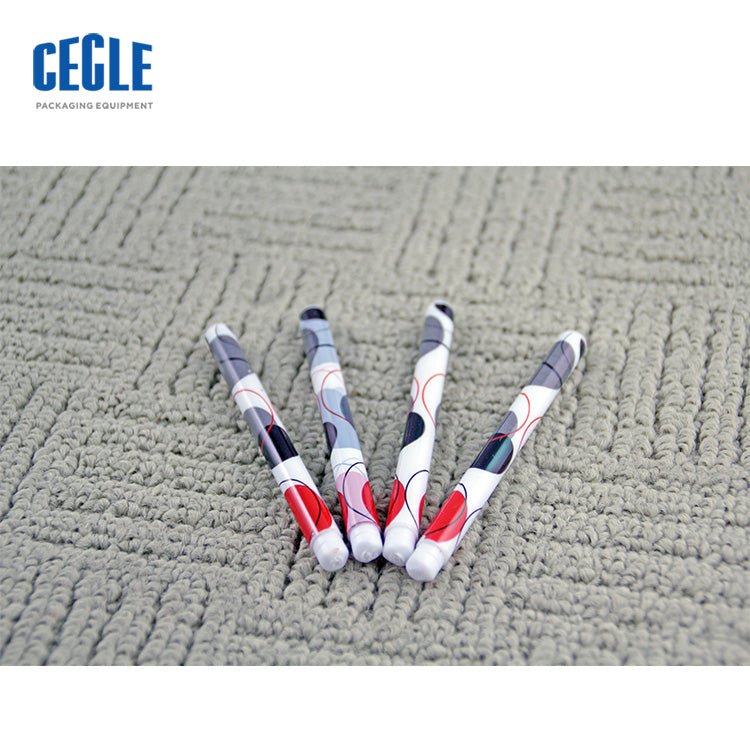

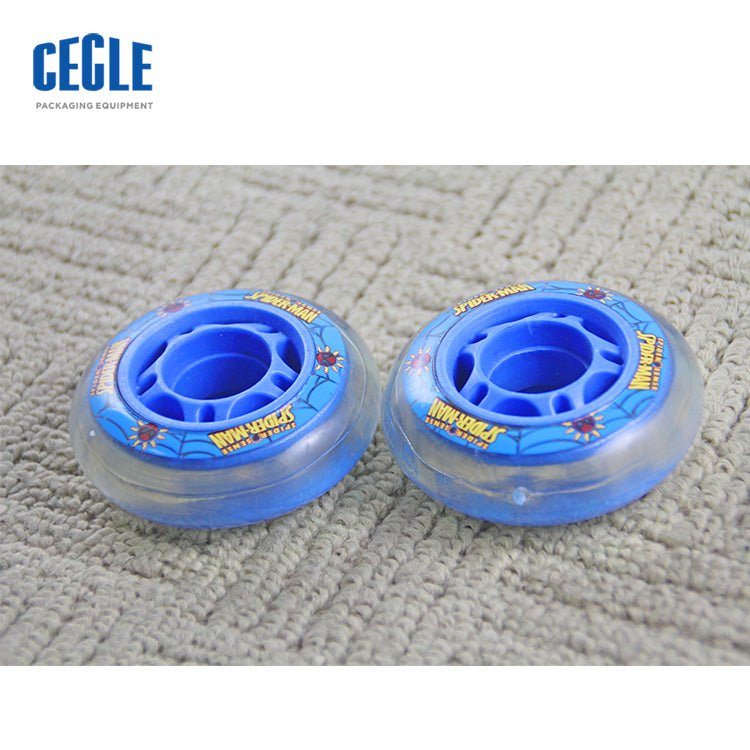

Quick Answer: The CECLE HT-S-150 is a semi-automatic industrial printer designed for dual-surface printing on flat, cylindrical, and conical workpieces, making it ideal for stationery, cosmetic packaging, and gift manufacturing.

CECLE HT-S-150 vs. Traditional / Generic Alternative

Where the DDX-450 stands out against manual or generic capping tools — measured on the dimensions buyers care about most.

Adaptability & Changeover

CECLE HT-S-150Dual-Use for Flat & Round (Versatile): The core technology features a built-in Shuttle Vector device, allowing quick switching between flat and round transfer modes based on production needs, thereby.

Single-Format Rigid FramesSwitching product sizes requires lengthy mechanical changeover and extended downtime.

Precision & Consistency

CECLE HT-S-150High-Precision Film Feeding System: Equipped with a precision foil-feeding control mechanism to ensure accurate pattern stepping, greatly reducing heat transfer film waste. Industrial-Grade Anti-Corrosion.

Analog / Blind OperationNo real-time parameter feedback; operators guess settings, so quality drifts batch to batch.

Pressure Consistency

CECLE HT-S-150Stable Performance: Pure pneumatic drive design ensures even and adjustable pressure. Paired with a digital time relay, parameter settings are highly accurate and the operation logic remains simple

Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.

Chassis Rigidity & Vibration Resistance

CECLE HT-S-150Robust Structure: With a machine weight of 230kg, it operates smoothly without vibration, ensuring that the transferred patterns do not shift or ghost

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Technical Specifications

Specification	Value & Unit
Heat Transfer Width	300mm (11.8 in)
Roller Length	150mm (5.9 in)
Power	1.6 kW
Printing Speed	15 times/min
Voltage	220V 50~60Hz
Air Pressure	0.6~0.8Mpa
G.W./N.W.	230kg (507.1 lb)
Packaging Dimension	1800 × 950 × 620mm (70.9 × 37.4 × 24.4 in)
Moq	1 set
Reference Price (Exw)	4250 USD/set (Delivery in Wenzhou)

Pre-installation requirements: Power: 1.6 kW; Voltage: 220V 50~60Hz; Air Pressure: 0.6~0.8Mpa; Packaging Dimension: 1800 × 950 × 620mm (70.9 × 37.4 × 24.4 in). External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this Heat Transfer Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Debugging: Connect the power and air pump, and set the heating plate temperature (usually 150°C - 200°C, adjusted according to the film material)
Installing the Film Roll: Load the heat transfer film into the feeding system and adjust the position of the electric eye sensor

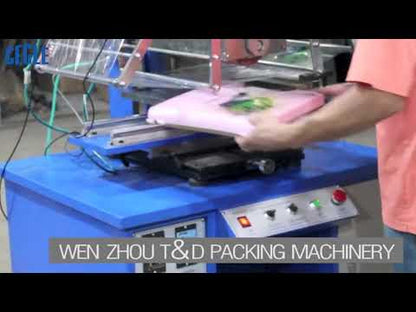

Placing the Workpiece: Place the product to be printed onto the positioning fixture
Initiating Transfer: Press the start button, and the machine will automatically complete the "Press down - Transfer - Film feed - Reset" cycle
Quality Inspection: Remove the finished product to check the completeness of the pattern, and fine-tune the pressure, time, and temperature based on the results.

Engineering FAQ

What power supply does the HT-S-150 require?
A: The HT-S-150 runs on 1.6Kw Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the HT-S-150?
A: Beyond the rated 220V 50~60Hz Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the HT-S-150 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the HT-S-150 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
