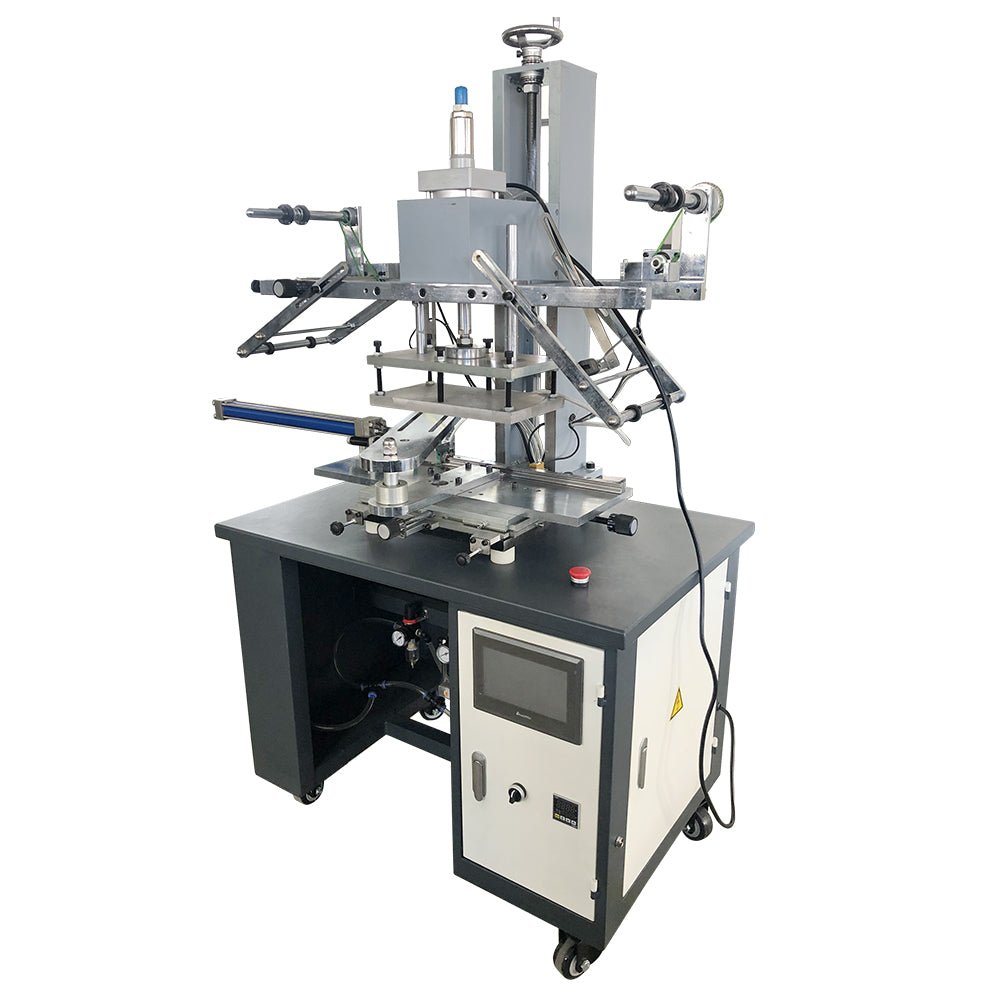

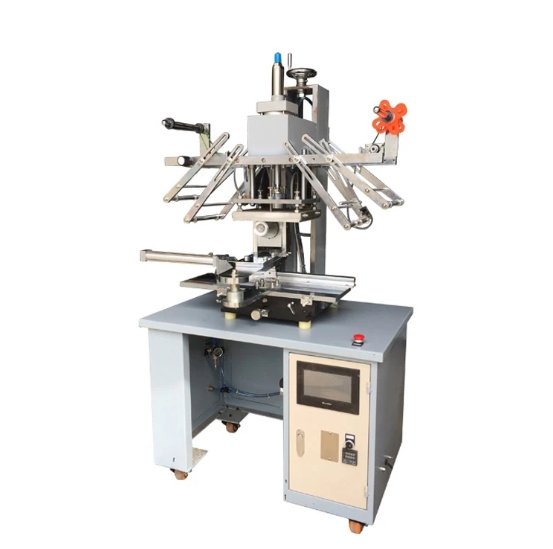

HT-C-200 Heat Transfer Machine for Cups (0.6T Transfer Pressure)

Name: HT-C-200
Brand: CECLE
Price: 4600.0 USD
Availability: InStock

$4,600.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Voltage 220V/110V

Shipping method By sea to door (25-40 days)

Quick Answer: The CECLE HT-C-200 is a semi-automatic, high-precision surface decoration printer specially engineered for tapered and truncated cone-shaped containers.

CECLE HT-C-200 vs. Traditional / Generic Alternative

Aspect	CECLE HT-C-200 (This Machine)	Traditional / Generic Alternative
Adaptability & Changeover	Conical Product Adaptability : Specifically engineered for Conical Products, solving wrinkling and missed-printing issues that common transfer machines easily produce on irregular surfaces	Single-Format Rigid Frames: Switching product sizes requires lengthy mechanical changeover and extended downtime.
Precision & Consistency	High-Precision Feeding System : Equipped with a high-precision foil feeding control device to ensure precise pattern alignment and significantly reduce consumable waste	Analog / Blind Operation: No real-time parameter feedback; operators guess settings, so quality drifts batch to batch.
Pressure Consistency	Powerful Pneumatic Drive : Adopts a fully pneumatic drive mode, providing stable and uniform pressure for vibrant transfer colors and strong adhesion	Inconsistent Spring/Manual Pressure: Force drifts with operator fatigue and batch size, causing weak seals and rejects.
Output Speed & Throughput	Rated 8 times/min Printing Speed: Built for steady commercial output with minimal idle time.	Slow Manual Cycling: Loading and cycling depend on operator pace, capping real throughput and raising labor cost.

Technical Specifications

Specification	Value & Unit
Transfer Width	200mm (7.9 in)
Heating Power	3 kW
Printing Speed	8 times/min
Working Voltage	220V 50~60Hz
Air Pressure	0.6~0.8Mpa
Roller Length	200mm (7.9 in)
G.W. / N.W.	230kg (507.1 lb)
Packaging Dimension	1800 × 950 × 620mm (70.9 × 37.4 × 24.4 in)

Pre-installation requirements: Heating Power: 3 kW; Working Voltage: 220V 50~60Hz; Air Pressure: 0.6~0.8Mpa; Packaging Dimension: 1800 × 950 × 620mm (70.9 × 37.4 × 24.4 in). External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

industrial products — primary target products for this packaging line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Preheating : Connect the power supply and air pump, then set the heating temperature and transfer time
Film Loading &amp
Positioning : Install the heat transfer film onto the feeding bracket and adjust the photoelectric sensor to align with the pattern

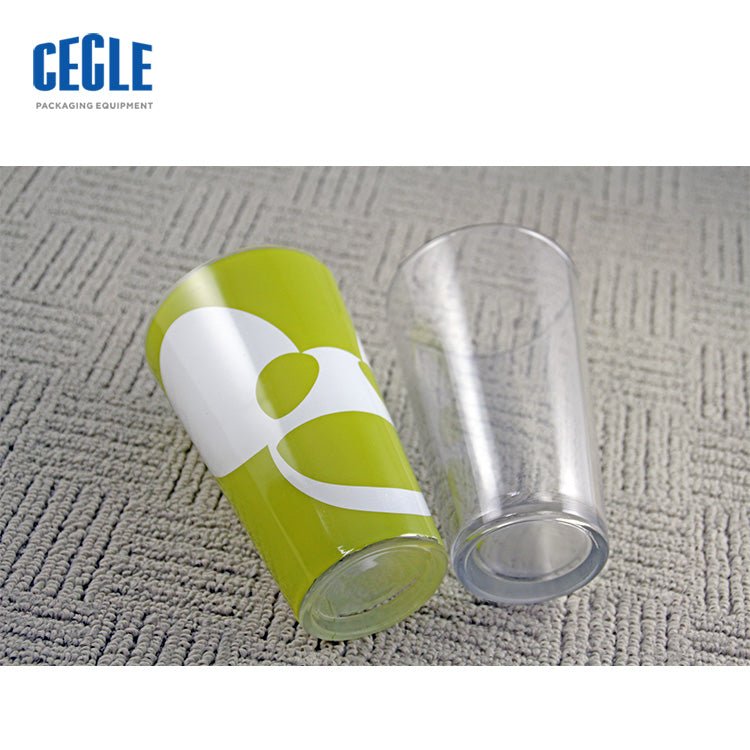

Workpiece Placement : Manually place the conical product to be printed onto the mold of the rotating station
Initiate Transfer : Step on the foot switch
the machine head will automatically press down, and the rubber roller will drive the product to rotate and synchronously transfer the pattern
Automatic Rewinding : Once the transfer is complete, the machine head lifts, and the machine automatically winds the waste film to prepare for the next cycle

Engineering FAQ

What power supply does the HT-C-200 require?
A: The HT-C-200 runs on 3Kw Heating Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the HT-C-200?
A: Beyond the rated 220V 50~60Hz Working Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the HT-C-200 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the HT-C-200 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
