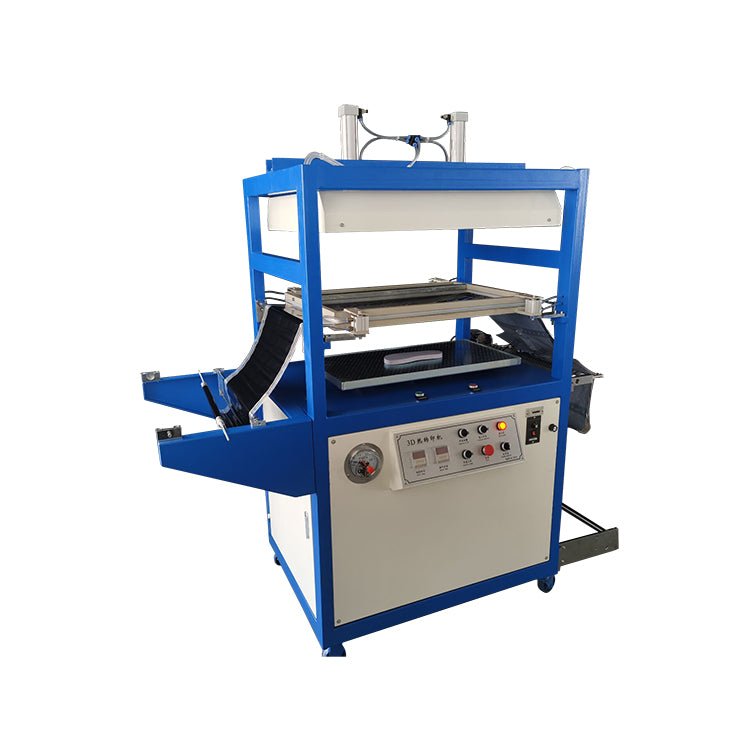

HT-6437-SLIP Heat Transfer Machine for Tubes (Pneumatic Drive)

HT-6437-SLIP Heat Transfer Machine for Tubes (Pneumatic Drive)

$4,300.00 USD
$4,300.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Voltage
Shipping method
Quick Answer: The CECLE HT-6437-SLIP hT-6437 is a semi-automatic heat transfer machine specifically designed for 3D curved surfaces and irregularly shaped products.

CECLE HT-6437-SLIP vs. Traditional / Generic Alternative

Where the DDX-450 stands out against manual or generic capping tools — measured on the dimensions buyers care about most.

Output Speed & Throughput
CECLE HT-6437-SLIPHigh-Efficiency Operation : Printing speed reaches up to 15 times/min , which is much higher than conventional bucket transfer equipment, making it suitable for high-volume, rapid production
Slow Manual CyclingLoading and cycling depend on operator pace, capping real throughput and raising labor cost.
Chassis Rigidity & Vibration Resistance
CECLE HT-6437-SLIPHigh-Precision Film Feeding : Equipped with a high-precision foil feeding control system to effectively avoid film misalignment and ensure pattern consistency. Electrical-Pneumatic Linkage Control : Utilizes.
Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.
Pressure Consistency
CECLE HT-6437-SLIPStable 0.4T Air Pressure: Pneumatic or servo-controlled force stays consistent across batches.
Inconsistent Spring/Manual PressureForce drifts with operator fatigue and batch size, causing weak seals and rejects.
Operational Mechanism & Drive
CECLE HT-6437-SLIPPurpose-Built Voltage: 220V 50~60Hz drive delivers steady, operator-independent output.
Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Technical Specifications

Specification Value & Unit
Heat Transfer Size 100 × 300 mm (3.9 × 11.8 in)
Control Mode Electric drive
Printing Speed 15 times/min
Voltage 220V 50~60Hz
Air Pressure 0.4T
G.W./N.W. 200 kg (440.9 lb)
Packaging Dimension 1620 × 950 × 630 mm (63.8 × 37.4 × 24.8 in)

Pre-installation requirements: Voltage: 220V 50~60Hz; Air Pressure: 0.4T; Packaging Dimension: 1620 × 950 × 630 mm (63.8 × 37.4 × 24.8 in). External air compressor (3 HP / 2.2 kW or above) required.

Compatible Applications & Materials

  • industrial products — primary target products for this Heat Transfer Machine line
  • Standard industrial materials compatible with the machine's rated spec range
  • B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

  1. Debugging &amp
  2. Preparation : Connect the 220V power supply and air source, and set the required transfer temperature (usually set between 180-210°C depending on the product material)
  3. Film Loading &amp
  4. Positioning : Install the 3D heat transfer film onto the film roller, and use the photoelectric sensor to lock the pattern position

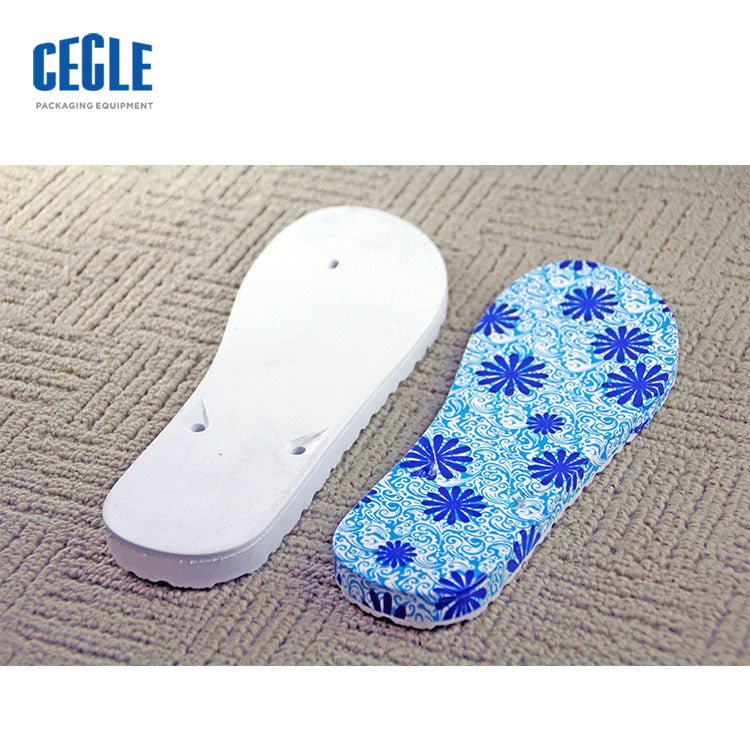

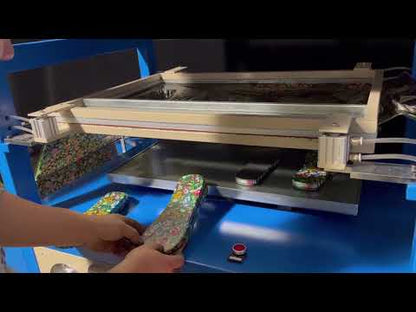

  5. Manual Loading : Place the product to be transferred (such as a shoe sole) onto the base tooling/fixture
  6. Start Operation : Trigger the switch, and the machine will automatically complete the cycle: "pressing down - heat transfer - returning to position." Waste Film Rewinding : After the transfer is complete, the machine automatically rewinds the waste film via the electric drive and pre-positions the next pattern
  7. Finished Product Inspection : Manually remove the finished product and inspect the transfer completeness on the edges and curved sections.

Engineering FAQ

Why is the 15 times/min Printing Speed rating important for the HT-6437-SLIP?
A: The 15 times/min Printing Speed balances throughput and stability for continuous B2B runs — too low limits output, too high compromises seal/transfer quality. This rating is the engineered sweet spot for the target product range.

What peripheral equipment should be prepared for the HT-6437-SLIP?
A: Beyond the rated 220V 50~60Hz Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the HT-6437-SLIP stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the HT-6437-SLIP handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.

Full Documentation & Drawings

Complete technical manual, parameters and engineering drawings: CECLE Docs — HT-6437-SLIP
