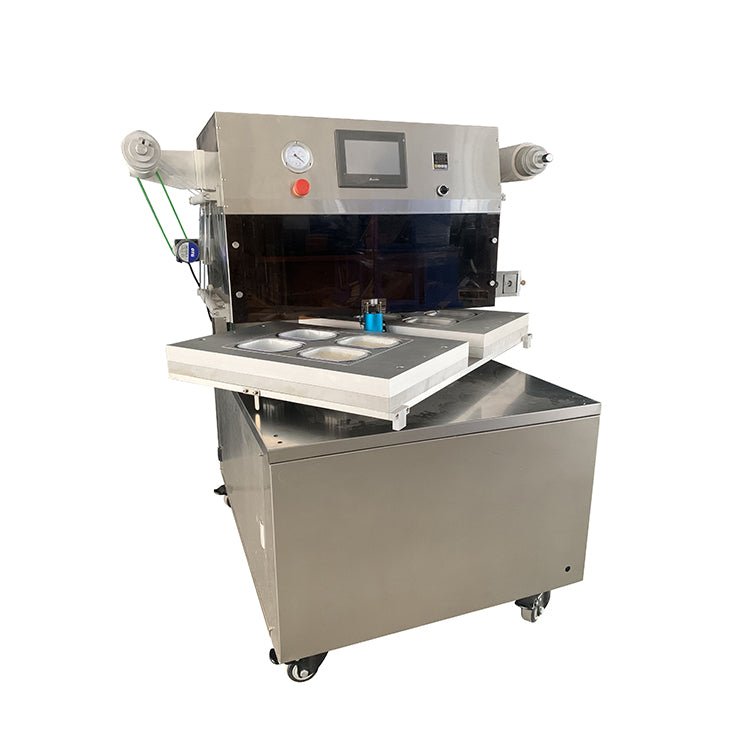

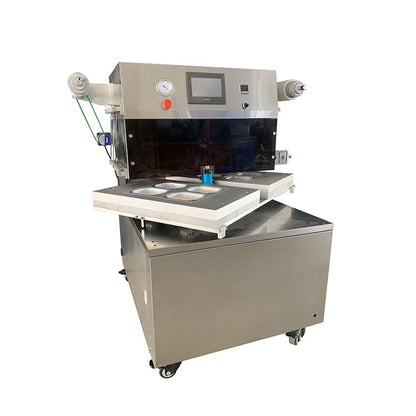

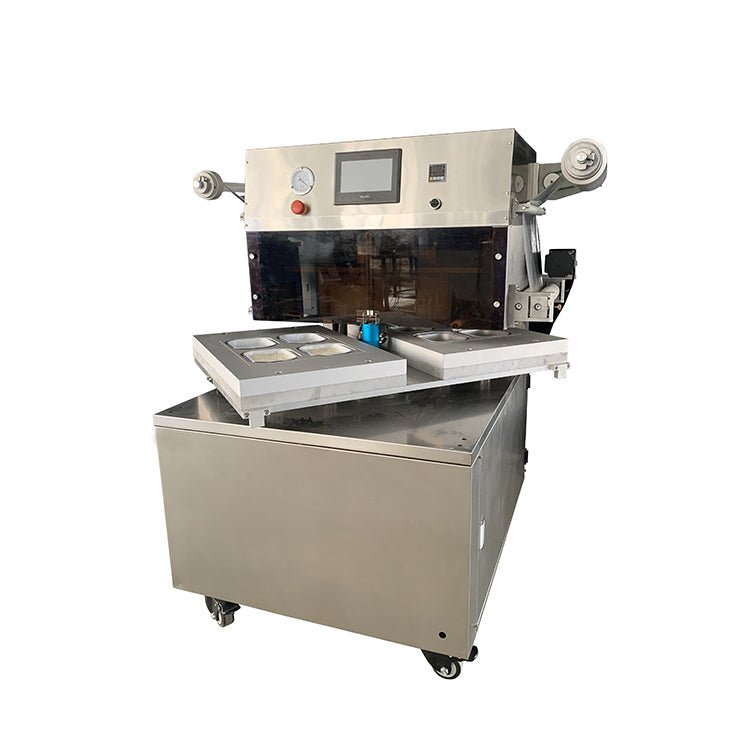

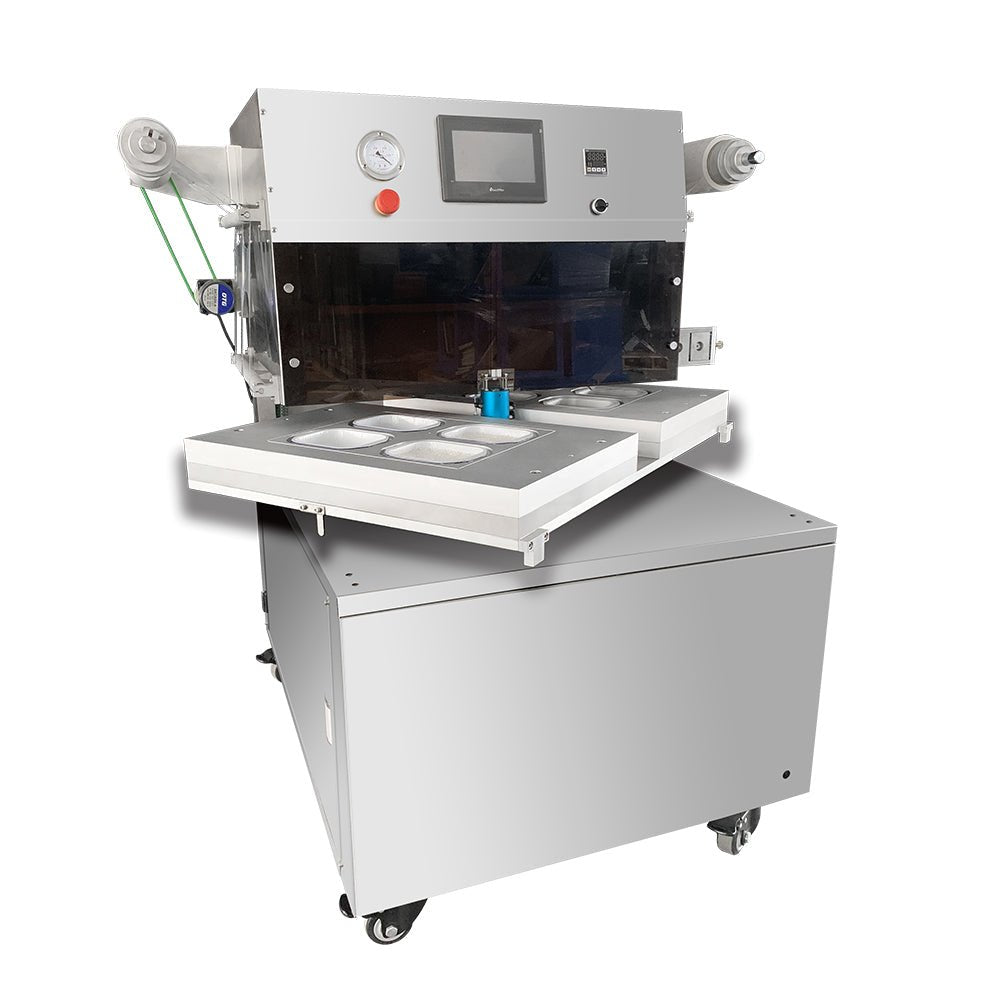

The RMAP-4634 Rotary Modified Atmosphere Packaging (MAP) Machine is a high-performance, industrial-grade packaging solution designed for high-efficiency production lines. Featuring a rotary multi-station design, this equipment excels in extending the shelf life of fresh meat, ready-to-eat meals, seafood, and deli products while maintaining the original color, texture, and flavor of your food items.
Technical Documentation & Support
For detailed electrical schematics, maintenance manuals, and comprehensive operating guides for this series, please visit our Official Technical Support Portal.
I. Product Overview
Designed specifically for large-scale production, this rotary multi-station system offers unparalleled packaging speeds and footprint efficiency.
- High-Efficiency Production: Rotary stations allow for simultaneous filling, sealing, and discharging, greatly exceeding the output of traditional linear models.
- Ultimate Preservation: Gas replacement rate exceeds 99%, with residual oxygen levels strictly controlled between 0.5% and 1%.
- Space-Saving Design: Compared to standard linear machines, the compact rotary footprint is reduced by approximately 30%.
II. Technical Specifications
| Item | Technical Details |
|---|---|
| Rotary Stations | 2 / 4 / 6 stations (Customized) |
| Packaging Speed | 3-4 cycles/min |
| Gas Replacement Accuracy | ≤ ±1% |
| Power/Voltage | 3.5kW / 110V/220V/50-60Hz |
| Machine Weight | Approx. 550kg |
III. Mold Configuration & Consumables

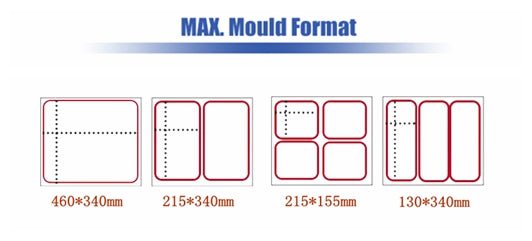

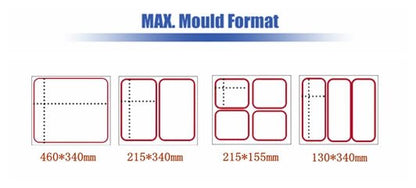

The total mold dimension is 640 x 440 mm, with a standard tray height of 50mm (non-standard height customization available).
Consumable Recommendations
- Film Width: Maximum width of 440 mm.
- Film Thickness: Recommended standard of 80 microns.
- Barrier Requirements: We recommend using compatible PP sealing film for PP trays, and using EVOH high-barrier sealing film for PET or CPET trays to achieve superior oxygen barrier performance and extended shelf life.
IV. Key Selling Points
- Precision Vacuum Technology: Uses high-performance dedicated vacuum pumps to ensure deep negative pressure, removing air effectively for optimal freshness.
- Independent Thermal Control: Sealing molds utilize precise constant temperature systems to ensure wrinkle-free, flat, and visually premium seals every time.
- Hygienic Construction: The stainless steel frame supports heavy-duty washdown cleaning, fully compliant with international GMP hygiene standards.
V. Frequently Asked Questions (FAQ)
Q: How much can shelf life be extended?
A: Depending on the food type and storage temperature, chilled fresh meat can typically be extended to 10-14 days, and cooked food to 15-21 days.
Q: Can one machine handle multiple tray sizes?
A: Yes, the system is modular. You can purchase additional mold sets for different tray sizes at $2,000.00/set. We provide video instructional guides for mold changes.
Q: What is the after-sales support policy?
A: We offer a 1-year warranty, a complimentary set of high-wear spare parts, and lifetime online video technical support.
