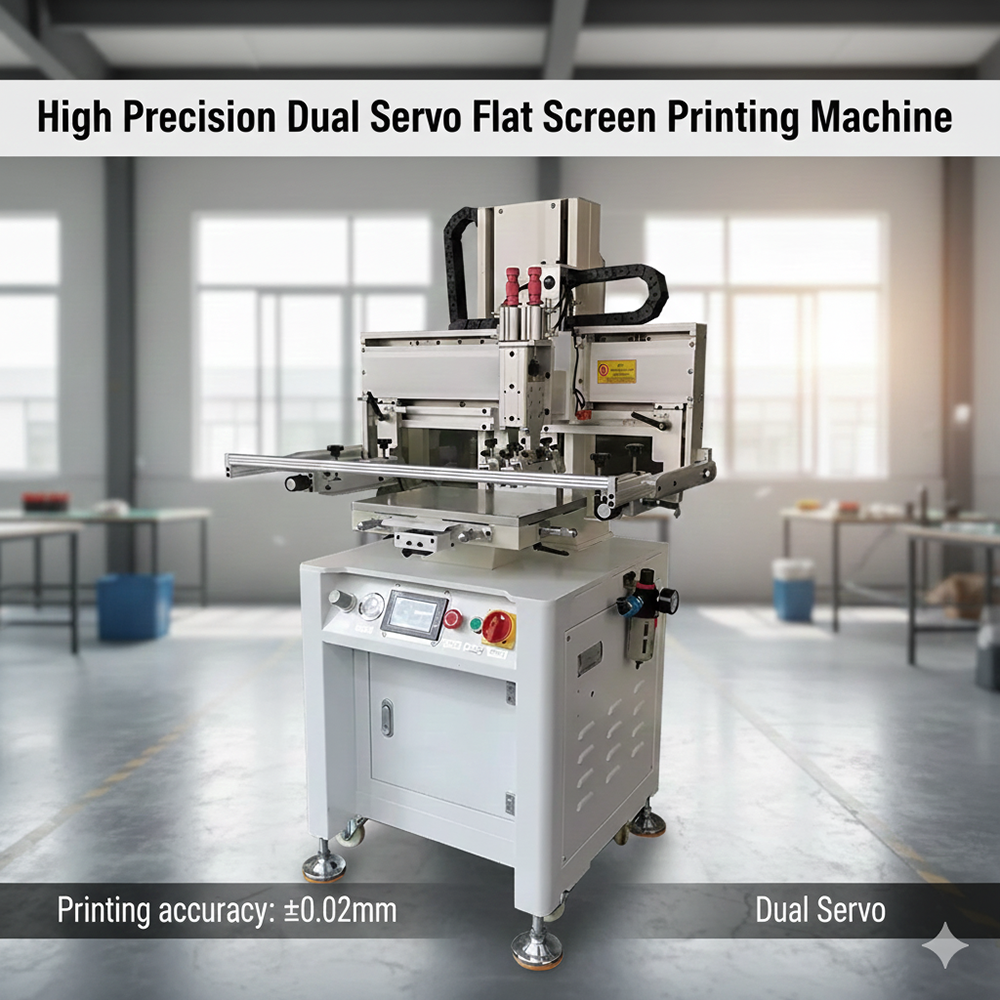

TD-2030SF High-Precision Dual Servo Flatbed Screen Printing Machine

Industrial-Grade Vertical Screen Printer for PCB & Electronics | ±0.02mm Accuracy

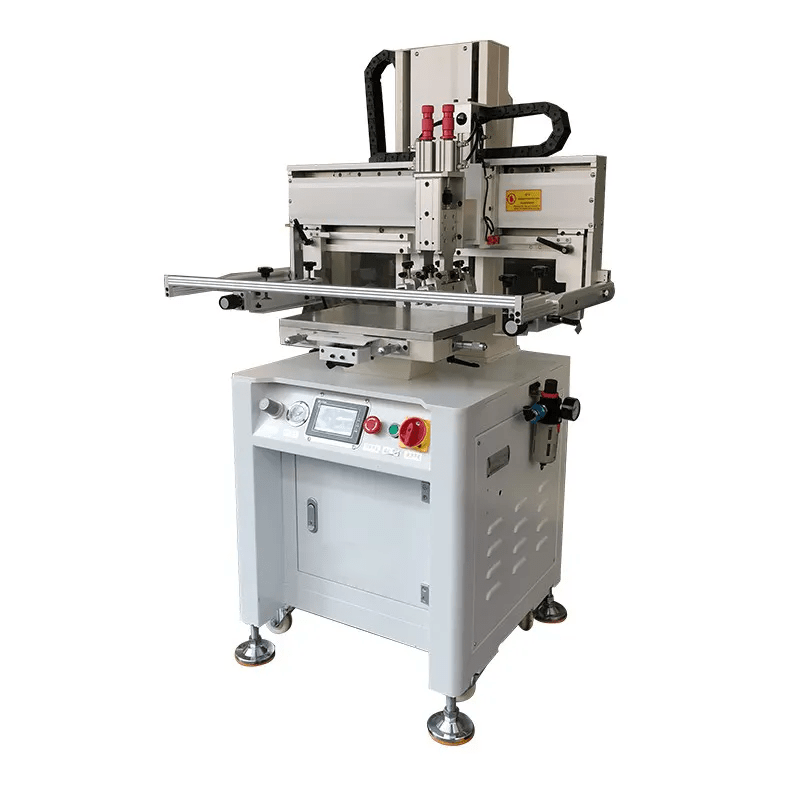

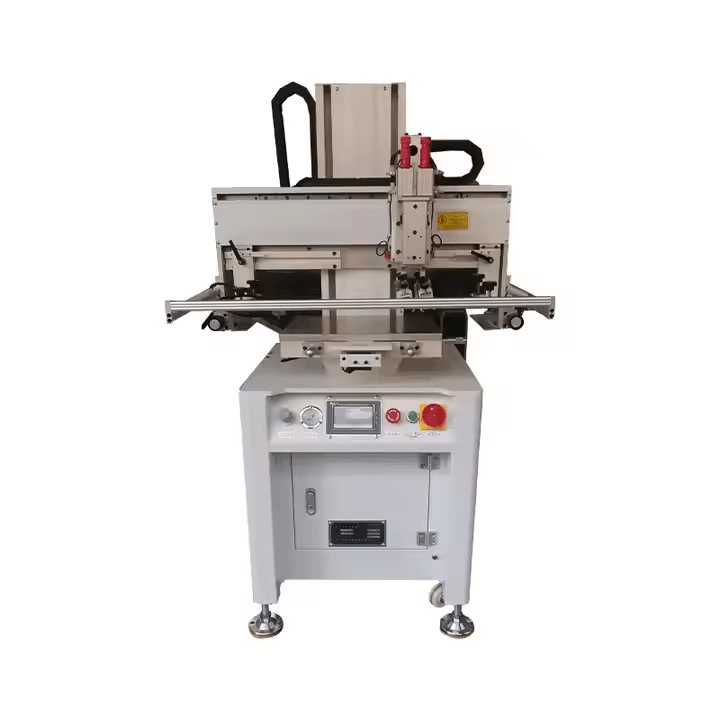

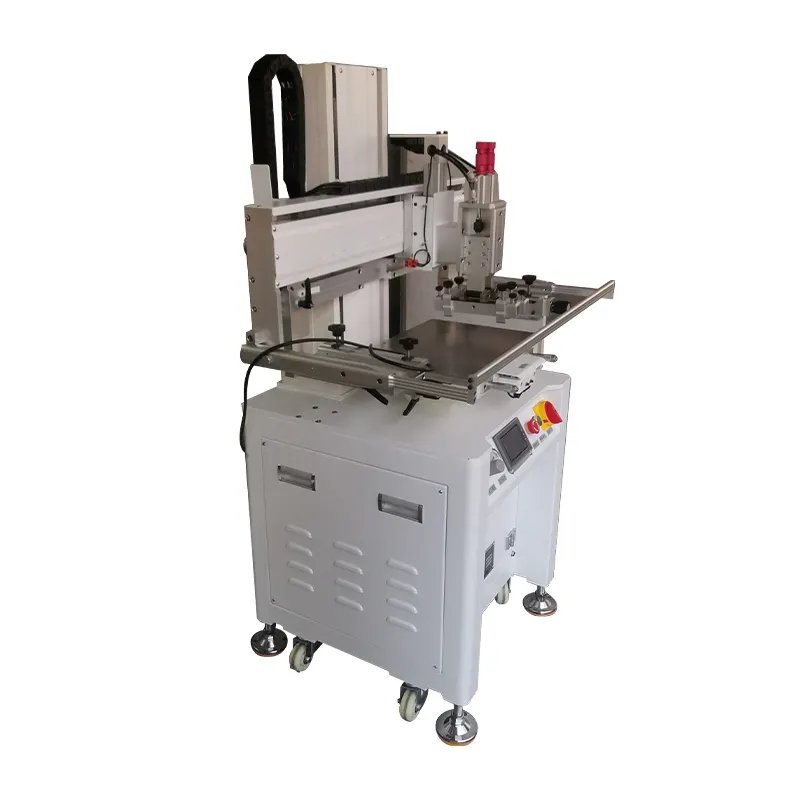

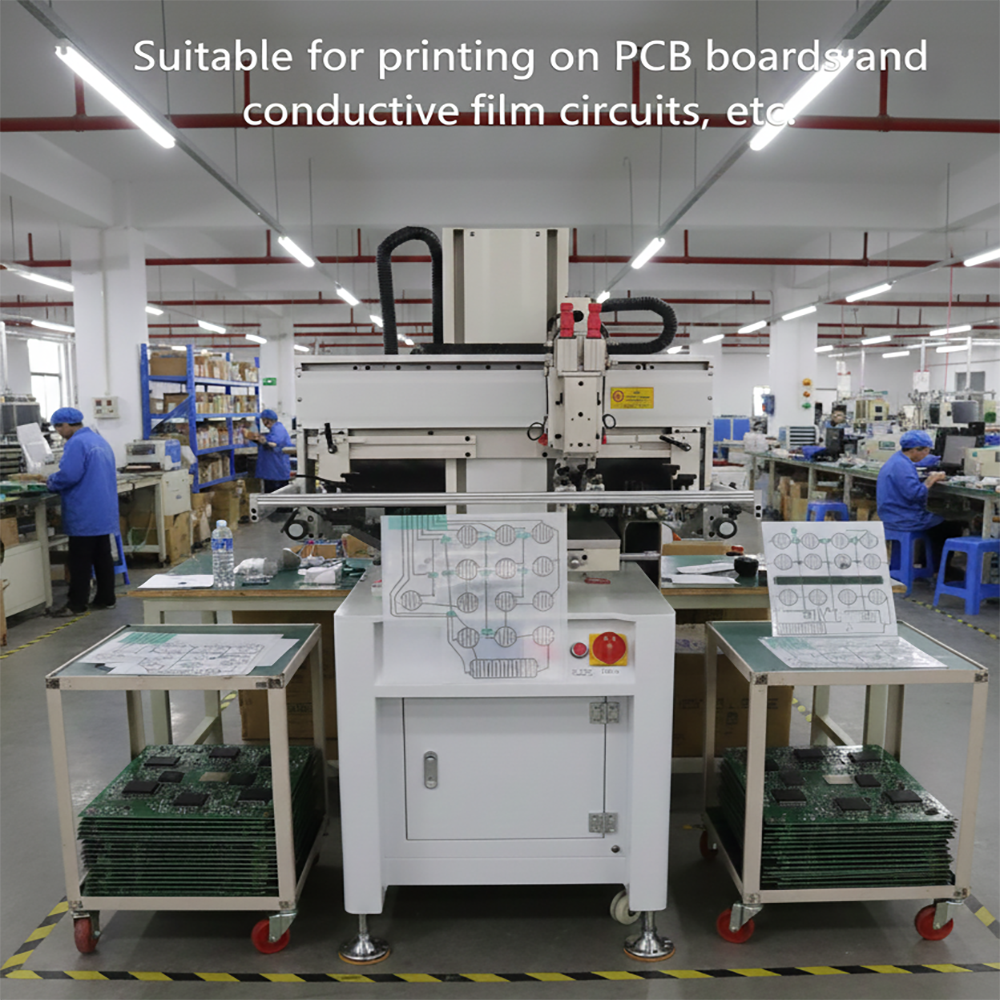

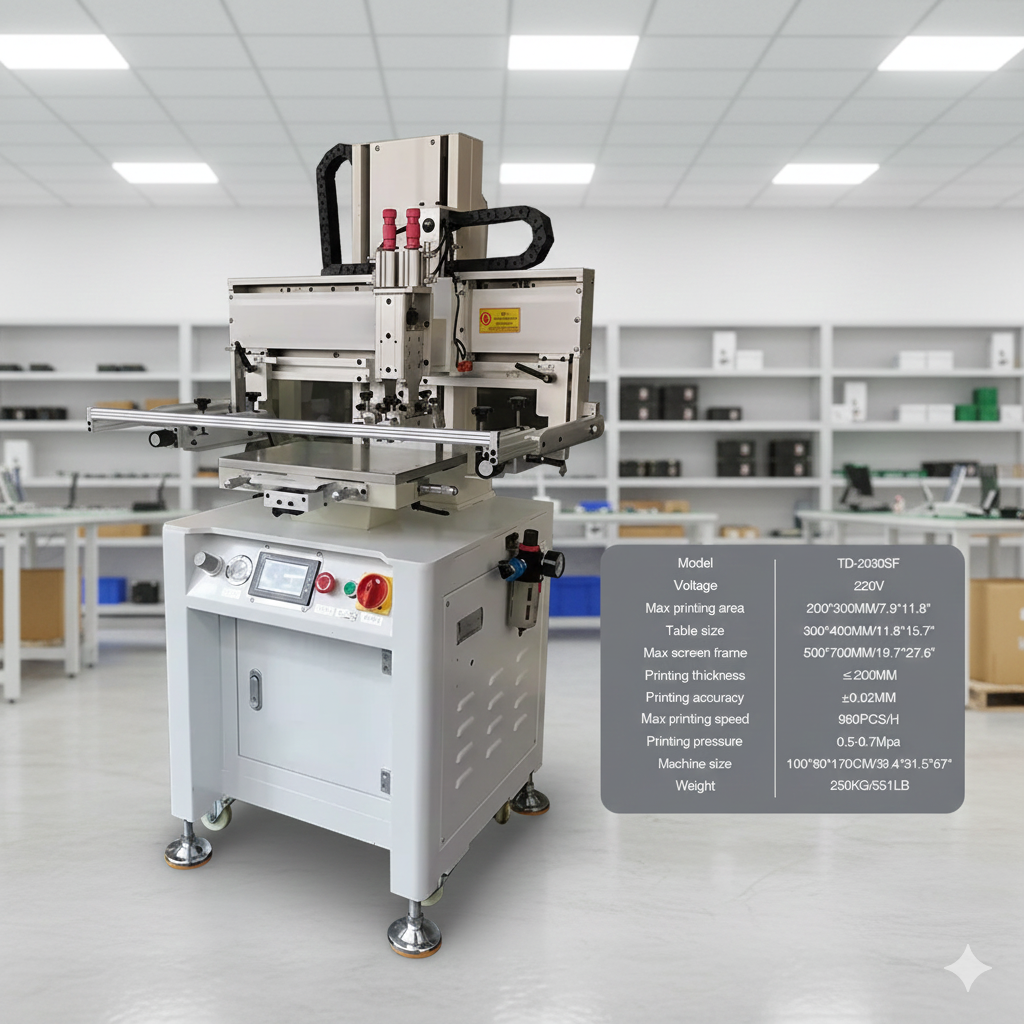

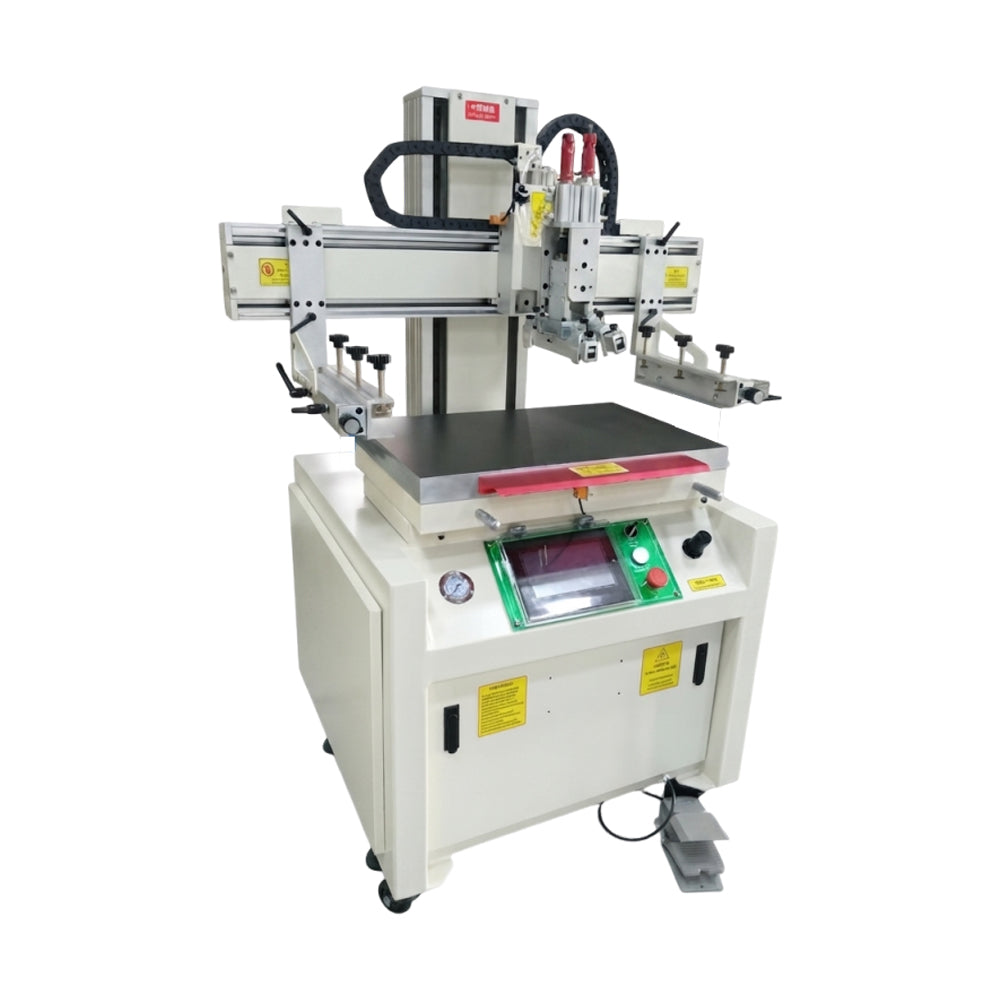

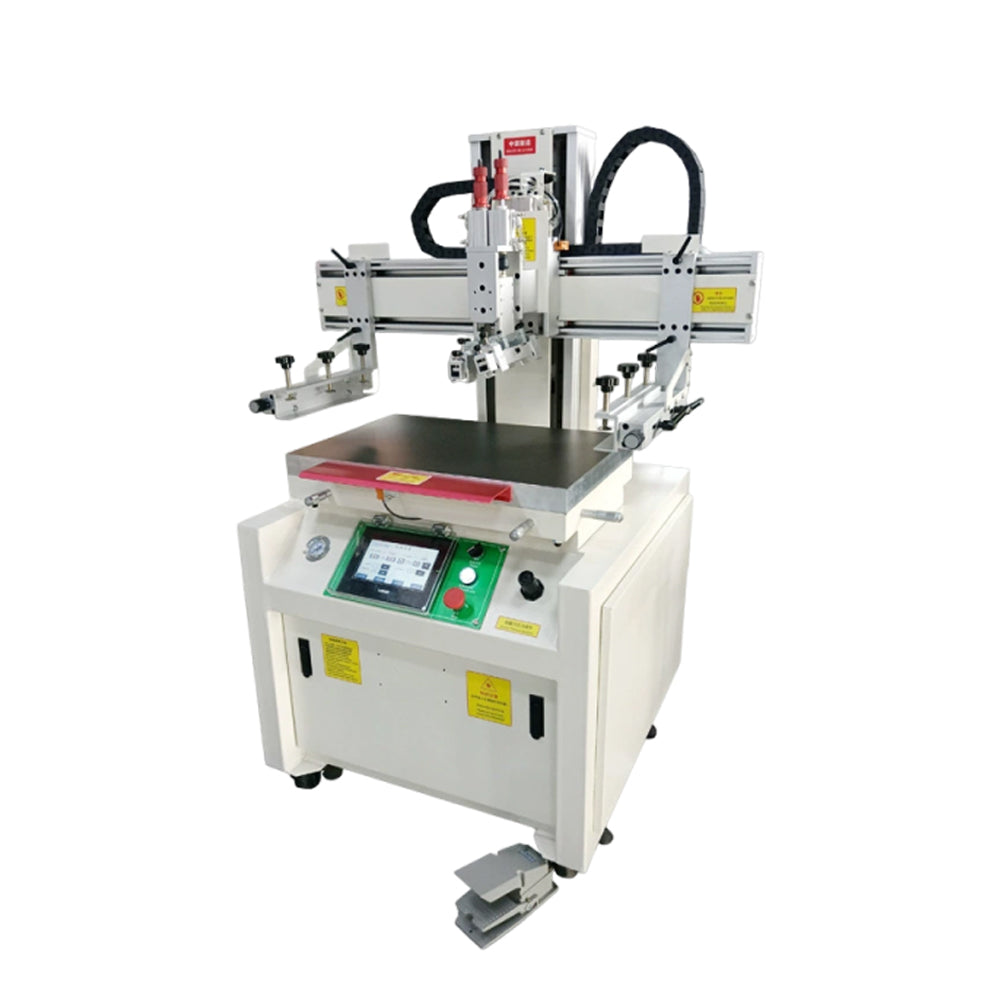

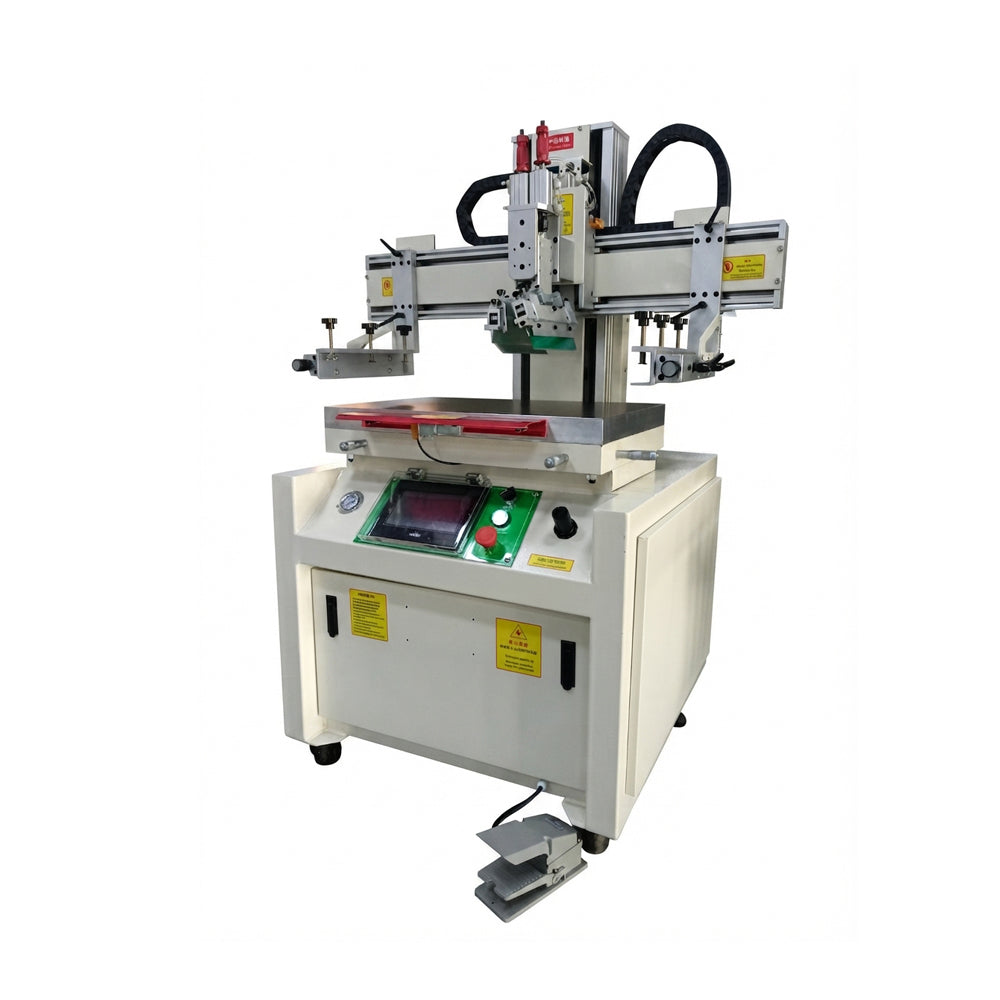

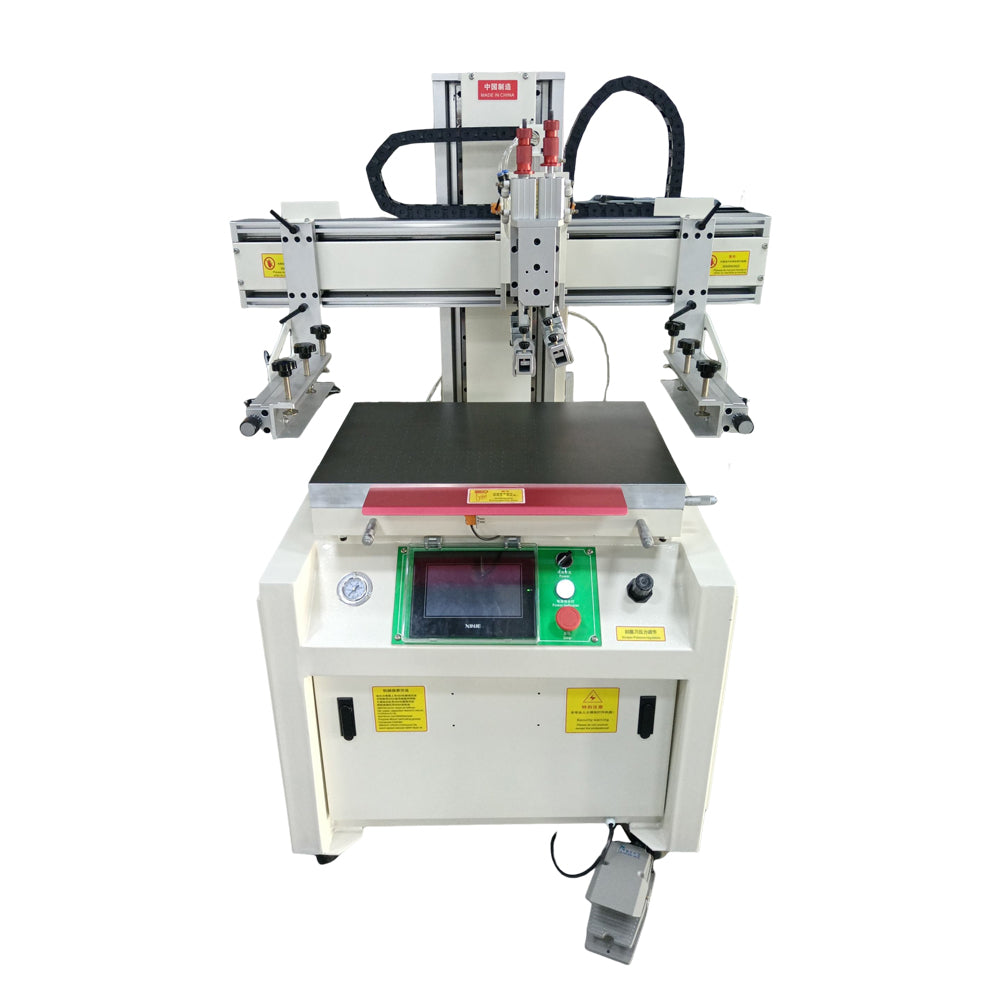

The TD-2030SF Flat Screen Printing Machine is a high-end, floor-standing industrial printer designed for the electronics and high-tech industries. Utilizing an advanced dual servo-motor drive and a vertical lifting structure, it eliminates the vibration and ink-flow issues of traditional pneumatic machines. With an extreme printing accuracy of ±0.02mm, it is the ultimate solution for manufacturing precision PCB boards, conductive film circuits, lens windows, and plexiglass.

🌟 Core Advantages & Features

• ±0.02mm Extreme Accuracy: The combination of a highly stable servo motor drive and precision micro-adjustment handles ensures ultra-precise pattern registration, easily meeting the stringent standards of the electronics manufacturing industry.
• Advanced Servo System: Unlike pneumatic cylinders that can cause "stuttering," the servo-driven printing carriage ensures the squeegee glides smoothly at a strictly constant speed, guaranteeing a perfectly uniform ink layer.
• Vertical Screen Lifting Structure: The screen frame lifts straight up and down horizontally (rather than at an angle like clamshell models). This keeps the ink perfectly balanced and prevents it from flowing backward into the pattern area.

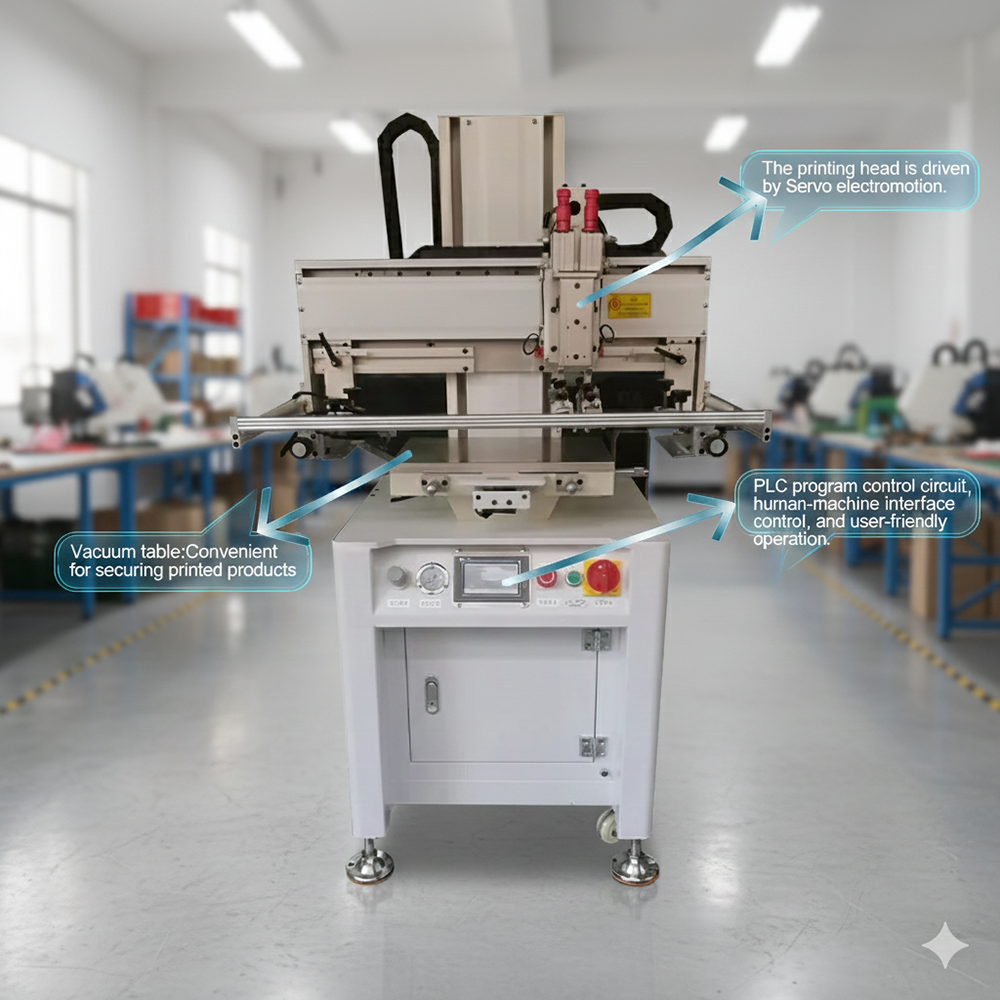

• PLC Program: EAdopts a PLC program control circuit and human-machine interface (HMI) for highly user-friendly operation. Supports manual/semi-automatic/fully automatic modes. The automatic printing interval time is digitally controlled (1~9 seconds).
• Vacuum Suction Worktable: The printing bed utilizes a vacuum suction worktable to easily secure sheet materials. Both the horizontal and vertical directions of the printing platform are equipped with precision fine-tuning handles, ensuring accurate micro-adjustments and convenient multi-color registration.

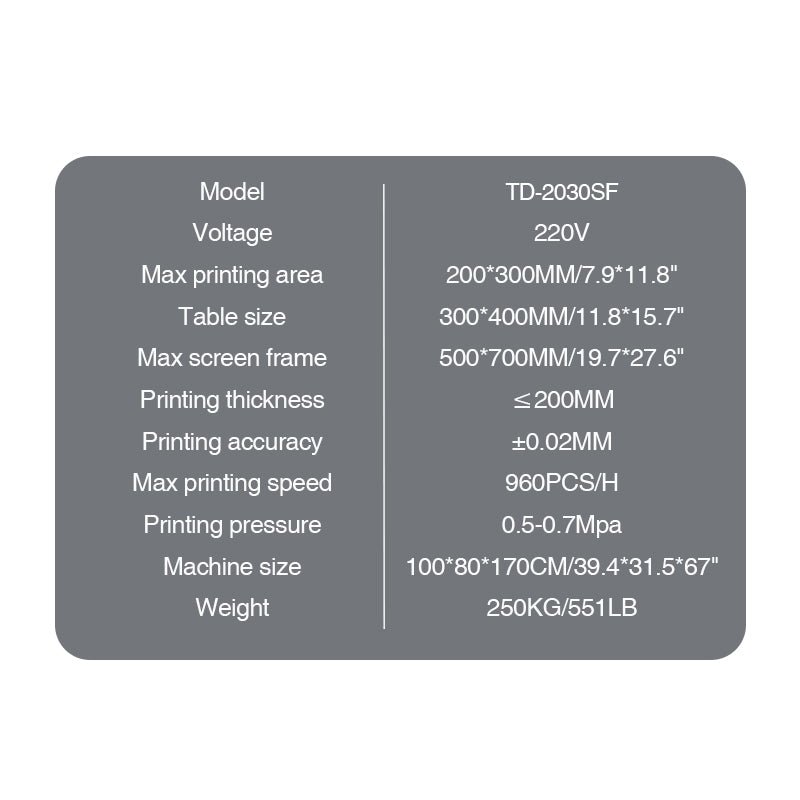

📐 Technical Specifications

(Note: Floor-standing industrial model, requires flat plant floor)

🛠️ What You Need to Get Started (Prerequisites)

This is a heavy-duty industrial machine. Please prepare the following:

1. Air Compressor (Mandatory): Required to provide 0.5-0.7Mpa air pressure for the auxiliary pneumatic actions.
2. Workspace: It requires a flat, solid industrial plant floor and uses anchor bolts for absolute stability.
3. Consumables: High-tension precision screens (to match the 0.02mm accuracy), specialized ink (e.g., conductive silver paste, solder mask/green oil), thinner, and squeegees.

❓ Frequently Asked Questions (FAQ)

Q: Why is this machine more expensive than standard flatbed screen printers?
A: The core driving mechanism is entirely different. Standard machines use pneumatic cylinders to push and pull, which can cause micro-vibrations. The TD-2030SF uses a Servo System paired with PLC control, offering a constant stroke speed and an industry-leading ±0.02mm accuracy—specifically designed for high-value electronic components where errors are unacceptable.

Q: What is the benefit of the "Vertical" lifting structure?
A: Standard clamshell (oblique arm) printers lift the screen at an angle, causing ink to flow backward and pool at the bottom of the screen. A vertical structure lifts the screen straight up while remaining perfectly horizontal. This ensures the ink is always evenly distributed, guaranteeing absolute consistency in ink layer thickness across every print.

Q: What is the lead time and warranty?
A: Due to the high-precision manufacturing and calibration required, the lead time is within 25 days. We offer a 1-year warranty with free replacement parts for non-human damage (buyer covers international shipping).

📚 Technical Documentation & Operation Video

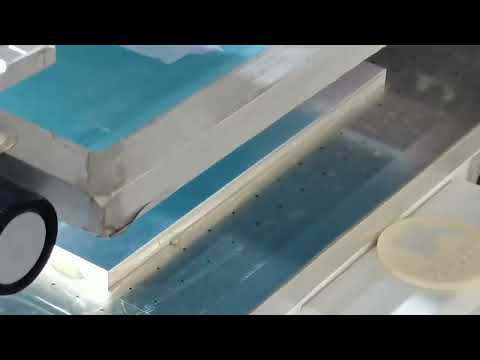

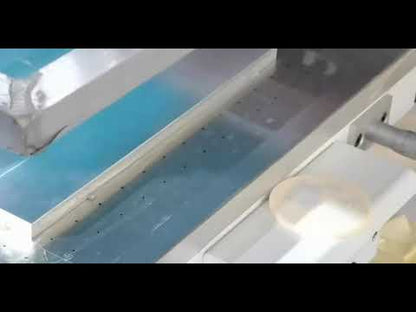

• Watch Operation Video: View on YouTube
• Comprehensive User Manual: For detailed PLC parameter settings, precision registration guides, and full technical documentation, please visit our official knowledge base: TD-2030SF Technical Documentation.
