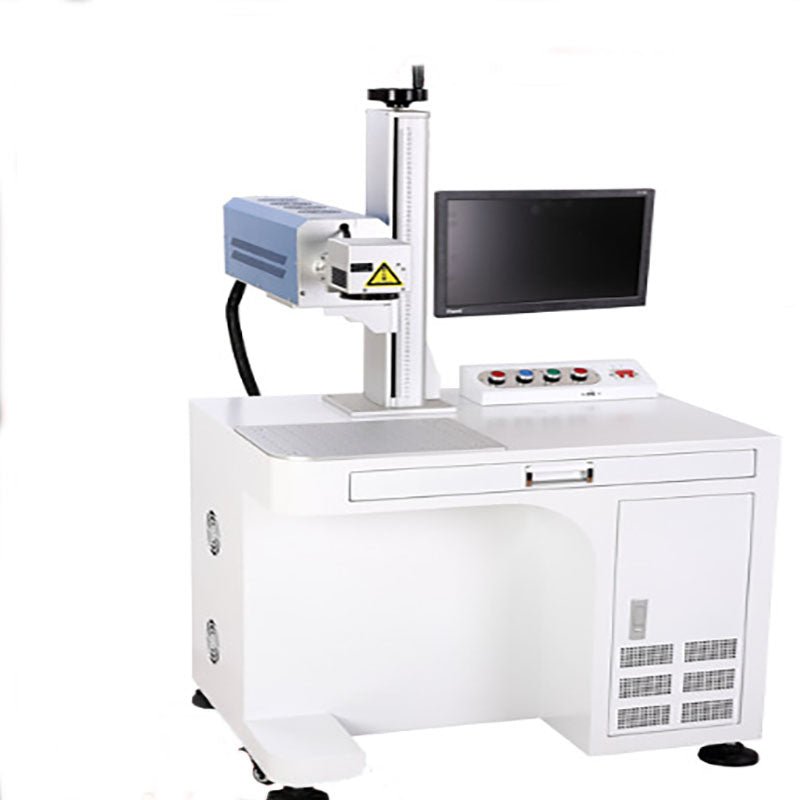

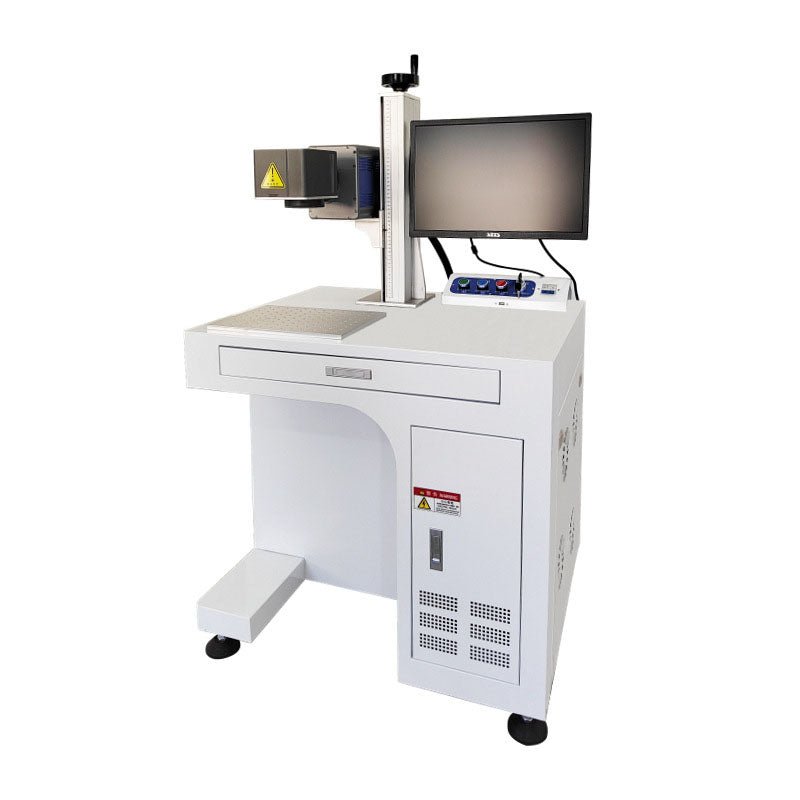

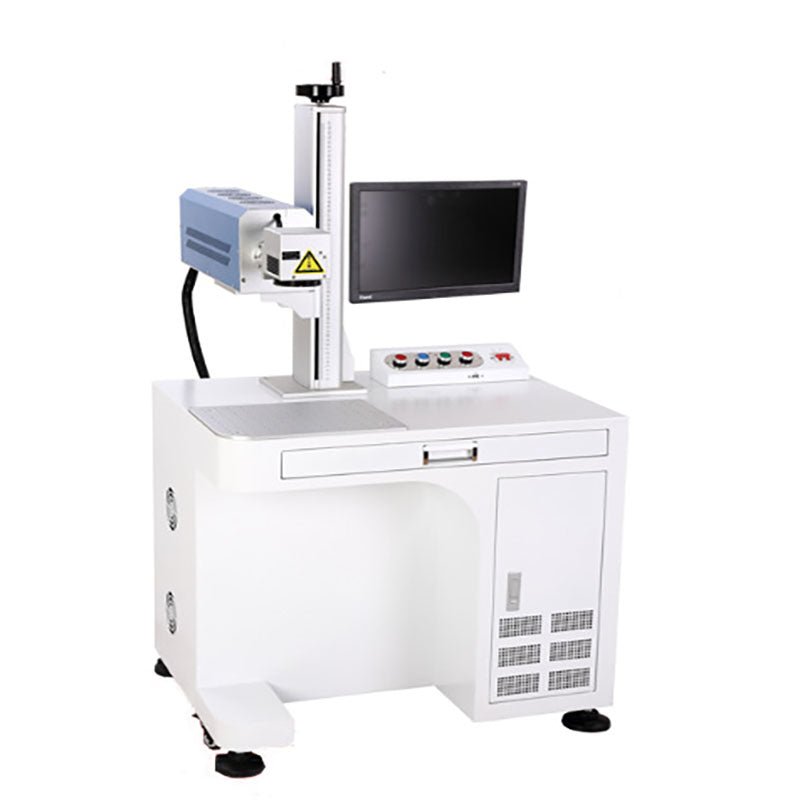

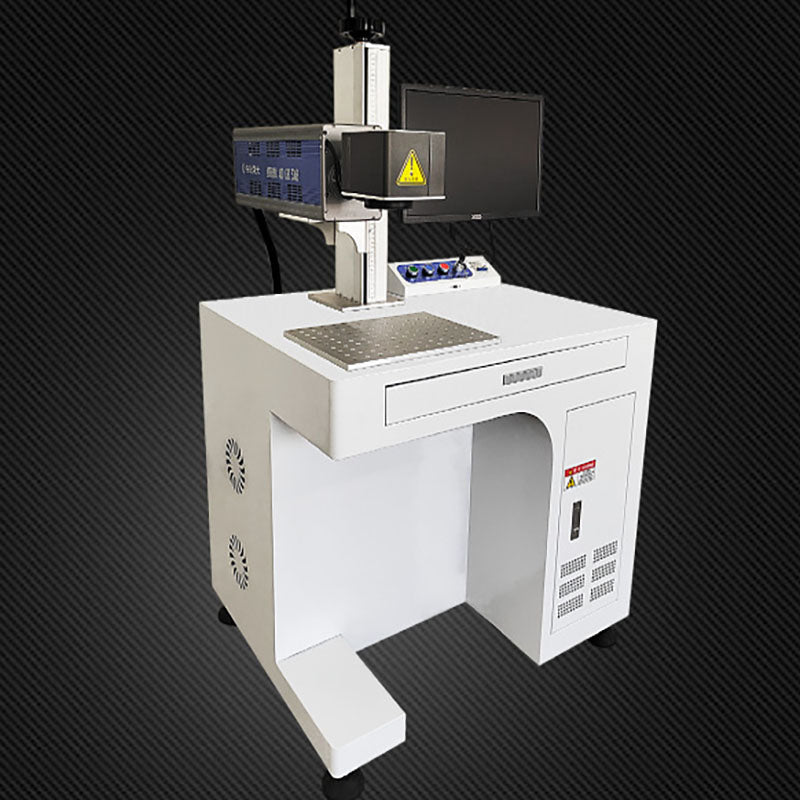

High precision 20w fiber laser marking machine metal

  • $4,829.00
Tax included. Shipping calculated at checkout.


Features:

This machine can engrave the code on any metal and non-metal surface.

Parameters:

Model
LMJ-110
Laser power
10W/20W
Beam quality
M2:1.5
Average output power
10W
Marking speed
12000mm/s
Laser wavelength
1064nm
Marking size
70*70/ 110*110/ 175*175/ 200*200/ 300*300mm
Laser repetition frequency
20~80khz
Character size
0.2*0.2mm
Marking depth
0.01~1mm (depending on material)
Marking accuracy
0.001mm
Mark line width
0.013mm
Voltage
AC220V/50Hz
Machine power consumption
≤500W
Cooling system
Air cooling
Machine size
150*80*60cm
Machine weight
88kg

Detailed Images

Control panel

Lifting shaft

Work platform

Laser field mirror



Height controller

Switch

Samples:
