HP-2330 Swing-Away Heat Press Machine for T-Shirts & Business Cards (Manual)

$269.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model HP-2330

Shipping method By Ocean+Express Only For US(About 25-35 days) By Express(About 7-12 days)

Quick Answer: The CECLE HP-2330 is a manual flat swing-away heat press machine built for small-batch, personalized heat transfer onto flat substrates.

CECLE HP-2330 vs. Traditional / Generic Alternative

Where the CECLE HP-2330 stands out against manual or generic heat press machines — measured on the dimensions buyers care about most.

Pressure Consistency

CECLE HP-2330Ultimate Safety Design : The swing-away structure allows operators to fully move the scorching heating platen aside when placing garments and patterns. This avoids the major hazard of burning the back of the.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Operational Mechanism & Drive

CECLE HP-2330Dual Electrical Safety Protection : An external fuse switch is added on the side of the machine body. It automatically trips during unstable voltage or overload, protecting the life of the core heating plate.

Manual Lever OperationOutput depends on operator strength and drifts between shifts.

Output Speed & Throughput

CECLE HP-2330It is tuned for continuous commercial throughput with minimal idle time.

Slow Manual CyclingLoading and cycling depend on operator pace, limiting real throughput and raising labor cost.

Chassis Rigidity & Vibration Resistance

CECLE HP-2330Industrial-Reinforced Frame: 15 KG/33.1LB Gross Weight chassis eliminates vibration and keeps seals tight.

Lightweight Sheet Metal (<30 kg)Prone to chassis flex, frame warping over time, and seal leakage.

Technical Specifications

Items	Specifications
Model	HP-2330
Heat Platen Size	23×30CM/9.1×11.8"
Power	900W
Voltage	110V/220V
Packaging Dimension	40.5×40×40CM/16×15.7×15.7"
Gross Weight	15 KG/33.1LB

Pre-installation requirements: Power: 900W; Voltage: 110V/220V; Packaging Dimension: 40.5×40×40CM/16×15.7×15.7"; Gross Weight: 15 KG/33.1LB.

Compatible Applications & Materials

industrial products — primary target products for this Heat Press Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

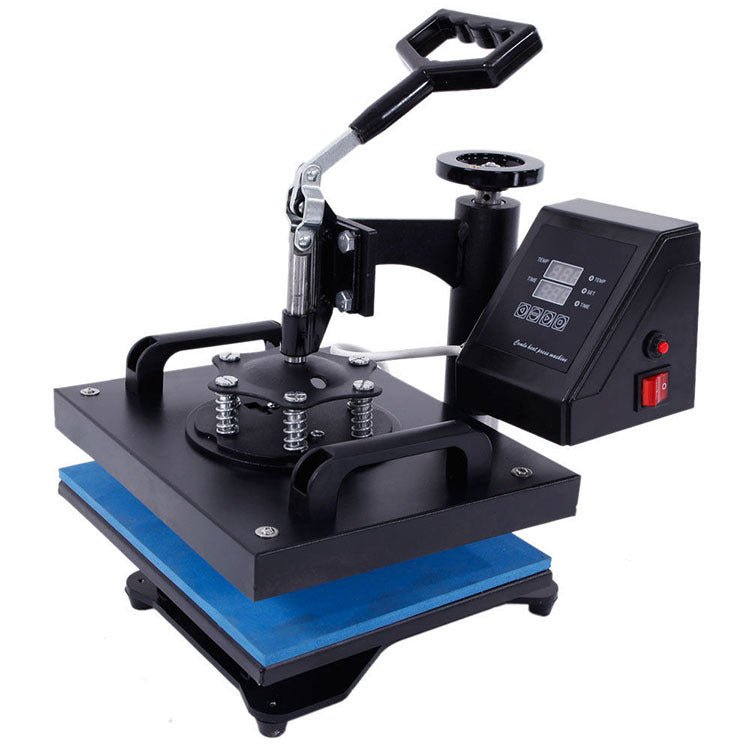

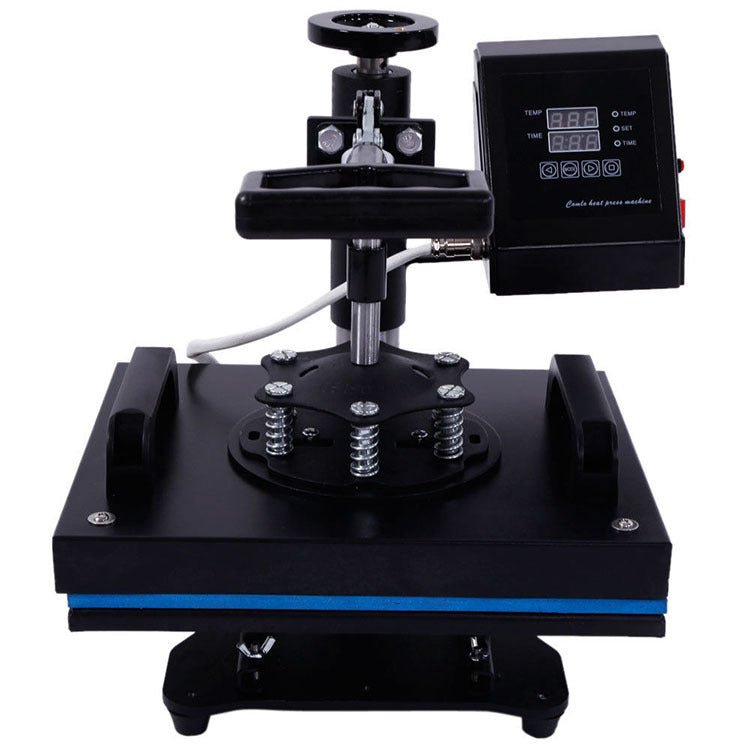

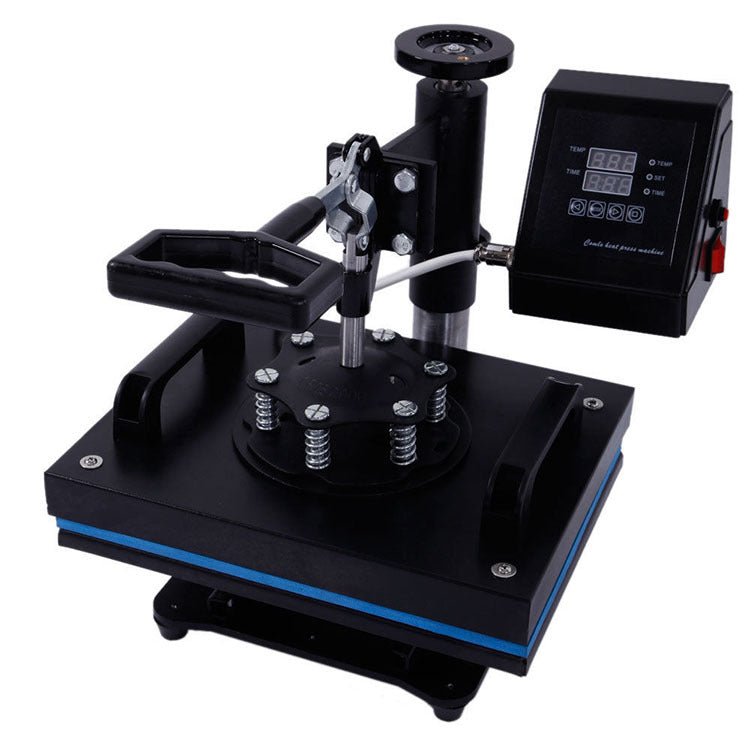

Preheat : Connect the power, set the target temperature and time on the dual-display panel, and wait for the heating platen to warm up
Load Material : Move the heating platen aside horizontally (swing away), lay the T-shirt flat on the silicone pad of the base plate, and place the transfer paper with the pattern facing down
Apply Pressure : Rotate the heating platen back into position, press down firmly on the black handle with both hands, and the machine starts the automatic countdown
Finish : When the buzzer sounds, pull up the handle, swing the heating platen horizontally aside (burn protection), peel off the transfer paper, and complete the heat transfer.

Engineering FAQ

Can this machine be used with 110V voltage in the United States?
A: Absolutely. We can provide you with customized 110V (North American standard) and 220V (European/Asian standard) models, equipped with power plugs that comply with your national standards.

If voltage is unstable or the machine is overloaded, will the heating plate burn out?
A: Our HP-2330 comes standard with an external fuse switch on the side. Once current overload occurs, it immediately trips and cuts off power, greatly protecting the life of the main board and heating plate and preventing accidental electric shock.

What power supply does the HP-2330 require?
A: The HP-2330 runs on 900W Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What peripheral equipment should be prepared for the HP-2330?
A: Beyond the rated 110V/220V Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.

What routine maintenance keeps the HP-2330 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the HP-2330 handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
