HP-2938 Multifunction Swing-Away Sublimation Heat Press Machine for Mugs (Manual)
HP-2938 Multifunction Swing-Away Sublimation Heat Press Machine for Mugs (Manual)
Couldn't load pickup availability
CECLE HP-2938 vs. Traditional / Generic Alternative
Where the CECLE HP-2938 stands out against manual or generic heat press machines — measured on the dimensions buyers care about most.
Technical Specifications
| Items | Specifications |
|---|---|
| Model | HP-2938 |
| Heat Platen Size | 29×38CM/11.4"×15" |
| Power | 1250W |
| Voltage | 110V/220V |
| Temperature Range | 0-399℉ |
| Time Range | 0-999 Seconds |
| Packaging Dimension | 54×46×45CM/21.3×18.1×17.7" |
| Gross Weight | 26KG/57LB |
Pre-installation requirements: Power: 1250W; Voltage: 110V/220V; Packaging Dimension: 54×46×45CM/21.3×18.1×17.7"; Gross Weight: 26KG/57LB.
Compatible Applications & Materials
Transfer Media : Blank consumables such as T-shirts, mugs, blank caps, and corresponding sublimation paper. Power Supply : 110V or 220V power source.
Standard Operating Procedure (SOP)
- Connect Attachment : Align the flat heating cable's aviation plug with the side interface of the temperature control box and tighten the screw
- Preheat : Connect power, set target temperature and time, and wait for heating up

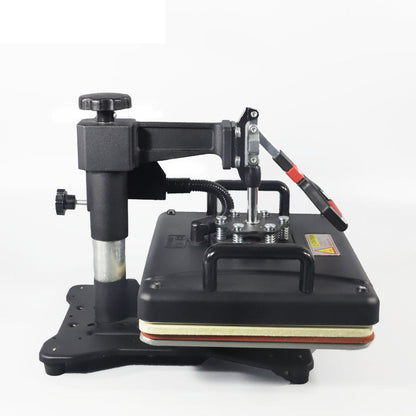

- Load Material : Move the heating plate aside horizontally (swing away), lay the T-shirt flat on the base silicone pad, and place the pattern

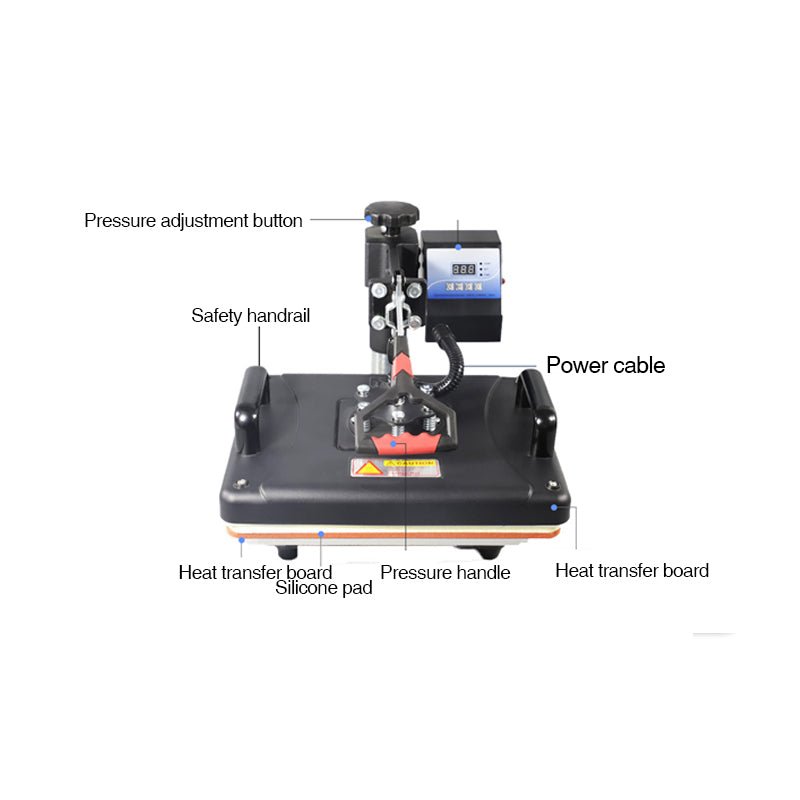

- Apply Pressure : Rotate the heating plate back into position, adjust thickness pressure via the top knob, press down the black handle with both hands, and the machine starts the countdown
- Finish : When the buzzer sounds, lift the handle, move the heating plate aside horizontally, peel off the sublimation paper, and complete the transfer.
Engineering FAQ

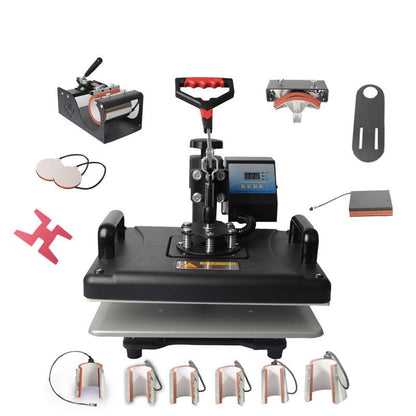

Is it troublesome to switch between different attachments (e.g., from pressing garments to mugs)?
A: Not at all. No professional electrical knowledge is required. Our machine uses "aviation plugs." Simply loosen the screw, unplug the flat heating plate's connector, then plug the mug press connector into the main control box—the machine automatically recognizes it and powers and heats the mug press. The whole process takes under 1 minute.
Can this machine be used with 110V voltage in the United States?
A: Absolutely. We can provide you with customized 110V (North American standard) and 220V (European/Asian standard) models, equipped with power plugs that comply with your local standards.
Why is the heating platen not a regular square but plum-blossom shaped?
A: The plum-blossom pressure plate is a mechanical optimization design. Compared with an ordinary solid flat iron plate, the plum-blossom structure better distributes the central pressure rod's force evenly to the four corners , while also making the heating plate easier to disassemble and maintain.
What power supply does the HP-2938 require?
A: The HP-2938 runs on 1250W Power. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.
What peripheral equipment should be prepared for the HP-2938?
A: Beyond the rated 110V/220V Voltage supply, prepare the standard fixtures/molds for your product format and a clean, stable workbench. No special external compressor is required for this electric model.
What routine maintenance keeps the HP-2938 stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.
Full Documentation & Drawings
Complete technical manual, parameters and engineering drawings: CECLE Docs — HP-2938
