VC-10A Vacuum Capping Machine for Glass Jars & Bottles (Pneumatic Drive)

Name: VC-10A
Brand: CECLE
Price: 2399.0 USD
Availability: InStock

$2,399.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model VC-10A

Shipping method free shipping by express(7-10 days)

Place of shipment shipping from China

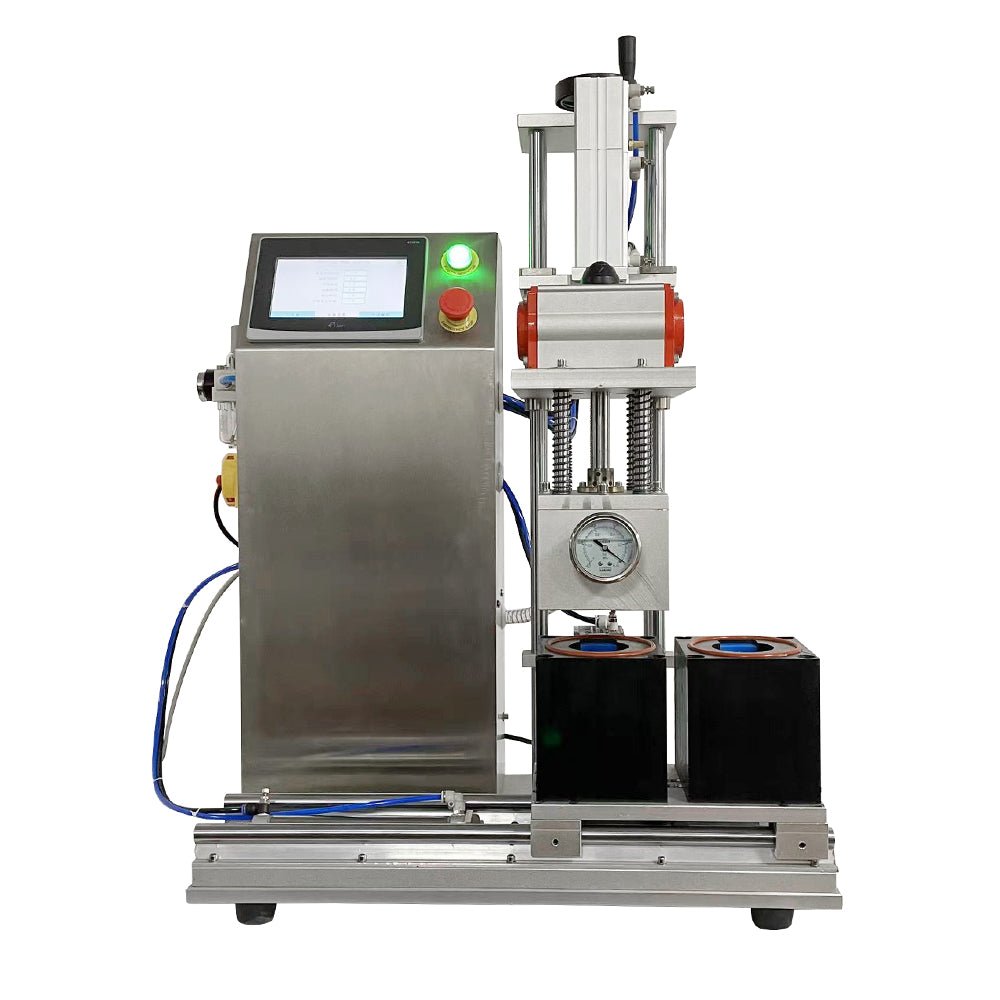

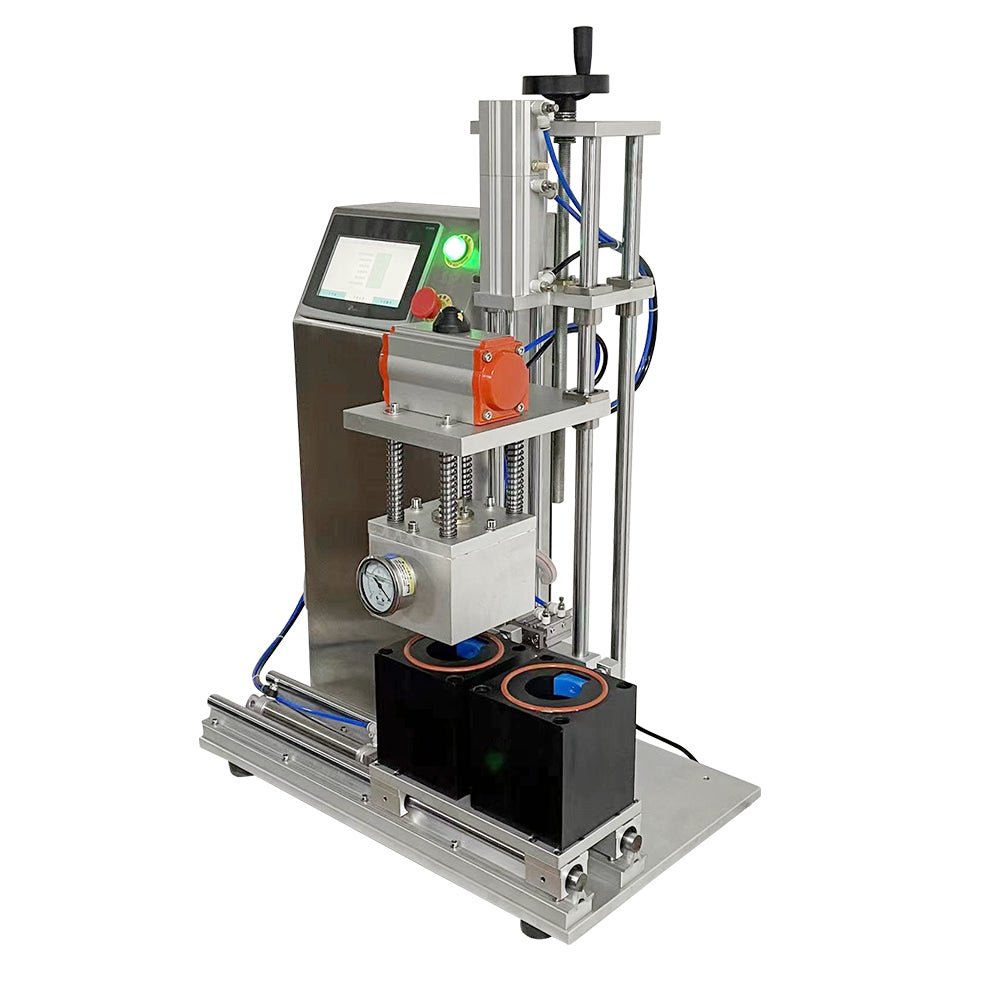

Quick Answer: The CECLE VC-10A is a tabletop semi-automatic vacuum capping machine designed for glass bottles with tinplate caps.

CECLE VC-10A vs. Traditional / Generic Alternative

Where the CECLE VC-10A stands out against manual or generic vacuum capping machines — measured on the dimensions buyers care about most.

Output Speed & Throughput

CECLE VC-10ADual-Workstation Efficient Design (2 Workstations) : Equipped with two operating stations for alternating cycle operation, offering higher production efficiency than standard single-station models

Slow Manual CyclingLoading and cycling depend on operator pace, limiting real throughput and raising labor cost.

Sealing / Transfer Quality

CECLE VC-10APrecision Customized Molds : 1:1 mold customization based on customer-provided bottle and cap samples to guarantee 100% fit, preventing cap slipping or damage

Uncontrolled Contact ConditionsEdges wrinkle, seals weaken or transfer is incomplete because pressure/heat are not synchronized.

Chassis Rigidity & Vibration Resistance

CECLE VC-10ACompact and Lightweight Body : Tabletop structural design with dimensions of only 950 650 400 mm, saving space and making installation and transport extremely convenient

Lightweight Sheet Metal ConstructionProne to chassis flex, frame warping over time, and seal leakage.

Pressure Consistency

CECLE VC-10AThe CECLE Vacuum Capping Machine holds working pressure steady across batches, cutting weak-output rejects.

Inconsistent Contact PressureForce drifts part to part, causing weak seals or incomplete transfer.

Technical Specifications

Technical Items	Specifications
Model	VC-10A
Power Supply	AC 110–220V / 50–60Hz
Power	700W
Capping Speed	0–600 bottles/hour (bottles/h)
Applicable Products	Glass bottles, Tinplate caps
Molds	Customize molds according to bottles
Number of Workstations	2
Machine Size	950 * 650 * 400 mm (L W H)
Automatic Level	Semi-automatic

Pre-installation requirements: Power Supply: AC 110–220V / 50–60Hz; Power: 700W.

Compatible Applications & Materials

industrial products — primary target products for this Vacuum Capping Machine line
Standard industrial materials compatible with the machine's rated spec range
B2B production lines and contract manufacturing workshops

Standard Operating Procedure (SOP)

Setup: connect the required power / air supply and verify the control display.
Parameter preset: set speed / temperature / pressure per the product spec.
Material loading: place the product in the correct fixture / mold slot.
Execution: start the cycle; monitor for stable, repeatable output.
Quality check: inspect the first units; adjust if deviation appears.
Safety & cooldown: use Emergency Stop on abnormality; allow cooldown before maintenance.

Engineering FAQ

Does operating this machine require an additional air compressor (air pump)?
A: Yes, it does. The lowering of the vacuum chamber and the capping drive are both pneumatically controlled. It is recommended to configure an air compressor with a stable pressure of around 0.7 Mpa.

Do I need to send sample bottles and caps?
A: To ensure the best capping and vacuum results, it is highly recommended that you send samples. We will customize the most suitable molds based on your samples free of charge.

How long is the warranty period?
A: The entire machine comes with a 1-year warranty. Non-human damaged parts will be replaced free of charge during the warranty period. After the warranty period, we offer lifetime technical support and spare parts at cost price.

What power supply does the VC-10A require?
A: The VC-10A runs on AC 110–220V / 50–60Hz Power Supply. Ensure the facility provides a stable supply at this rating; voltage mismatch can damage the drive or reduce performance.

What routine maintenance keeps the VC-10A stable for long production runs?
A: Keep the working area clean, verify the rated power/air supply before each shift, and inspect wear parts per the technical manual. Stable input conditions are the main factor in consistent output and long service life.

Which product sizes and formats can the VC-10A handle?
A: The machine is configured for its rated specification range (see Technical Specifications). For formats outside the standard range, CECLE can advise on tooling or model selection.
